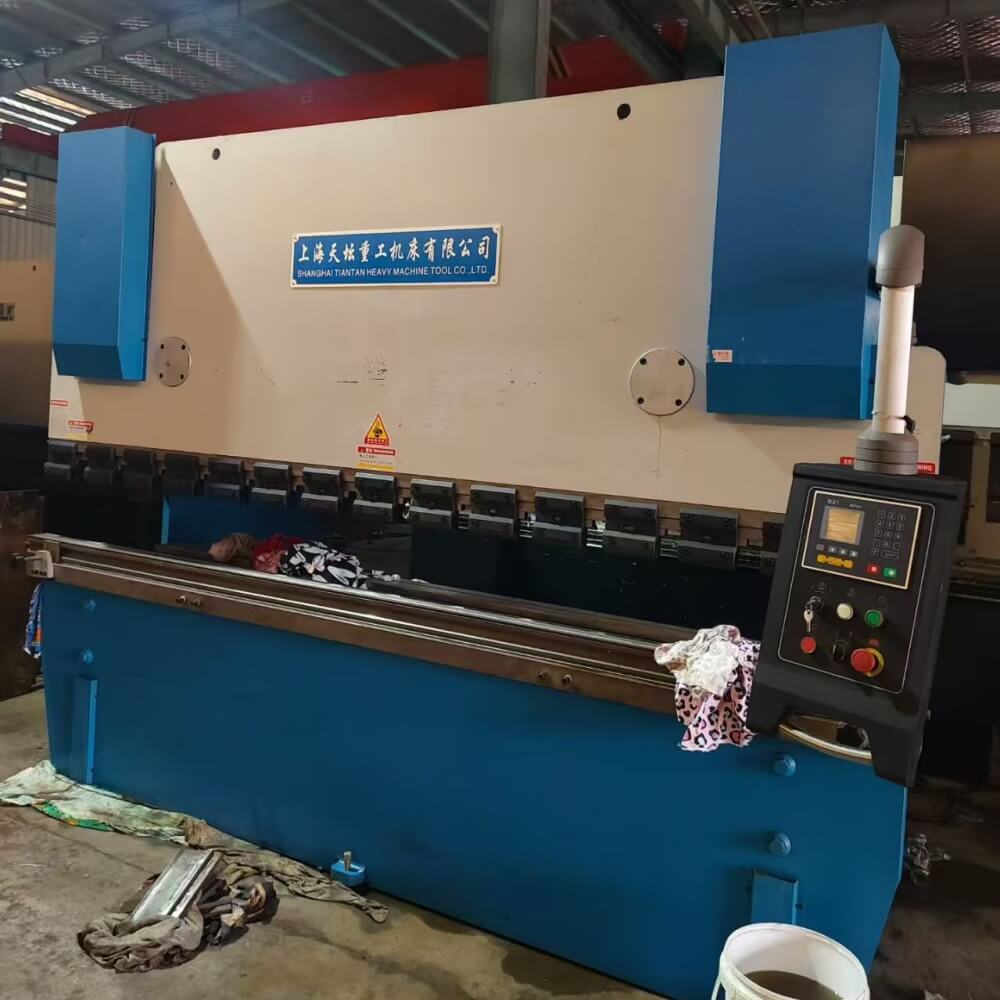

125T × 3200mm Hydraulic Press Brake
- Heavy-duty welded frame with high rigidity
- Stable hydraulic system, low noise
- High precision and good angle consistency
- Easy operation, suitable for batch production

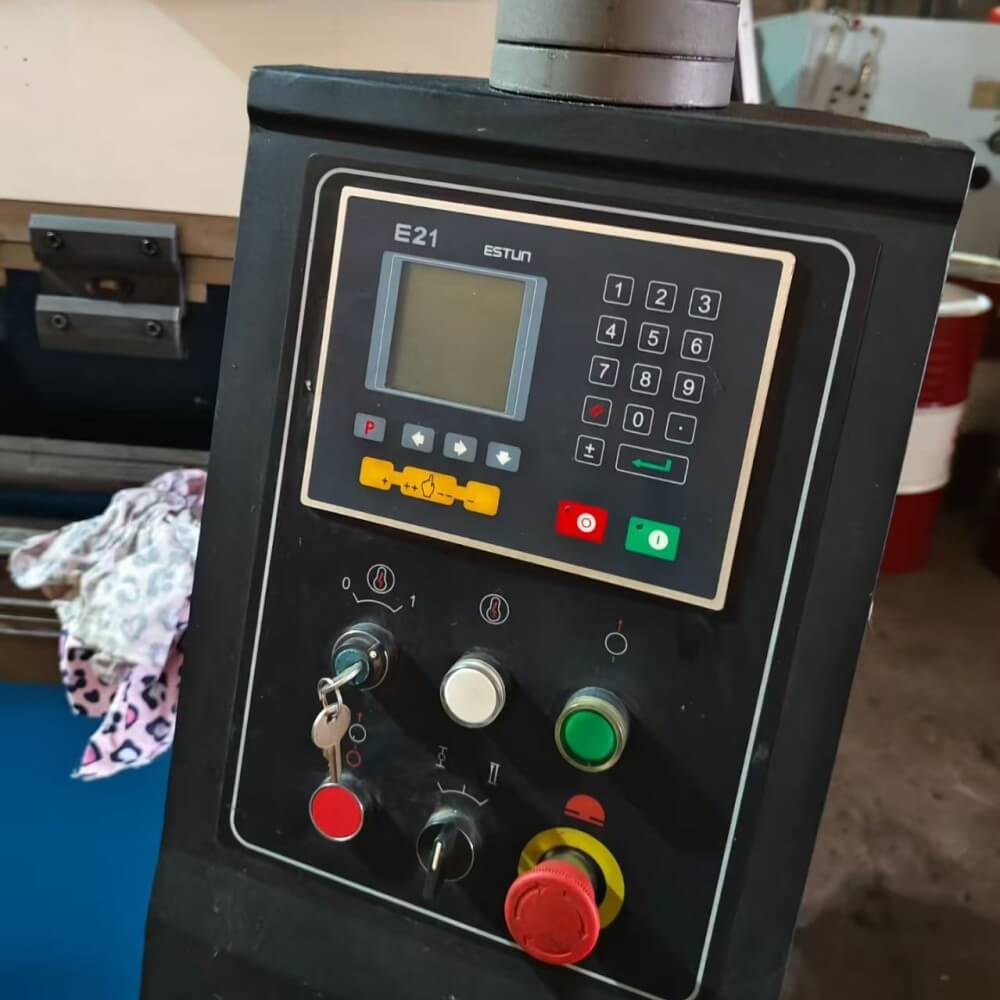

- Optional CNC system: E21, ESA, DELEM
6,600.00$
Main Parameters
- Nominal bending force: 1250 kN (125 Ton)
- Max. bending length: 3200 mm
- Suitable material thickness:
- Q235 carbon steel: ≤12 mm
- 304 stainless steel: ≤8 mm
- Ram stroke: 160 mm
- Open height: 450 mm
- Throat depth: 320 mm
- Back gauge: CNC X-axis
- Worktable: Hydraulic deflection compensation
- Main motor power: 11 kW
- Voltage: 380V/50Hz 3-phase
