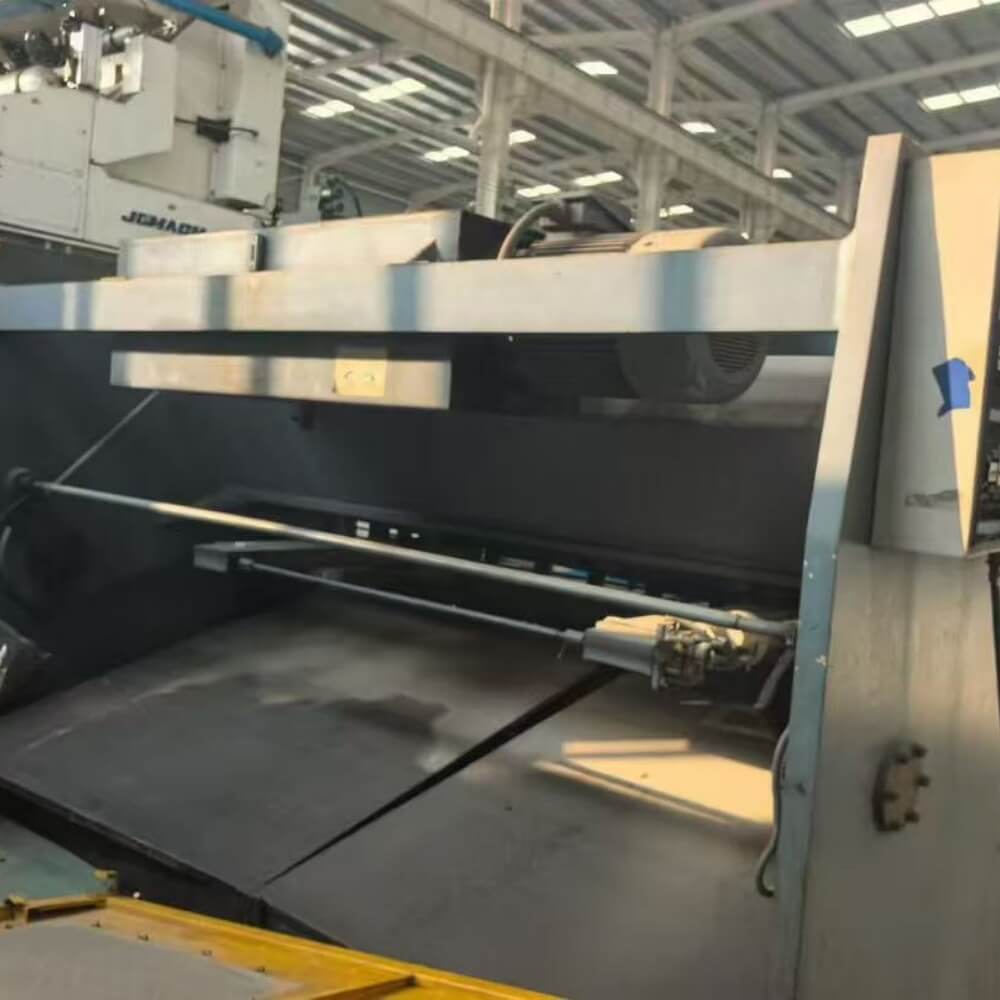

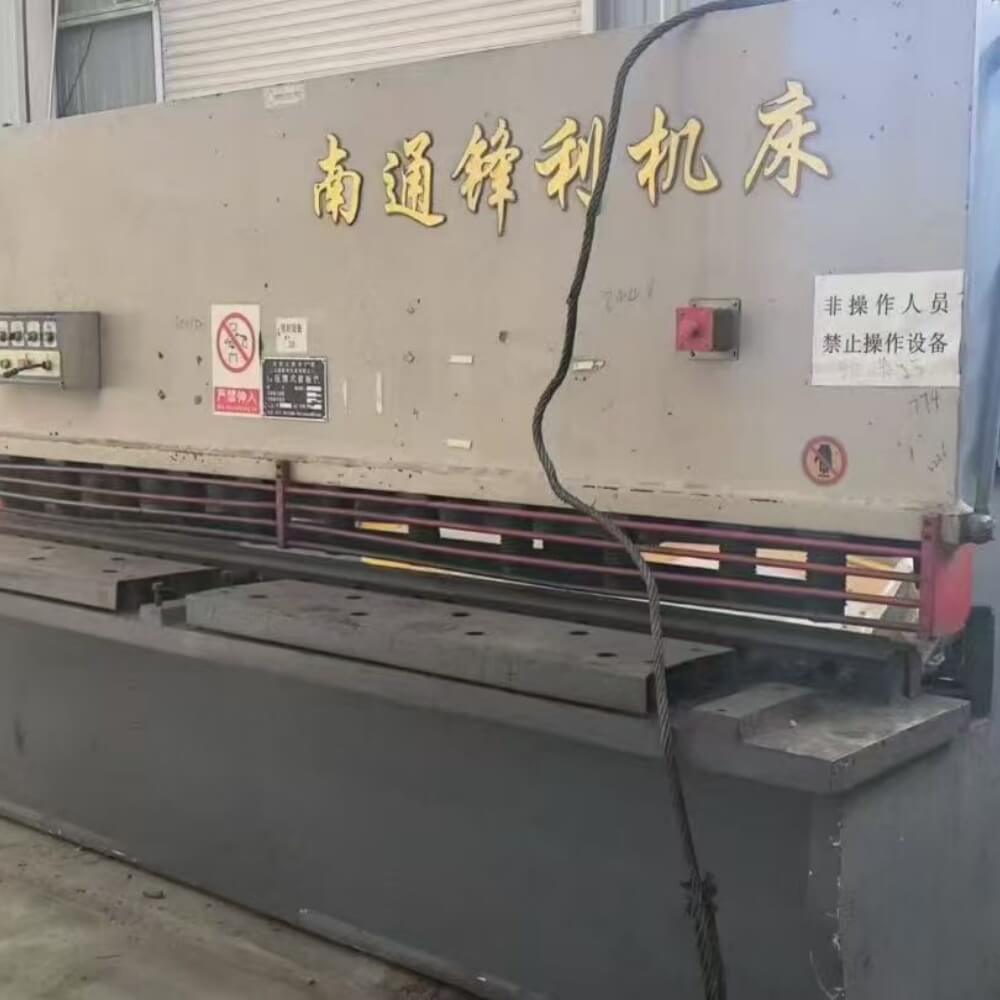

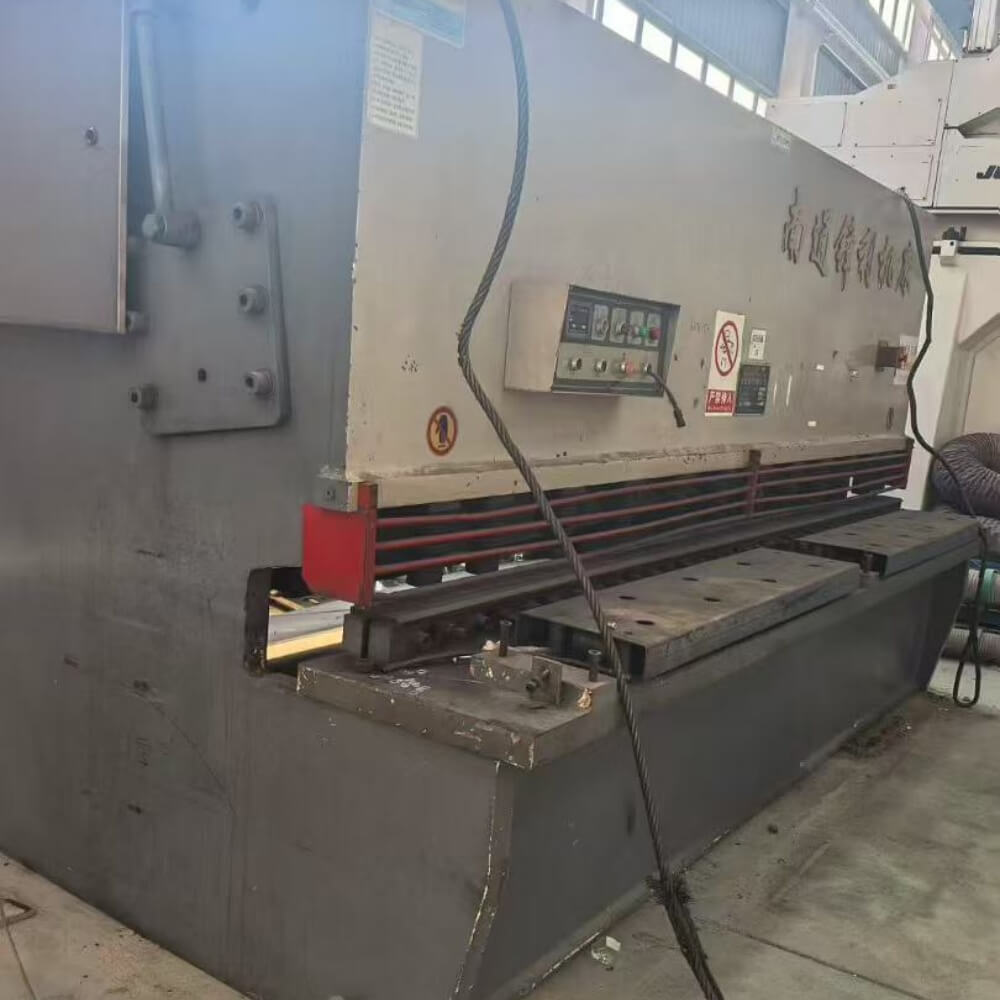

16×3200mm Shearing Machine
- Steel Structure & Construction: Processes thick steel plates for building beams, columns, steel frames, and bridge components.
- Heavy Machinery Manufacturing: Cuts thick metal sheets for the production of excavator bodies, loader frames, and mining equipment parts.
- Shipbuilding & Offshore: Shears thick plates for ship hulls, bulkheads, and marine structural components requiring high strength.
- Wind Power & Energy: Processes thick base plates and tower flanges for wind turbines and other heavy energy equipment.
- Metal Processing Centers: Ideal for large metal fabrication shops handling heavy-gauge steel plate cutting jobs.
5,800.00$
| Parameter | Specification |
|---|---|

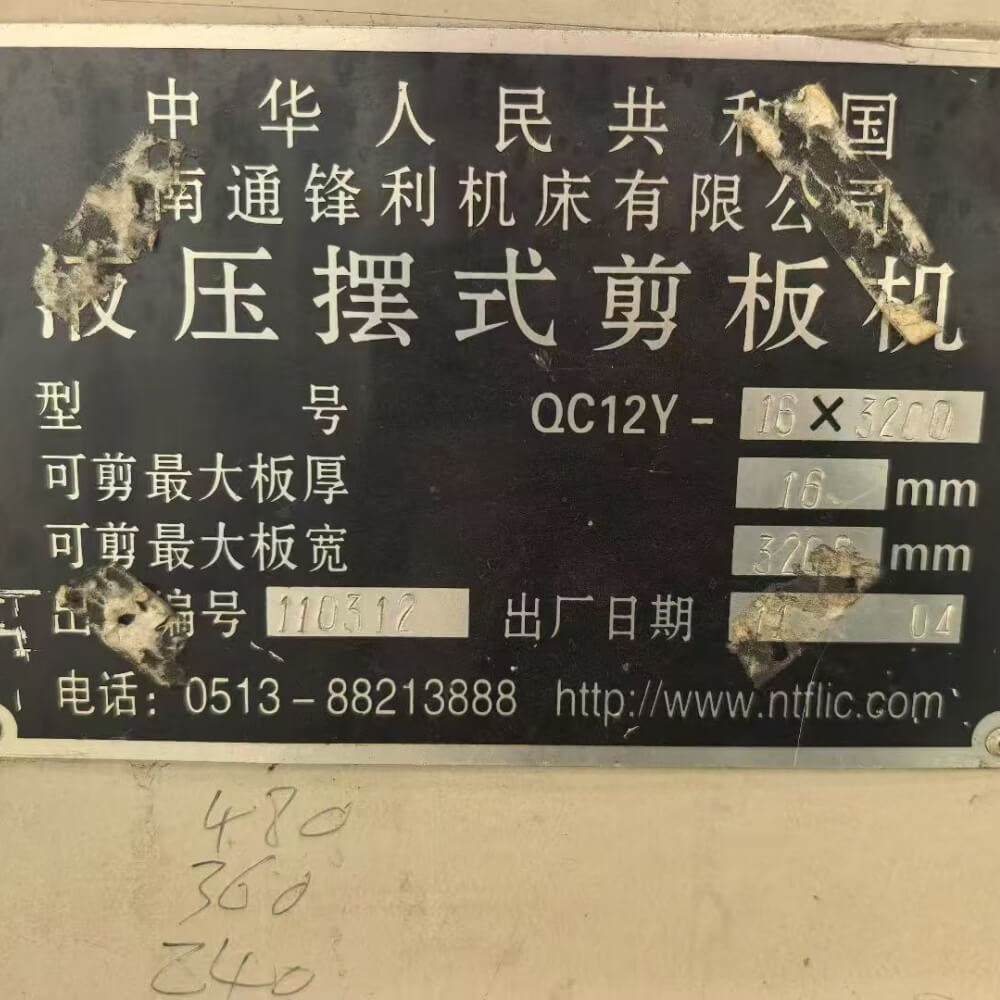

| Model | 16×3200mm Hydraulic Shearing Machine |
| Max. Shearing Thickness | 16mm (Q235 Carbon Steel) |
| Max. Shearing Width | 3200mm |
| Blade Length | 3300mm |
| Blade Gap Adjustment | 0.15-1.6mm (Stepless Adjustable) |
| Shearing Angle | 3.5° (Fixed, Anti-deformation) |
| Back Gauge Travel | 0-800mm |
| Back Gauge Accuracy | ±0.1mm |
| Hold-Down System | Hydraulic Multi-point Synchronous Pressing |
| Main Motor Power | 18.5kW |
| Hydraulic Pressure | 25MPa |
| Control Mode | E21S CNC System / Foot Switch |
| Table Height | 850mm |
| Overall Dimensions (L×W×H) | 4200×2200×2500mm |
| Net Weight | Approx. 12,000kg (12 Tons) |
| Voltage | 380V/50Hz 3-Phase (Customizable for Export) |
| Safety | Dual Emergency Stop + Full-Length Light Curtain |
