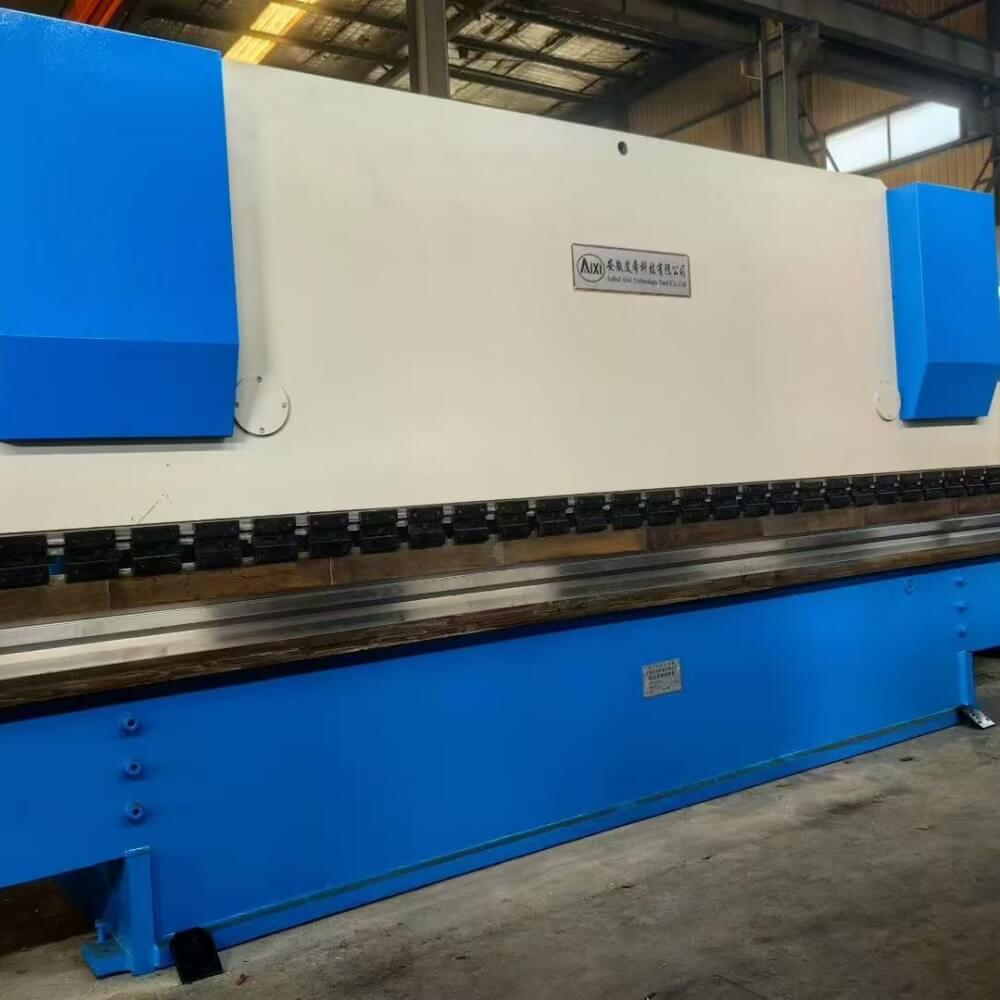

200T × 6000mm CNC Hydraulic Press Brake
- Steel Structure & Construction: Bending of 6-meter beams, columns, bridge guardrails, and building frames.
- Container & Transportation: Fabrication of container side panels, street lamp poles, and large vehicle body components.
- Heavy Machinery: Processing of excavator enclosures, crane booms, and mining equipment parts.
- Shipbuilding & Offshore: Bending of hull bulkheads and large marine structural components.
16,500.00$
| Parameter | Specification |
|---|---|
| Nominal Bending Force | 2000kN (200T) |
| Maximum Bending Length | 6000mm |
| Suitable Bending Thickness | ≤16mm (Q235 carbon steel) |
| Worktable Anti-Deflection | Hydraulic multi-point compensation |

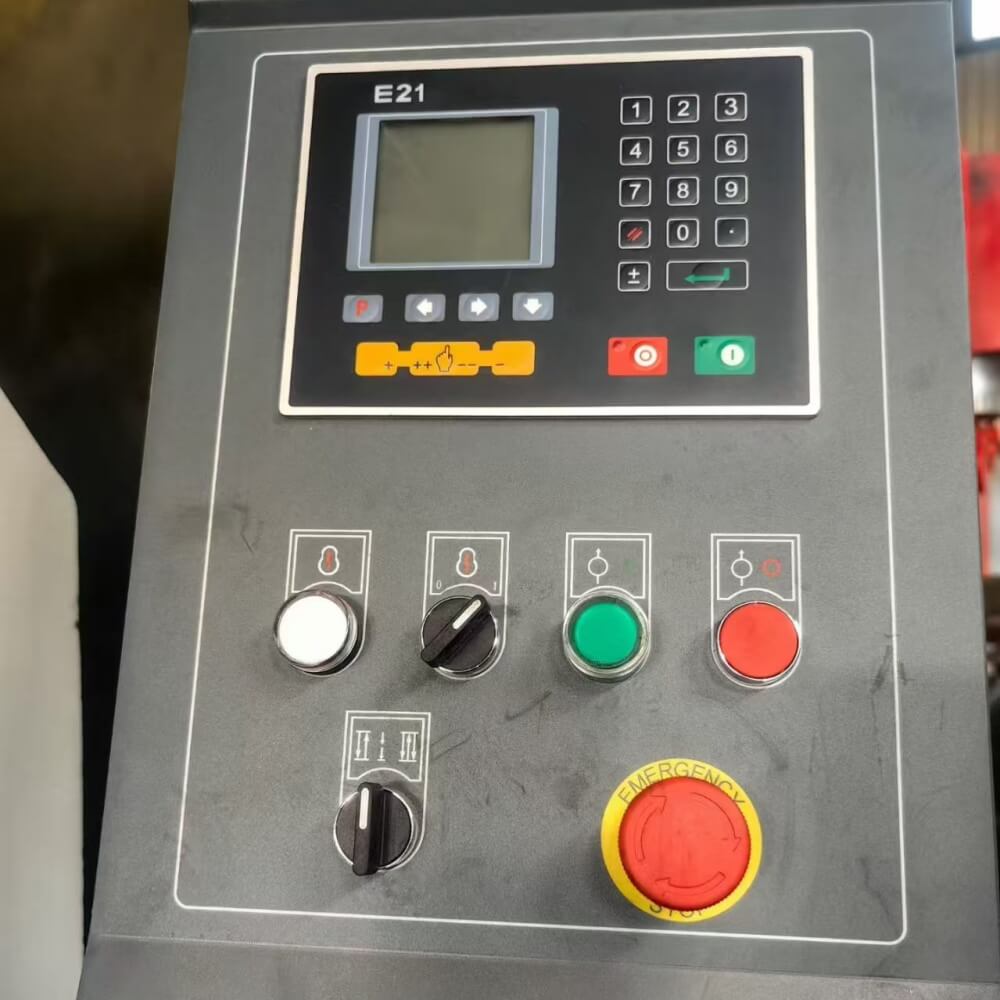

| Control System | CNC system (ESTUN / DELEM optional) |
| Main Motor Power | ~18.5kW |
| Net Weight | Approx. 16,000kg |
| Overall Dimensions | ~6200 × 2200 × 3000mm |
