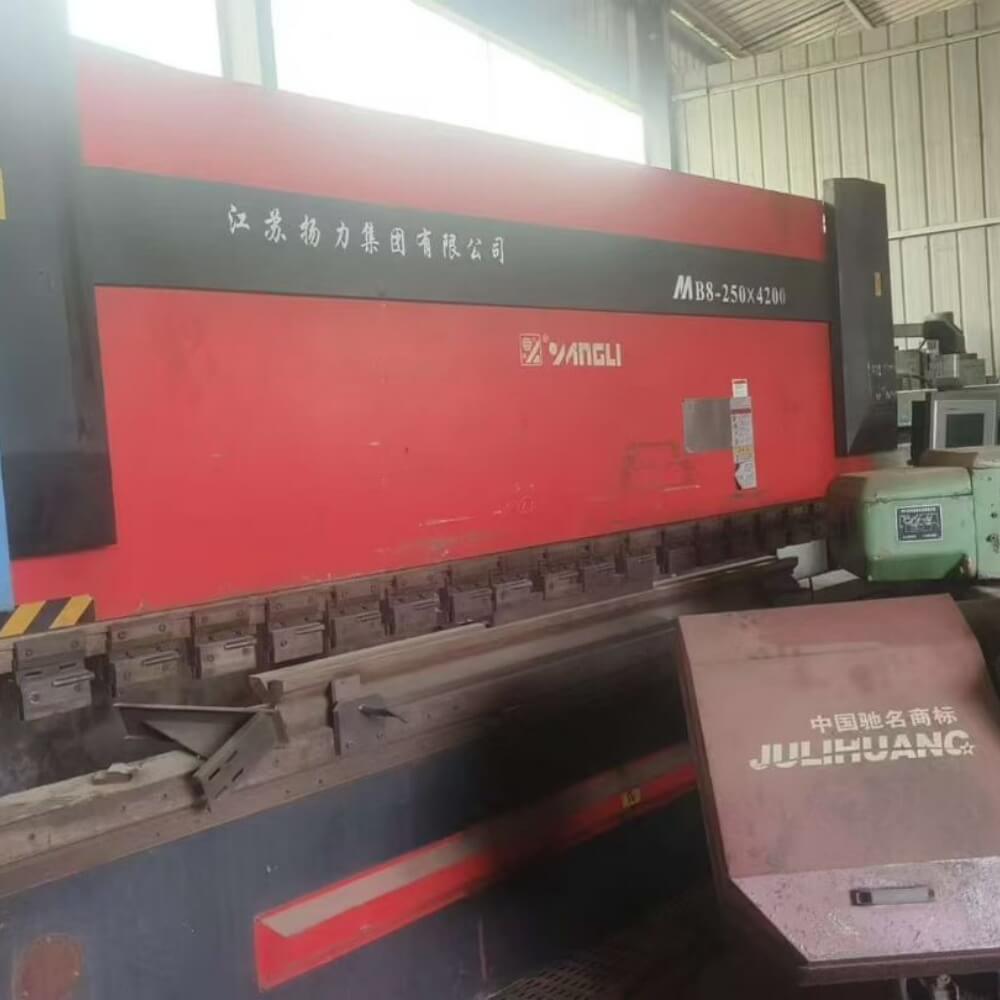

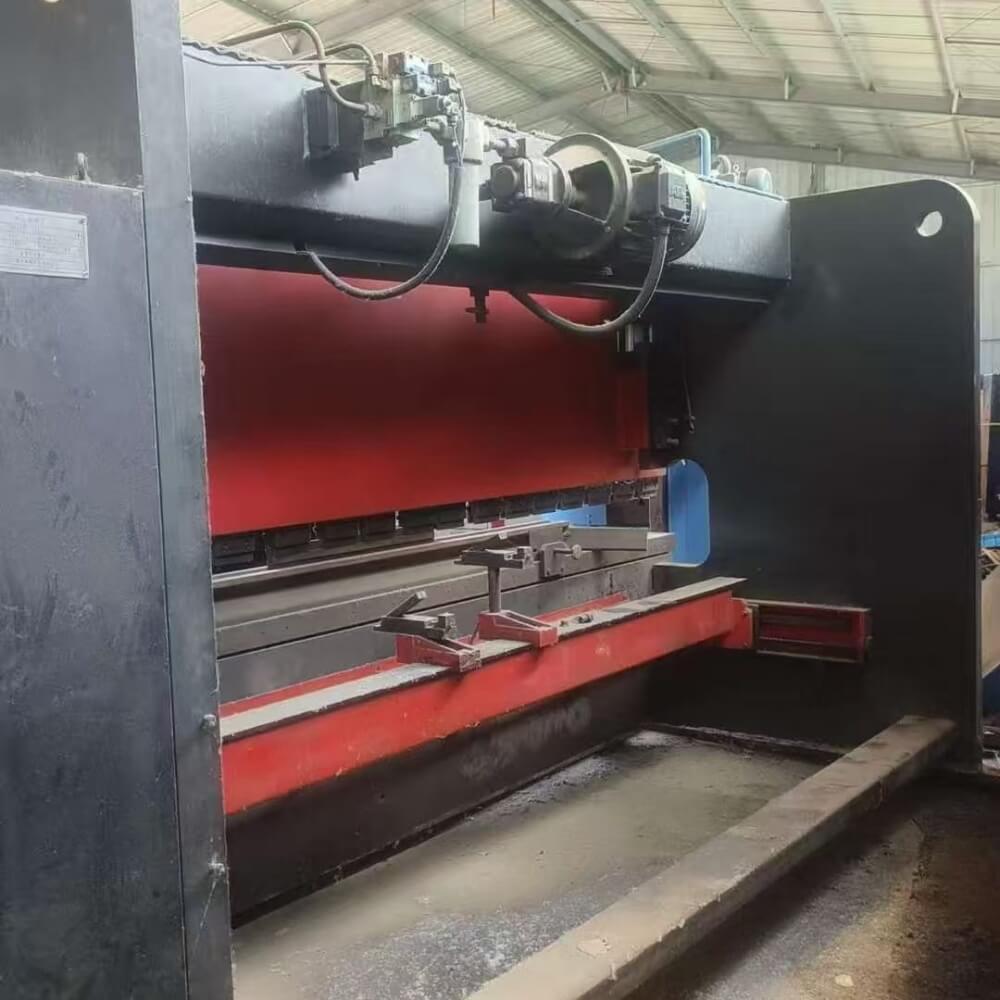

250T×4200mm CNC Hydraulic Press Brake
- Steel Structure & Building Engineering: Bends 4200mm wide thick steel plates for building beams/columns, bridge guardrails, high-rise building steel frames and municipal heavy metal structures.
- Heavy Engineering Machinery Manufacturing: Forms ultra-wide thick sheet parts for excavator/loader integral frames, crane arm structural parts, mining machinery housings and construction hoist enclosures.
- Shipbuilding & Offshore Equipment: Processes 4200mm wide bent parts for ship hull bulkheads, deck structural components, marine container frames and offshore platform metal accessories.
- Wind Power & Energy Equipment: Bends thick and wide sheets for wind power tower flanges, large transformer outer covers, thermal power boiler accessories and new energy equipment structural parts.
- Large-Scale Sheet Metal Processing Centers: Ideal for heavy-duty sheet metal fabrication enterprises undertaking custom ultra-wide thick plate bending, such as large industrial equipment shells and heavy metal containers.
23,000.00$
| Parameter | Specification |
|---|---|
| Model | 250T×4200mm CNC Hydraulic Press Brake |
| Nominal Bending Force | 2500kN (250T) |
| Maximum Bending Length | 4200mm |
| Throat Depth | 360mm |
| Ram Stroke | 200mm |
| Maximum Open Height | 600mm |
| Ram Speed | Fast down: 90mm/s; Working: 5-12mm/s; Return: 85mm/s |
| Back Gauge Axis | X+R (Y-axis optional, CNC control) |
| X-axis Travel | 0-1000mm |
| Back Gauge Positioning Accuracy | ±0.05mm |
| Suitable Bending Thickness (Q235) | ≤20mm |
| Suitable Bending Thickness (304 SS) | ≤12mm |
| Worktable Anti-Deflection | Hydraulic full-length real-time dynamic compensation |
| Main Motor Power | 18.5kW |
| Hydraulic System Pressure | 31.5MPa |

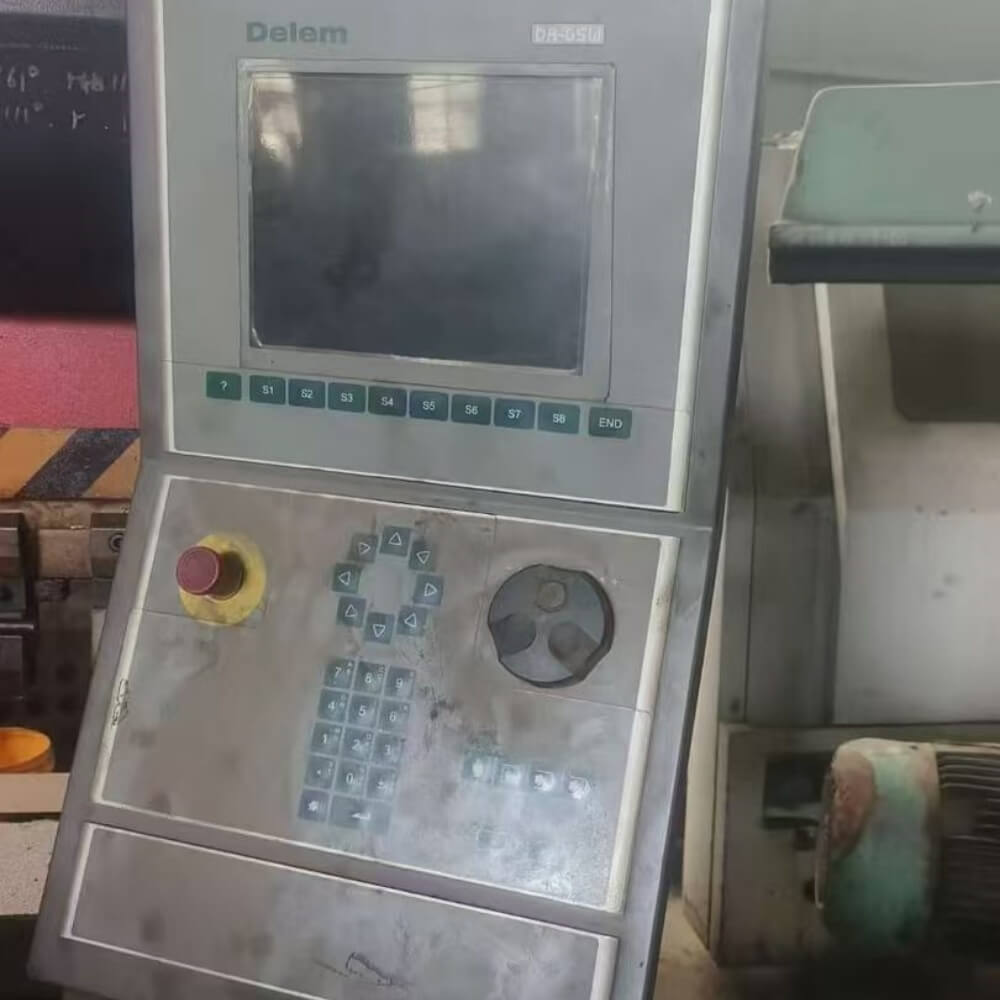

| CNC Control System | ESA S630 / DELEM DA53T (mainstream optional) |
| Pressing Mode | Hydraulic multi-point synchronous pressing (8 points) |
| Table Working Height | 850mm |
| Overall Dimensions (L×W×H) | 5000×2400×3200mm |
| Net Weight | Approx. 18000kg (18 Tons) |
| Working Voltage | 380V/50Hz 3-Phase (customizable for export) |
| Safety Configuration | Full-length light curtain protection + dual emergency stop + door int |
