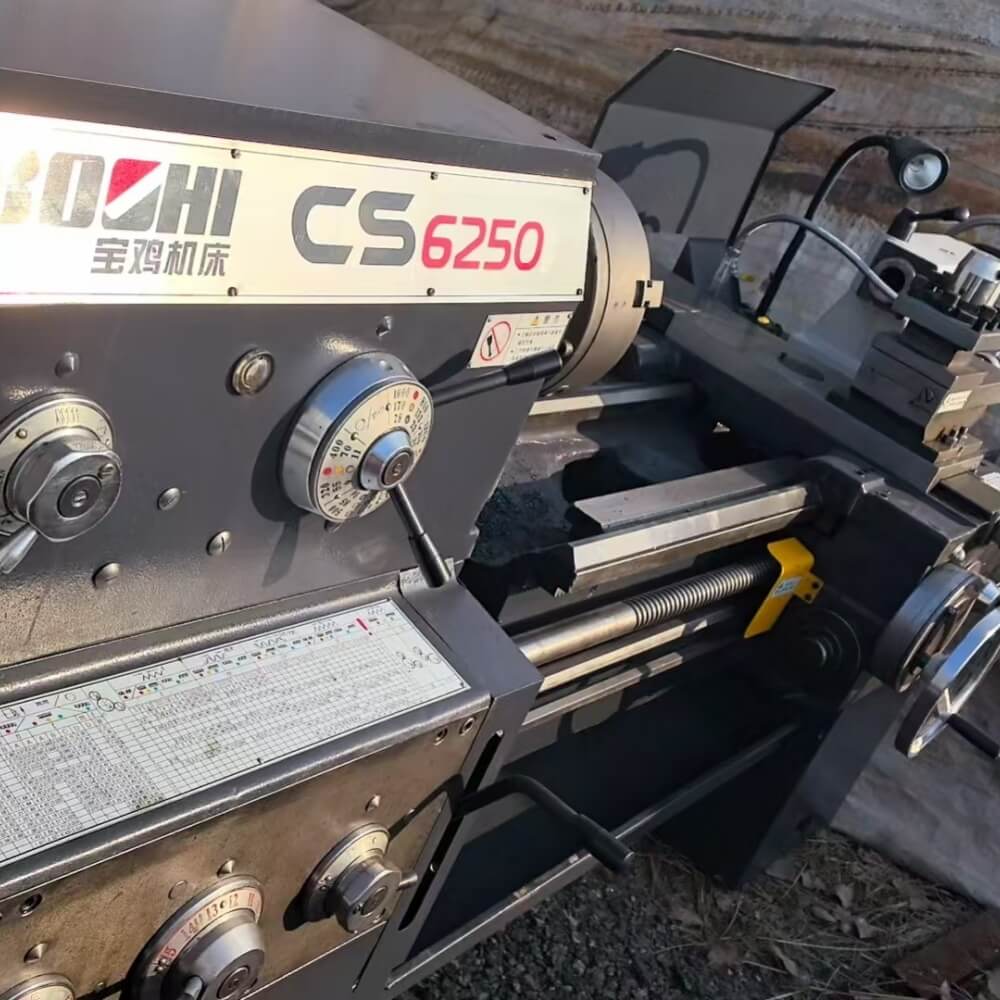

Baoji 6250 Conventional Lathe Machine
- General Machinery Part Processing: Suitable for turning shafts, sleeves, discs and flanges made of carbon steel, alloy steel and stainless steel. Ideal for small-to-medium batch production of motor shafts, reducer parts and pump housings, with reliable accuracy for general industrial parts.
- Automotive & Motorcycle Component Manufacturing: Used for machining drive shafts, gear blanks, wheel hubs and connecting rods. The gap-bed design handles larger-diameter workpieces in the gap area, fitting medium-sized automotive components.
- Hydraulic & Pneumatic Fitting Production: Processes hydraulic cylinder barrels, piston rods, valve bodies and pneumatic connector blanks. Stable spindle speed and multi-system threading meet the precision needs of fluid power components.
- Hardware & Standard Fastener Machining: Turns large-diameter bolts, nuts, bearing seats and structural hardware. Manual operation allows flexible adjustment for non-standard small-batch hardware production.
- Maintenance & Repair Workshops: Repairs shafts, rollers and sleeves for industrial equipment. The 1000mm center distance and moderate power fit common maintenance workpiece sizes, with easy operation for quick on-site repairs.
2,800.00$
Parameter Specification
Maximum Swing Diameter Over Bed Φ500mm
Maximum Swing Diameter in Gap Φ710mm
Effective Length in Gap 240mm
Maximum Swing Diameter Over Slide Φ300mm
Max. Distance Between Centers 1000mm
Max. Machining Length 950mm
Spindle Bore Diameter Φ105mm
Spindle Nose Type ISO 702/II NO.8 com-lock type
Spindle Speed 12 steps, 36-1600rpm
Spindle Motor Power 7.5kW
Tailstock Quill Diameter Φ90mm
Tailstock Quill Max. Travel 150mm
Tailstock Quill Taper MT5 (Morse Taper No.5)
Tool Post Capacity 25×25mm (tool shank)
Max. X-Axis Travel 145mm
Max. Z-Axis Travel 320mm
Bed Width 390mm
Threading Systems Metric, Inch, Module, DP
Power Supply 380V/50Hz (3-phase, customizable)
