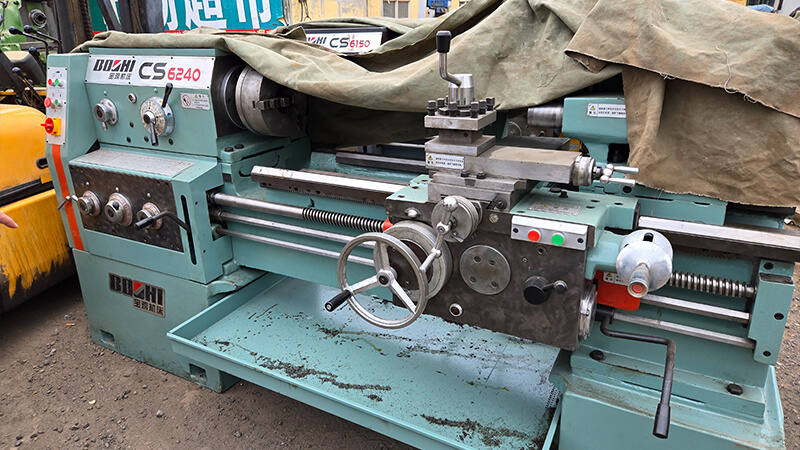

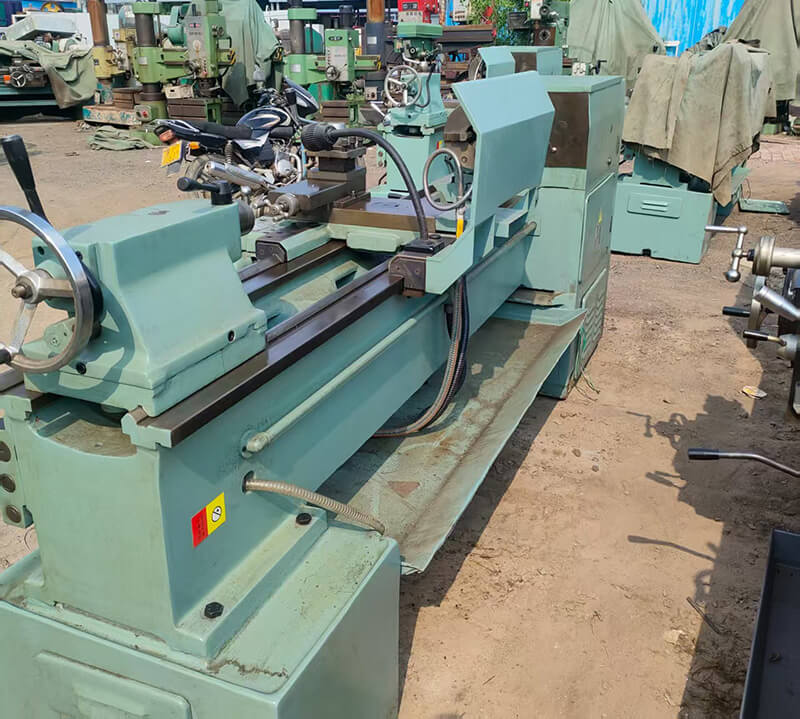

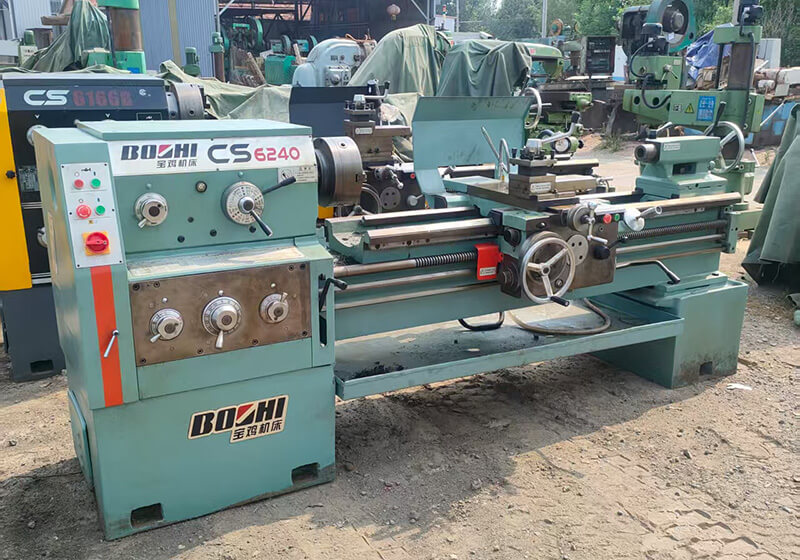

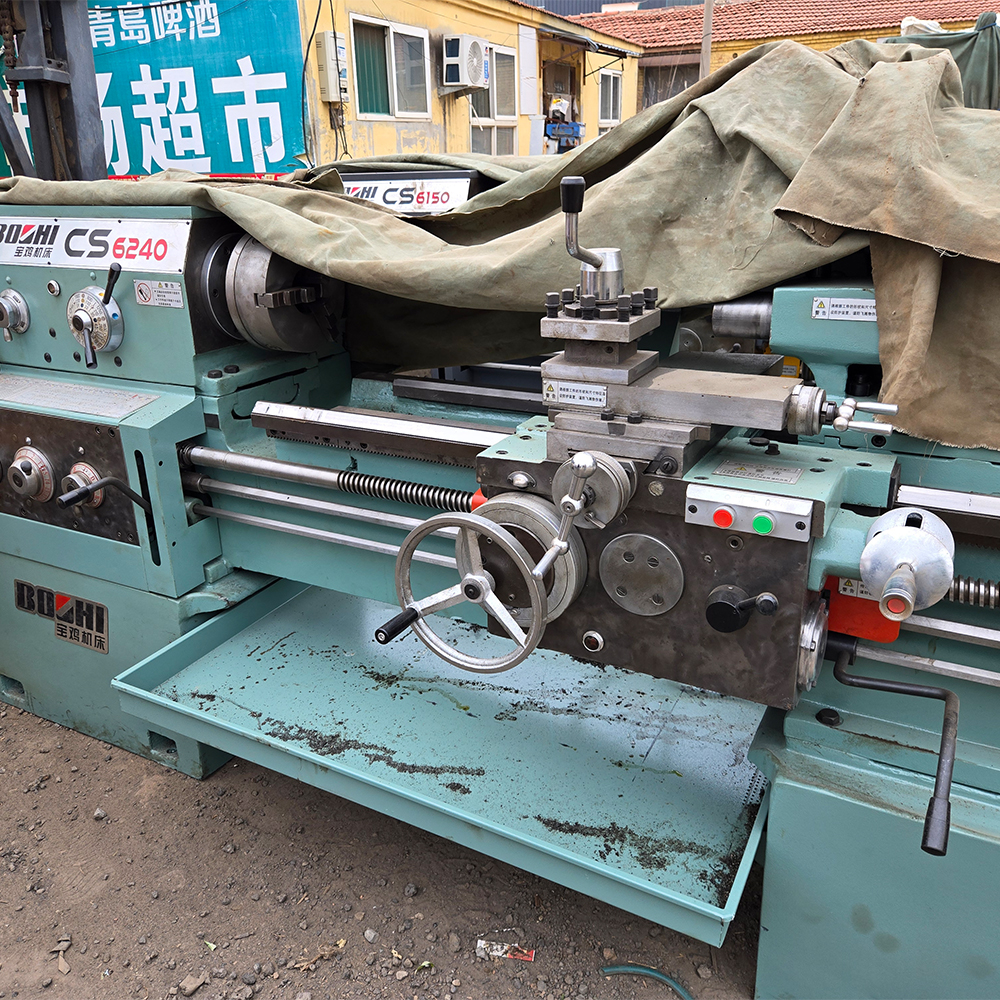

Baoji cs6240
|
Attribute Category
|
Attribute Item
|
Specification
|
Unit
|
Remarks
|
|
Basic Information
|
Machine Model
|
CS6240
|
–
|
Standard model for general-purpose horizontal lathe
|
|
Basic Information
|
Lathe Type
|
Horizontal General-Purpose Lathe
|
–
|
Suitable for universal machining of shaft, disc, and sleeve parts
|
|
Basic Information
|
Manufacturing Brand
|
Baoji Machine Tool
|
–
|
Professional lathe manufacturer with mature production technology
|
|
Machining Capacity
|
Maximum Swing Diameter Over Bed
|
400
|
mm
|
Determines the maximum diameter of workpieces that can be processed on the bed
|
|
Machining Capacity
|
Maximum Swing Diameter Over Cross Slide
|
210
|
mm
|
Applicable to small-diameter workpiece processing on the cross slide
|
|
Machining Capacity
|
Maximum Processing Length
|
750 / 1000 / 1500
|
mm
|
Three optional specifications to adapt to different workpiece lengths
|
|
Spindle System
|
Spindle Speed Range
|
10 – 2000
|
r/min
|
Variable frequency speed control, stable and adjustable speed
|
|
Spindle System
|
Spindle Bore Diameter
|
52
|
mm
|
Facilitates the passage of long bar workpieces during processing
|
|
Spindle System
|
Spindle Taper Hole
|
Morse No.6
|
–
|
Ensures high coaxiality when installing fixtures or tools
|
|
Spindle System
|
Spindle Bearing Type
|
Precision Rolling Bearing
|
–
|
Reduces spindle runout and improves machining accuracy
|
|
Tool Post System
|
Tool Post Type
|
4-Station Square Turret
|
–
|
Manual indexing, simple operation, fast tool change
|
|
Tool Post System
|
Tool Post Positioning Accuracy
|
≤ 0.015
|
mm
|
Guarantees consistent machining precision after tool change
|
|
Tool Post System
|
Maximum Tool Shank Size
|
25×25
|
mm
|
Compatible with most standard turning tools in the market
|
|
Transmission System
|
Drive Mode
|
Gear Transmission
|
–
|
Mature structure, high transmission efficiency, low failure rate
|
|
Transmission System
|
Feed Rate Regulation
|
Stepless Adjustment
|
–
|
Adapts to different machining requirements for surface roughness
|
|
Power System
|
Main Motor Power
|
3
|
kW
|
Provides sufficient power for heavy-duty cutting operations
|
|
Power System
|
Cooling Pump Motor Power
|
0.125
|
kW
|
Efficiently cools cutting tools and workpieces to extend tool life
|
|
Power System
|
Power Supply Voltage
|
380V / 50Hz
|
–
|
Standard industrial power supply, applicable to most regions
|
|
Structural Dimensions
|
Overall Dimensions (L×W×H)
|
2400×980×1250 (for 750mm processing length)
|
mm
|
Compact design, saves workshop installation space
|
|
Structural Dimensions
|
Net Weight
|
≈ 1800 (for 750mm processing length)
|
kg
|
Heavy-duty structure enhances machining stability and reduces vibration
|
|
Safety & Protection
|
Safety Devices
|
Emergency Stop Button, Overload Protection
|
–
|
Ensures operator safety and equipment stable operation
|
|
Safety & Protection
|
Protective Cover
|
Metal Splash Guard
|
–
|
Prevents cutting fluid and chips from splashing, keeping the workplace clean
|
2,800.00$
The bed is made of high-strength cast iron, treated with aging to eliminate internal stress, reducing processing vibration and ensuring long-term operation accuracy.It can process various parts such as shafts, discs and sleeves, adapting to different materials like 45# steel, cast iron and non-ferrous metals, meeting general mechanical processing needs. With a simple structural design, the transmission system has a low failure rate; daily maintenance only requires regular lubrication and component inspection, reducing the operation and maintenance cost for enterprises.The spindle is supported by precision bearings, the tool post has high positioning accuracy, and the machined surface roughness can reach Ra1.6μm, meeting medium and high-precision processing requirements.
