Baoji CS6240 Lathe
| Specification | Details |
|---|---|
| Machine Model | CS6240 |
| Maximum Swing Over Bed | 400 mm |
| Maximum Turning Length | 750 mm / 1000 mm / 1500 mm / 2000 mm / 3000 mm (optional) |
| Spindle Bore Diameter | Φ52 mm / Φ82 mm / Φ105 mm (optional) |
| Spindle Speed Range | 9 – 1600 rpm (24 speeds) or 36 – 1600 rpm (12 speeds) |
| Main Motor Power | 7.5 kW |
| Chuck Size | 250 mm (standard) |
| Tailstock Quill Diameter | Φ80 mm |
| Tailstock Quill Travel | 150 mm |
| Feed Rates | Metric: 0.04 – 3.5 mm/r; Imperial: 0.0015 – 0.138 inch/r |
| Thread Cutting Capacity | Metric: 0.5 – 12 mm; Imperial: 2 – 52 TPI; Module: 0.5 – 6 mm; Diametral Pitch: 0.5 – 52 |
| Overall Dimensions (L×W×H) | Dependent on turning length (e.g., approx. 2500×1000×1200 mm for 750 mm turning length) |
| Net Weight | Approximately 1800 – 3500 kg (depending on configuration) |
| Power Supply | 380V / 220V / 420V, 50Hz / 60Hz (optional) |
3,000.00$
- Powerful Processing Capability
- It can machine internal and external cylindrical surfaces, end faces, and other rotary surfaces. It can also turn various common metric, imperial, module, and diametral pitch threads, and perform operations such as drilling, reaming, and grooving. In addition, it is capable of machining various flat and special - shaped parts.
- The maximum swing diameter over the bed is 400mm, and the maximum turning length can be 750mm, 1000mm, 1500mm, 2000mm or 3000mm, which can meet the processing needs of workpieces of different sizes.
- High - precision Spindle Performance

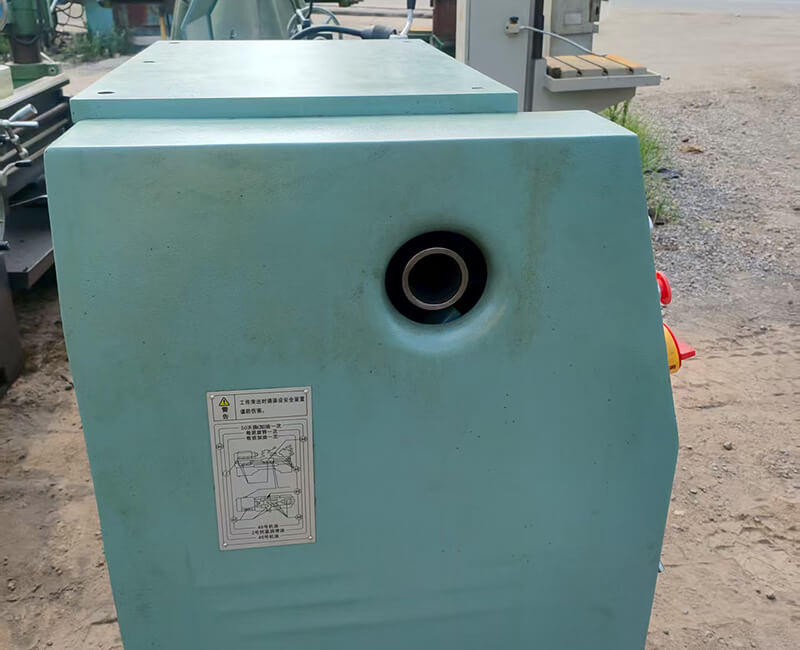

- The spindle through - hole diameter can be Φ52mm, Φ82mm or Φ105mm, which can pass bar materials of different diameters, expanding the processing range.
- The spindle speed range is 9 - 1600rpm (24 - level) or 36 - 1600rpm (12 - level), which can provide appropriate speed adjustment according to different processing requirements, ensuring processing accuracy and efficiency.
- Excellent Structural Designbjmtw.com
- The machine tool is designed using 3D modeling and finite - element method. The overall layout and key structures are analyzed and calculated theoretically, resulting in high rigidity, small thermal deformation, low spindle temperature rise, small vibration, low overall noise, and large - bearing cutting torque. It can adapt to heavy - duty cutting.
- The key parts of the machine tool, such as the bed, headstock, saddle, and tailstock, are processed by high - precision CNC equipment, which ensures the high processing accuracy of the machine tool parts and is an important measure to ensure the machine tool's technical performance.
