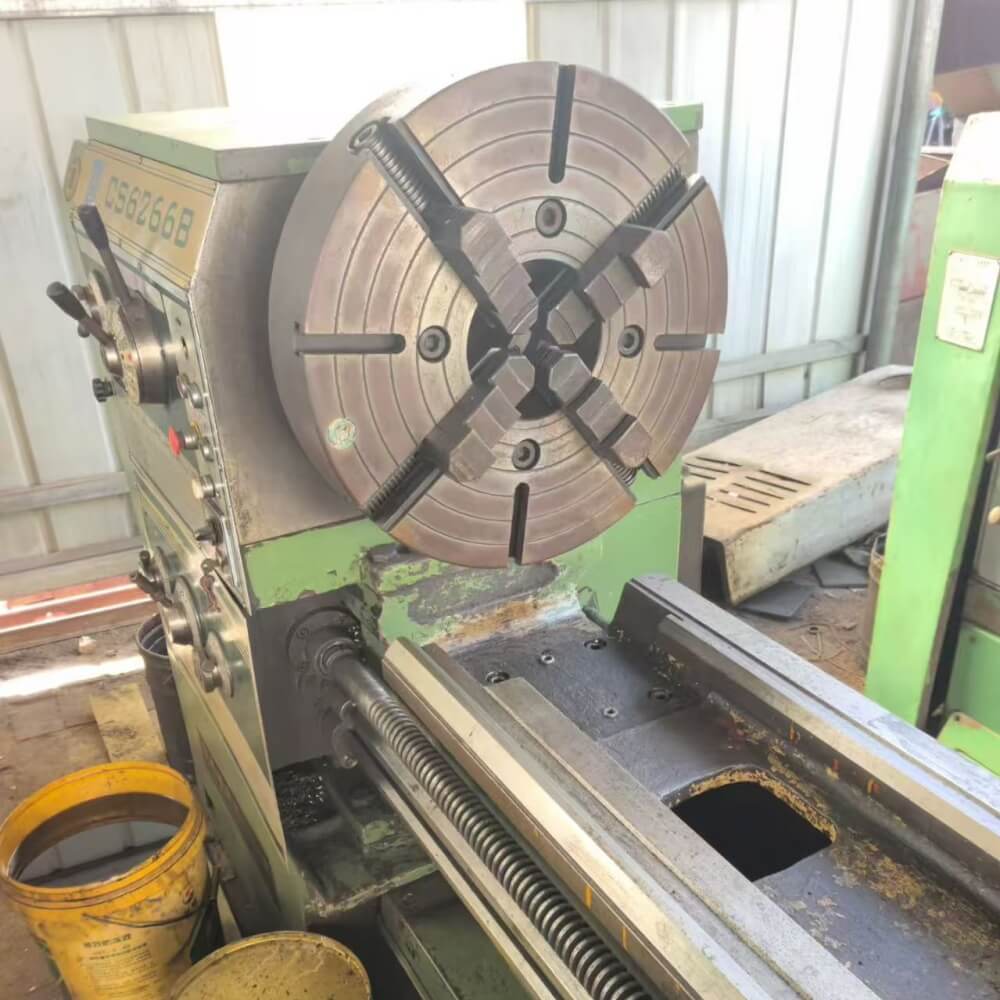

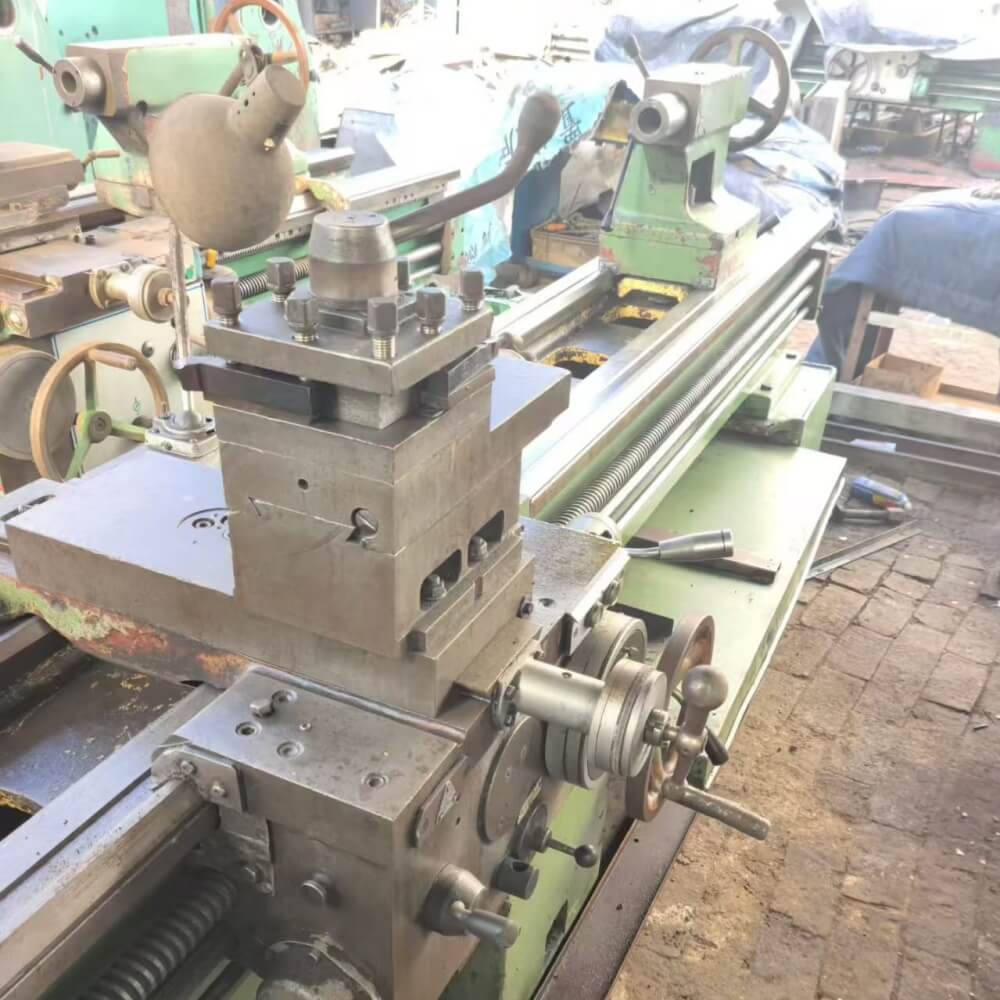

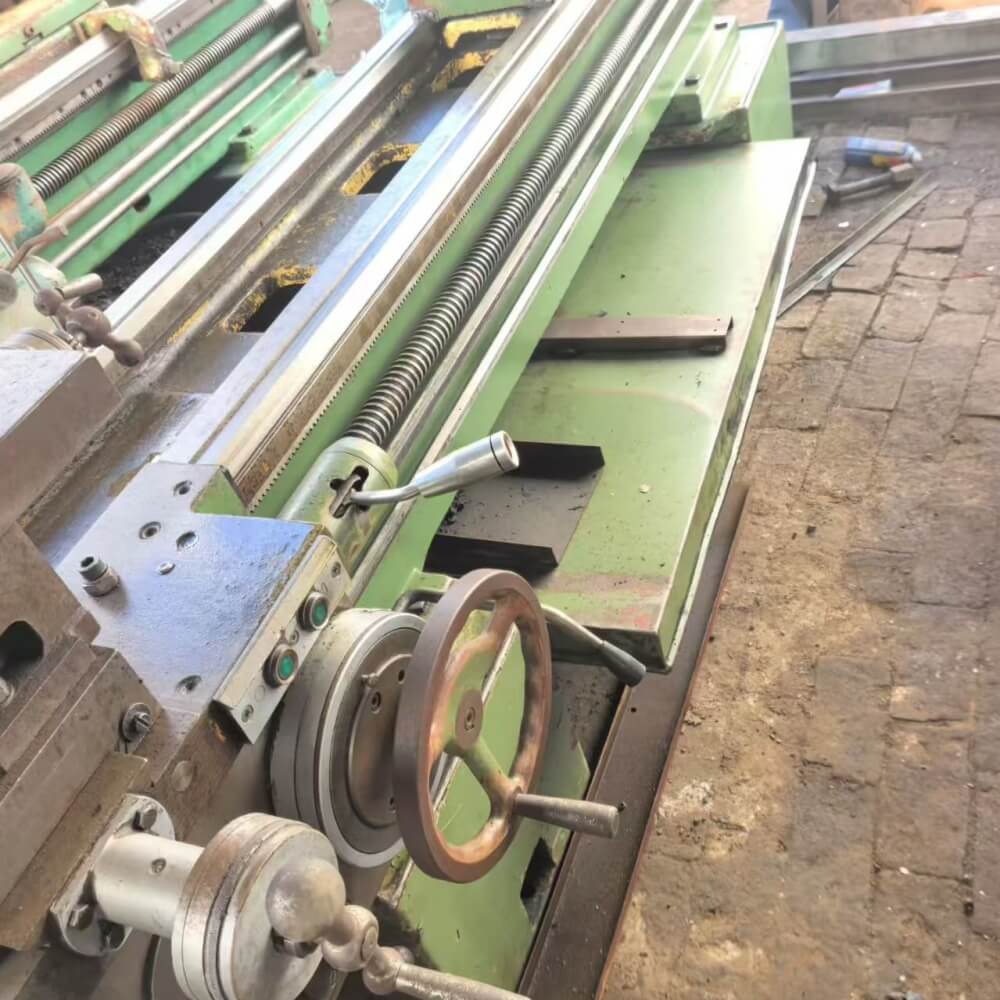

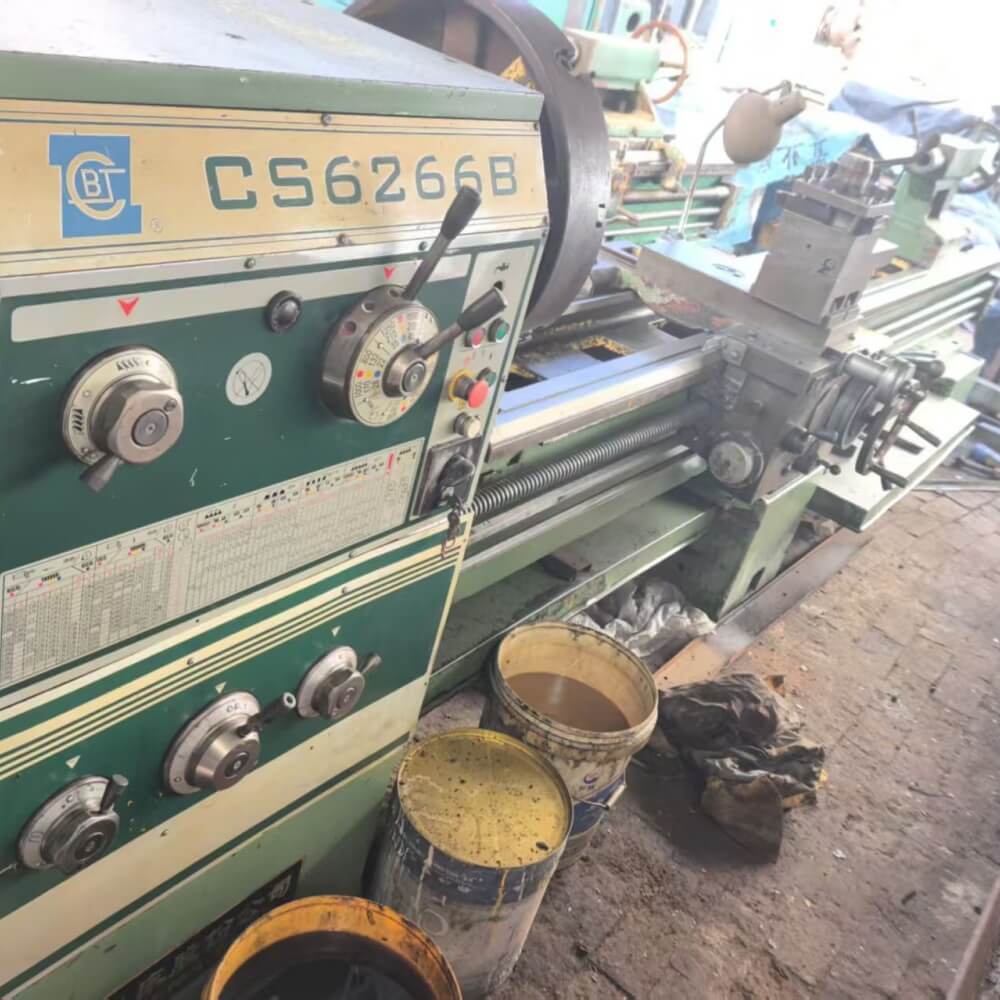

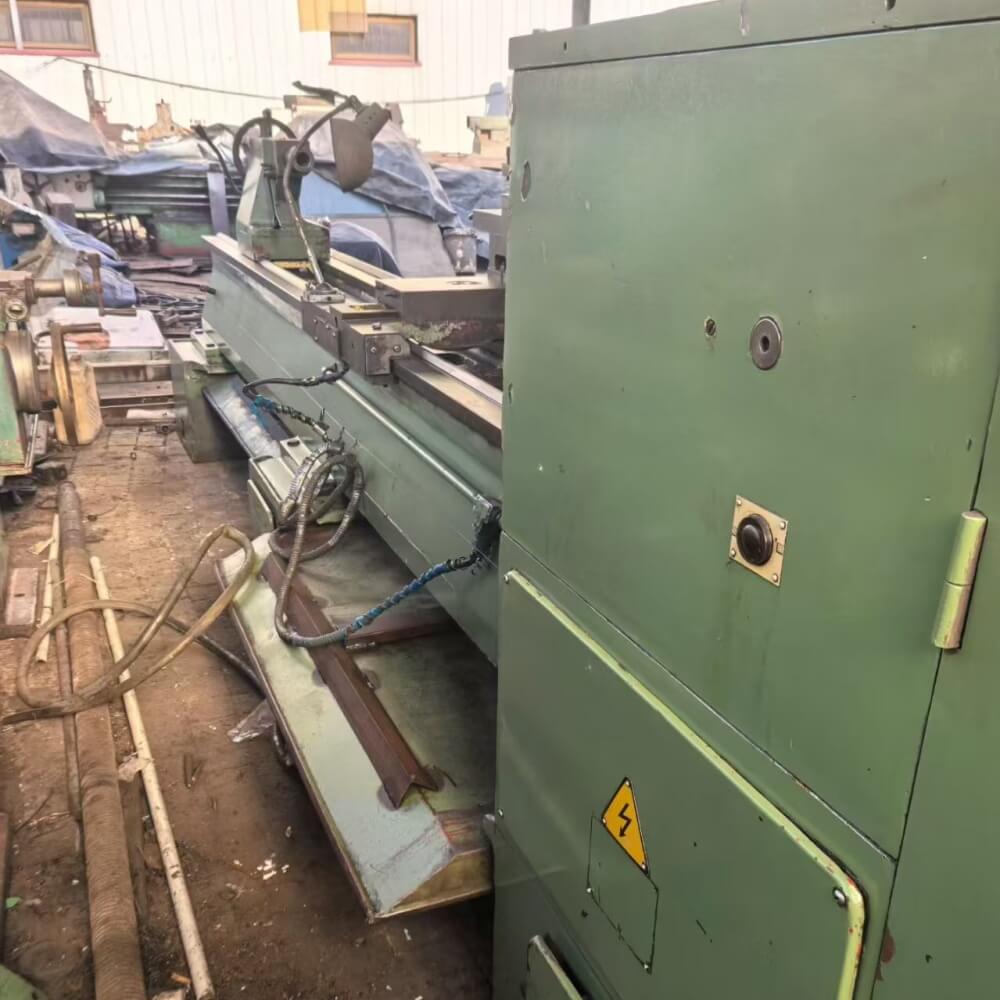

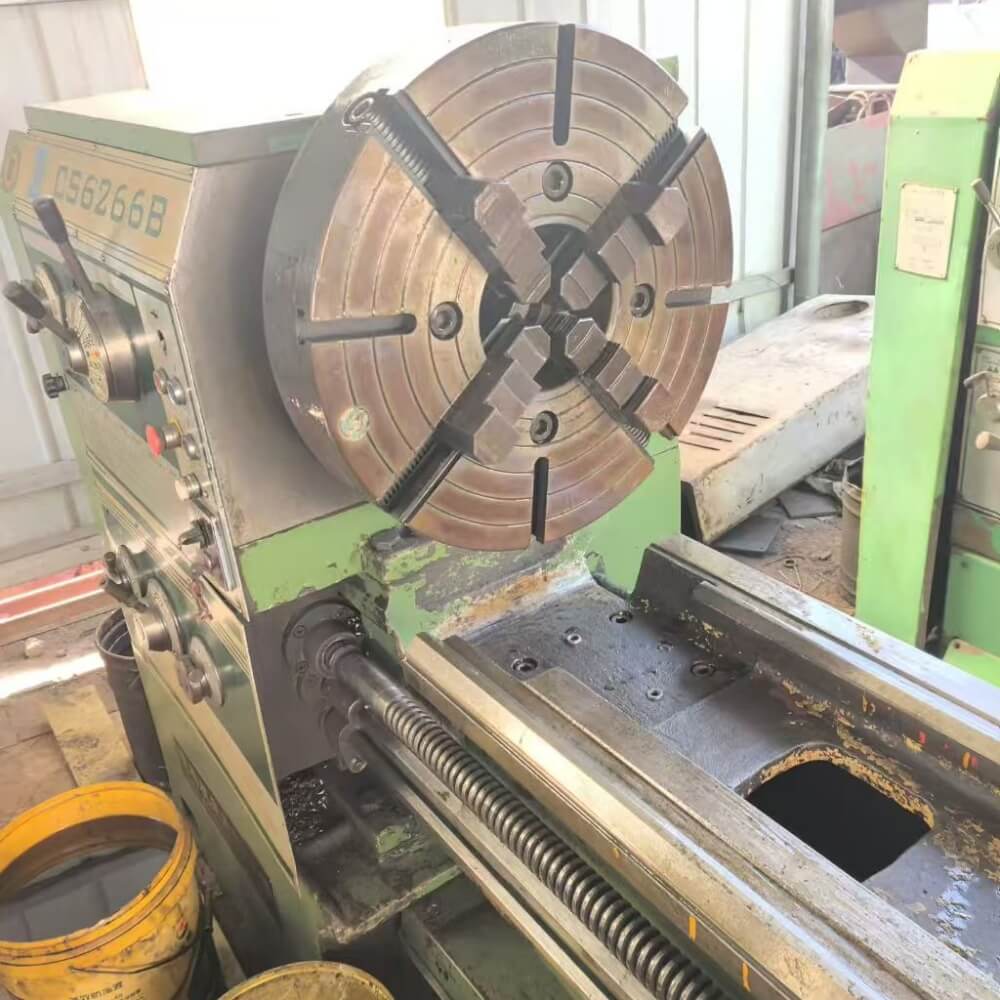

Baoji CS6266B × 3000mm Gap Bed Lathe

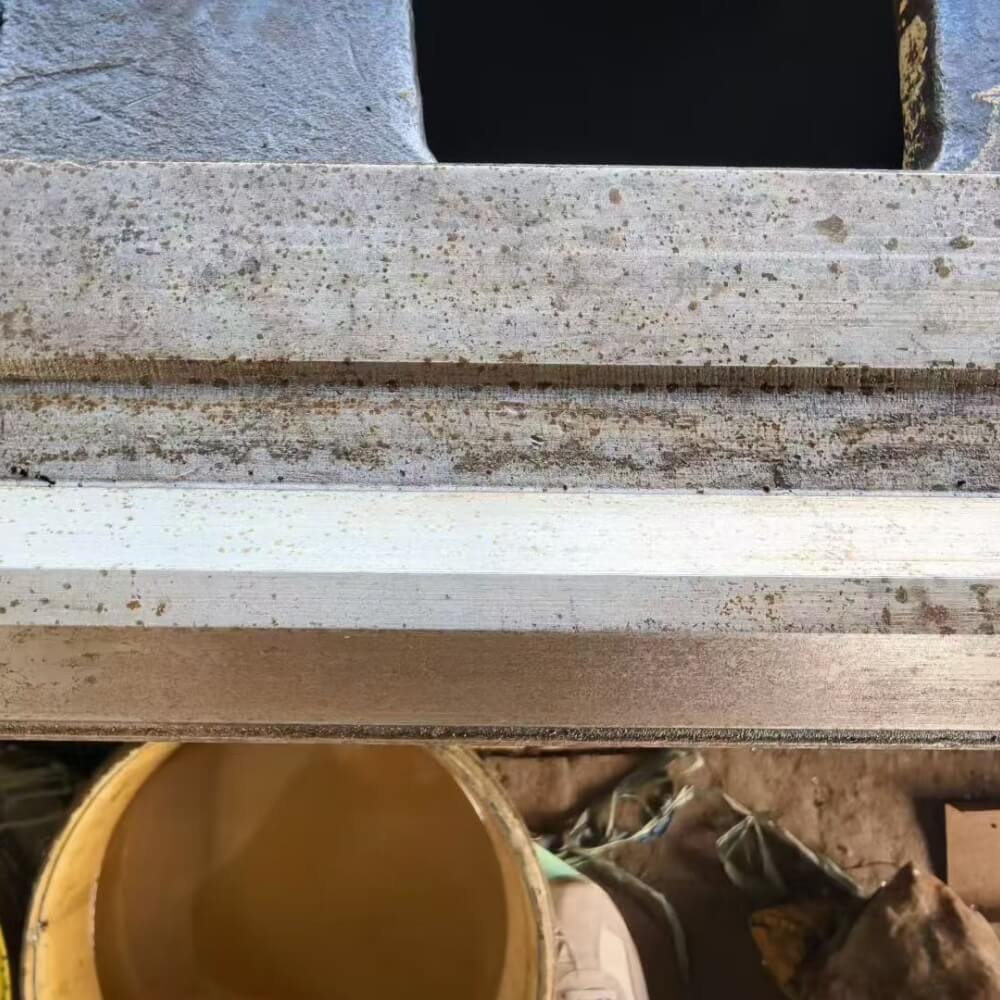

- Heavy-duty rigid structure with hardened & ground guideways
- Large spindle bore for long shaft and bar machining
- Stable performance, strong cutting capacity, low noise
- Capable of turning metric, inch, module and DP threads
- Suitable for heavy cutting and long-term industrial use
7,000.00$
Specification
- Model: CS6266B × 3000mm
- Type: Heavy-duty gap bed horizontal lathe
- Swing over bed: 660 mm
- Swing over saddle: 420 mm
- Swing in gap: 870 mm
- Distance between centers: 3000 mm
- Spindle bore: 82 mm
- Spindle speeds: 24 steps, 9–1600 rpm
- Main motor: 7.5 kW
- Tailstock taper: MT5
- Net weight: Approx. 3800 kg
- Voltage: 380V/50Hz 3-phase
