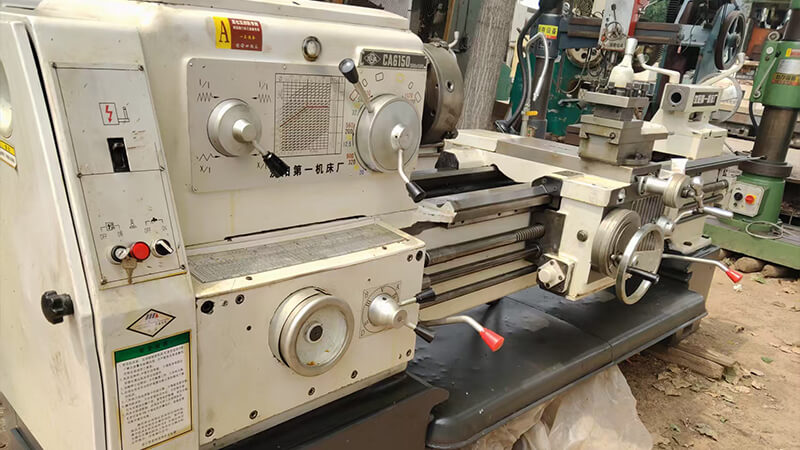

CA6140 Horizontal ordinary lathe
The CS6240 lathe adopts a horizontal layout, with the main spindle and the guide rail on the same horizontal plane, which is in line with the conventional operation habits of lathes. It is mainly used for turning inner and outer cylindrical surfaces, conical surfaces, end faces, threads, and can also perform drilling, reaming, and other auxiliary processing through auxiliary tools. The overall structure is sturdy, and the cast iron bed ensures good rigidity during high-speed rotation and cutting, reducing vibration and ensuring processing accuracy.
6,944.00$
Technical Parameters
- Maximum Turning Diameter: The maximum turning diameter over the bed is about 400mm, and the maximum turning diameter over the carriage is about 210mm, which can meet the processing of medium-sized workpieces.
- Maximum Turning Length: Generally, it can reach 750mm, 1000mm, 1500mm, etc. (different models may have differences), suitable for workpieces of different lengths.
- Spindle Speed Range: The spindle speed can be adjusted in multiple stages, usually ranging from 10-1400r/min, which can be selected according to the material of the workpiece and the type of processing.
- Feed Rate: The longitudinal feed rate is about 0.06-3mm/r, and the transverse feed rate is half of the longitudinal feed rate, which can meet the needs of rough turning and finish turning.
- Spindle Hole Diameter: The diameter of the spindle through hole is about 52mm, which can pass through longer workpieces.
- Motor Power: The main motor power is about 4kW, providing sufficient power for cutting
