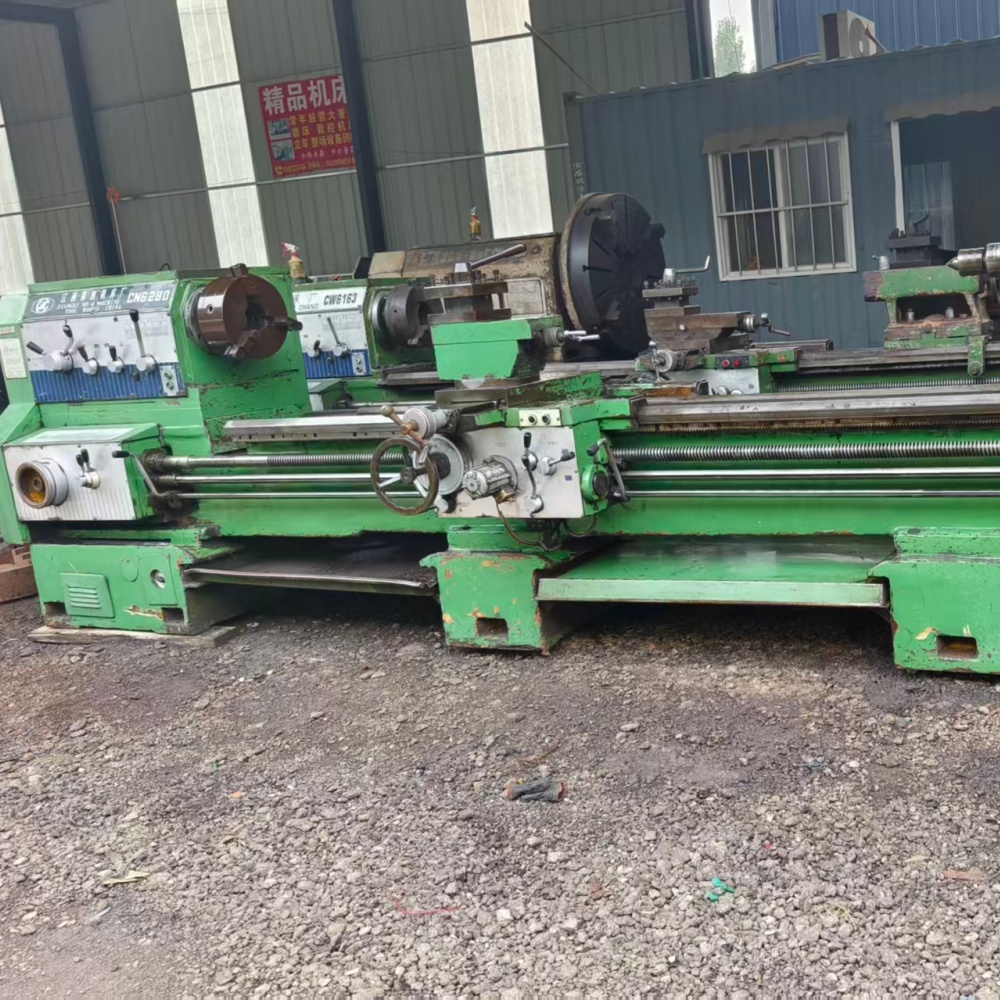

CN6280 × 4000mm Gap Bed Lathe
CN6280 × 4000mm Gap Bed Lathe - Image 2
CN6280 × 4000mm Gap Bed Lathe - Image 3
CN6280 × 4000mm Gap Bed Lathe - Image 4
CN6280 × 4000mm Gap Bed Lathe - Image 5

CN6280 × 4000mm Gap Bed Lathe

  • Heavy-duty rigid bed, stable for heavy cutting
  • Large spindle bore for long shafts and big bars

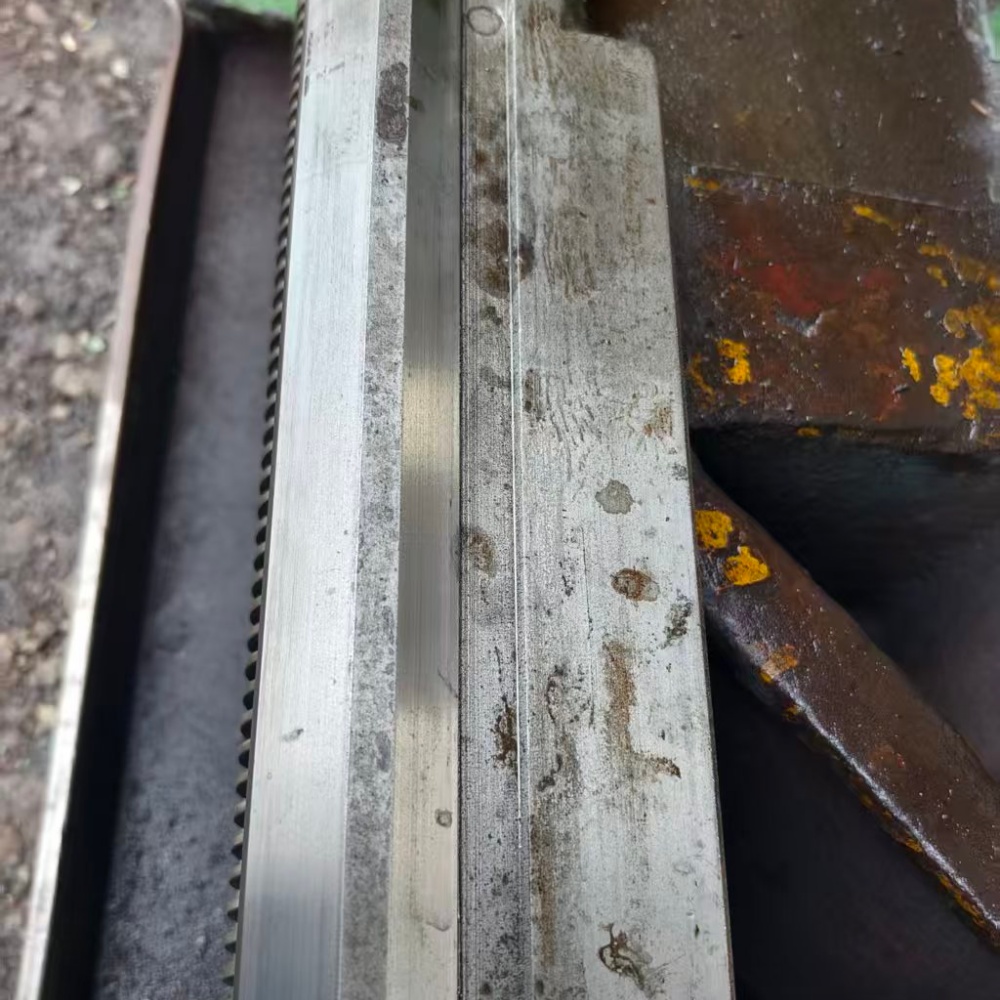

  • Hardened and precision ground guideways
  • Wide speed range, strong torque
  • Capable of metric, inch, module and DP threads
  • Reliable, durable, low noise

12,000.00$

Whatstaap
Send Email

Main Parameters

  • Swing over bed: 800 mm
  • Swing over saddle: 480 mm
  • Swing in gap: 1050 mm
  • Distance between centers: 4000 mm
  • Max. turning length: 4000 mm
  • Spindle bore: 105 mm
  • Spindle speed: 16 steps, 8–600 rpm
  • Main motor power: 15 kW
  • Bed width: 600 mm
  • Tailstock taper: MT6
  • Net weight: Approx. 14000 kg
  • Voltage: 380V/50Hz 3-phase

Don’t miss your opportunity-our best machines go fast.

🎥 Request a real-time inspection video
📩 Send us your requirement list for matching machines
🧾 Need a quote with shipping cost? Contact us now!
