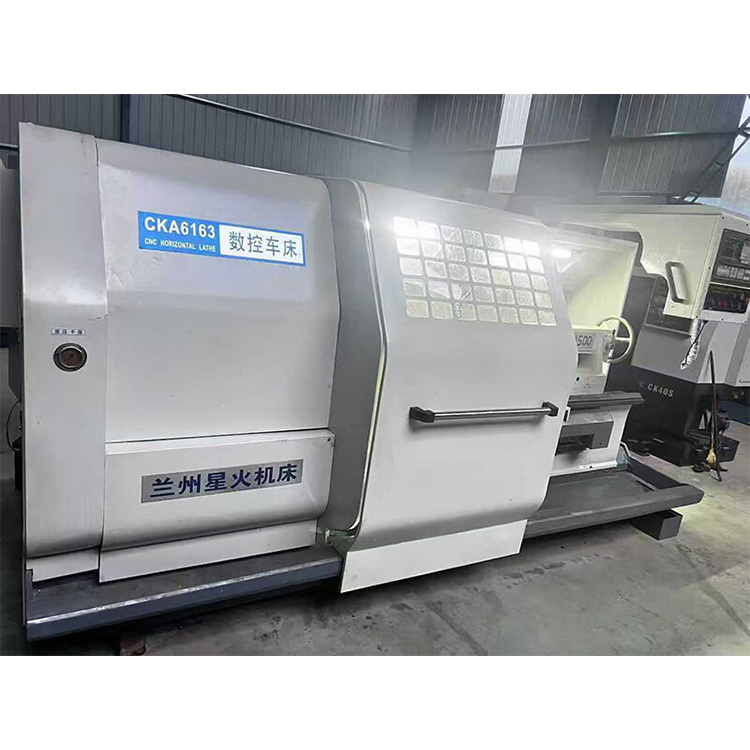

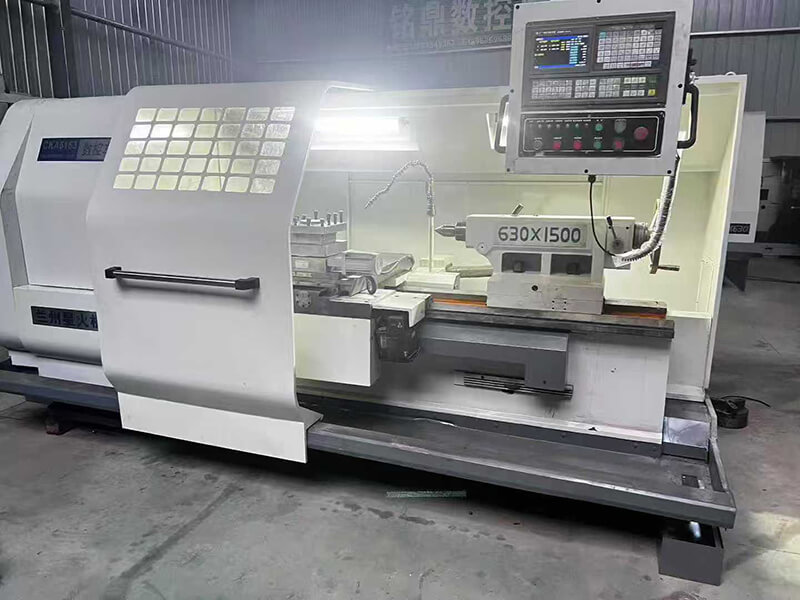

CNC lathe CKA6163
Core Application Scenarios (核心应用场景)
The CKA6163 CNC lathe is a high-performance, heavy-duty automatic lathe designed for processing large and medium-sized cylindrical workpieces with high precision and efficiency. It integrates advanced CNC technology, making it an indispensable tool in modern manufacturing.CKA6163 数控车床是一种高性能、重型自动化车床,专为高精度、高效率加工大中型圆柱形工件而设计。它集成了先进的 CNC 技术,是现代制造业中不可或缺的工具。
- Large-Diameter Component Machining (大直径零件加工): With a maximum swing diameter of 630mm over the bed, this machine excels at turning large-diameter discs, flanges, sleeves, and other components commonly found in industries such as power generation, heavy machinery, and aerospace.
大直径零件加工: 床身上最大回转直径达 630mm,该机床擅长车削发电、重型机械和航空航天等行业常见的大直径圆盘、法兰、套筒及其他零件。
- Shaft and Axle Production (轴类生产): The CKA6163 is ideal for manufacturing precision shafts and axles used in automotive transmissions, machine tool spindles, and industrial gearboxes. Its robust construction ensures stability during long-chipping operations.
轴类生产: CKA6163 非常适合制造用于汽车变速箱、机床主轴和工业齿轮箱的精密轴类零件。其坚固的结构确保了在长切屑加工过程中的稳定性。
- Batch Production of Medium to Large Parts (大中型零件批量生产): Equipped with a powerful motor, a high-capacity hydraulic turret, and efficient chip removal systems, the CKA6163 is optimized for continuous, high-volume production. This reduces cycle times and labor costs compared to manual or semi-automatic machines.
大中型零件批量生产: 配备大功率电机、大容量液压刀塔和高效排屑系统,CKA6163 针对连续、大批量生产进行了优化。与手动或半自动机床相比,这减少了周期时间和劳动力成本。
- Complex Contour Machining (复杂轮廓加工): Utilizing its precise servo control system and multi-axis interpolation capabilities, the CKA6163 can accurately machine complex contours, threads (including internal, external, metric, inch, and tapered threads), and grooves, meeting the demanding requirements of sophisticated mechanical parts.
复杂轮廓加工: 利用其精密的伺服控制系统和多轴插补功能,CKA6163 能精确加工复杂轮廓、螺纹(包括内、外、公制、英制和锥螺纹)及沟槽,满足精密机械零件的严苛要求。
Batch Advantages of Equipment (设备批量优势)
- Superior Rigidity and Stability (卓越的刚性和稳定性): The machine features a heavy-duty cast iron bed with a optimized box-type structure and hardened, precision-ground guideways. This ensures exceptional rigidity, minimizing vibration and deformation during heavy cutting, thus guaranteeing consistent machining accuracy.
卓越的刚性和稳定性: 机床采用重型铸铁床身,优化的箱式结构和淬硬、精磨导轨。这确保了卓越的刚性,在重切削过程中最大限度地减少振动和变形,从而保证稳定的加工精度。
- High Productivity and Automation (高生产率和自动化): The combination of a fast tool change turret, high rapid traverse rates, and the ability to run unattended (with optional bar feeders or gantry loaders) significantly boosts productivity. The user-friendly CNC system allows for easy programming and modification of complex parts.
高生产率和自动化: 快速换刀刀塔、高快移速度以及无人值守运行能力(可选配棒材送料器或龙门装载机)的组合显著提高了生产率。人性化的 CNC 系统便于复杂零件的编程和修改。
- Versatility and Flexibility (多功能性和灵活性): The large spindle bore allows for processing of thick-walled pipes and bars. The multiple tool stations enable a variety of operations to be performed in a single setup, reducing handling time and improving part quality.
多功能性和灵活性: 大主轴通孔可加工厚壁管材和棒材。多工位刀塔允许在一次装夹中执行多种操作,减少了搬运时间并提高了零件质量。
- Cost-Effective Heavy-Duty Solution (高性价比的重型解决方案): As a used CNC lathe, the CKA6163 offers an excellent balance between performance and investment cost. It provides the capabilities of a modern, heavy-duty CNC lathe at a fraction of the cost of a new unit, making it an attractive option for businesses looking to expand their heavy machining capabilities without a substantial capital outlay.
4,800.00$
| Item | Specification | Item | Specification |
|---|---|---|---|

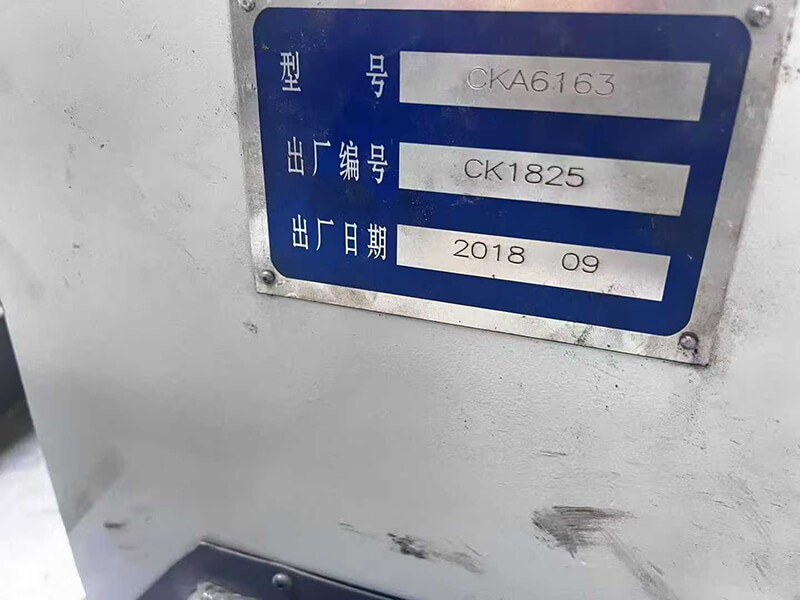

| Model Number (型号) | CKA6163 | Place of Origin (产地) | China (中国) |
| Machine Type (机床类型) | Horizontal CNC Lathe (卧式数控车床) | Brand Name (品牌) | TBD / Various Brands (如沈阳、大连等) |
| Max. Swing Diameter Over Bed (最大加工直径) | Φ630mm | Max. Cutting Diameter (最大切削直径) | Φ630mm (在床身上) / Φ320mm (在刀塔上) |
| Max. Cutting Length (最大切削长度) | 1000mm / 1500mm / 2000mm (可选) | Spindle Bore (主轴通孔直径) | Φ82mm / Φ105mm / Φ130mm (可选) |

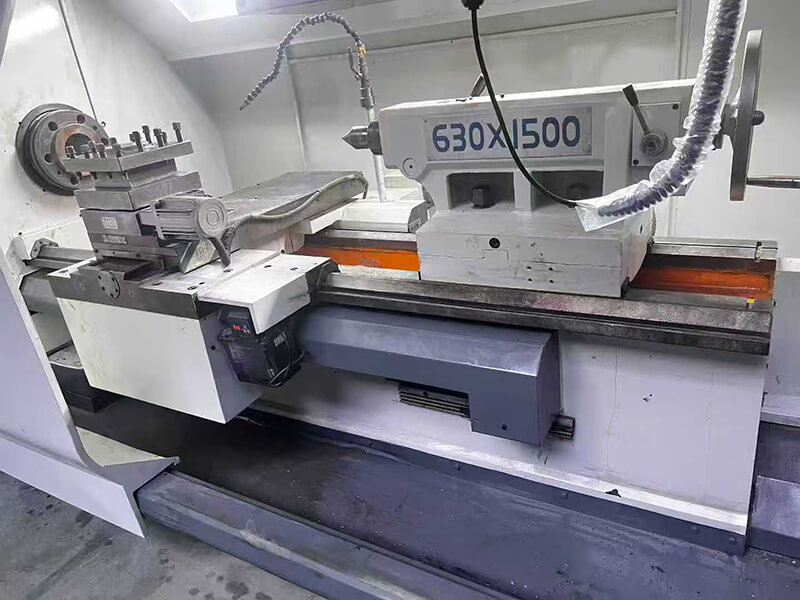

| Spindle Speed Range (主轴转速范围) | 10-2000 rpm (变频 / 伺服主电机) | Tool Post Type (刀架类型) | 8-station Hydraulic Turret (8 工位液压刀塔) |
| X-axis Travel (X 轴行程) | 350mm | Z-axis Travel (Z 轴行程) | 1050mm / 1550mm / 2050mm (可选) |
| Rapid Traverse Rate (快移速度) | X: 12 m/min, Z: 15 m/min | Positioning Accuracy (定位精度) | ±0.003 mm/1000mm |

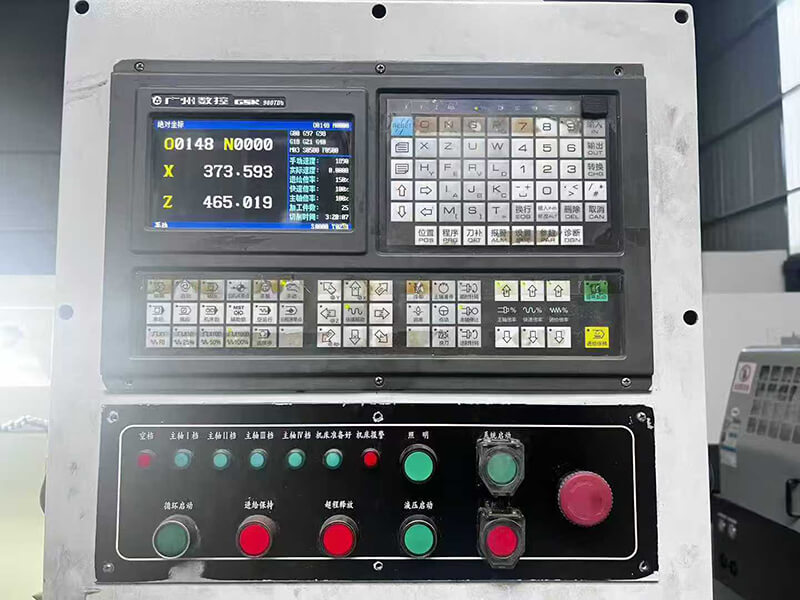

| Control System (控制系统) | FANUC 0i-TF / SIEMENS 828D/820D (或其他品牌) | Motor Power (电机功率) | 15 kW / 18.5 kW (主电机) |
| Tailstock Quill Diameter (尾座套筒直径) | Φ75mm | Weight (重量) | Approx. 5000 - 7000 kg |
| Overall Dimensions (L*W*H) (外形尺寸) | (示例) 3200mm x 1800mm x 1700mm | Key Selling Points (核心卖点) | High Precision, High Efficiency, Large Capacity, Reliable Performance |
| Warranty (质保) | 3 Months (Parts Only) | Machinery Test Report (机械检测报告) | Available Upon Request |
| Video Outgoing-Inspection (出货视频) | Available Upon Request |
