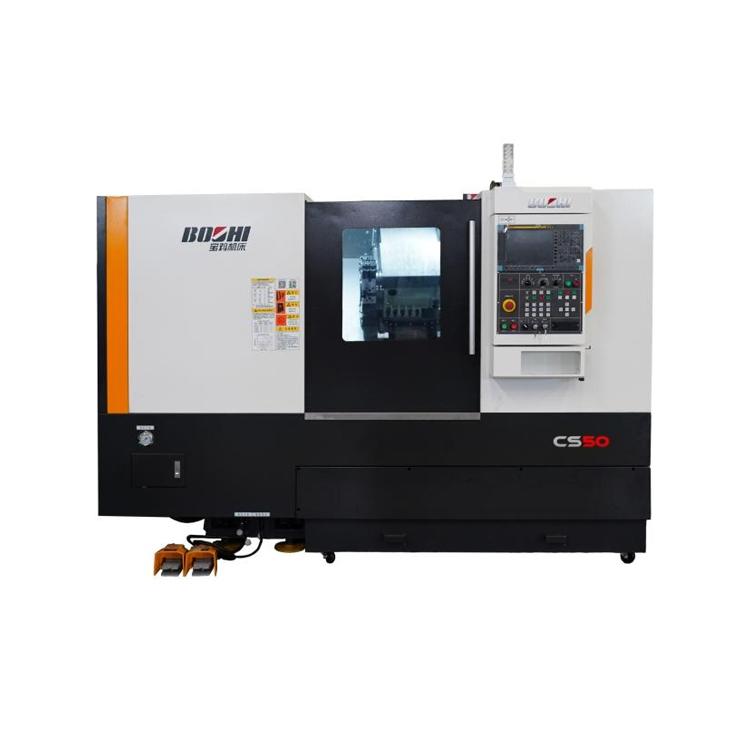

CNC lathe CS50
CNC lathe CS50
Core Application Scenarios
The CS50 is a high-performance CNC horizontal lathe, designed for precision processing of medium and large-sized rotating workpieces. It combines strong rigidity and high efficiency, widely used in machinery manufacturing, auto parts, flange processing and precision hardware industries.

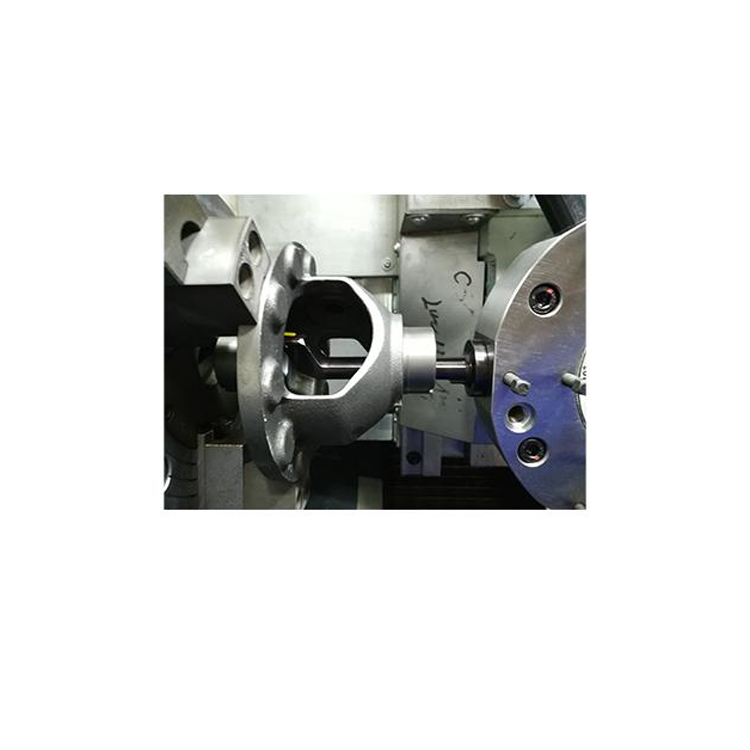

- Medium & Large Parts Processing: Specializes in turning shafts, sleeves, flanges and discs, achieving surface roughness Ra ≤ 1.0 μm and dimensional tolerance ±0.01mm, meeting high-precision assembly requirements.
- Efficient Batch Production: 8-way turret and frequency conversion speed regulation reduce tool change and processing time, suitable for small to medium batch production of standardized parts.
- Multi-Material Adaptation: Adapts to common metals and high-strength alloy steel, solving processing demands of different industry components.
- Flexible Operation: User-friendly CNC system supports program setting and storage, easy to master for operators with basic CNC experience.
Batch Advantages of Equipment
- High Precision & Stability: Precision ball screws and reinforced cast iron bed ensure minimal vibration and consistent processing accuracy.
- Efficient & Durable: High-power motor and 8-way turret improve processing efficiency; automatic lubrication reduces component wear and extends service life.
- Easy Operation & Maintenance: Simple CNC interface and modular design reduce operational difficulty and maintenance costs.
- Cost-Effective: As used equipment, it costs only 30%-50% of new models, ideal for SMEs to expand CNC processing capabilities with limited budget.
Original price was: 4,500.00$.4,100.00$Current price is: 4,100.00$.
表格
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | CS50 | Place of Origin (产地) | China (中国) |
| Machine Type (机床类型) | CNC Horizontal Lathe (数控卧式车床) | Brand Name (品牌) | Domestic Well-Known Brand (国内知名品牌) |
| Max. Swing Diameter Over Bed (最大加工直径) | Φ500mm | Max. Cutting Length (最大切削长度) | 1000mm / 1500mm / 2000mm (可选) |
| Spindle Bore (主轴通孔直径) | Φ80mm / Φ105mm (可选) | Spindle Speed Range (主轴转速范围) | 8-2000 rpm (变频无级调速) |

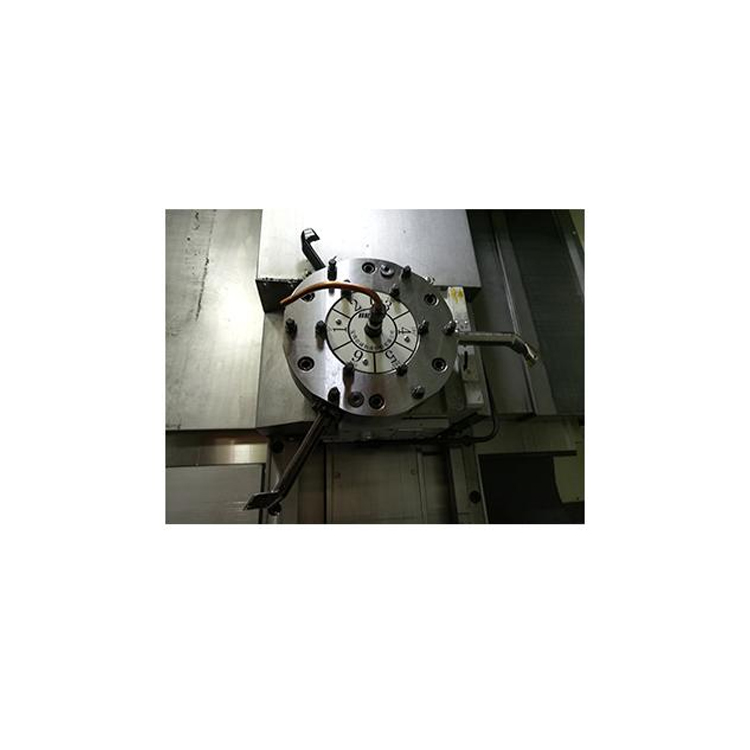

| Tool Post Stations (刀架工位) | 8-way Turret (八工位刀架) | Feed Rate Range (进给量范围) | 0.01-2.5 mm/rev (纵向)；0.02-5.0 mm/rev (横向) |
| Lead Screw Diameter (丝杠直径) | Φ40mm (精密滚珠丝杠) | Motor Power (电机功率) | 11 kW (主电机) + 1.1 kW (冷却泵电机) |
| Tailstock Quill Diameter (尾座套筒直径) | Φ75mm | Tailstock Quill Travel (尾座套筒行程) | 200mm |
| Max. Workpiece Weight (最大工件重量) | 1000 kg | Overall Dimensions (LWH) (外形尺寸) | 3600mm×1700mm×1800mm (示例，按切削长度调整) |
| Weight (重量) | Approx. 4000-5000 kg | Control System (控制系统) | CNC System (可选广数 / 凯恩帝 / 西门子) |
| Key Selling Points (核心卖点) | High Precision, Strong Rigidity, Efficient, Easy Operation | Warranty (质保) | 3 Months (Parts Only) |
| Machinery Test Report (机械检测报告) | Available Upon Request | Video Outgoing-Inspection (出货视频) | Available Upon Request |
| Cutting Material Range (切削材料范围) | Carbon Steel, Alloy Steel, Stainless Steel, Copper, Aluminum Alloy | Surface Roughness (表面粗糙度) | Ra ≤ 1.0 μm |
| Lubrication System (润滑系统) | Automatic Forced Lubrication (自动强制润滑) | Cooling System (冷却系统) | Circulating Cooling (循环冷却) |
