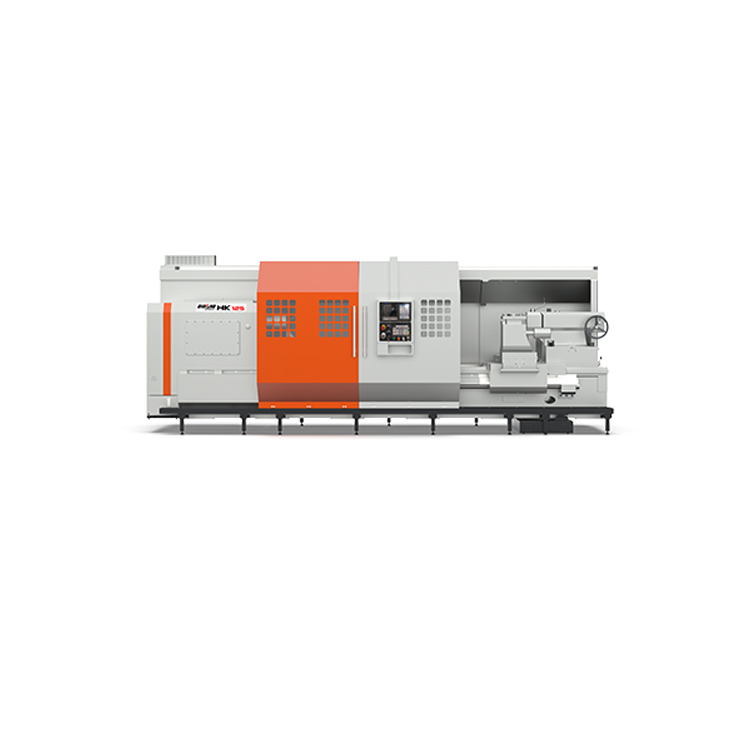

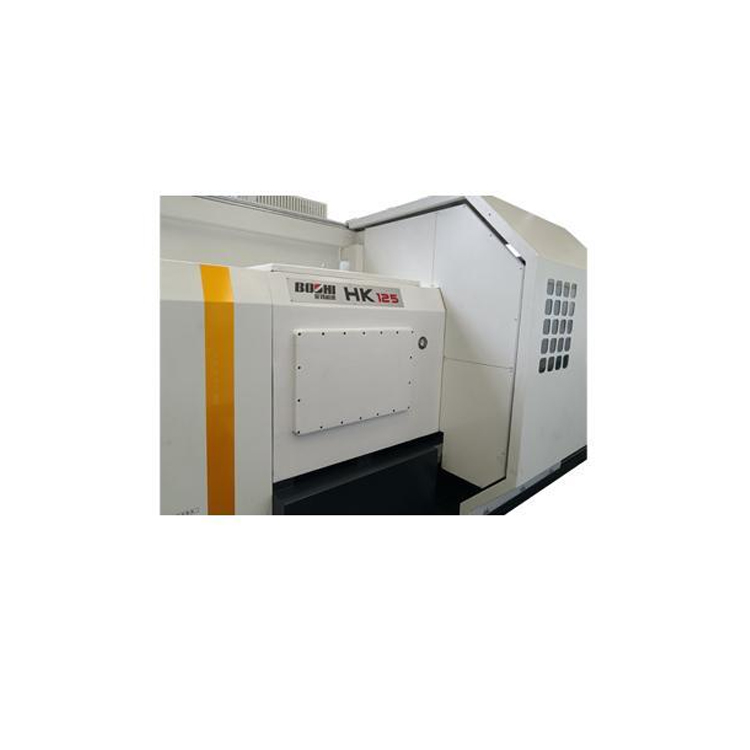

CNC lathe HK125
CNC lathe HK125
Core Application Scenarios
The HK125 is a high-end ultra-heavy-duty CNC horizontal lathe, designed for precision processing of extra-large, ultra-heavy rotating workpieces. It has ultra-strong load-bearing capacity and rigidity, widely used in shipbuilding, heavy machinery, power generation equipment and metallurgical machinery industries.
- Extra-Large Heavy Parts Processing: Specializes in turning ultra-heavy shafts, large-diameter flanges, thick-walled cylinders and giant discs, achieving surface roughness Ra ≤ 1.2 μm and dimensional tolerance ±0.02mm, meeting ultra-heavy industry standards.
- Efficient Batch Production: 10-way hydraulic turret (tool change time ≤2.5s) and high-power spindle improve efficiency, suitable for batch production of standardized heavy core parts.
- Multi-Material Adaptation: Adapts to high-strength alloy steel, titanium alloy and large cast iron parts, satisfying the processing needs of key heavy-industry components.
- Stable & Reliable: Reinforced integral cast iron bed (multiple stress-relief treatments) ensures stable operation under ultra-heavy load; user-friendly CNC system supports complex program editing.
Batch Advantages of Equipment
- Ultra-Large & Super Rigid: Ultra-strong bed and precision ball screws ensure minimal vibration and consistent accuracy during heavy cutting.
- Efficient & Durable: High-torque spindle and intelligent lubrication extend service life; 10-way turret reduces auxiliary time greatly.
- Easy Maintenance: Modular design and global spare parts supply simplify maintenance and reduce downtime.
- Cost-Effective: As used equipment, it costs only 35%-55% of new models, helping enterprises obtain ultra-heavy CNC processing capabilities at low cost.
Original price was: 4,200.00$.3,900.00$Current price is: 3,900.00$.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | HK125 | Place of Origin (产地) | China (中国) |
| Machine Type (机床类型) | Ultra-Heavy-Duty CNC Horizontal Lathe (超重型数控卧式车床) | Brand Name (品牌) | Domestic Well-Known Brand (国内知名品牌) |
| Max. Swing Diameter Over Bed (最大加工直径) | Φ1250mm | Max. Cutting Length (最大切削长度) | 3000mm / 5000mm / 8000mm (可选) |
| Spindle Bore (主轴通孔直径) | Φ180mm / Φ220mm (可选) | Spindle Speed Range (主轴转速范围) | 1-1000 rpm (变频无级调速) |
| Tool Post Stations (刀架工位) | 10-way Hydraulic Turret (十工位液压刀架) | Feed Rate Range (进给量范围) | 0.01-4.5 mm/rev (纵向)；0.02-9.0 mm/rev (横向) |
| Lead Screw Diameter (丝杠直径) | Φ65mm (超精精密滚珠丝杠) | Motor Power (电机功率) | 37 kW (主电机) + 3.7 kW (冷却泵电机) |

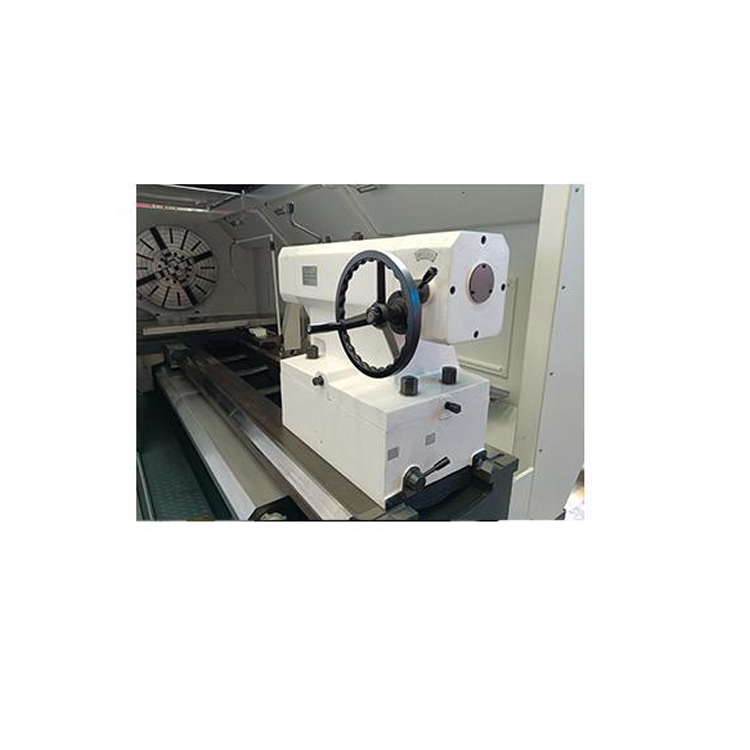

| Tailstock Quill Diameter (尾座套筒直径) | Φ140mm | Tailstock Quill Travel (尾座套筒行程) | 400mm |
| Max. Workpiece Weight (最大工件重量) | 8000 kg | Overall Dimensions (LWH) (外形尺寸) | 7000mm×2800mm×2700mm (示例，按切削长度调整) |
| Weight (重量) | Approx. 18000-22000 kg | Control System (控制系统) | CNC System (可选西门子 / 发那科) |
| Key Selling Points (核心卖点) | Ultra-Large Size, Super Heavy Load, High Precision, Ultra-Rigid | Warranty (质保) | 3 Months (Parts Only) |
| Machinery Test Report (机械检测报告) | Available Upon Request | Video Outgoing-Inspection (出货视频) | Available Upon Request |
| Cutting Material Range (切削材料范围) | Carbon Steel, Alloy Steel, Cast Iron, Stainless Steel, Titanium Alloy | Surface Roughness (表面粗糙度) | Ra ≤ 1.2 μm |
| Lubrication System (润滑系统) | Intelligent Automatic Forced Lubrication (智能自动强制润滑) | Cooling System (冷却系统) | Large-Capacity Dual-Circulation Cooling (大容量双循环冷却) |
