CNC lathe HK63B
CNC lathe HK63B
Core Application Scenarios

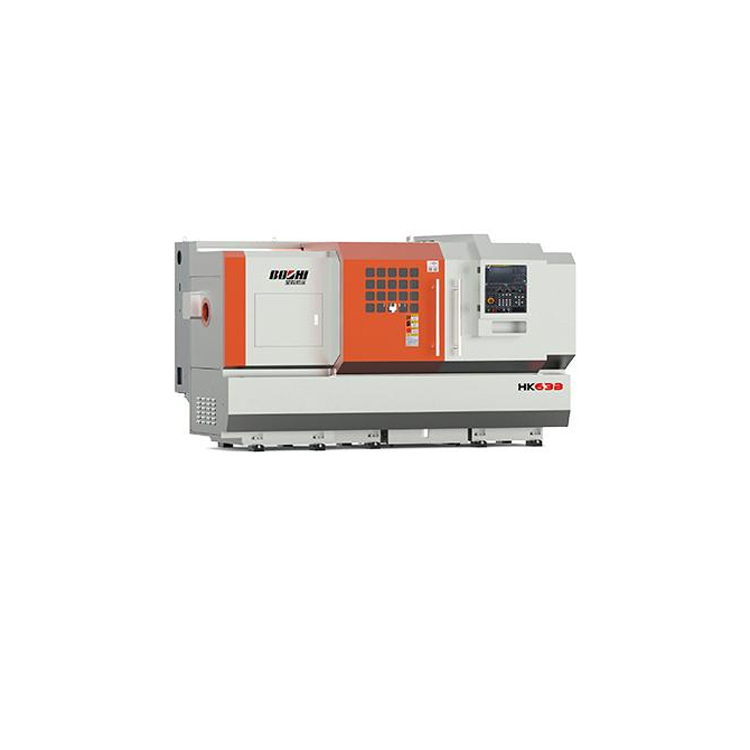

The HK63B is a heavy-duty CNC horizontal lathe, designed for precision processing of large-sized rotating workpieces. It features strong load-bearing capacity, high rigidity and stable performance, widely used in heavy machinery, flange processing, power equipment and mining machinery industries.
- Large-Sized Parts Processing: Specializes in turning heavy shafts, large flanges, thick-walled sleeves and discs, achieving surface roughness Ra ≤ 1.0 μm and dimensional tolerance ±0.01mm, meeting heavy-duty processing requirements.

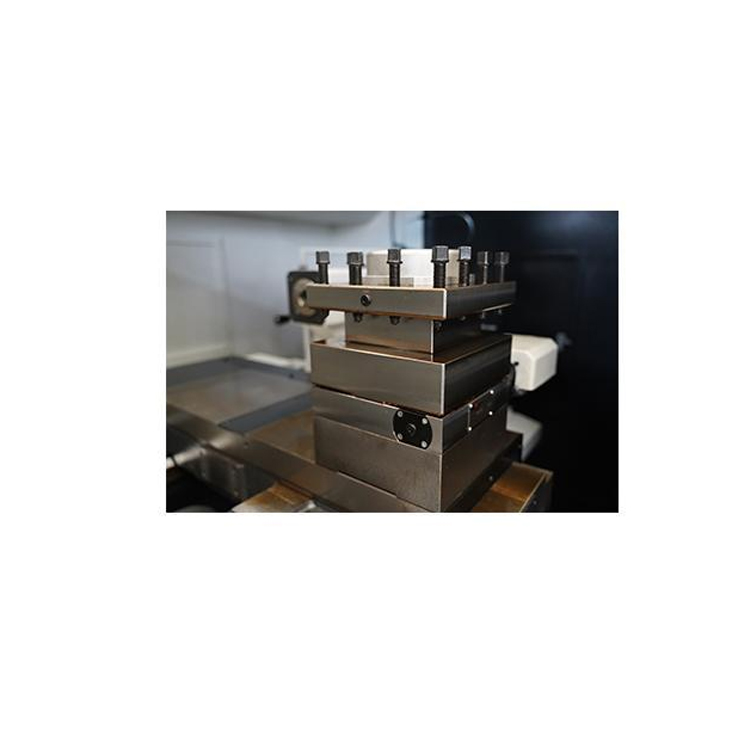

- Efficient Batch Production: 8-way hydraulic turret (tool change time ≤3s) and high-power spindle improve processing efficiency, suitable for medium batch production of standardized heavy parts.
- Multi-Material Adaptation: Adapts to high-strength alloy steel, cast iron and stainless steel, satisfying the processing needs of heavy industry components.
- Flexible & Reliable: User-friendly CNC system supports program editing and storage; reinforced structure ensures stable operation under heavy load.
Batch Advantages of Equipment
- Heavy-Duty & Stable: Reinforced cast iron bed and precision ball screws ensure minimal vibration and consistent processing accuracy during heavy cutting.
- Efficient & Labor-Saving: Hydraulic turret and frequency conversion control reduce tool change and processing time, lowering labor intensity.
- Durable & Easy Maintenance: Intelligent lubrication system reduces component wear; sufficient spare parts supply simplifies maintenance.
- Cost-Effective: As used equipment, it costs only 35%-55% of new models, helping enterprises obtain heavy-duty CNC processing capabilities at low cost.
Original price was: 4,100.00$.3,800.00$Current price is: 3,800.00$.
表格
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | HK63B | Place of Origin (产地) | China (中国) |
| Machine Type (机床类型) | CNC Horizontal Lathe (数控卧式车床) | Brand Name (品牌) | Domestic Well-Known Brand (国内知名品牌) |
| Max. Swing Diameter Over Bed (最大加工直径) | Φ630mm | Max. Cutting Length (最大切削长度) | 1500mm / 2000mm / 3000mm (可选) |
| Spindle Bore (主轴通孔直径) | Φ100mm / Φ125mm (可选) | Spindle Speed Range (主轴转速范围) | 5-1800 rpm (变频无级调速) |
| Tool Post Stations (刀架工位) | 8-way Hydraulic Turret (八工位液压刀架) | Feed Rate Range (进给量范围) | 0.01-3.0 mm/rev (纵向)；0.02-6.0 mm/rev (横向) |
| Lead Screw Diameter (丝杠直径) | Φ45mm (精密滚珠丝杠) | Motor Power (电机功率) | 15 kW (主电机) + 1.5 kW (冷却泵电机) |
| Tailstock Quill Diameter (尾座套筒直径) | Φ80mm | Tailstock Quill Travel (尾座套筒行程) | 250mm |
| Max. Workpiece Weight (最大工件重量) | 1500 kg | Overall Dimensions (LWH) (外形尺寸) | 4200mm×1900mm×2000mm (示例，按切削长度调整) |
| Weight (重量) | Approx. 5500-7000 kg | Control System (控制系统) | CNC System (可选广数 / 西门子) |
| Key Selling Points (核心卖点) | Heavy-Duty, High Precision, Efficient, Durable | Warranty (质保) | 3 Months (Parts Only) |
| Machinery Test Report (机械检测报告) | Available Upon Request | Video Outgoing-Inspection (出货视频) | Available Upon Request |
| Cutting Material Range (切削材料范围) | Carbon Steel, Alloy Steel, Cast Iron, Stainless Steel | Surface Roughness (表面粗糙度) | Ra ≤ 1.0 μm |
| Lubrication System (润滑系统) | Intelligent Automatic Forced Lubrication (智能自动强制润滑) | Cooling System (冷却系统) | High-Pressure Circulating Cooling (高 |
