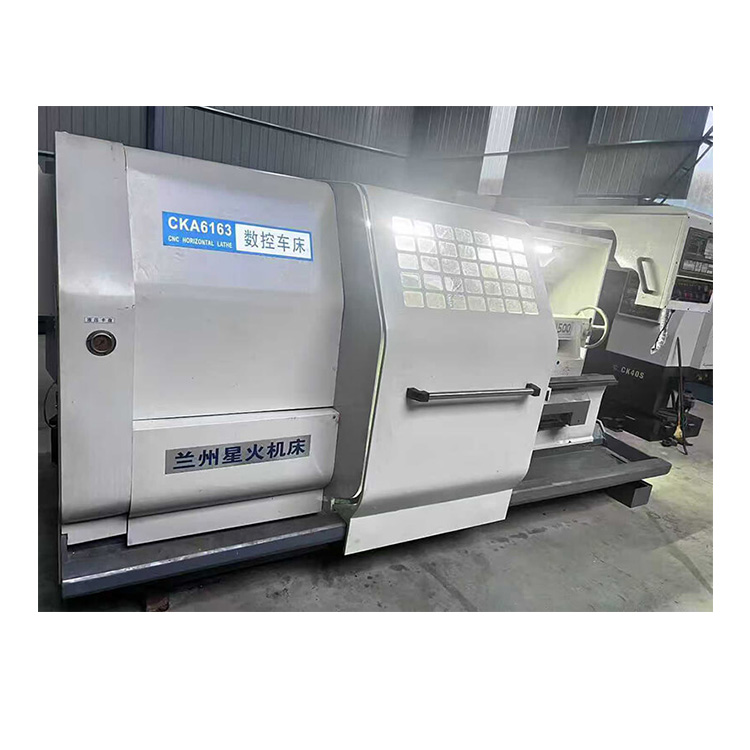

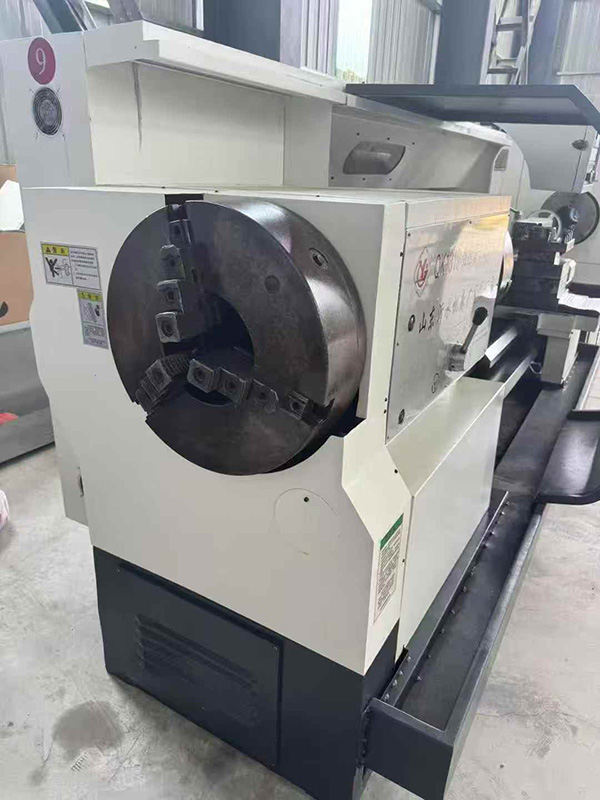

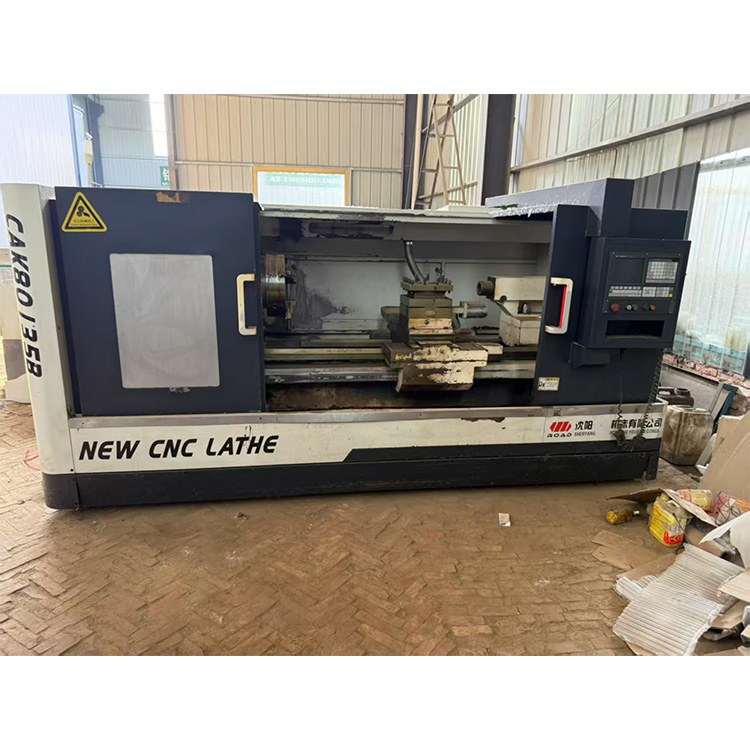

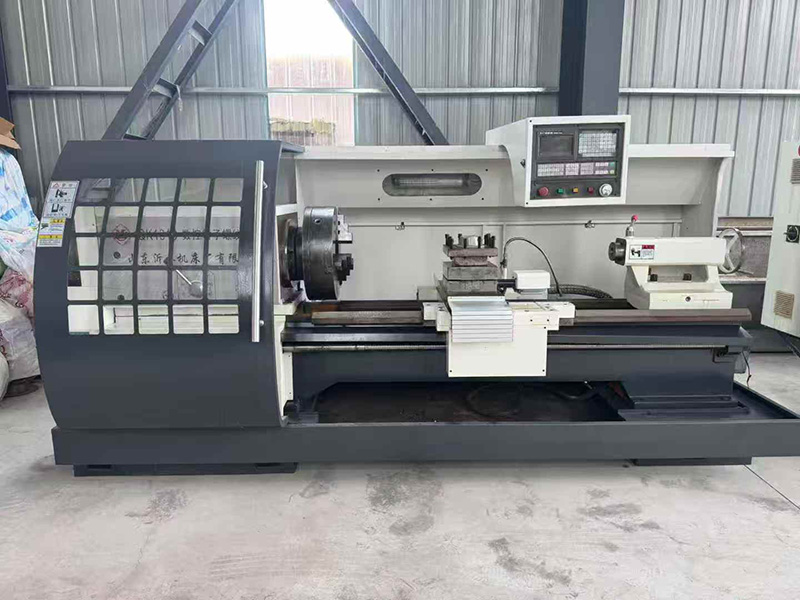

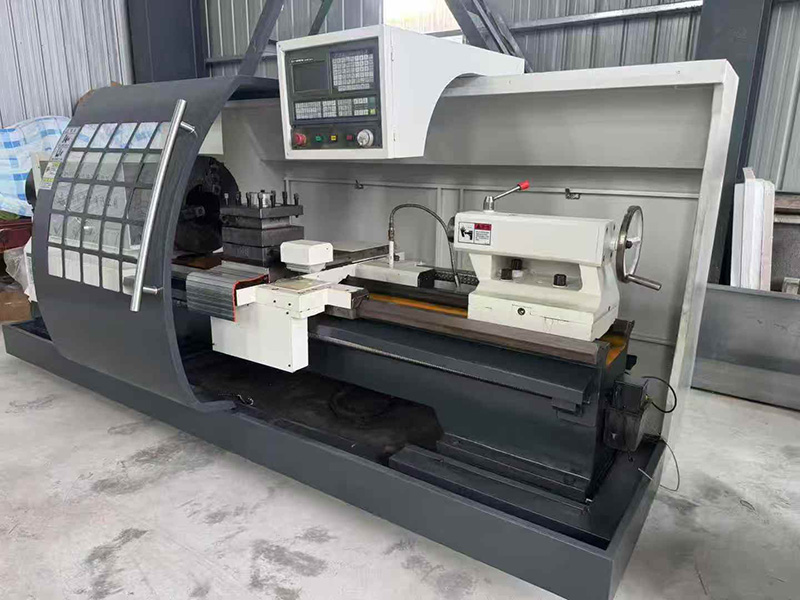

CNC lathe QK1319

Core Application Scenarios (核心应用场景)

The QK1319 CNC lathe is a high-precision, high-efficiency automatic lathe, specifically optimized for processing long and thin workpieces such as pipes, shafts, and rods. It integrates advanced CNC technology to achieve complex machining operations with minimal human intervention.QK1319 CNC 车床是一种高精度、高效率的自动化车床，特别优化用于加工管材、轴类和杆类等细长工件。它集成了先进的 CNC 技术，以最少的人工干预实现复杂的加工操作。

Pipe and Tube Processing (管材加工): This is the primary application of the QK1319. It excels at cutting, facing, grooving, and especially threading (both internal and external) of various pipes used in industries like oil & gas, construction, and plumbing. Materials can include carbon steel, stainless steel, and alloy steel.

管材加工： 这是 QK1319 的主要应用领域。它擅长于切割、端面加工、切槽，特别是对油气、建筑和 plumbing 等行业使用的各种管材进行攻丝（内外螺纹）。材料可包括碳钢、不锈钢和合金钢。
Shaft and Rod Machining (轴杆类加工): Beyond pipes, it is also highly capable of producing precision shafts, rods, and other cylindrical components. It can perform turning, boring, and threading operations, making it suitable for manufacturing parts for machinery, automobiles, and electrical appliances.

轴杆类加工： 除了管材外，它还非常适合生产精密轴、杆和其他圆柱形零件。它可以执行车削、镗孔和攻丝操作，使其适用于制造机械、汽车和电器零件。
Batch Production (批量生产): Equipped with a multi-station turret and a powerful CNC system, the QK1319 is designed for efficient batch production. Once programmed, it can run continuously, significantly reducing cycle times and labor costs compared to manual or semi-automatic lathes.

批量生产： QK1319 配备了多工位刀塔和强大的 CNC 系统，专为高效批量生产而设计。编程完成后，它可以连续运行，与手动或半自动车床相比，显著缩短了周期时间并降低了劳动力成本。

Batch Advantages of Equipment (设备批量优势)

High Precision and Stability (高精度和稳定性): The machine features a robust cast iron bed and high-precision linear guides (or ball screws) on the X and Z axes, ensuring exceptional positioning accuracy and repeatability. This results in consistent part quality even during long production runs.

高精度和稳定性： 该机床采用坚固的铸铁床身和 X、Z 轴上的高精度线性导轨（或滚珠丝杠），确保了卓越的定位精度和重复性。即使在长时间的生产运行中，也能保证稳定的零件质量。
Automation and Efficiency (自动化和高效率): The CNC control system (e.g., FANUC, SIEMENS) enables automatic tool changes, automatic feeding, and the execution of complex machining programs. This reduces operator fatigue and human error, leading to higher productivity and lower per-unit costs.

自动化和高效率： CNC 控制系统（如 FANUC、SIEMENS）可实现自动换刀、自动进给和执行复杂的 machining 程序。这减少了操作员的疲劳和人为错误，从而提高了生产率并降低了单位成本。
Versatility and Flexibility (多功能性和灵活性): The combination of a large spindle bore, a wide range of spindle speeds, and a multi-station turret allows the QK1319 to handle a diverse range of workpiece sizes and materials. Quick program changes make it easy to switch between different jobs.

多功能性和灵活性： 大主轴通孔、广泛的主轴转速范围和多工位刀塔的组合，使 QK1319 能够处理各种尺寸和材料的工件。快速的程序更改使其可以轻松地在不同的作业之间切换。
Cost-Effective Solution for SMEs (中小企业的高性价比解决方案): As a used CNC lathe, the QK1319 offers an excellent entry point into automated manufacturing for small and medium-sized enterprises. It provides the benefits of CNC technology—precision, speed, and reduced labor—at a significantly lower investment cost compared to new machines.

6,000.00$

Item	Specification	Item	Specification

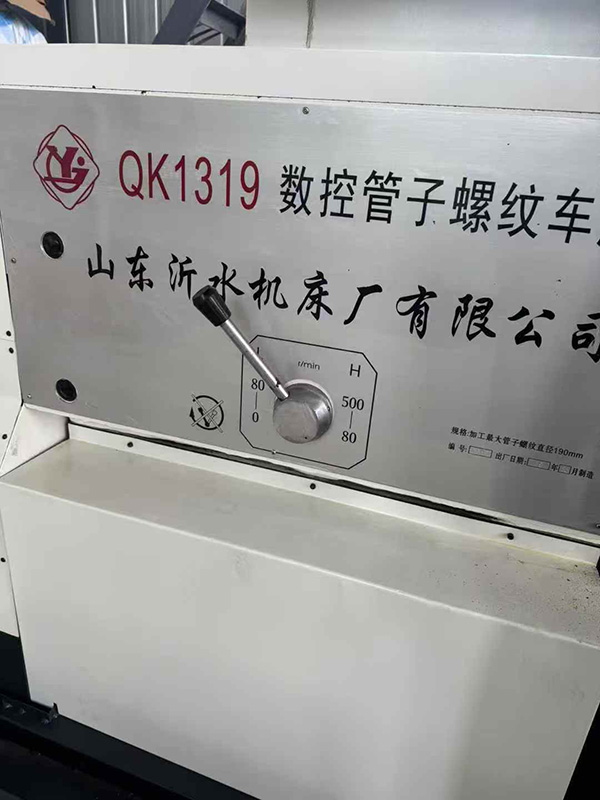

Model Number (型号)	QK1319	Place of Origin (产地)	China (中国)
Machine Type (机床类型)	CNC Pipe Threading Lathe (CNC 管子螺纹车床)	Brand Name (品牌)	TBD / Various Brands (待确定 / 多种品牌)
Max. Swing Diameter Over Bed (最大加工直径)	Φ520mm	Max. Cutting Diameter (最大切削直径)	Φ190mm
Max. Cutting Length (最大切削长度)	1500mm (可根据需求调整)	Spindle Bore (主轴通孔直径)	Φ82mm / Φ105mm
Spindle Speed Range (主轴转速范围)	10-2000 rpm (变频调速)	Tool Post Type (刀架类型)	4/6-station Turret (4/6 工位刀塔)
X-axis Travel (X 轴行程)	280mm	Z-axis Travel (Z 轴行程)	1550mm
Rapid Traverse Rate (快移速度)	X: 8 m/min, Z: 10 m/min	Positioning Accuracy (定位精度)	±0.005 mm/1000mm
Control System (控制系统)	FANUC 0i-TB / SIEMENS 802D (或其他品牌)	Motor Power (电机功率)	11 kW (主电机)
Tailstock Quill Diameter (尾座套筒直径)	Φ65mm	Weight (重量)	Approx. 3500 kg
*Overall Dimensions (LWH) (外形尺寸)*	3500mm x 1800mm x 1700mm	Key Selling Points (核心卖点)	High Precision, High Efficiency, Multi-functional, Suitable for Batch Production
Warranty (质保)	3 Months (Parts Only)	Machinery Test Report (机械检测报告)	Available Upon Request
Video Outgoing-Inspection (出货视频)	Available Upon Request
