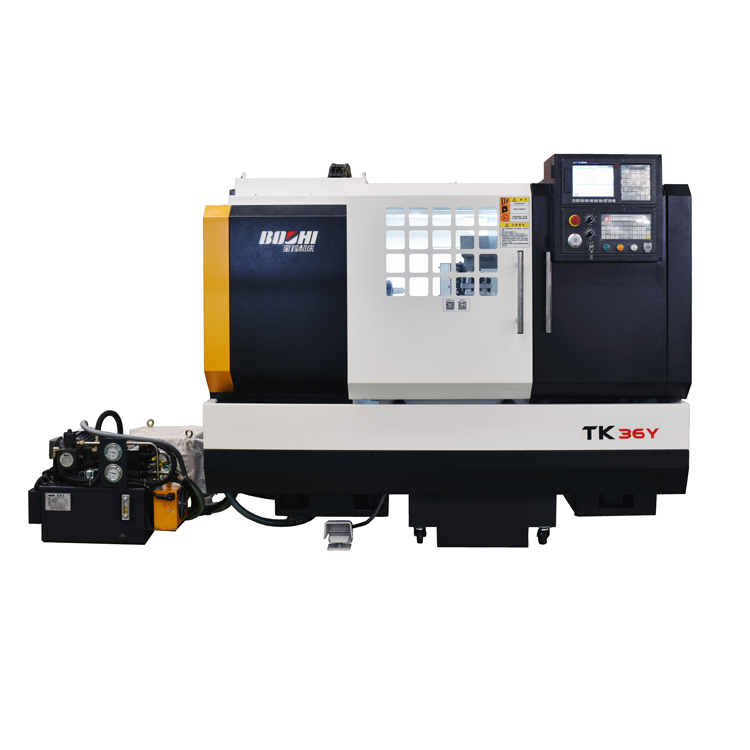

CNC lathe TK36Y
CNC lathe TK36Y
Core Application Scenarios
The TK36Y is a compact high-precision CNC horizontal lathe, designed for efficient processing of small and medium-sized rotating workpieces. It features stable performance and energy-saving, widely used in auto parts, precision hardware, electronic components and small machinery industries.
- Precision Small Parts Processing: Specializes in turning shafts, sleeves, small flanges and discs, achieving surface roughness Ra ≤ 1.0 μm and dimensional tolerance ±0.01mm, meeting high-precision assembly needs.
- Efficient Batch Production: 8-way turret and frequency conversion speed regulation reduce tool change and processing time, suitable for small batch production of standardized parts.
- Multi-Material Adaptation: Adapts to common metals and non-ferrous metals, solving processing demands of different small components.
- Space-Saving & Flexible: Compact structure saves workshop space; user-friendly CNC system is easy to master for operators with basic experience.
Batch Advantages of Equipment
- High Precision & Stability: Precision ball screws and reinforced cast iron bed ensure minimal vibration and consistent processing accuracy.
- Energy-Saving & Efficient: Small-power frequency conversion motor saves energy; 8-way turret improves processing efficiency.
- Easy Operation & Maintenance: Simple CNC interface and automatic lubrication system reduce operational difficulty and maintenance costs.
- Cost-Effective: As used equipment, it costs only 30%-50% of new models, ideal for SMEs and small workshops.
Original price was: 4,000.00$.3,700.00$Current price is: 3,700.00$.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | TK36Y | Place of Origin (产地) | China (中国) |
| Machine Type (机床类型) | CNC Horizontal Lathe (数控卧式车床) | Brand Name (品牌) | Domestic Well-Known Brand (国内知名品牌) |
| Max. Swing Diameter Over Bed (最大加工直径) | Φ360mm | Max. Cutting Length (最大切削长度) | 750mm / 1000mm (可选) |
| Spindle Bore (主轴通孔直径) | Φ52mm / Φ65mm (可选) | Spindle Speed Range (主轴转速范围) | 15-2200 rpm (变频无级调速) |
| Tool Post Stations (刀架工位) | 8-way Turret (八工位刀架) | Feed Rate Range (进给量范围) | 0.01-2.0 mm/rev (纵向)；0.02-4.0 mm/rev (横向) |
| Lead Screw Diameter (丝杠直径) | Φ32mm (精密滚珠丝杠) | Motor Power (电机功率) | 5.5 kW (主电机) + 0.75 kW (冷却泵电机) |
| Tailstock Quill Diameter (尾座套筒直径) | Φ55mm | Tailstock Quill Travel (尾座套筒行程) | 150mm |
| Max. Workpiece Weight (最大工件重量) | 500 kg | Overall Dimensions (LWH) (外形尺寸) | 2800mm×1500mm×1600mm (示例，按切削长度调整) |
| Weight (重量) | Approx. 2200-2800 kg | Control System (控制系统) | CNC System (可选广数 / 凯恩帝) |
| Key Selling Points (核心卖点) | High Precision, Compact, Energy-Saving, Easy Operation | Warranty (质保) | 3 Months (Parts Only) |
| Machinery Test Report (机械检测报告) | Available Upon Request | Video Outgoing-Inspection (出货视频) | Available Upon Request |
| Cutting Material Range (切削材料范围) | Carbon Steel, Alloy Steel, Stainless Steel, Copper, Aluminum | Surface Roughness (表面粗糙度) | Ra ≤ 1.0 μm |
| Lubrication System (润滑系统) | Automatic Circulating Lubrication (自动循环润滑) | Cooling System (冷却系统) | Circulating Cooling (循环冷却) |
