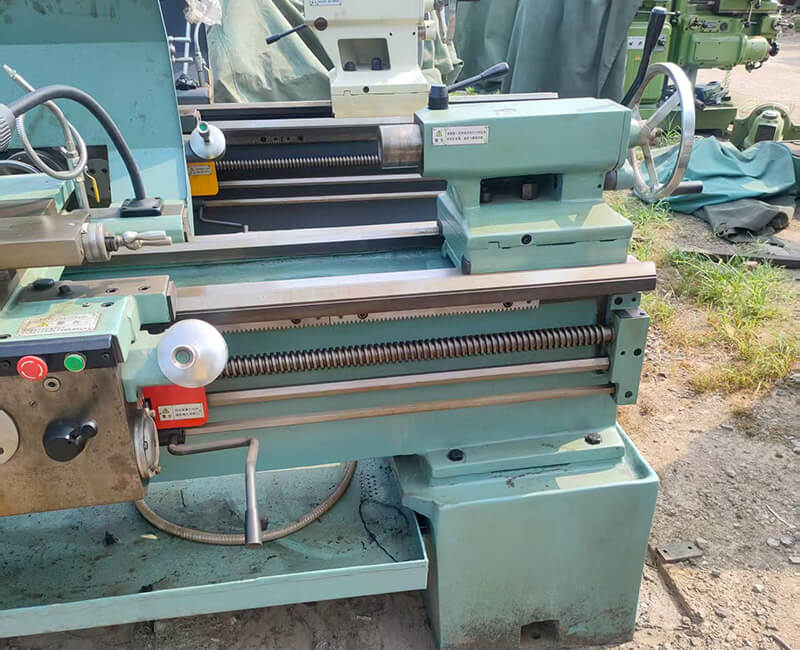

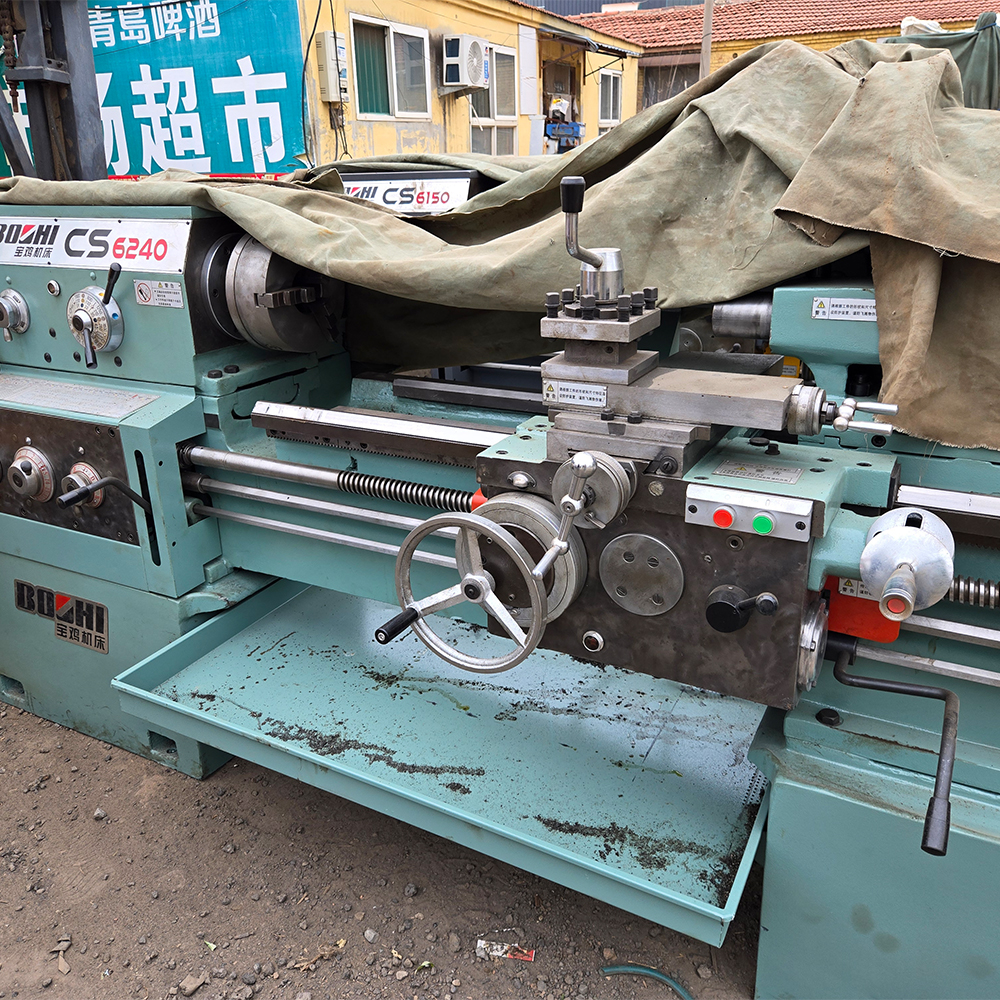

CS6240 Lathe Machine
The spindle diameter is 52mm, the maximum rotation diameter is 400mm, and the maximum processing length is 1.5 meters.
Original price was: 3,000.00$.2,800.00$Current price is: 2,800.00$.
Item Parameters
Maximum swing diameter on bed 400mm
Maximum swing diameter in saddle 630mm
Effective length in saddle 240mm
Maximum swing diameter on saddle 220mm
Maximum workpiece length 1500mm
Spindle bore diameter 52mm
Spindle head type ISO 702/Ⅲ No. 6 bayonet type
Spindle speed range 24 steps
Spindle speed range 9-1600 rpm
Spindle motor power 7.5kW
Tailstock quill diameter 75mm
Tailstock quill stroke 150mm
Tailstock quill taper Morse 5
Number of tool positions 4
Tool square dimensions 25×25mm
Maximum X-axis travel 145mm
Maximum Z-axis travel 320mm
X-axis feed range 93 positions, 0.028-6.43mm/r
Z-axis feed range 93 positions Thread range: 48, 0.012-2.73mm/r
Metric thread range: 48, 0.5-224mm
Inch thread range: 48, 72-1/4" pitch
Modular thread range: 42, 0.5-112mm
Diameter pitch thread range: 42, 56-1/4" pitch
Coolant pump motor power: 60W
Machine length: 3132mm
Machine width: 975mm
Machine height: 1230mm
Machine weight: 2250kg
