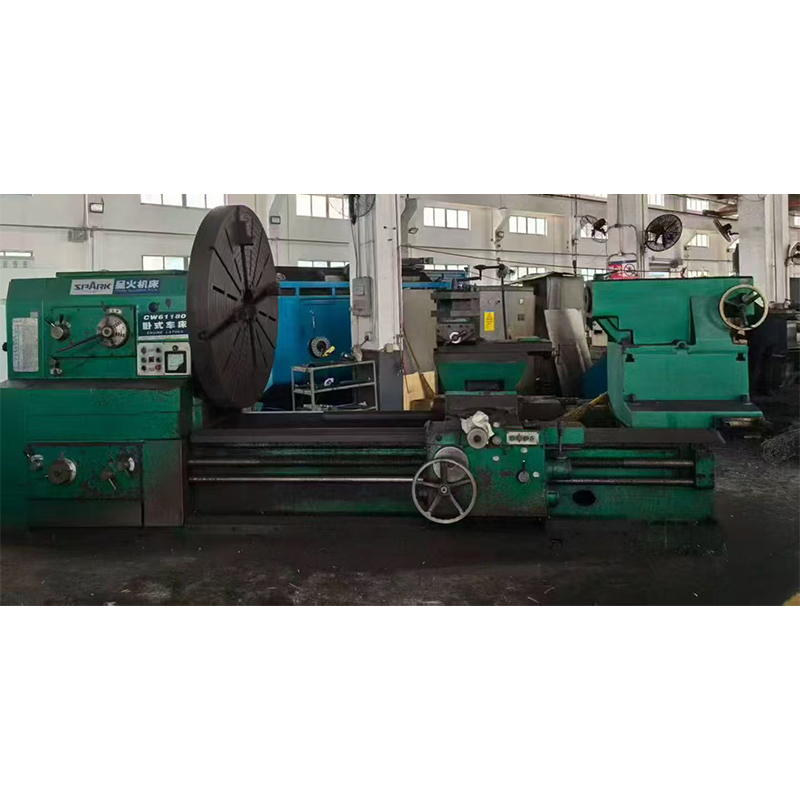

CW61180 Heavy-Duty Horizontal Lathe

  1. Ultra-Heavy Machinery Manufacturing: Processes large-scale shaft components, flange discs, and cylinder shells for mining excavators, metallurgical rolling mills, and large-scale cement equipment, capable of handling extra-large and overweight workpieces.
  2. Shipbuilding & Marine Engineering: Machines marine main engine crankshafts, propeller shafts, and hull flange parts, meeting the strict requirements of marine equipment for high strength and dimensional stability.
  3. Energy & Power Equipment Production: Fabricates large-diameter rotating shafts and flange components for thermal power units, hydroelectric generators, and large wind turbines, ensuring precision machining of core heavy-duty parts.
  4. Custom Heavy-Part Processing: Undertakes non-standard turning tasks for oversized workpieces in equipment maintenance and special machinery modification projects, with a wide processing range and strong load-bearing capacity.

10,099.00$

ParameterSpecification
Maximum Swing Over Bed1800mm
Maximum Swing Over Cross Slide1050mm
Maximum Machining Length2000mm/3000mm/5000mm/12000mm (optional)
Spindle Through Hole Diameter280mm
Spindle TaperMorse No.8 (MT8)
Spindle Speed Range2.5-100rpm (stepless frequency conversion)
Thread Cutting CapacityMetric: 4-80mm; Inch: 0.8-20tpi
Cross Slide Travel900mm
Saddle TravelMatches maximum machining length
Tailstock Quill Diameter200mm
Tailstock Quill Travel350mm
Tailstock Quill TaperMorse No.6 (MT6)
Main Motor Power45kW
