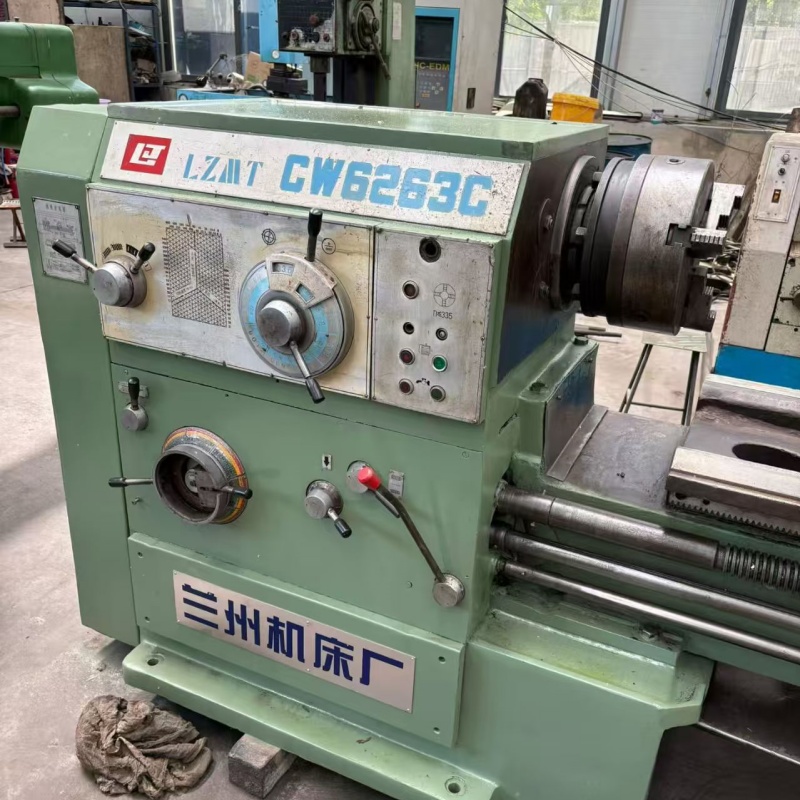

CW6263C horizontal lathe
The CW6263C horizontal lathe is mainly used for various turning operations. It can turn the outer circle, end face, conical surface, inner hole and thread of various parts, and can also undertake processes such as drilling, reaming and boring. It is suitable for powerful or high – speed cutting, and can complete the cutting processing of the internal and external cylindrical surfaces, conical surfaces, end faces, grooving, chamfering, drilling and tapping of various shaft – type and disc – type parts. It is widely used in industries such as machinery manufacturing, automotive, and aerospace. For example, in the automotive industry, it can be used to process engine shafts, transmission shafts and other parts; in the aerospace industry, it can be used to process some precision – required cylindrical parts.
3,899.00$
| Parameter | Specification |
|---|---|
| Swing over bed | 630mm |
| Swing in gap | 890mm |
| Swing over cross slide | 350mm |
| Distance between centers | 1000mm, 1500mm, 2000mm, 3000mm, 4500mm, 6000mm |
| Length in gap from face plate | 300mm |
| Spindle nose | C11 or D11 |
| Spindle bore | 105mm, 130mm |
| Spindle speeds/steps | 10—800rpm/18 steps |
| Cross slidle travel | 480mm |
| Top rest travel | 225mm |
| Rapid traverse | Longitudinal Axe Z: 3240mm/min, Transverse Axe X: 1870mm/min |
| Quill diameter | 100mm |
| Quill travel | 260mm |
| Quill taper | MT6 |
| Bed width | 550mm |
| Metric threads | 1—240mm/53 kinds |
| Inch threads | 30—2tpi/31 kinds |
| Module threads | 0.25—60mm/46 kinds |
| Diametral pitch threads | 60— ½Lpi / 47 kinds |
| Main motor power | 11kW |
