CY-K6150B CNC Lathe

  1. Precision Machining: Turning shafts, sleeves, flanges, and threaded components with high accuracy for automotive, aerospace, and medical equipment industries.
  2. Batch Production: Suitable for small-to-medium batch processing of metal parts (carbon steel, alloy steel, stainless steel) requiring consistent quality.
  3. General Machinery Manufacturing: Processing hydraulic cylinders, pump bodies, and transmission parts for industrial machinery and equipment.
  4. Hardware & Auto Parts: Fabricating precision auto accessories, mechanical connectors, and high-precision hardware fittings

4,000.00$

Whatstaap
Send Email
  • Maximum Swing Over Bed: 500mm
  • Maximum Machining Length: 1000mm (1m, effective processing length)
  • Spindle Through Hole Diameter: 80mm
  • Spindle Speed Range: 50-2000rpm (stepless variable frequency)
  • X/Z-axis Travel: 230mm / 1000mm
  • Rapid Traverse Speed (X/Z): 10m/min / 14m/min

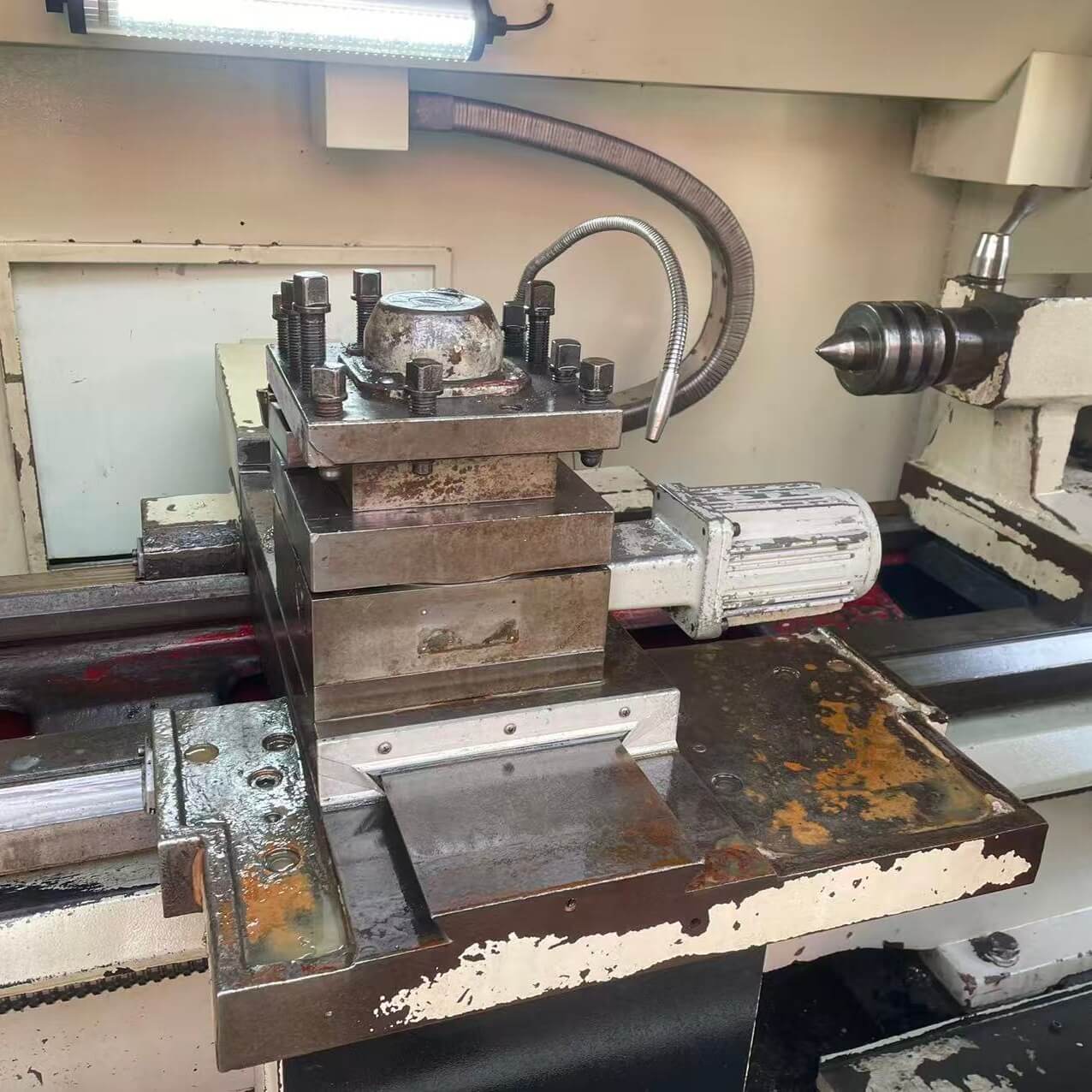

  • Tool Post: 8-station hydraulic turret

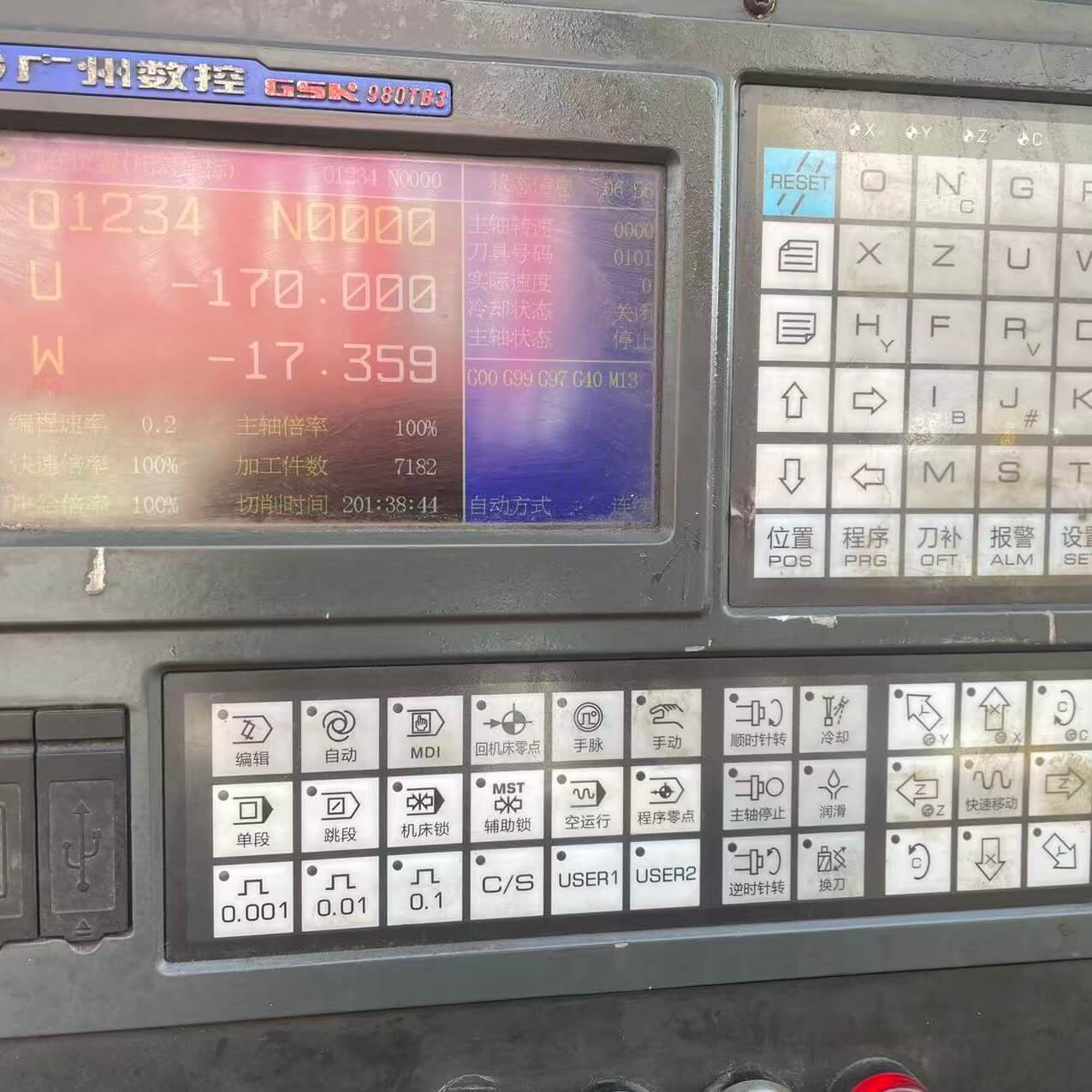

  • CNC System: FANUC 0i-TF / SIEMENS 808D / GSK (optional)
  • Main Motor Power: 11kW (AC variable frequency)
  • Positioning Accuracy (X/Z): ≤0.015mm / ≤0.02mm
  • Repeatability Accuracy (X/Z): ≤0.01mm / ≤0.015mm
