| Parameter | Specification |
|---|---|
| Maximum Swing Over Bed | 500mm |
| Effective Machining Length | 1500mm |
| Maximum Swing Over Carriage | 290mm |
| Spindle Through Hole Diameter | 82mm |
| Spindle Speed Range | 35-2500rpm (3-speed stepless variable frequency) |
| Main Motor Power | 11kW (AC variable frequency) |
| X-axis Travel | 250mm |
| Z-axis Travel | 880mm |
| Rapid Traverse Speed (X/Z) | 4m/min / 8m/min |

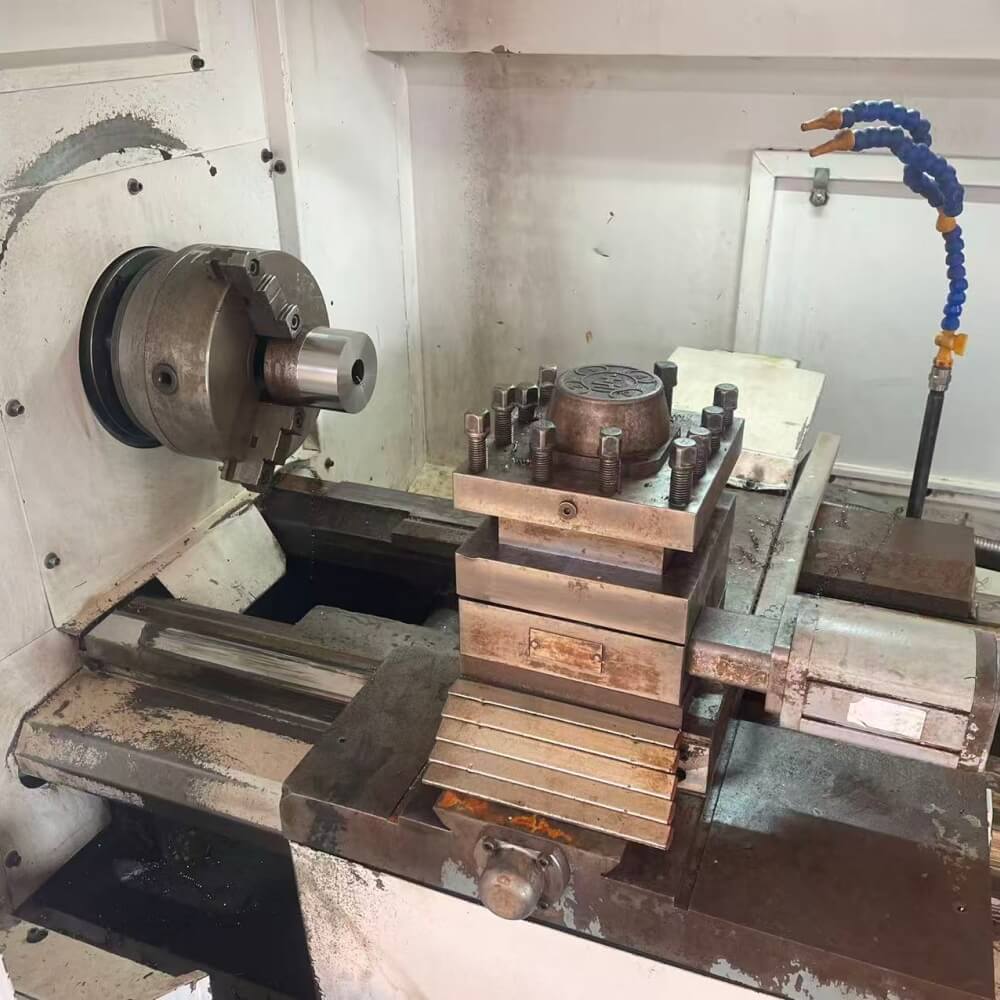

| Tool Post | 4/6-station vertical turret; Repeat positioning accuracy ≤0.008mm |

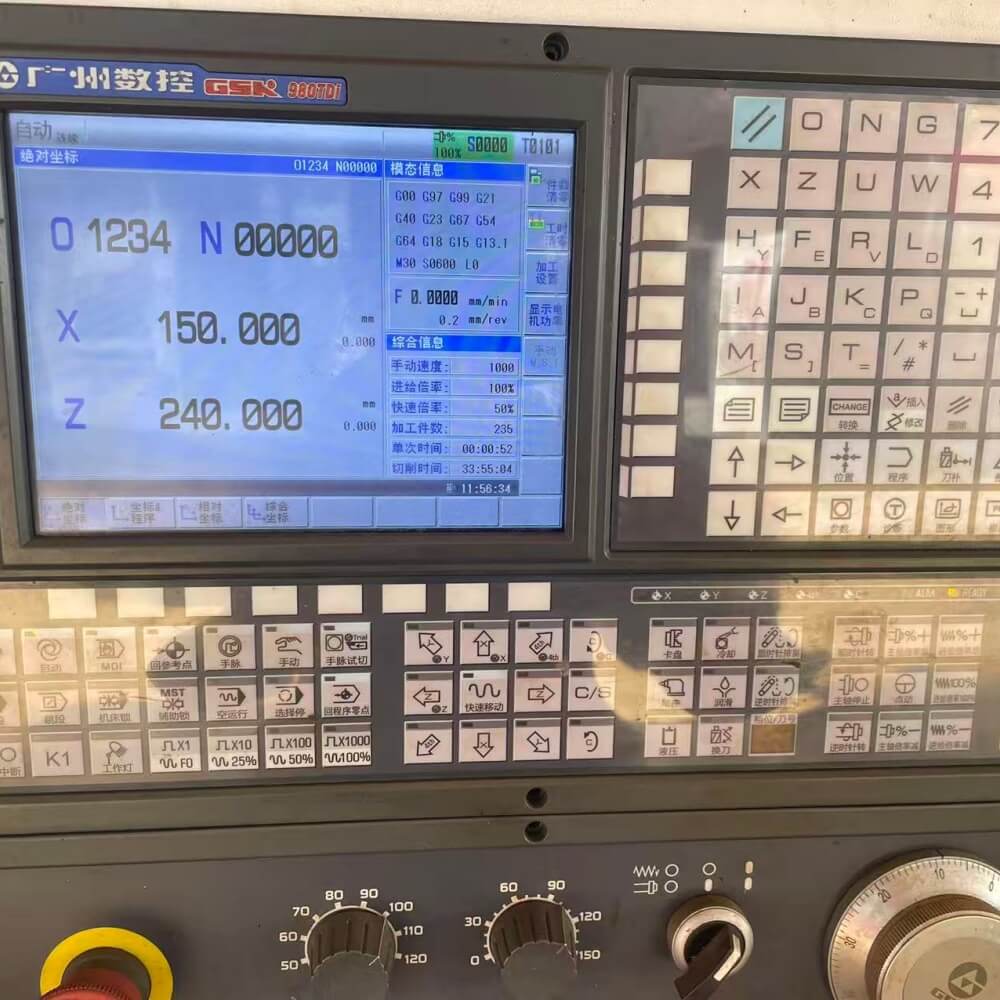

| CNC System | GSK 980TC3 (optional FANUC/SIEMENS) |
| Positioning Accuracy (X/Z) | ≤0.012mm / ≤0.016mm |
| Processing Accuracy | IT6-IT7 |
| Surface Roughness | Ra1.6μm |

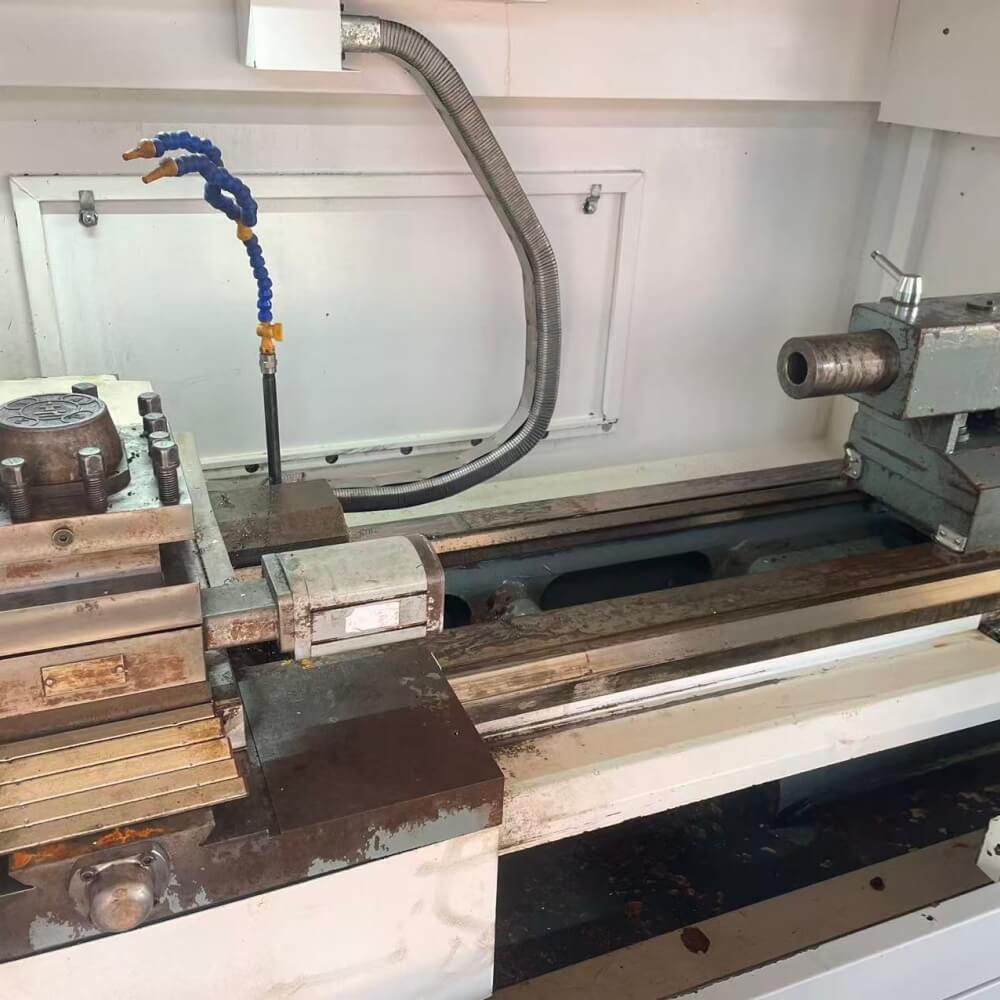

| Tailstock Sleeve (Diameter/Stroke) | 75mm / 150mm; Taper: Morse No.5 (MT5) |
