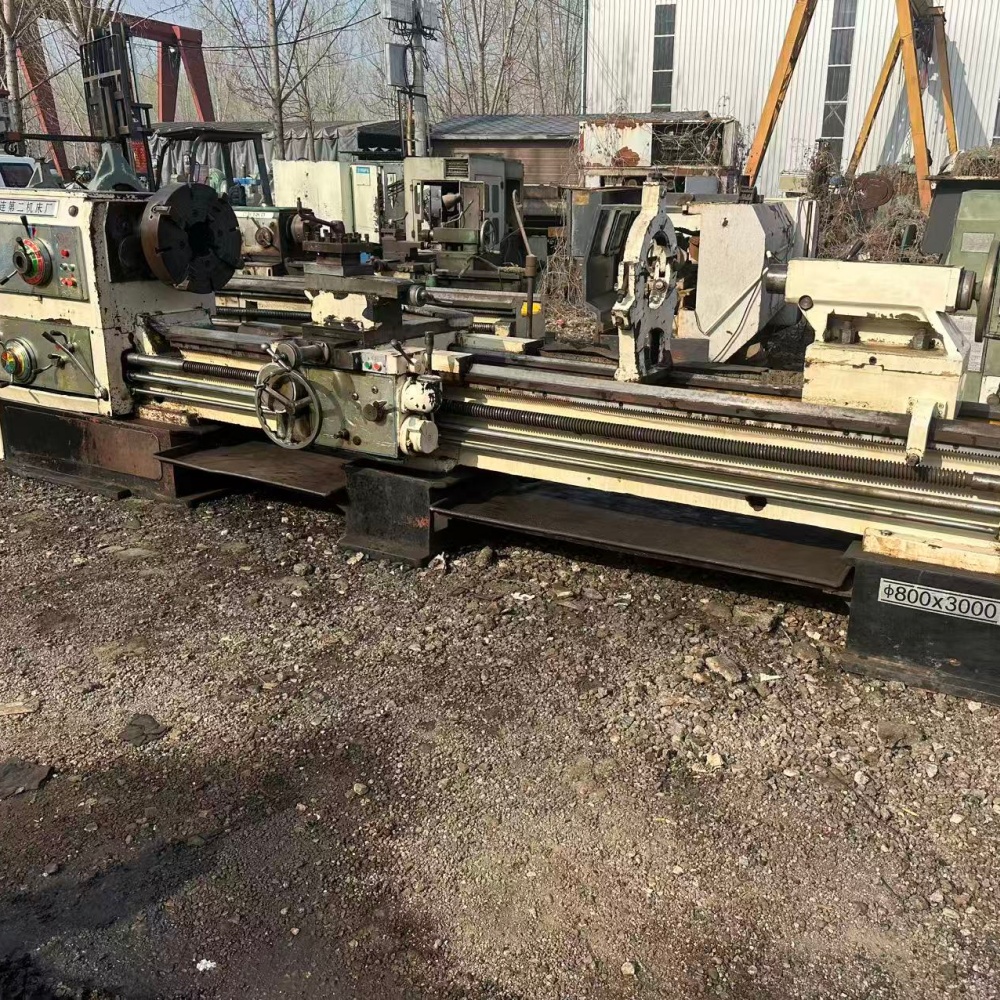

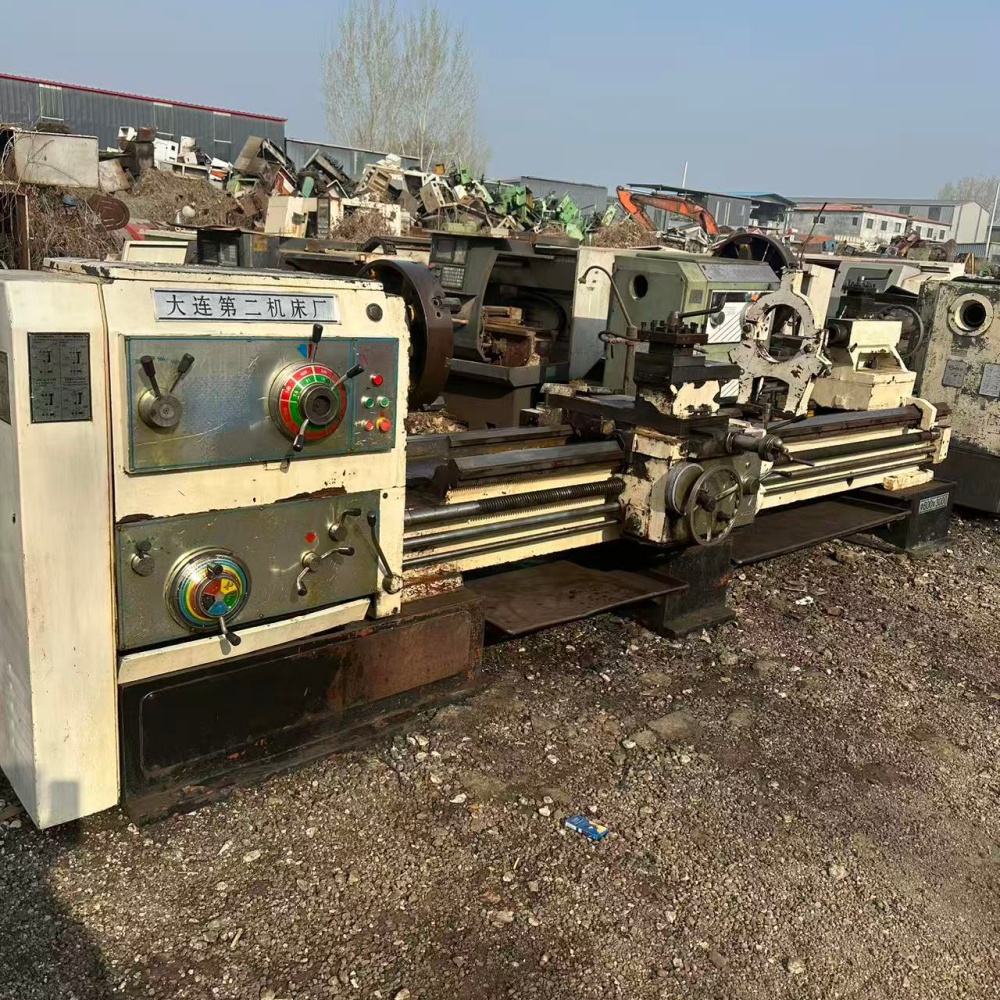

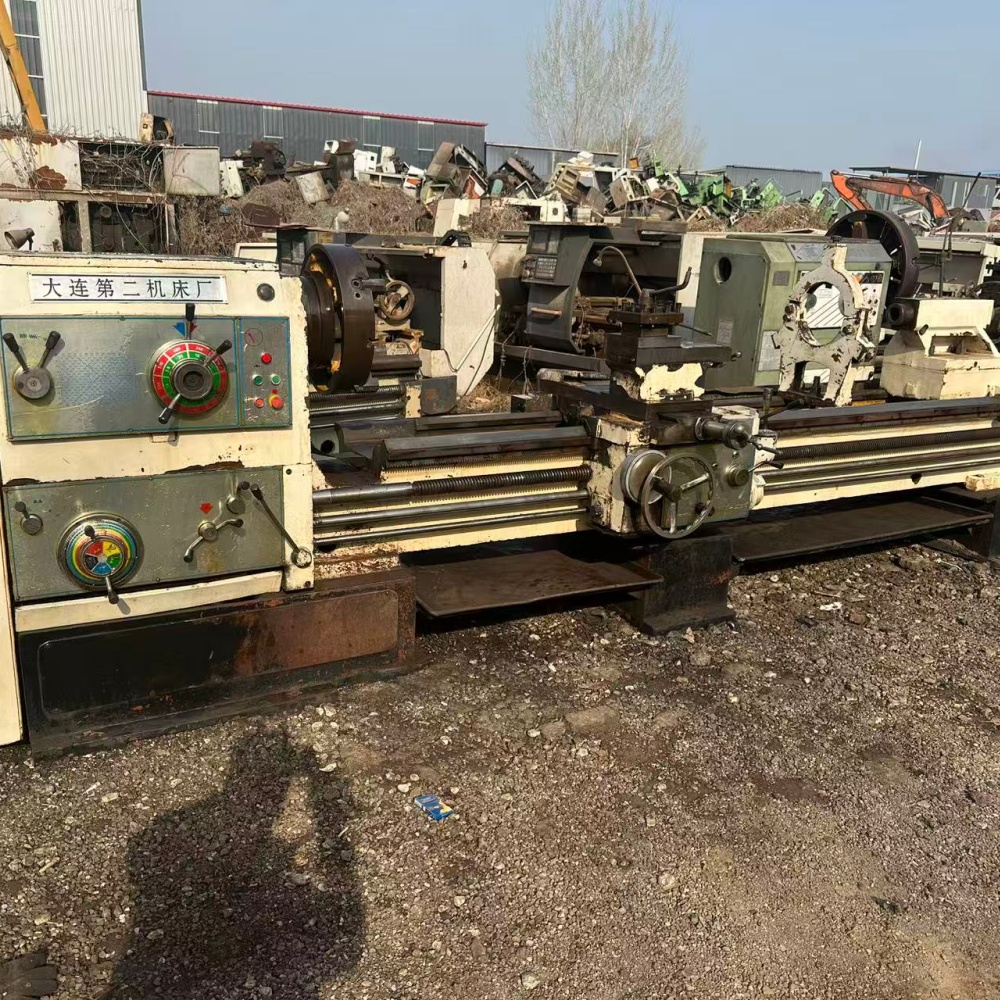

Dalian CW6280B × 3000mm Gap Bed Lathe
- Heavy rigid bed structure, stable for heavy cutting
- Large spindle bore, suitable for long shafts and large bars
- Hardened & precision ground guideways, good wear resistance
- Wide speed range, strong cutting torque
- Can turn metric, inch, module and DP threads
- Durable, low noise, easy operation
6,200.00$
Main Parameters
- Swing over bed: 800 mm
- Swing over saddle: 480 mm
- Swing in gap: 1050 mm
- Distance between centers: 3000 mm
- Spindle bore: 105 mm
- Spindle speed: 16 speeds, 8–600 rpm
- Main motor power: 15 kW
- Bed guide width: 600 mm
- Tailstock taper: MT6
- Net weight: Approx. 12000 kg
- Voltage: 380V/50Hz 3-phase
