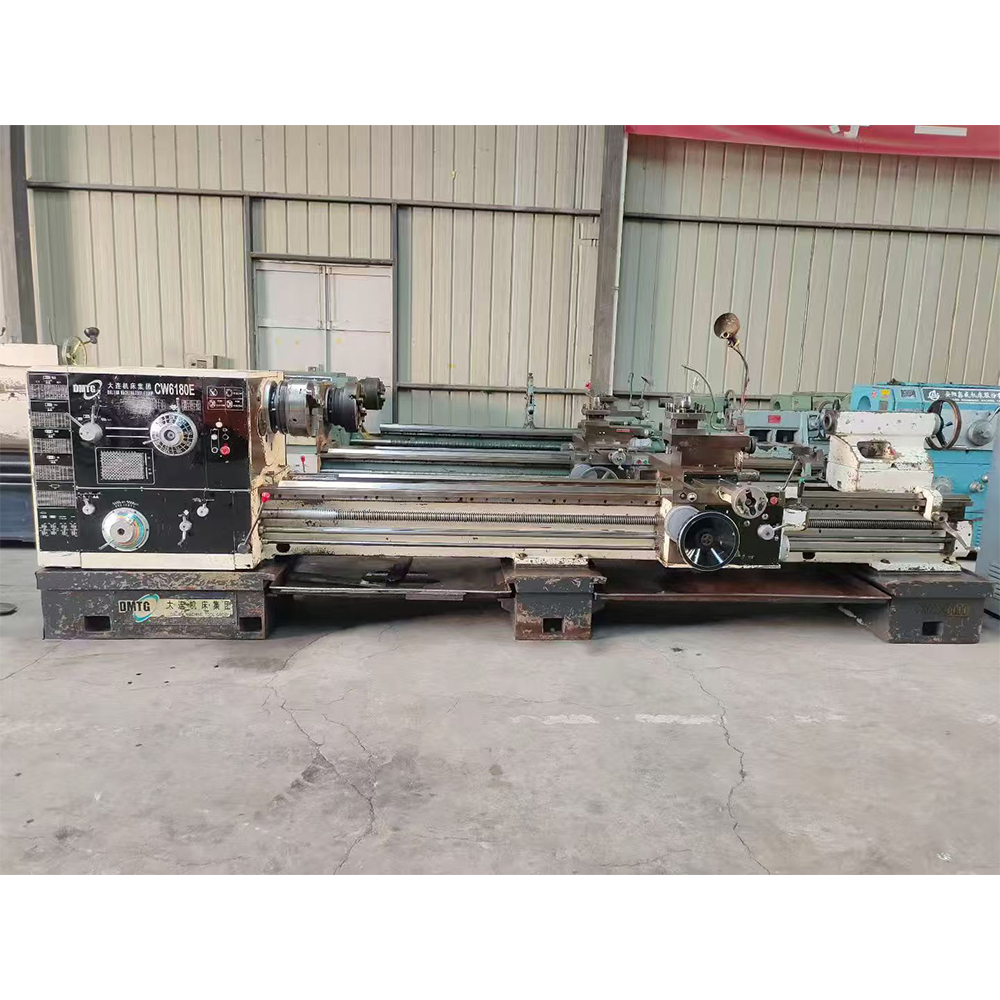

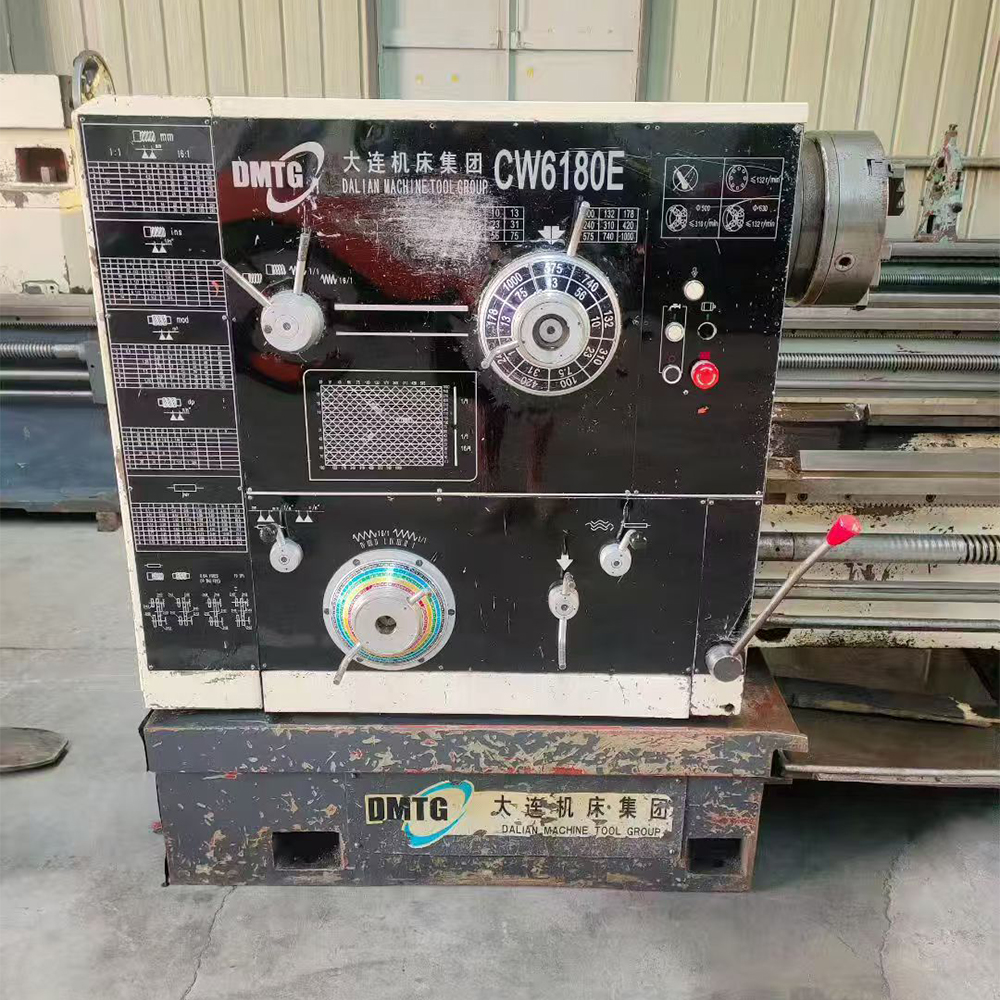

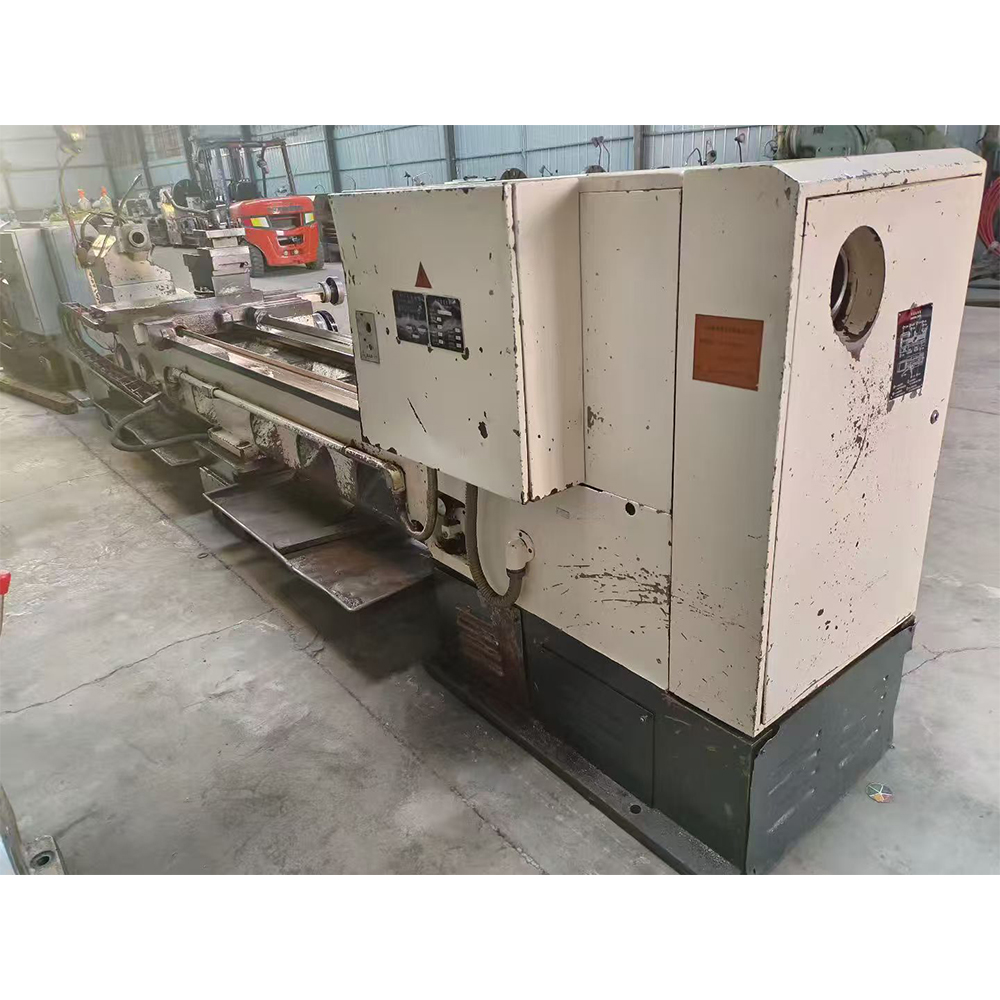

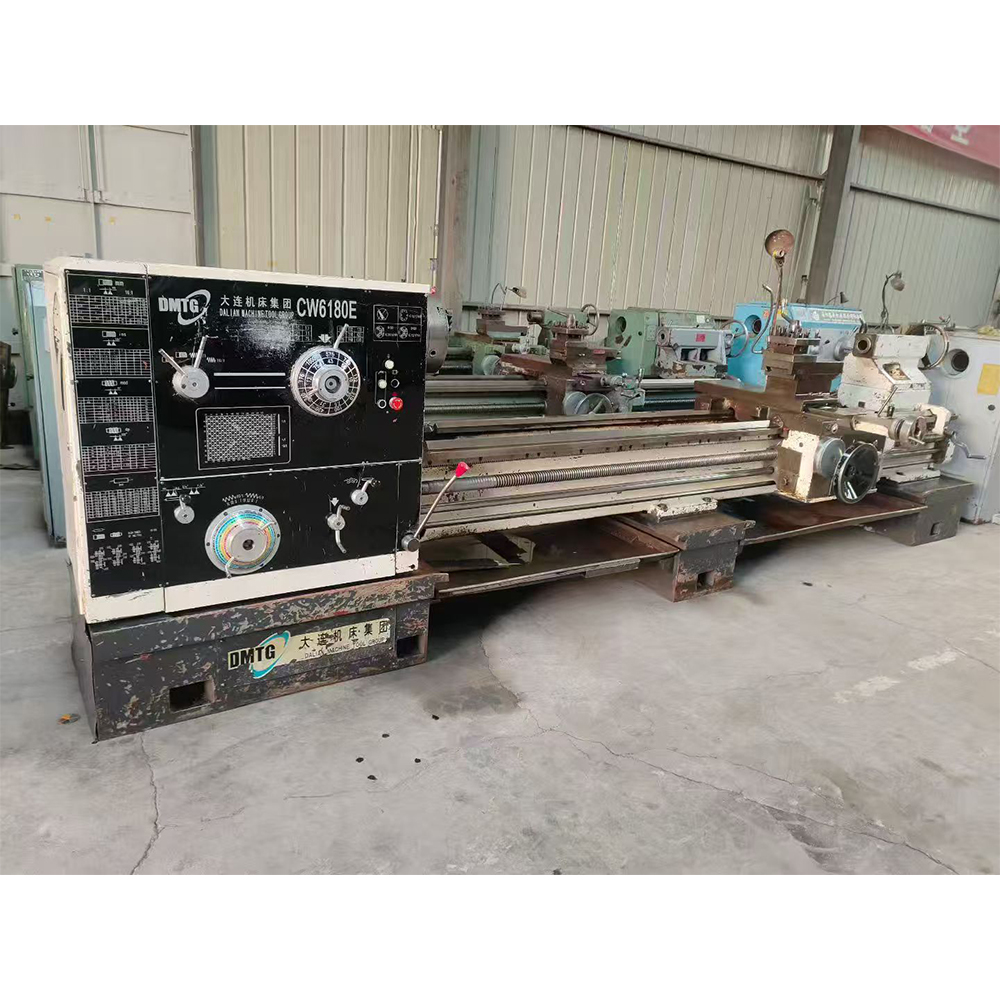

Dalian lathe CW6180E
Core Application Scenarios
The Dalian lathe CW6180E is a high-quality horizontal lathe, produced by Dalian Machine Tool, suitable for turning of large and medium-sized metal workpieces. It has stable performance and high rigidity, widely used in machinery manufacturing, heavy industry, auto parts and shaft processing industries.
- Specializes in turning inner/outer cylindrical surfaces, end faces, threads, grooves and steps of carbon steel, alloy steel, cast iron and non-ferrous metals.
- Large processing capacity, max turning diameter 800mm, suitable for large workpieces such as shafts, sleeves and flanges.
- Stepless speed regulation, smooth spindle operation, ensuring high processing accuracy and neat surface of workpieces.
- Simple operation, sturdy structure, suitable for batch production and heavy-duty processing in workshops.
Batch Advantages of Equipment
- High processing accuracy: Stable spindle rotation, accurate feeding, ensuring consistent workpiece size and quality.
- Large load capacity: Heavy-duty bed structure, strong rigidity, able to bear large workpieces and heavy-duty cutting.
- Durable and reliable: Dalian brand quality assurance, high-quality components, long service life and low failure rate.
- Cost-effective: As used equipment, it costs only 30%-50% of new models, with good working condition, suitable for enterprises needing large-scale lathe processing.
Original price was: 4,000.00$.3,700.00$Current price is: 3,700.00$.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | Dalian lathe CW6180E | Place of Origin (产地) | China (Dalian) |
| Machine Type (机床类型) | Horizontal Lathe (普通卧式车床) | Brand Name (品牌) | Dalian (大连机床) |
| Max. Turning Diameter (最大加工直径) | 800mm (床身上) / 400mm (刀架上) | Max. Turning Length (最大加工长度) | 1500mm/2000mm (可选) |
| Spindle Speed (主轴转速) | 10-1250rpm (无级调速) | Spindle Bore (主轴通孔直径) | 80mm |
| Spindle Taper (主轴锥度) | MT6 | Feeding Speed (进给速度) | 0.02-1.5mm/r |
| Motor Power (电机功率) | 11kW | Working Table Size (工作台尺寸) | 820×150mm |
| Overall Dimensions (外形尺寸) | 3200×1400×1800mm (1500mm 加工长度) | Net Weight (净重) | Approx. 4200kg |
| Condition (状态) | Used, Good Working Condition | Warranty (质保) | 3 Months (Parts Only) |
