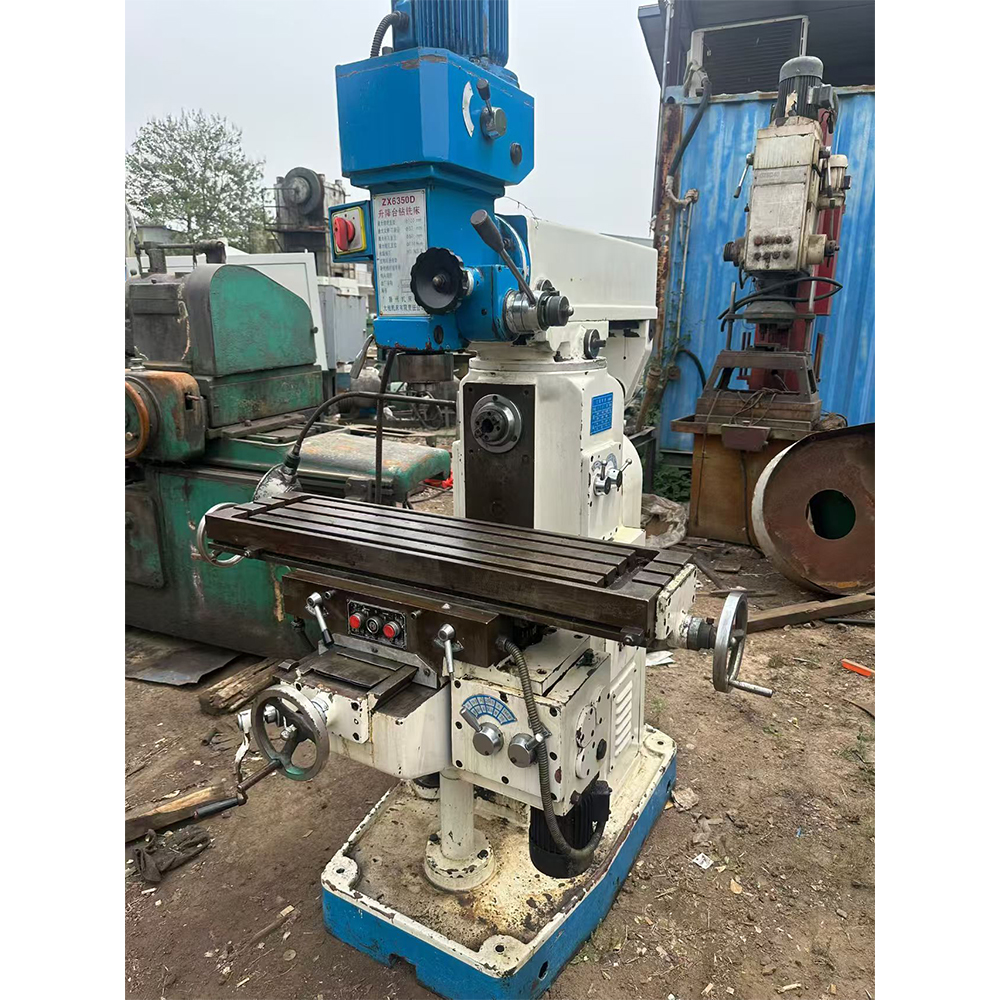

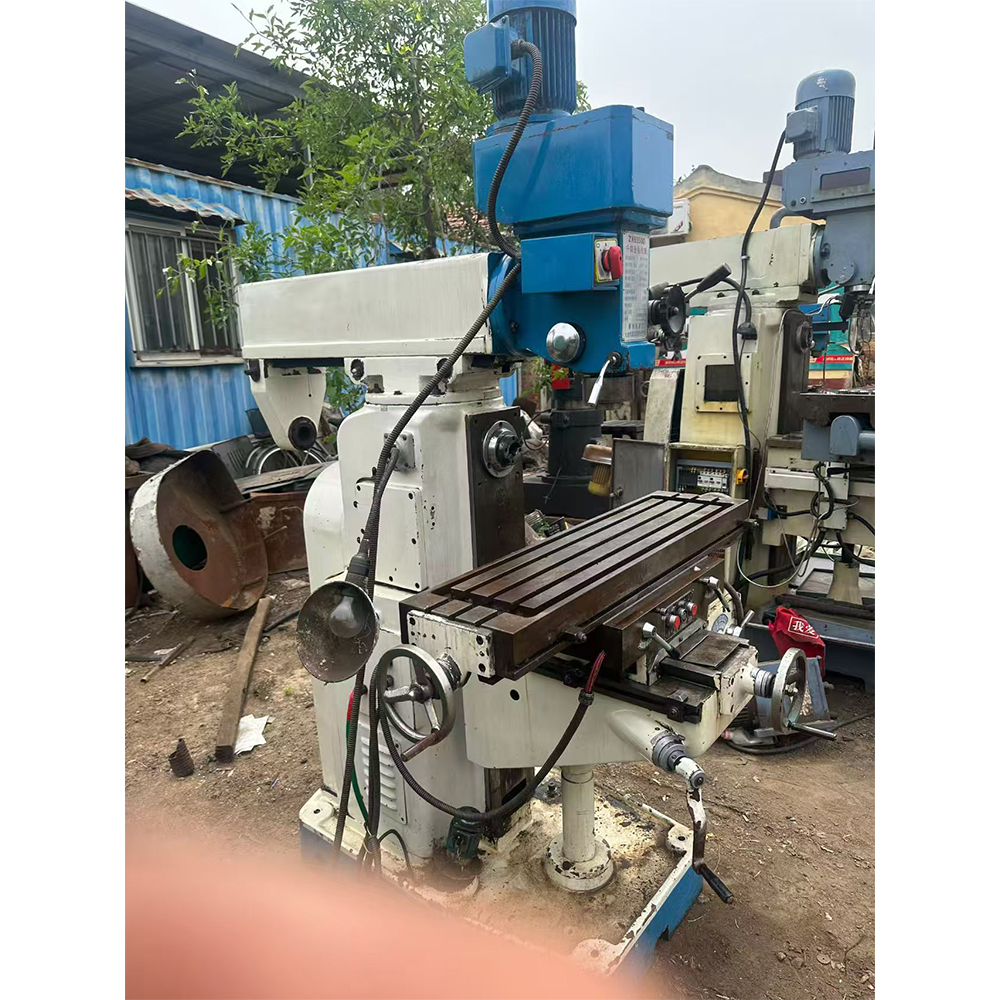

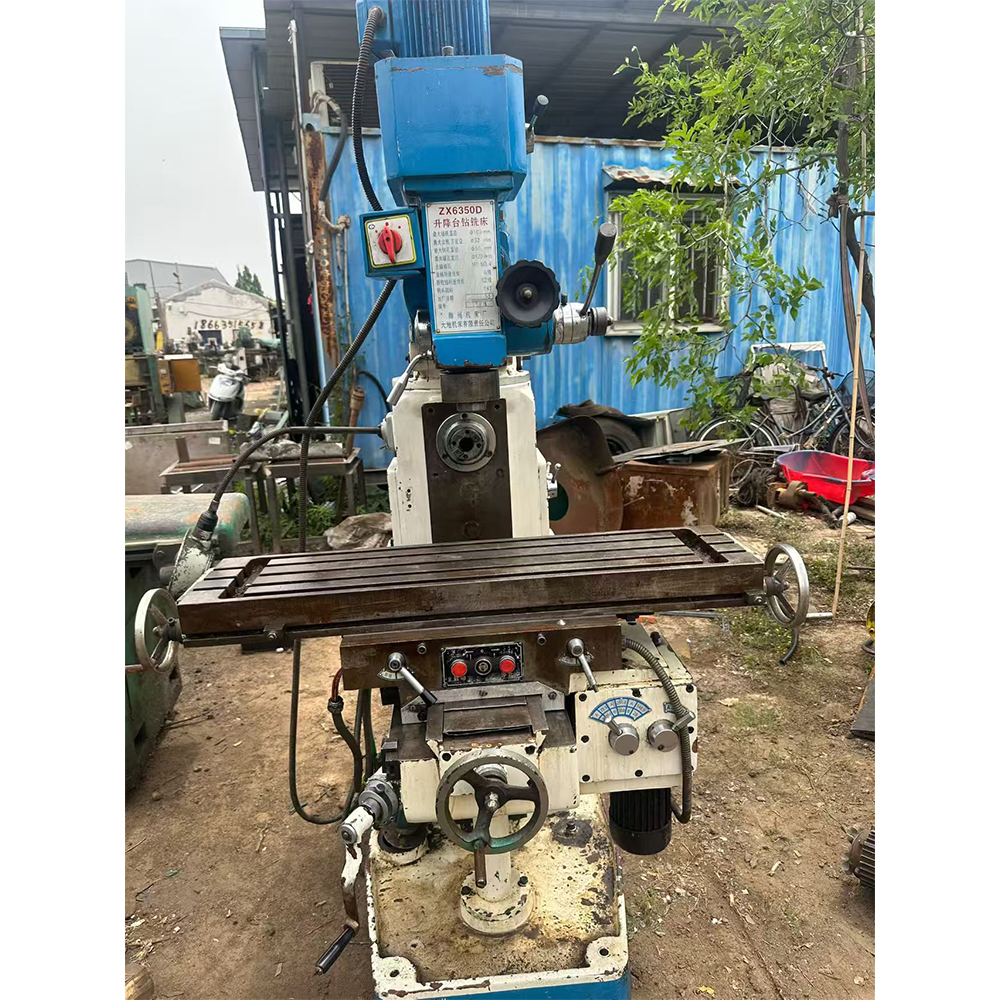

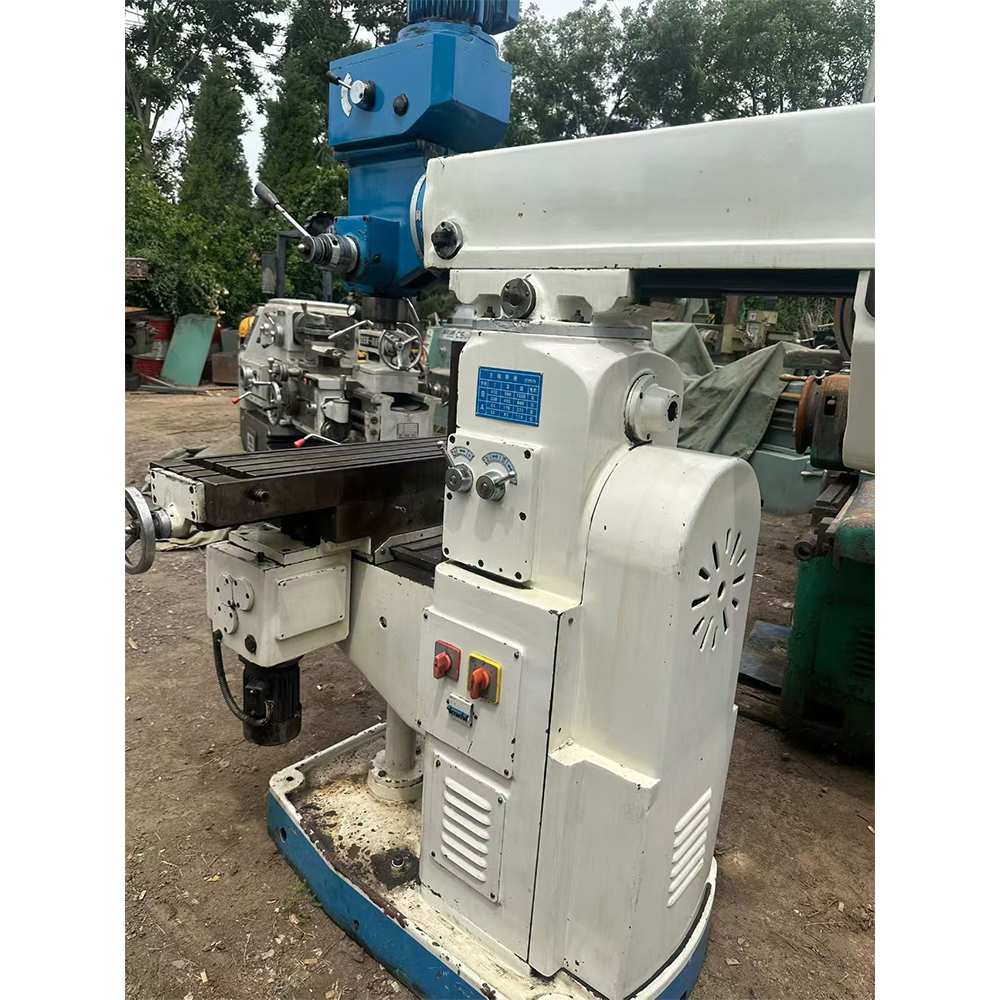

Drilling and milling machine ZX6350D
Core Application Scenarios
The ZX6350D is a multifunctional vertical drilling and milling machine, integrating drilling, milling, tapping and reaming. It has stable performance and simple operation, widely used in machinery manufacturing, hardware processing and small parts production.
- Suitable for processing carbon steel, cast iron, alloy steel and non-ferrous metals, with max drilling diameter 50mm and max milling width 125mm.
- Manual and auto dual feeding mode, flexible for single-piece processing and small-batch production.
- Compact structure, small floor space, suitable for small and medium workshops and hardware factories.
- Smooth spindle operation and high positioning accuracy, ensuring precise processing results.
Batch Advantages of Equipment
- Multifunctional: Integrates multiple processing functions, reducing equipment investment and saving space.
- Efficient: Stepless speed regulation adapts to different materials, improving work efficiency.
- Easy to operate: Simple panel design, easy to master for new operators.
- Cost-effective: Used equipment with good condition, only 30%-50% of new models’ cost, suitable for small and medium enterprises.
Original price was: 1,500.00$.1,400.00$Current price is: 1,400.00$.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | ZX6350D | Place of Origin (产地) | China |
| Machine Type (机床类型) | Vertical Drilling and Milling Machine (立式钻铣床) | Brand Name (品牌) | Chinese Famous Brand |
| Max. Drilling Diameter (最大钻孔直径) | 50mm (Steel) / 75mm (Cast Iron) | Max. Milling Width (最大铣削宽度) | 125mm |
| Spindle Speed (主轴转速) | 40-2500rpm (无级调速) | Spindle Taper (主轴锥度) | MT4 |
| Spindle Stroke (主轴行程) | 120mm | Feeding Mode (进给方式) | Manual/Auto Dual Mode |
| Motor Power (电机功率) | 4kW | Working Table Size (工作台尺寸) | 800×240mm |
| Overall Dimensions (外形尺寸) | 1400×900×1850mm | Net Weight (净重) | Approx. 1200kg |
| Condition (状态) | Used, Good Working Condition | Warranty (质保) | 3 Months (Parts Only) |
