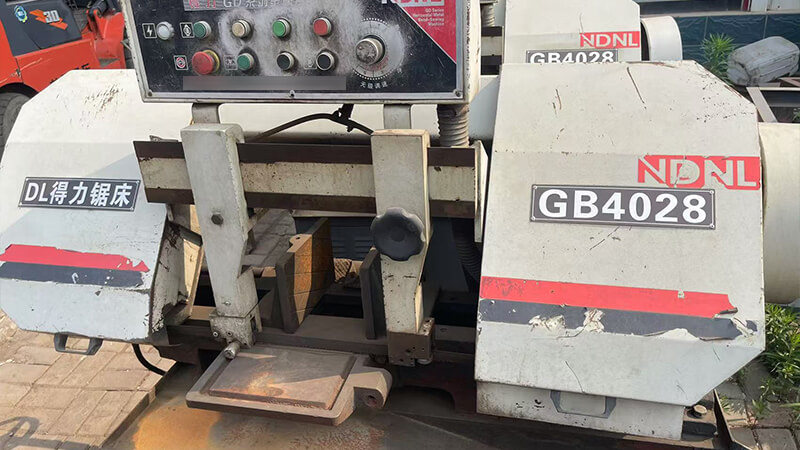

GB4028 Used Sawing Machine
| Performance Indicator | Details |
|---|---|
| Cutting Accuracy | ±0.1mm (for standard materials under stable operation); ensures consistent dimensional precision for subsequent processing |
| Sawing Efficiency | Up to 8-12 cuts per hour for Φ280mm round steel (depending on material hardness and cut length) |
| Blade Service Life | Approximately 800-1200 cuts for Φ200mm carbon steel (varies by material, blade quality, and operating parameters) |
| Operating Stability | Vibration amplitude ≤0.05mm during cutting; ensures stable blade movement and reduces material deformation |
| Speed Regulation Range | Blade speed: 24-52.74m/min (3 gears); adaptable to different material hardness (e.g., low speed for high-carbon steel, high speed for aluminum) |
| Feed Rate Control | Stepless hydraulic adjustment; 0-50mm/min for precise control over cutting pressure and surface finish |
| Power Consumption Efficiency | Average power consumption: 1.8-2.2kW during cutting; 0.3kW in standby mode (energy-saving design for idle periods) |
| Cooling Effect | Cutting fluid circulation rate: 15L/min; effectively reduces blade temperature (≤60℃ after continuous 2-hour operation) and prevents material oxidation |
| Clamping Force | Hydraulic clamping force: 5-10kN (adjustable); ensures firm gripping of workpieces without slippage or damage |
7,040.00$
- Strong Cutting Capacity
Capable of efficiently sawing various ferrous and non-ferrous metals, with a maximum capacity of Φ280mm for round materials and 280×280mm for rectangular materials, meeting diverse industrial cutting needs. - Precise Hydraulic Control
Features hydraulic-driven sawing with stepless feed speed regulation, allowing operators to adjust cutting parameters based on material hardness for optimal precision and surface quality. - Extended Blade Lifespan
Equipped with roller bearings and tungsten carbide guides that reduce blade friction and stabilize operation, significantly prolonging blade service life and reducing replacement costs. - High Production Efficiency
Supports bundle sawing for small materials, minimizing individual cutting cycles. Smooth transitions between acceleration and cutting phases further boost workflow efficiency. - Stable & Durable Structure
Robust frame design (often dual-column) ensures minimal vibration during operation, enhancing cutting stability and maintaining consistent accuracy for tight-tolerance applications. - User-Friendly Operation
Centralized control panel simplifies parameter adjustment. Safety features like blade protection alarms and automatic shutoff at the end of cuts enhance operator safety and ease of use. - Energy & Cost Efficiency
Optimized hydraulic system reduces power consumption during idle phases. Efficient chip removal via cutting fluid circulation keeps the workspace clean and reduces maintenance needs.
