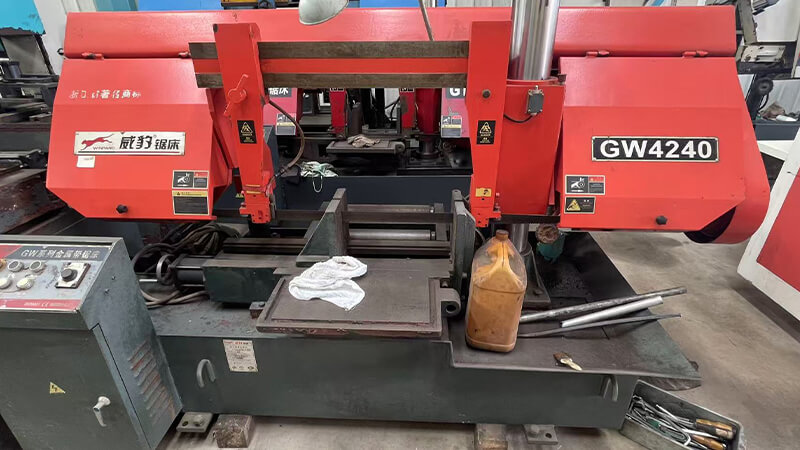

GW4240 sawing machine
The GW4240 sawing machine adopts a horizontal structure optimized on the basis of traditional band sawing machines. It realizes high-precision cutting through the coordinated operation of the hydraulic system and mechanical structure. It can handle not only common metal materials such as carbon steel, alloy steel, and non-ferrous metals but also some high-strength and high-hardness special alloys. The machine body is made of high-strength cast iron, 经过 multiple aging treatments to ensure structural stability and minimize deformation during long-term high-load operation, thus guaranteeing cutting accuracy.
- Heavy Machinery Manufacturing: Used for sawing large-sized raw materials such as thick-walled pipes, large-diameter round steel, and large square steel, providing blanks for the production of heavy machinery parts.
- Energy and Power Industry: Suitable for sawing metal materials used in power equipment, such as generator parts, transformer accessories, etc.
- Automobile and Shipbuilding Industry: Used for sawing large parts in automobile and ship manufacturing, such as axle blanks, hull structural parts, etc.
- Mold Manufacturing Industry: It can saw large mold blanks, reducing the subsequent processing workload and improving production efficiency.
- Steel Structure Processing: Used for cutting steel structure materials such as H-beams and angle steels, meeting the needs of building steel structure construction.
4,583.00$
| Attribute Category | Specific Attribute | Detailed Description |
| Basic Attributes | Equipment Type | Horizontal metal band saw (double-column hydraulic band saw) |
| Core Function | High-precision sawing of various metals, including large-sized and high-hardness materials | |
| Operation Features | Strong cutting capacity, stable operation, intelligent control (for some models) | |
| Technical Parameters | Maximum Sawing Capacity | Maximum diameter of round materials: about 400mm; Maximum size of square materials: approximately 400mm×400mm |
| Band Saw Blade Specification | Common specification: about 4570mm×41mm×1.3mm (length × width × thickness) | |
| Band Saw Blade Speed | Multi-gear adjustable, speed range: 20-100m/min | |
| Feed Speed | Hydraulic stepless speed regulation, range: 3-80mm/min | |
| Main Motor Power | Generally 5.5kW | |
| Overall Dimensions | Approximately 2200mm×1000mm×1800mm (length × width × height, may vary by manufacturer and configuration) | |
| Structural Attributes | Bed and Columns | High-quality cast iron, thickened design, multiple aging treatments, double-column structure with strong stability |
| Saw Frame and Guide System | High-strength saw frame; high-hardness alloy guide blocks and precision guide wheels for stable saw blade operation | |
| Hydraulic System | High-pressure hydraulic system, high-quality components, good sealing, stable clamping and feeding | |
| Worktable and Clamping Device | Large-size worktable with quenched surface; multi-point clamping device for firm workpiece fixation | |
| Control System | Some models have numerical control system with display screen, supporting automatic functions |
