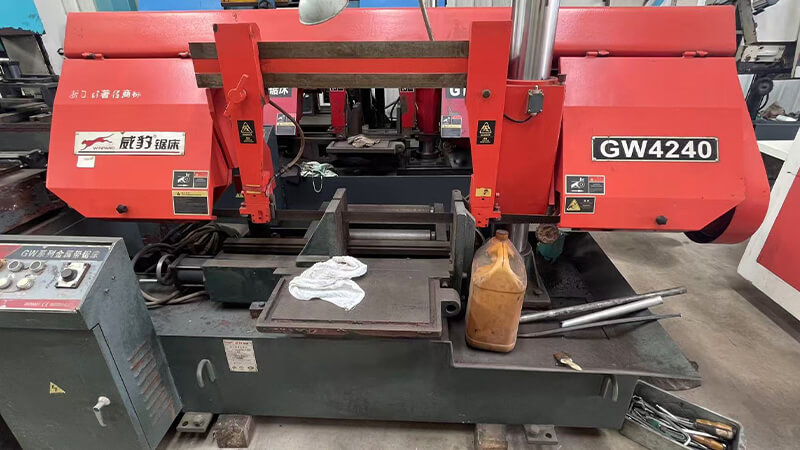

GW4240 Sawing Machine
Applications Advantages
- Manufacturing: Mass production of metal components for machinery, automotive parts, and structural steel.
- Construction: Cutting beams, channels, and pipes for building frameworks.
- Maintenance & Repair: Quick and accurate repairs in shipyards, railways, and heavy equipment industries.
- Metalworking Workshops: Ideal for small to medium-sized enterprises (SMEs) requiring versatility and reliability.
- Time-Saving Features:
- Rapid Feeding: X/Y-axis speeds up to 1000 mm/min for quick material handling.
- Tool-Free Blade Change: Reduces downtime during maintenance.
- Blade Longevity:
- Alloy-Guided Blade Support: Minimizes wear and tear, extending blade life by 20–30% compared to conventional models.
- Dynamic Balancing: Ensures smooth blade rotation and reduces fatigue
4,580.00$
| Attribute Category | Specific Attribute | Detailed Description |
| Basic Attributes | Equipment Type | Horizontal metal band saw (double-column hydraulic band saw) |
| Core Function | High-precision sawing of various metals, including large-sized and high-hardness materials | |
| Operation Features | Strong cutting capacity, stable operation, intelligent control (for some models) | |
| Technical Parameters | Maximum Sawing Capacity | Maximum diameter of round materials: about 400mm; Maximum size of square materials: approximately 400mm×400mm |
| Band Saw Blade Specification | Common specification: about 4570mm×41mm×1.3mm (length × width × thickness) | |
| Band Saw Blade Speed | Multi-gear adjustable, speed range: 20-100m/min | |
| Feed Speed | Hydraulic stepless speed regulation, range: 3-80mm/min | |
| Main Motor Power | Generally 5.5kW | |
| Overall Dimensions | Approximately 2200mm×1000mm×1800mm (length × width × height, may vary by manufacturer and configuration) | |
| Structural Attributes | Bed and Columns | High-quality cast iron, thickened design, multiple aging treatments, double-column structure with strong stability |
| Saw Frame and Guide System | High-strength saw frame; high-hardness alloy guide blocks and precision guide wheels for stable saw blade operation | |
| Hydraulic System | High-pressure hydraulic system, high-quality components, good sealing, stable clamping and feeding | |
| Worktable and Clamping Device | Large-size worktable with quenched surface; multi-point clamping device for firm workpiece fixation | |
| Control System | Some models have numerical control system with display screen, supporting automatic functions |
