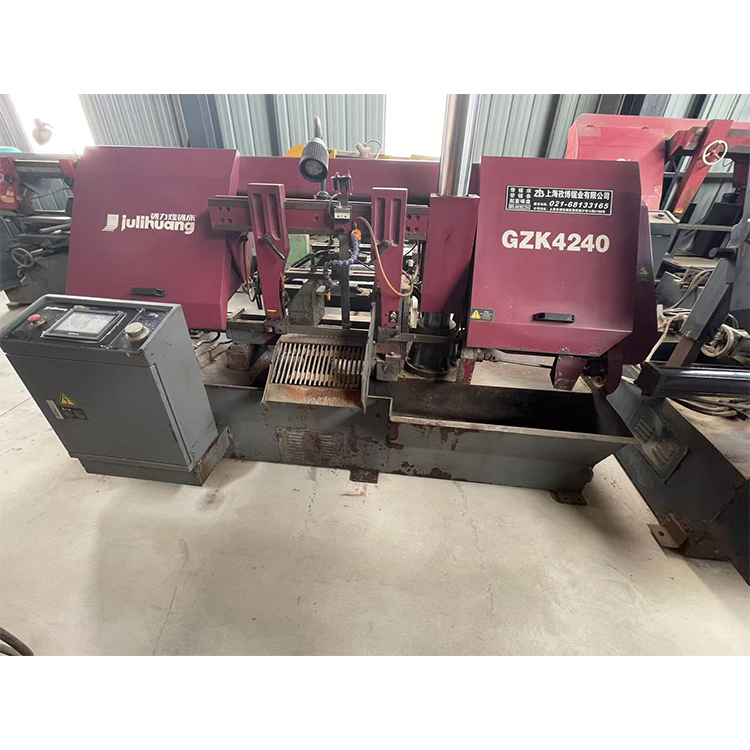

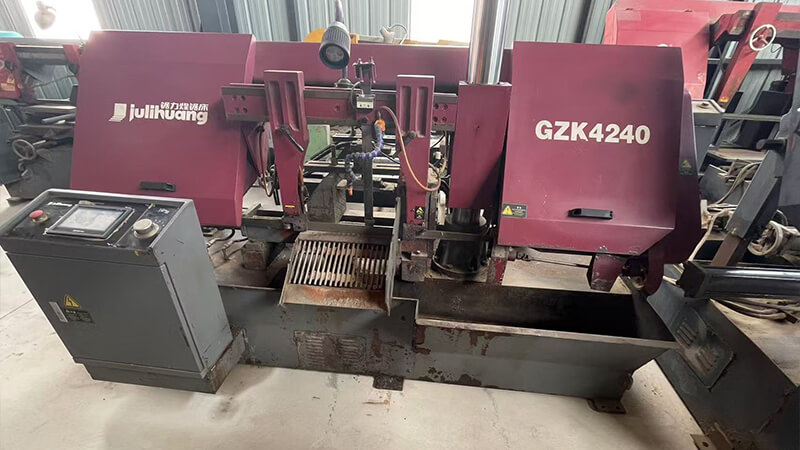

GZK4240 Band Saw Machine
Core Application Scenarios
The GZK4240 is a semi-automatic horizontal band sawing machine for medium to large metal workpieces. It has reliable performance and precise control, widely used in machinery manufacturing, steel processing and metal working industries.
- Specializes in cutting Φ≤400mm round steel and 400×400mm square steel, suitable for blanking of carbon steel and alloy steel parts.
- Hydraulic feeding and semi-automatic operation realize continuous cutting with stable precision, reducing manual work and improving efficiency.
- Adapts to stainless steel, cast iron and non-ferrous metals, meeting different industrial cutting needs.
- Easy parameter adjustment, suitable for both single-piece and small-batch workshop processing.
Batch Advantages of Equipment
- 400mm max cutting capacity covers most medium to large workpieces; hydraulic clamping ensures no displacement.
- Semi-automatic operation saves labor; 25-100m/min stepless speed regulation adapts to different materials.
- Sturdy structure and automatic lubrication reduce wear; emergency stop ensures safe operation.
- As used equipment, it is cost-effective (30%-50% of new models), suitable for small and medium enterprises.
Original price was: 1,150.00$.1,050.00$Current price is: 1,050.00$.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | GZK4240 | Place of Origin (产地) | China |
| Machine Type (机床类型) | Semi-Automatic Horizontal Band Saw Machine | Brand Name (品牌) | Chinese Famous Brand |
| Max. Cutting Capacity (最大切割能力) | Φ400mm (Round) / 400×400mm (Square) | Saw Blade Speed (锯条速度) | 25–100 m/min |
| Feeding Mode (进给方式) | Hydraulic Feeding | Clamping (夹紧方式) | Hydraulic Clamping |
| Motor Power (电机功率) | 5.5 kW + 1.1 kW | Control System (控制系统) | Semi-Automatic |
| Cutting Precision (切割精度) | ≤±0.25 mm/m | Cooling System (冷却系统) | Circulating Cooling |
| Overall Dimensions (外形尺寸) | 2300×1800×2000 mm | Net Weight (净重) | Approx. 2600 kg |
| Condition (状态) | Used, Good Condition | Warranty (质保) | 3 Months |
