Technical Parameters

• Sawing Capacity: Typically capable of sawing workpieces up to 500mm×500mm (square) or 500mm in diameter (round materials).
• Saw Blade Specification: Common size is 41×1.3×5500mm (41mm in width, 1.3mm in thickness, 5500mm in length), suitable for standard band saw blades for metal cutting.
• Saw Blade Speed: Available in multiple options such as 20m/min, 33m/min, 48m/min, and 75m/min. Different speeds can be selected based on material hardness to balance efficiency and blade durability.
• Motor Power: Main motor power is generally 4kW; hydraulic system motor power is 1.5kW; cooling pump power is 0.12kW, providing reliable power support for cutting, clamping, and cooling.
• Worktable Height: Approximately 610mm, designed for easy loading and unloading of workpieces, reducing operator fatigue.
• Overall Dimensions: About 2800×1550×1700mm (length×width×height), with a compact footprint that fits well in most workshop layouts.

Application Scope

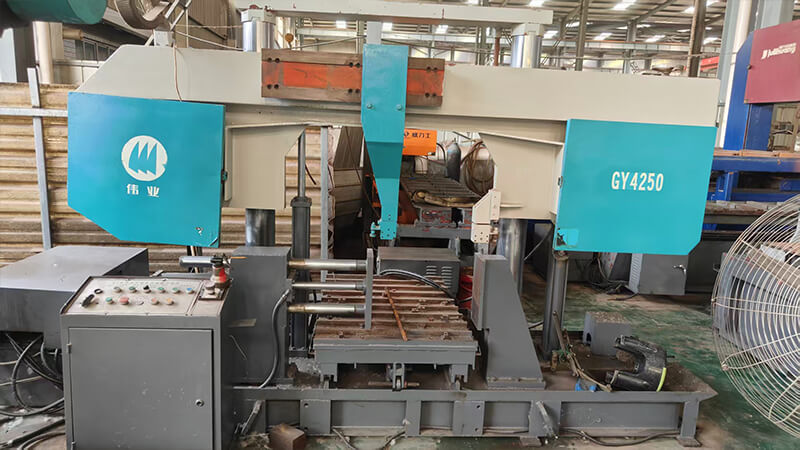

The GY4250 band sawing machine is mainly used for mass cutting of ferrous metals. It is suitable for cutting off or step-processing various metal bars and profiles with specifications of 250mm/400mm/501mm. Additionally, it can be equipped with a bundling device to saw small-sized materials in batches. It is widely applied in machinery manufacturing, automobile parts production, mold processing, and other mechanical processing industries.
