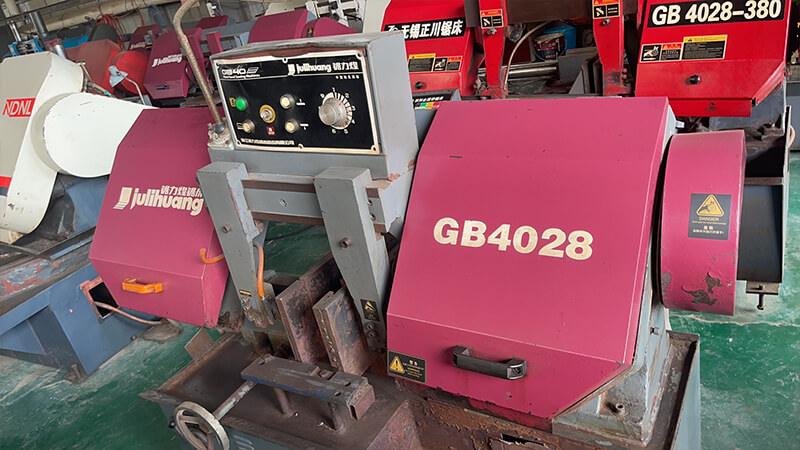

Hydraulic Semi-Automatic Band Saw GB4028

  1. Efficient Semi-Automatic Operation
The hydraulic semi-automatic design balances automation and flexibility: after setting cutting parameters (e.g., length, feed rate), the saw executes repeated cutting cycles with minimal manual input. This reduces operator workload, shortens cycle times, and boosts productivity—ideal for small to medium-batch production.
  1. Smooth and Precise Cutting
Driven by a reliable hydraulic system, the saw delivers stable feed movements, ensuring consistent cutting accuracy. The robust frame structure minimizes vibration during high-torque operations, while the precise blade guidance system (rolling bearings + cemented carbide) maintains straight cuts, even on tough ferrous and non-ferrous metals.
  1. Adaptable Speed Control
Equipped with 5 adjustable blade linear speeds (20/34/50/65/80 m/min), the saw adapts to diverse materials and thicknesses. This versatility allows optimal cutting performance, whether processing soft alloys or hard steel, reducing blade wear and improving efficiency.

1,478.00$

The GB4028 is a high-performance hydraulic semi-automatic band saw, specifically engineered for efficient and precise cutting of various ferrous and non-ferrous metals. As a semi-automatic model, it combines the convenience of automated operations with manual control flexibility, making it ideal for small to medium-batch blanking tasks in metalworking workshops, manufacturing plants, and processing facilities.​

At the core of its design is a reliable hydraulic system that drives the sawing process, enabling smooth and stable feed movements. The semi-automatic functionality streamlines workflow—after setting parameters such as cutting length and feed rate, the saw can perform repeated cutting cycles with minimal manual intervention, reducing operator fatigue and improving productivity.​

The saw features a robust frame structure that ensures rigidity during high-torque cutting, minimizing vibration and maintaining cutting accuracy. Its band saw blade is guided by high-quality rolling bearings and cemented carbide components, which reduce friction and wear, significantly extending the blade’s service life. Additionally, the hydraulic system is designed to pause during blade operation, preventing overheating during prolonged use and enhancing the overall durability of the machine.​

With its balance of automation, precision, and ruggedness, the GB4028 stands out as a practical solution for consistent metal cutting needs.

ParameterSpecification
Sawing Capacity (mm)280 (round), 300×200 (rectangular)
Band Saw Blade Linear Speed20/34/50/65/80 m/min (5-speed options)
Band Saw Blade Specification3505×27×0.9 mm
Main Motor Power2.2 kW
Hydraulic System Pressure4 - 6 MPa
Cutting Control ModeHydraulic semi-automatic (with manual adjustment)
Overall Dimensions (L×W×H)2100×1000×1350 mm
Net WeightApproximately 850 kg
