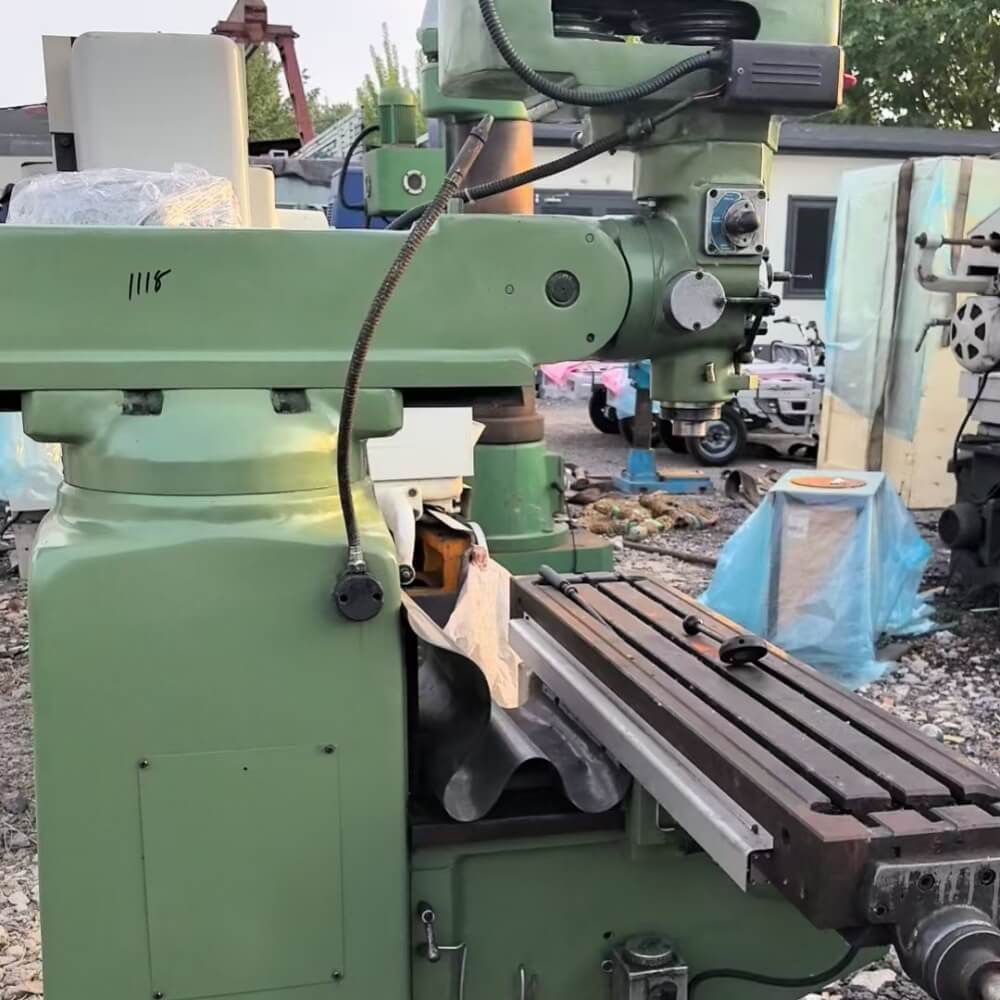

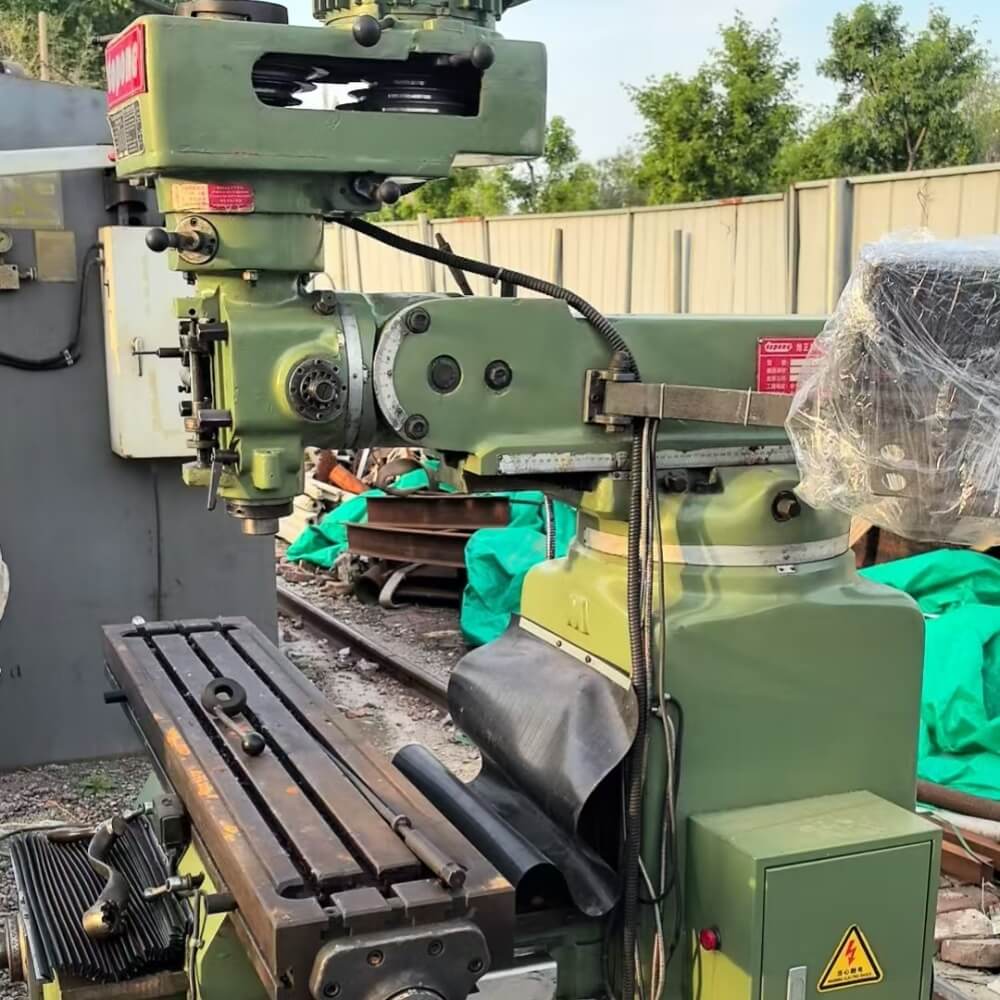

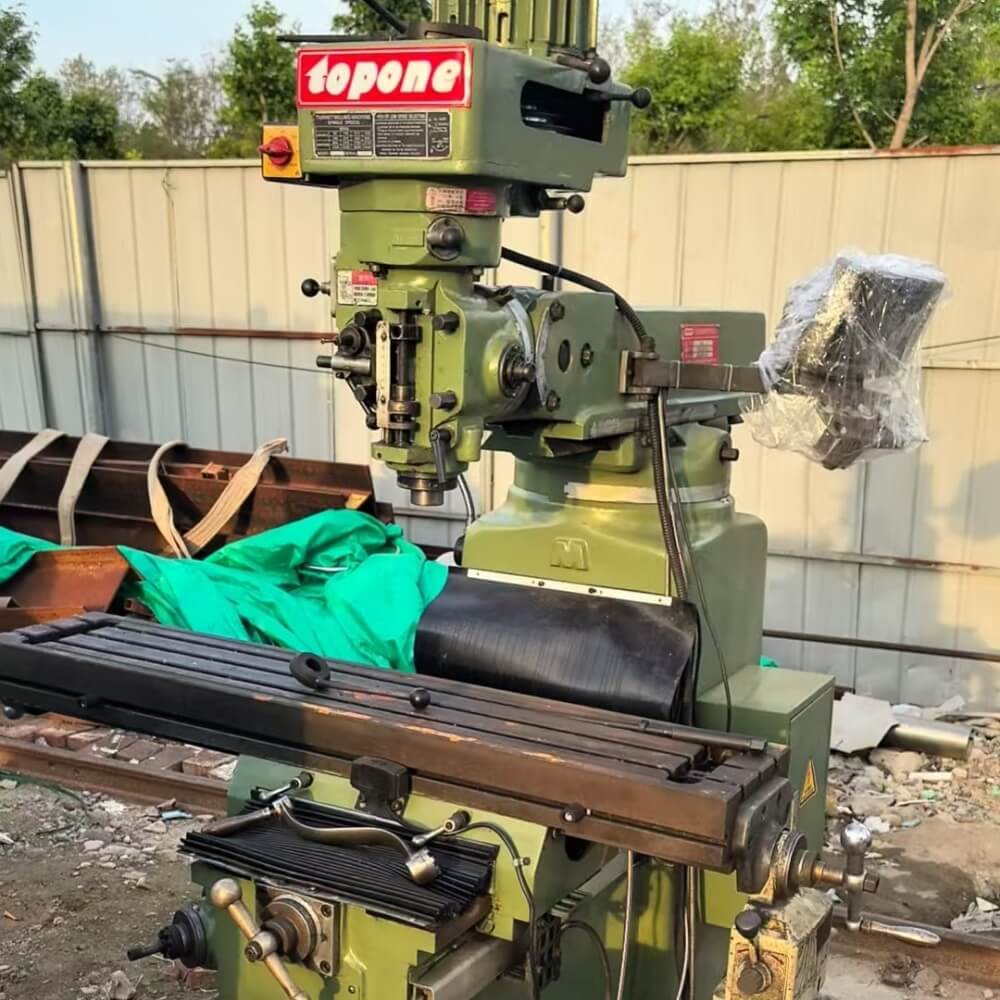

M4 Turret Milling Machine
- Mold Manufacturing: Ideal for processing standard mold parts and precision components.
- General Engineering: Used in automotive parts, hardware, furniture, and mechanical equipment fabrication.
- Tool & Die Work: Suitable for jig boring and small batch production of complex parts.
1,900.00$
| Parameter | Specification |
|---|---|
| Machine Type | Vertical Turret Milling Machine (Heavy-duty) |
| Spindle Taper | NT40 (ISO 40) / R8 (Optional) |
| Table Size | 1270 × 254 mm (50" × 10") |
| Table Travel (X/Y/Z) | 880 / 400 / 420 mm |
| Spindle Speed Range | 60 - 4200 rpm (12/18 speeds, Belt/Gear drive) |
| Main Motor Power | 3 kW / 4 HP (Vertical head) |
| Spindle Stroke | 120 mm |
| Taper Shank Travel | 150 mm |
| Net Weight | Approx. 1800 - 2000 kg |
| Voltage | 380V/50Hz 3-phase (Export customizable to 440V/60Hz) |
