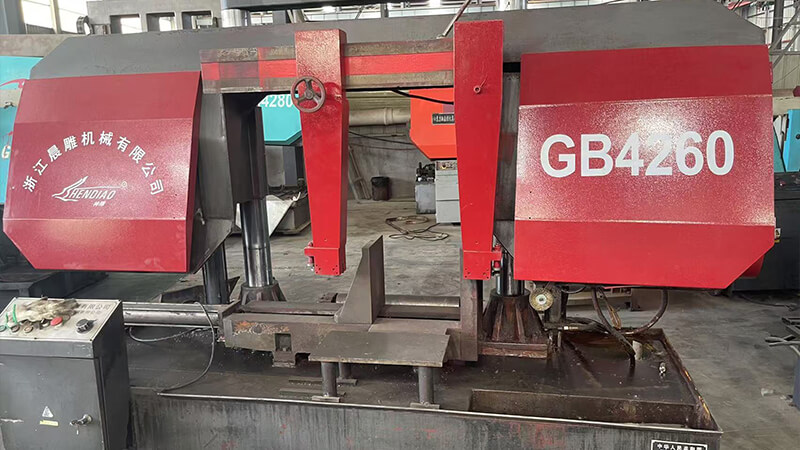

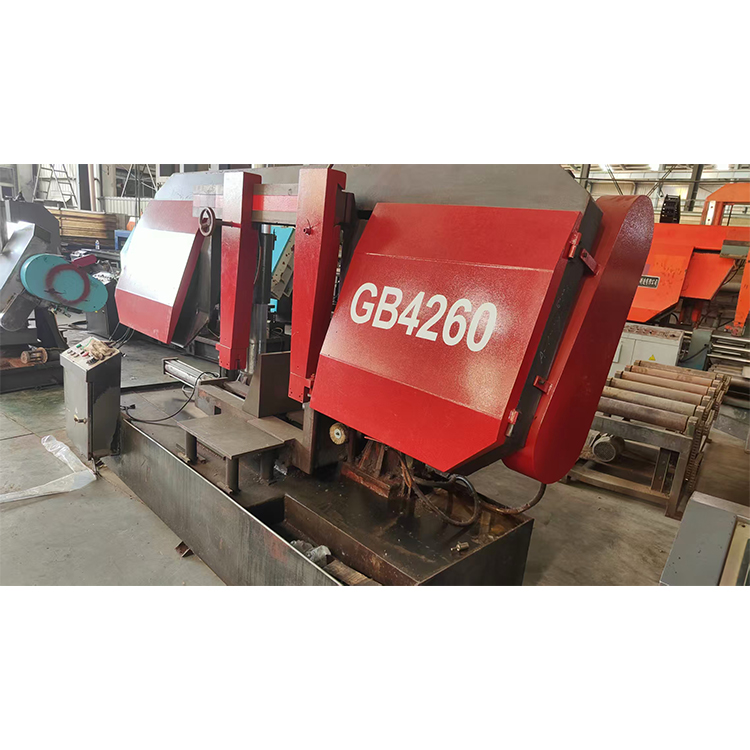

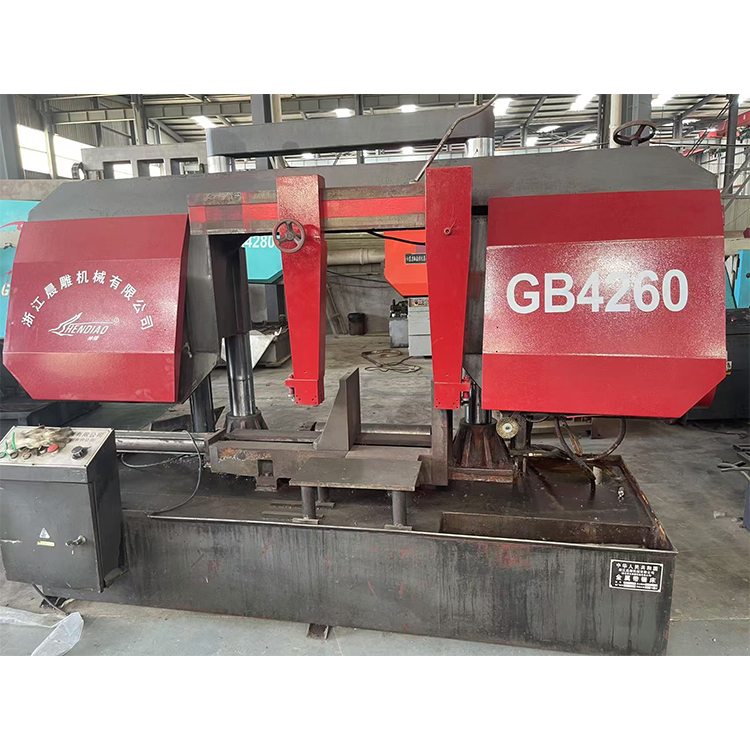

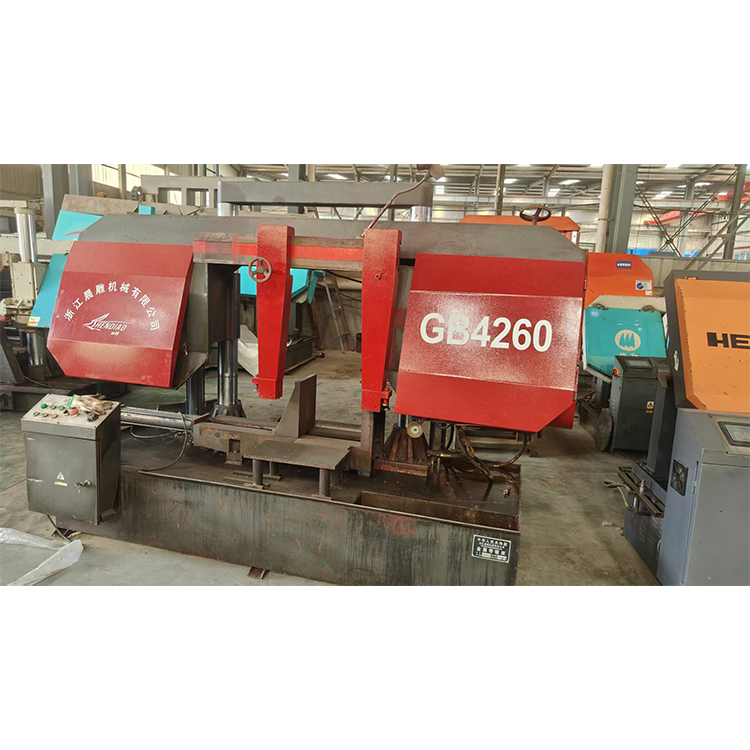

Sawing machine GB4260
Sawing machine GB4260
Core Application Scenarios
The GB4260 is a heavy-duty semi-automatic horizontal band sawing machine, designed for cutting large-sized metal workpieces. It combines large cutting capacity and stable performance, widely used in heavy machinery, steel processing, shipbuilding and construction machinery industries.
- Large Metal Blanking: Specializes in cutting round steel (Φ≤600mm) and square steel (≤600×600mm), ideal for blanking of heavy gears, large flanges, and thick-walled structural parts made of carbon steel and alloy steel.
- Semi-Automatic Batch Production: Hydraulic servo feeding and digital parameter setting realize continuous cutting, with consistent precision (≤±0.25mm/m) to reduce manual intervention and improve production efficiency.
- Multi-Material Cutting: Adapts to stainless steel, cast iron, and copper alloy, meeting the cutting needs of high-strength heavy parts and non-ferrous metal components.
- Workshop Flexible Processing: The semi-automatic system supports quick parameter adjustment, easily switching between single-piece cutting and small-batch production.
Batch Advantages of Equipment
- Large Capacity & High Precision: 600mm max cutting diameter covers most large workpieces; double-cylinder clamping ensures no displacement during heavy cutting.
- Labor-Saving & Efficient: Semi-automatic operation reduces labor intensity; 20-80m/min stepless speed regulation adapts to different heavy materials, boosting efficiency by 40% vs. manual sawing machines.
- Durable & Safe: Automatic lubrication reduces component wear; full safety configuration (emergency stop, overload alarm) guarantees operational safety under heavy load.
- Cost-Effective: As used equipment, it costs only 35%-55% of new models, providing enterprises with high-value heavy-duty cutting solutions.
Original price was: 1,200.00$.900.00$Current price is: 900.00$.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | GB4260 | Place of Origin (产地) | China (中国) |
| Machine Type (机床类型) | Semi-Automatic Horizontal Band Sawing Machine (半自动卧式带锯床) | Brand Name (品牌) | Domestic Well-Known Brand (国内知名品牌) |
| Max. Cutting Capacity (最大切割能力) | Φ600mm (圆钢) / 600×600mm (方钢) | Saw Blade Size (锯条尺寸) | 5300×41×1.3mm |
| Saw Blade Speed (锯条线速度) | 20–80 m/min (无级调速) | Cutting Material (切割材料) | Carbon Steel, Alloy Steel, Cast Iron, Stainless Steel, Copper Alloy |
| Feeding Mode (进给方式) | Hydraulic Servo Feeding (液压伺服进给) | Workpiece Clamping (工件夹紧) | Double-Hydraulic Cylinder Symmetric Clamping (双液压缸对称夹紧) |
| Motor Power (电机功率) | 7.5 kW (主电机) + 1.5 kW (液压电机) | Control System (控制系统) | Semi-Automatic (with Digital Display) (半自动，带数显) |
| Overall Dimensions (LWH) (外形尺寸) | 2800mm×2200mm×2300mm | Weight (重量) | Approx. 3800 kg |
| Cutting Precision (切割精度) | ≤ ±0.25mm/m | Cooling System (冷却系统) | Large-Capacity Emulsion Cooling (大容量乳化液冷却) |
| Warranty (质保) | 3 Months (Parts Only) | Condition (状态) | Used, Good Working Condition (二手，工况良好) |
