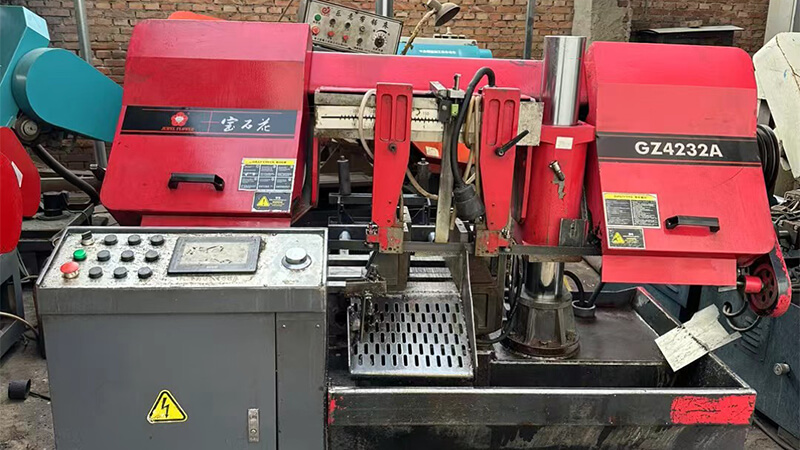

Second-hand GZ4232A sawing machine
Introduction to GZ4232A Bandsaw Machine
Performance Parameters
5,000.00$
| Category | Attributes | Details |
|---|---|---|
| Cutting Capacity | Maximum cutting size (square) | 320mm × 320mm |
| Maximum cutting diameter (round) | 320mm | |
| Blade Parameters | Blade specification | 1.1mm (thickness) × 34mm (width) × 4115mm (length) |
| Blade linear speed | 30/46/58/83 m/min (adjustable) | |
| Motor Power | Main motor | 4.0kW |
| Hydraulic motor | 0.75kW | |
| Cooling motor | 0.04kW | |
| Dimensions | Overall machine size | 2200mm × 2000mm × 1350mm (length × width × height) |
| Structural Design | Frame structure | Dual-column design (stable and low-vibration) |
| Clamping system | Hydraulic double clamp (strong and stable clamping force) | |
| Blade guide device | Guide arms + guide heads (ensures high perpendicularity of cuts) | |
| Control System | Operation mode | CNC control with touch screen + button dual control |
| Parameter setting range | - 5 groups of processing dimensions - Feeding length per group: up to 50,000mm - Processing quantity per group: 1–999 pieces | |
| Functional Features | Safety protection | Automatic stop on blade breakage; automatic stop when cutting is completed |
| Chip & cooling system | Automatic chip removal device; circulating cooling system (for blade and hydraulic oil) | |
| Feeding accuracy | Equipped with magnetic grid ruler (high positioning precision) | |
| Application | Applicable materials | Ferrous metals (carbon steel, alloy steel, stainless steel, etc.) and non-ferrous metals |
| Suitable scenarios | Die steel cutting, small-to-medium batch blanking of solid materials, profiles, and bundled small parts |
