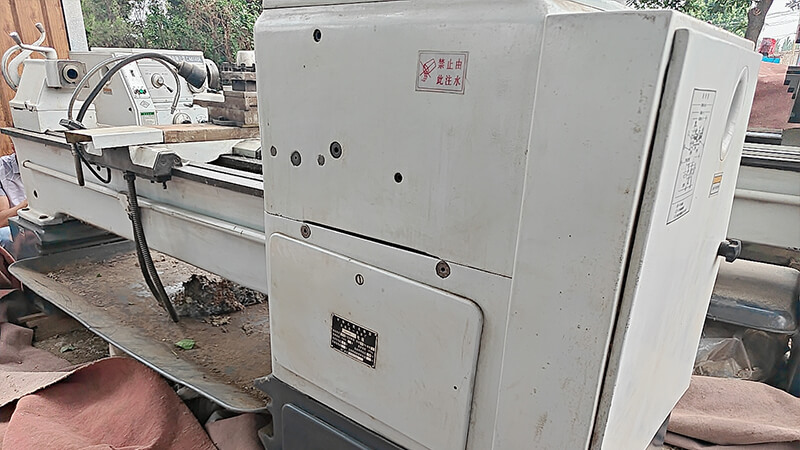

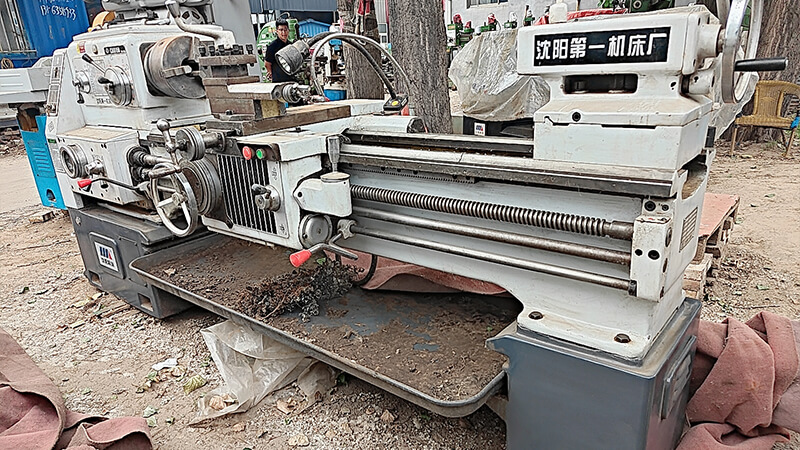

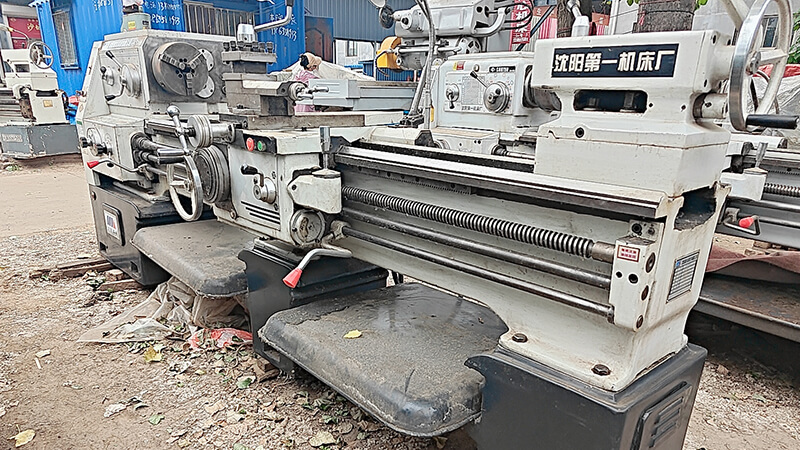

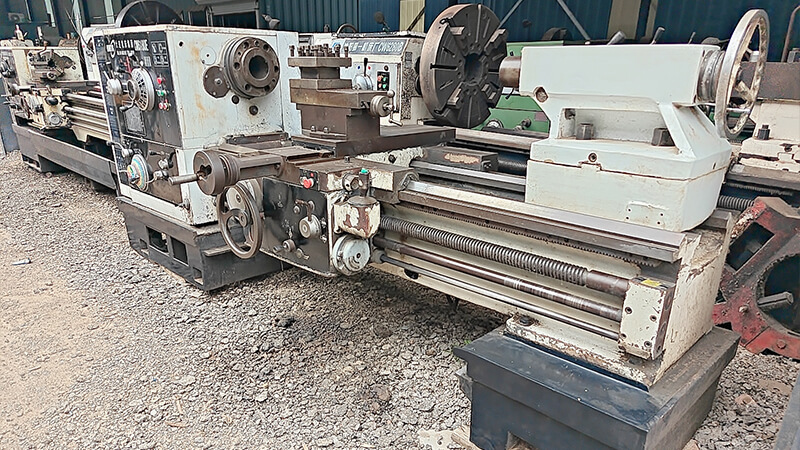

second-hand Shenyang CW6180
When evaluating second – hand Shenyang CW6180 lathes, it is necessary to focus on the wear of key components, such as the radial and axial runout of the spindle, the transmission accuracy of the lead screw, and the straightness of the guide rail. At the same time, check the integrity of the lubrication system, hydraulic system and electrical system, and understand its use history and maintenance records, which will affect the performance and service life of the machine tool.
2,094.00$
The second - hand Shenyang CW6180 lathe is a commonly used large - scale turning equipment, with the following main attributes:
- Basic Machining Parameters123:
- The maximum swing diameter over bed is 800mm, and the maximum swing diameter over carriage is 480mm.
- According to different models, the maximum machining length can be 1500mm, 3000mm, 6000mm or 8000mm.
- The diameter of the spindle through - hole is 104mm, which is convenient for passing through long - bar workpieces, and the bearing capacity is 2000kg.
- The inner swing diameter/effective width of the saddle groove is 1100/310mm, which can expand the processing range of large - diameter workpieces.
- Power and Motion Parameters4:
- The main motor power is 11 - 15kW, which can provide sufficient power for processing.
- The spindle speed range is 5.4 - 720rpm, which can meet the speed requirements of different processing technologies.
- The transverse travel of the upper and lower tool posts is 200 - 500mm, which is convenient for processing workpieces of different sizes.
