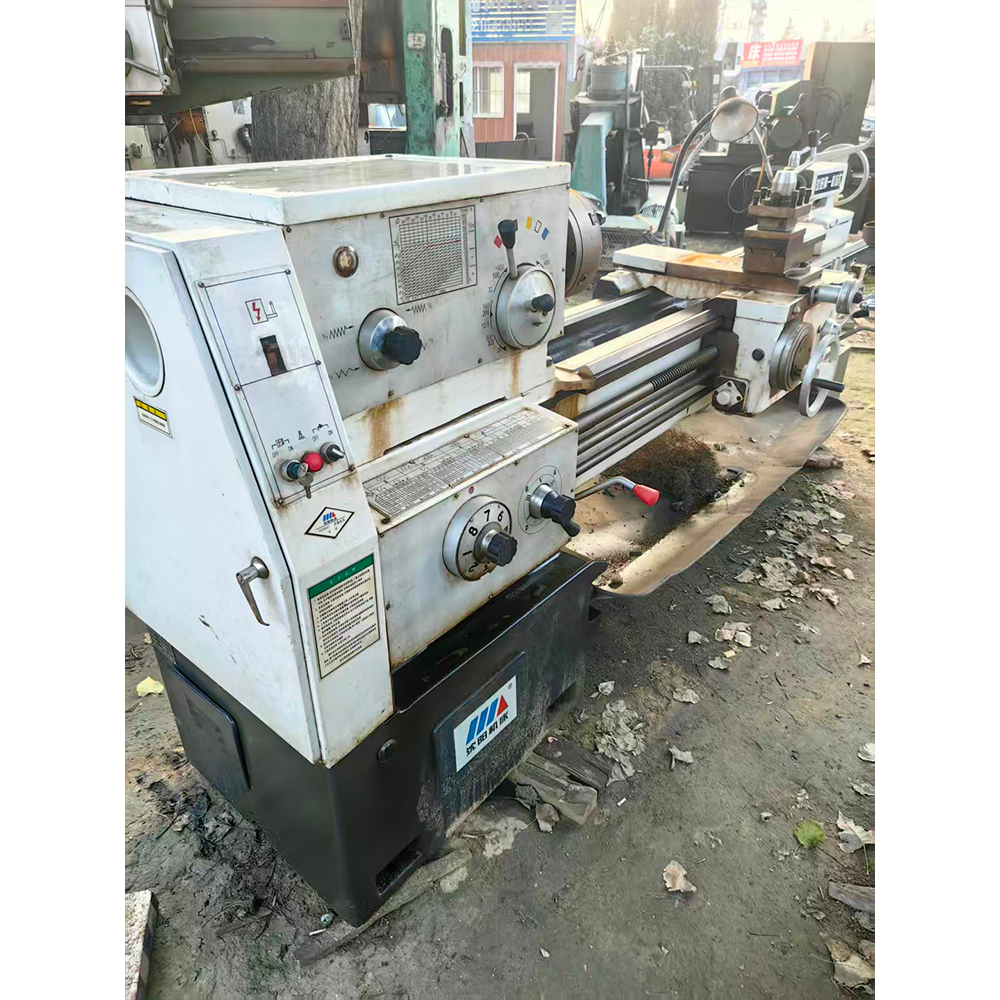

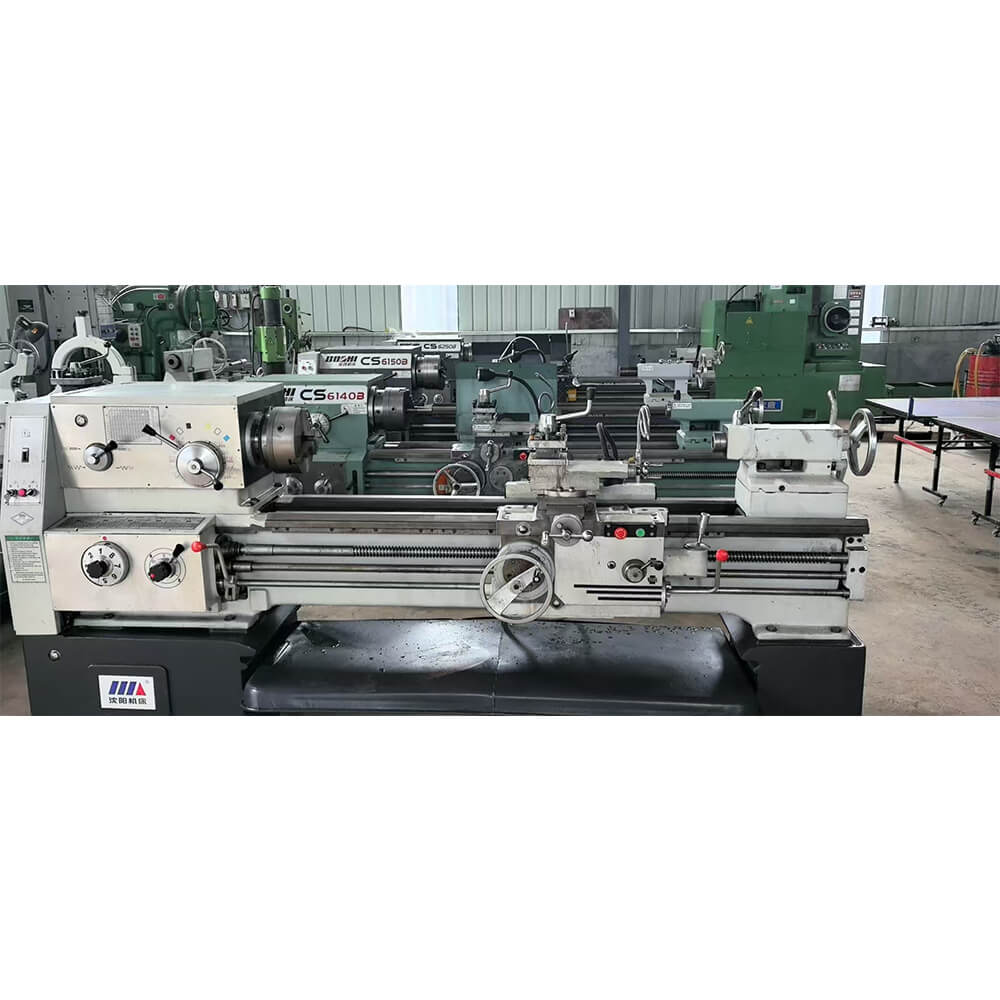

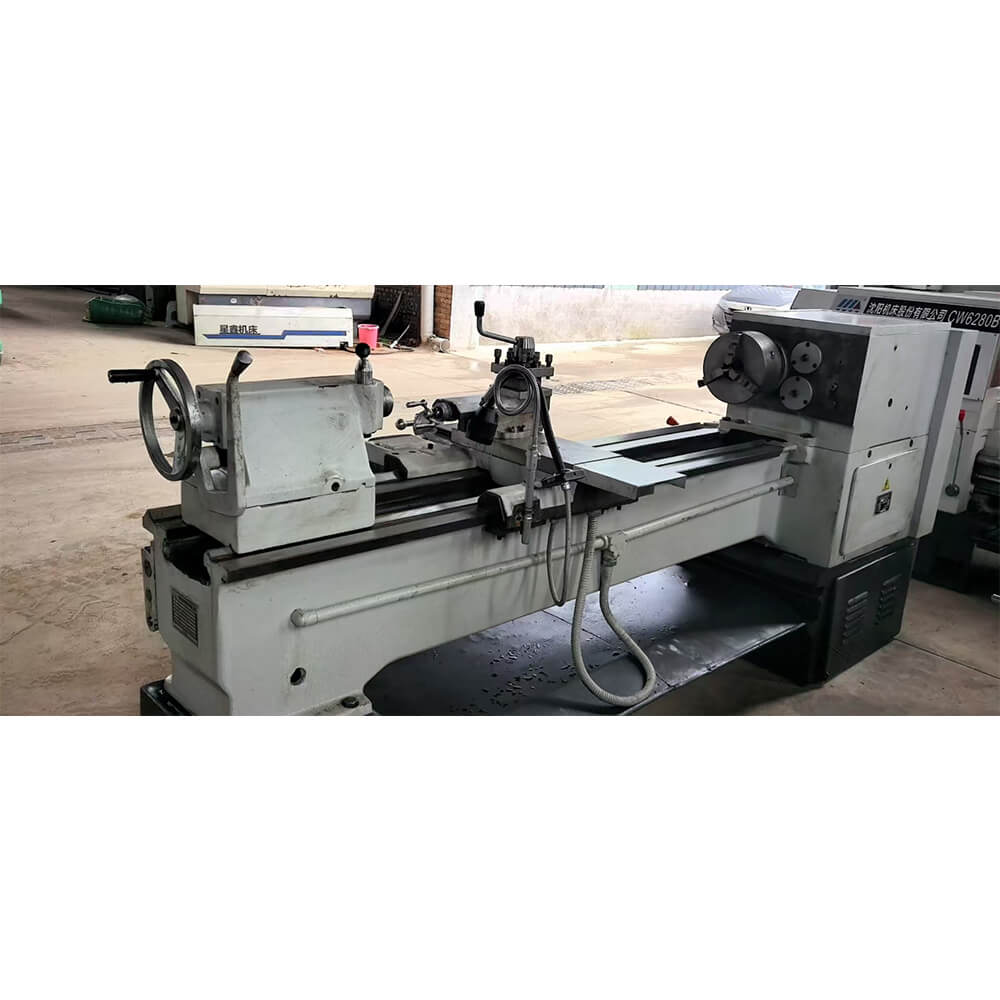

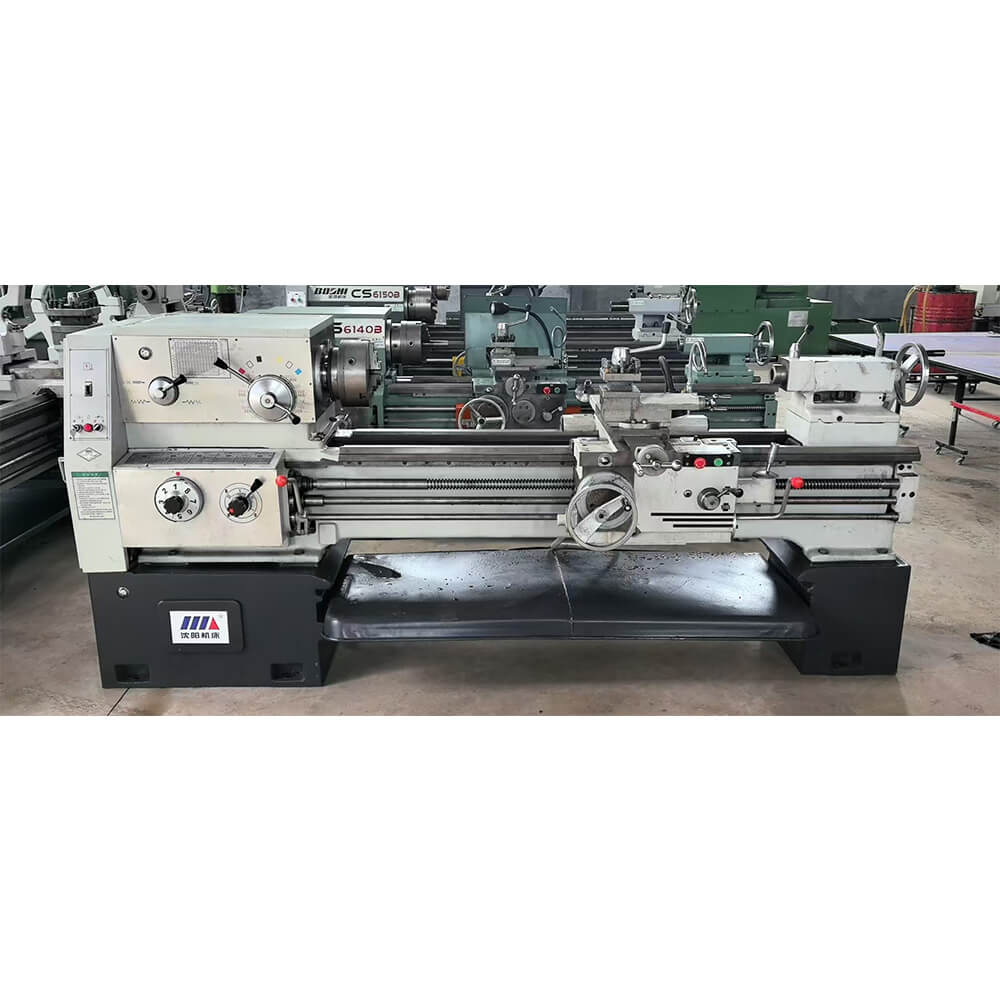

Shenyang 1.5m CA6150B lathe
Core Application Scenarios
The Shenyang 1.5m CA6150B lathe is a high-quality horizontal lathe produced by Shenyang Machine Tool. With 1500mm turning length, it has stable performance and simple operation, widely used in machinery manufacturing, auto parts and shaft processing industries. It is suitable for turning inner/outer cylindrical surfaces, end faces, threads and steps of carbon steel, cast iron, alloy steel and non-ferrous metals. The 1.5m turning length meets the processing needs of medium-length workpieces such as shafts and sleeves. Stepless speed regulation ensures smooth spindle operation and high processing accuracy.
Batch Advantages of Equipment
It has 1.5m turning length, covering most daily medium-length workpiece processing needs. With Shenyang brand quality assurance, it has high precision, stable operation and low failure rate. The high-quality cast iron bed is sturdy and rigid, not easy to deform. As used equipment with good condition, it only costs 30%-50% of new models, suitable for small and medium enterprises.
4,000.00$ Original price was: 4,000.00$.3,500.00$Current price is: 3,500.00$.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | CA6150B | Place of Origin (产地) | China (Shenyang) |
| Machine Type (机床类型) | Horizontal Lathe (普通卧式车床) | Brand Name (品牌) | Shenyang (沈阳机床) |
| Max. Turning Diameter (最大加工直径) | 500mm (床身上) / 210mm (刀架上) | Max. Turning Length (最大加工长度) | 1500mm (1.5m) |
| Spindle Speed (主轴转速) | 12-1500rpm (无级调速) | Spindle Bore (主轴通孔直径) | 80mm |
| Spindle Taper (主轴锥度) | MT6 | Feeding Speed (进给速度) | 0.02-1.2mm/r |
| Motor Power (电机功率) | 7.5kW | Working Table Size (工作台尺寸) | 520×150mm |
| Overall Dimensions (外形尺寸) | 2800×1200×1600mm | Net Weight (净重) | Approx. 2200kg |
| Condition (状态) | Used, Good Working Condition | Warranty (质保) | 3 Months (Parts Only) |
