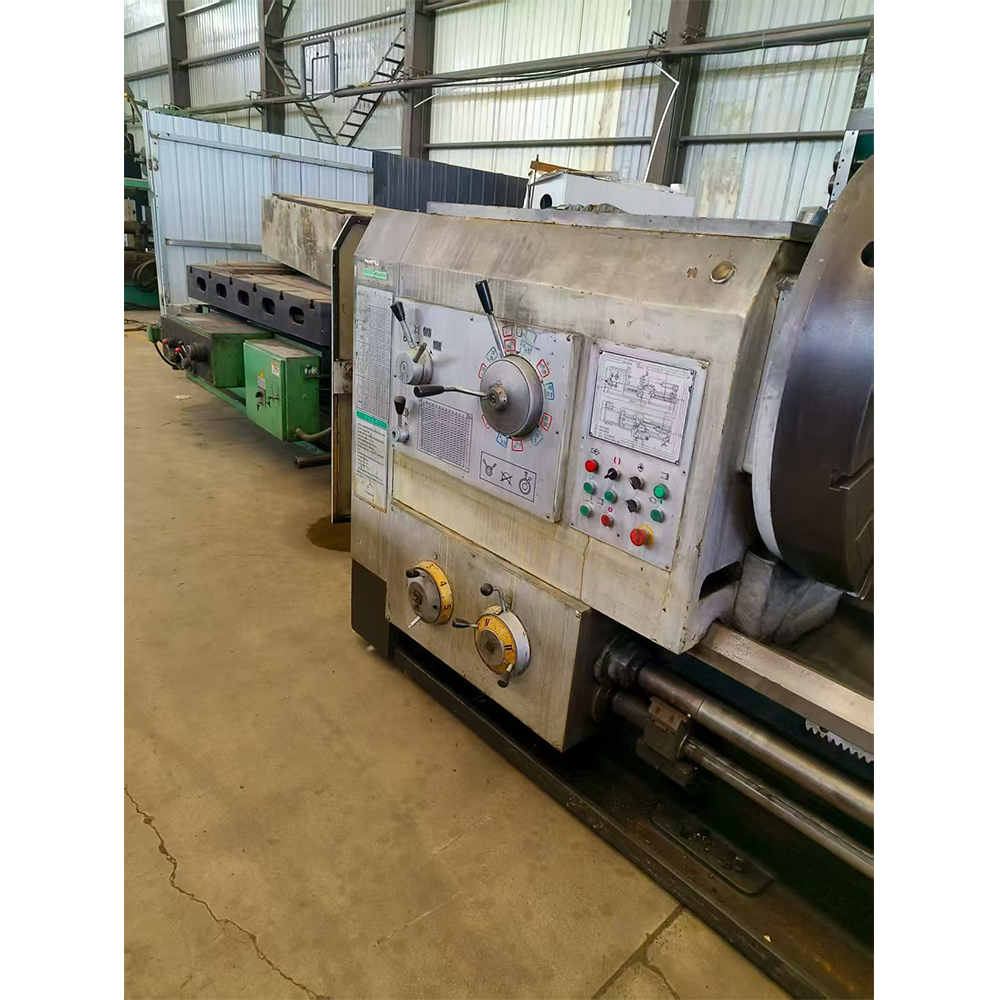

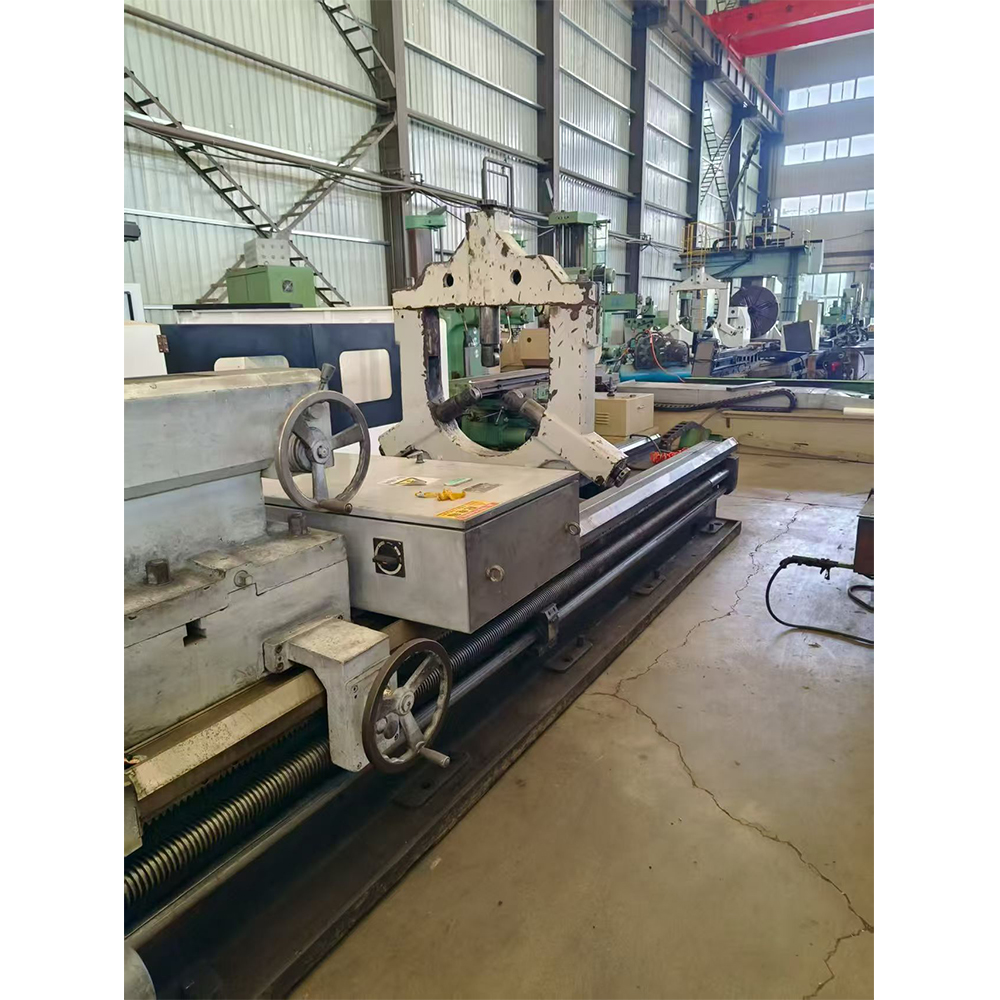

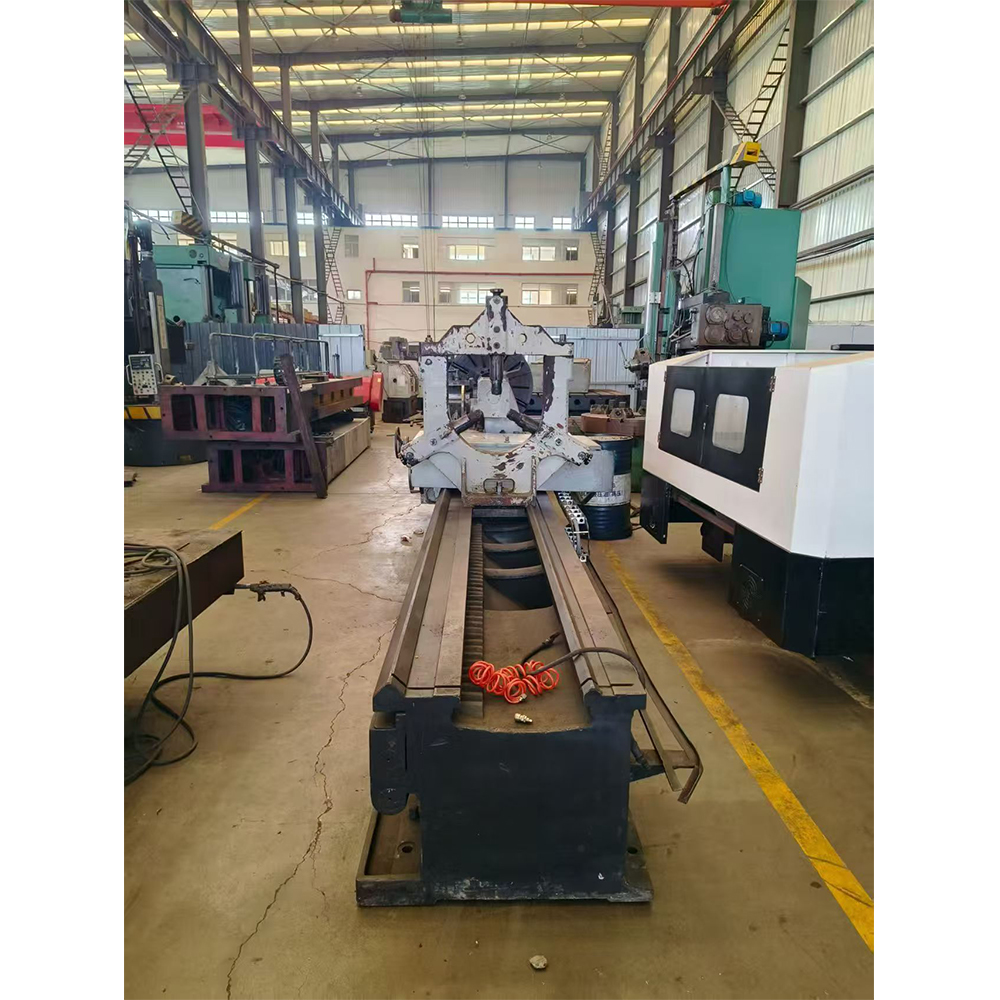

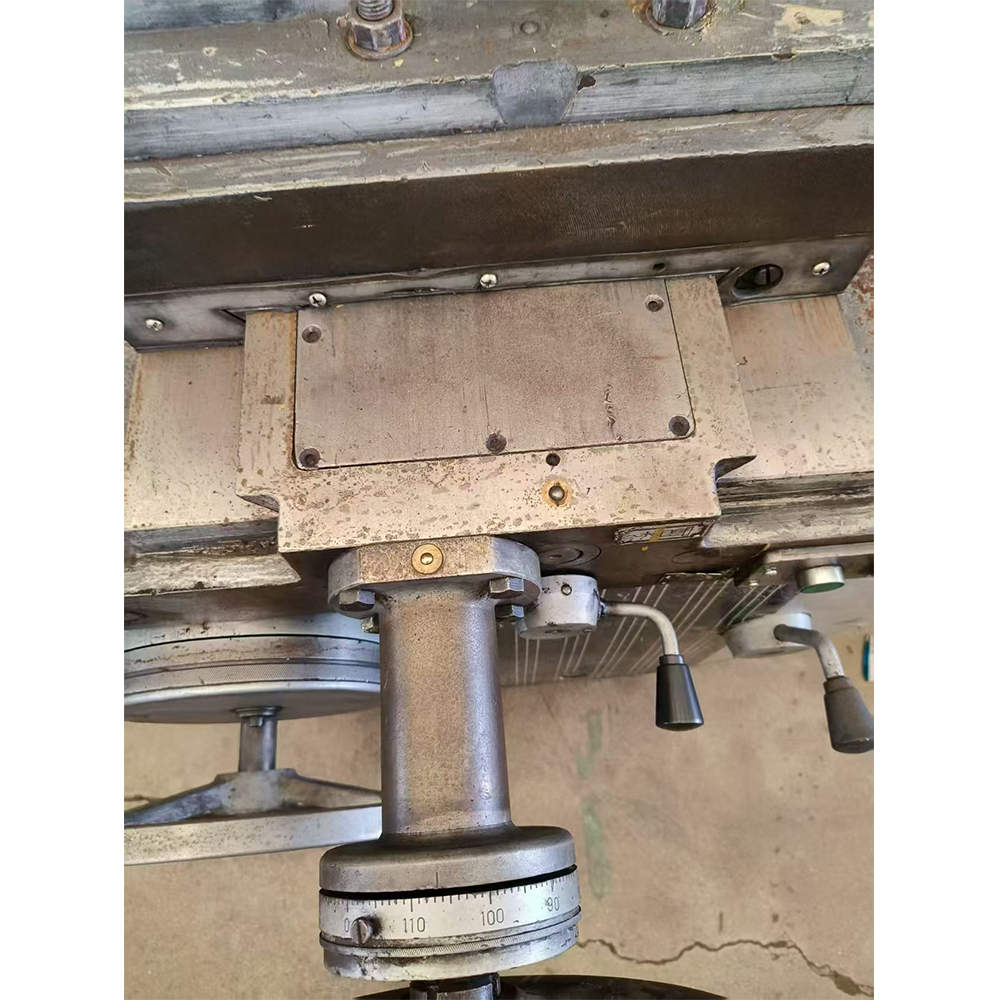

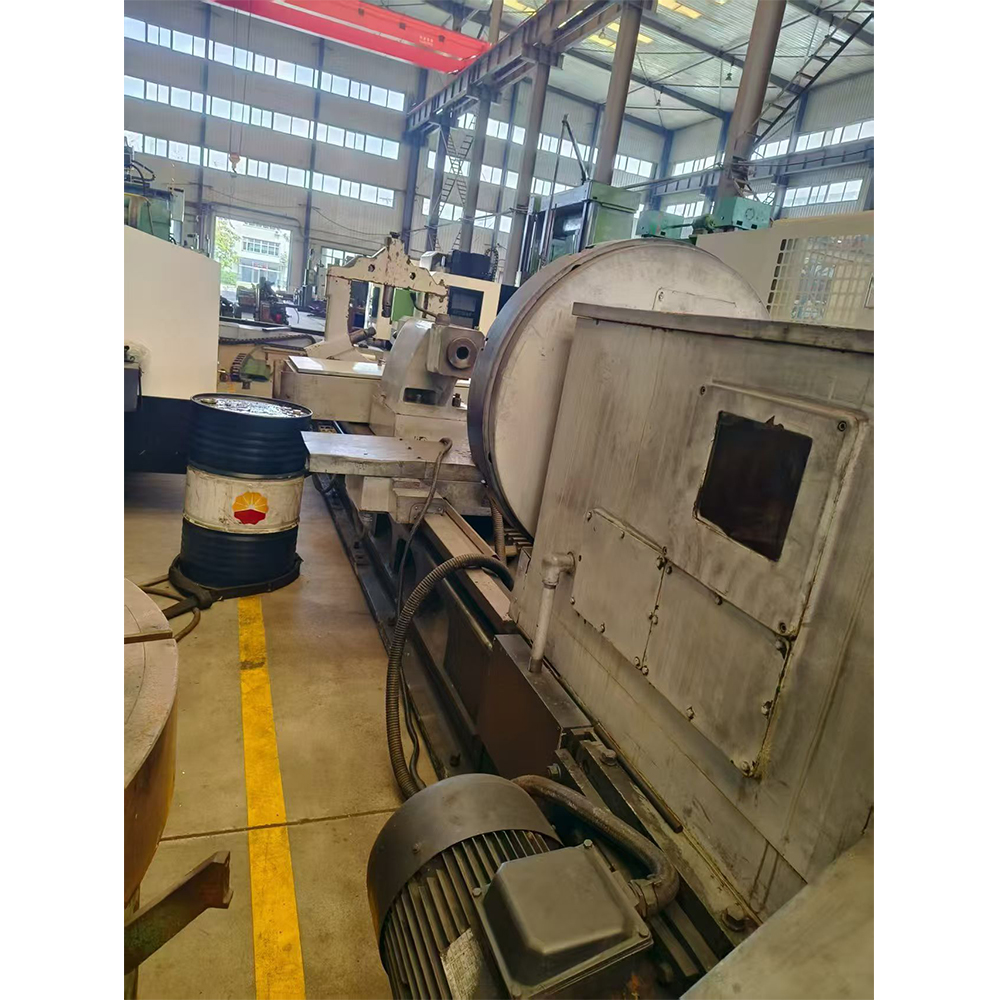

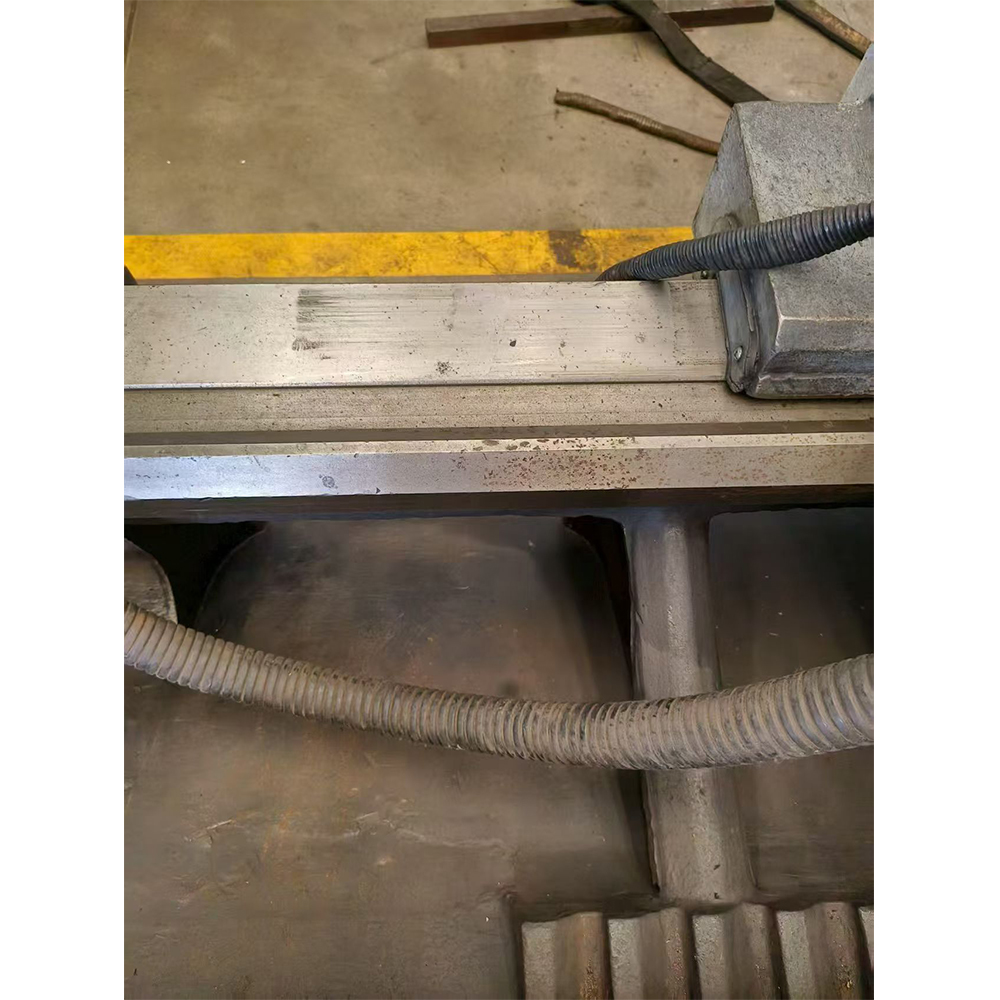

Shenyang 61125 lathe
Core Application Scenarios
The Shenyang 61125 lathe is a heavy-duty horizontal lathe, produced by Shenyang Machine Tool. It is suitable for turning large and heavy metal workpieces, with stable performance and strong rigidity, widely used in heavy machinery, shipbuilding, steel processing and large shaft processing industries.
- Specializes in turning inner/outer cylindrical surfaces, end faces, threads, grooves and steps of carbon steel, alloy steel, cast iron and large non-ferrous metal workpieces.
- Large processing capacity, max turning diameter 1250mm, able to bear heavy workpieces and heavy-duty cutting.
- Stepless speed regulation, smooth spindle operation, ensuring high processing accuracy and neat workpiece surface.
- Sturdy structure, easy operation, suitable for batch production and heavy-duty processing in workshops.
Batch Advantages of Equipment
- High load capacity: Heavy-duty bed and spindle design, strong rigidity, suitable for large and heavy workpiece processing.
- High processing accuracy: Stable spindle rotation and accurate feeding, ensuring consistent workpiece size and quality.
- Durable and reliable: Shenyang brand quality assurance, high-quality components, long service life and low failure rate.
- Cost-effective: As used equipment, it costs only 30%-50% of new models, with good working condition, suitable for enterprises needing heavy-duty lathe processing.
Original price was: 4,500.00$.4,000.00$Current price is: 4,000.00$.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | Shenyang 61125 lathe | Place of Origin (产地) | China (Shenyang) |
| Machine Type (机床类型) | Heavy-Duty Horizontal Lathe (重型卧式车床) | Brand Name (品牌) | Shenyang (沈阳机床) |
| Max. Turning Diameter (最大加工直径) | 1250mm (床身上) / 630mm (刀架上) | Max. Turning Length (最大加工长度) | 2000mm/3000mm (可选) |
| Spindle Speed (主轴转速) | 8-1000rpm (无级调速) | Spindle Bore (主轴通孔直径) | 125mm |
| Spindle Taper (主轴锥度) | MT8 | Feeding Speed (进给速度) | 0.03-2.0mm/r |
| Motor Power (电机功率) | 18.5kW | Working Table Size (工作台尺寸) | 1280×200mm |
| Overall Dimensions (外形尺寸) | 4200×1800×2200mm (2000mm 加工长度) | Net Weight (净重) | Approx. 8500kg |
| Condition (状态) | Used, Good Working Condition | Warranty (质保) | 3 Months (Parts Only) |
Don’t miss your opportunity-our best machines go fast.
Request a real-time inspection video
Send us your requirement list for matching machines
Need a quote with shipping cost? Contact us now!
