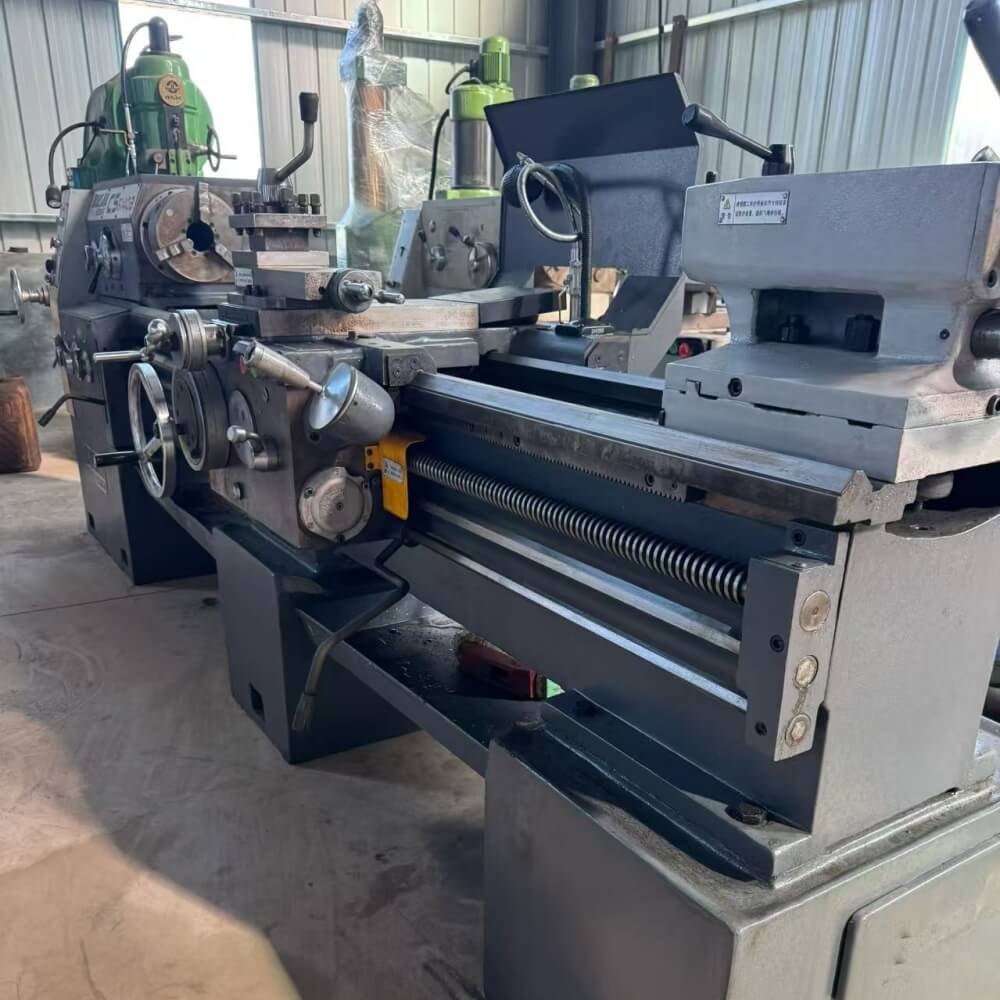

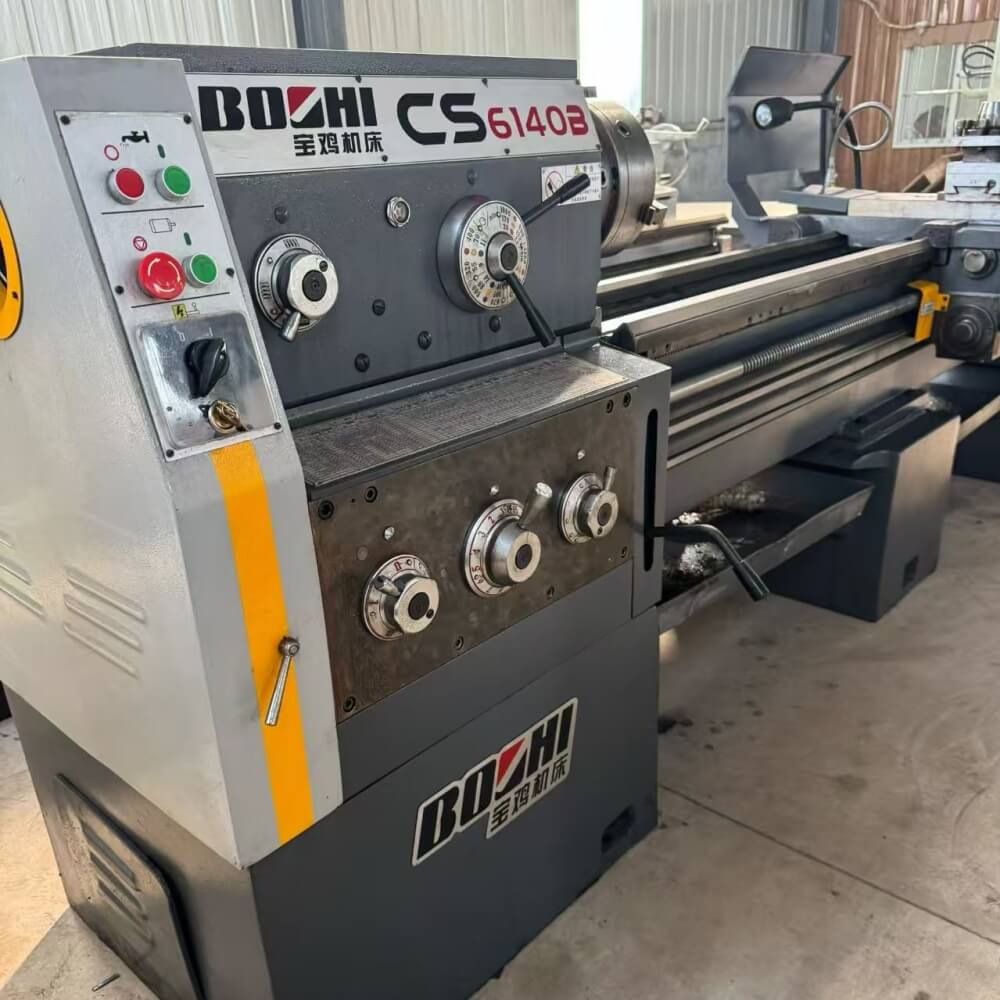

Baooji CS6140B × 2000mm Horizontal Lathe
- General Machinery Manufacturing: Ideal for machining long shafts, large flanges, and gear blanks for reducers, pumps, and blowers.
- Automotive & Truck Parts: Suitable for turning drive shafts, axle housings, and engine components that require a 1500mm length capacity.
- Mold & Die Making: Used for roughing and finishing large mold bases and cylindrical dies, leveraging the gap-bed for oversized diameters.
- Steel Processing & Fabrication: Perfect for cutting and facing large diameter steel pipes and structural components.
- Maintenance & Repair Workshops: A versatile workhorse for rebuilding worn shafts and manufacturing replacement parts for industrial equipment.
3,800.00$
| Parameter | Specification |
|---|---|
| Model | CS6140B × 2000mm |
| Type | Horizontal Engine Lathe |
| Max. Swing Over Bed | 400mm |
| Max. Swing Over Carriage | 210mm |
| Max. Distance Between Centers | 2000mm |
| Max. Turning Length | 1900mm |
| Spindle Bore Diameter | 52mm (Through-hole) |
| Spindle Nose | D8 Camlock / MT5 Morse Taper |
| Spindle Speed Range | 16-1600 r/min (12 speeds) |
| Main Motor Power | 5.5kW (7.5HP) |
| Longitudinal Feed Range | 0.06 - 3.34 mm/rev |
| Cross Feed Range | 0.03 - 1.67 mm/rev |
| Threading Systems | Metric, Inch, Module, DP |
| Bed Width | 360mm |
| Max. Workpiece Weight | 600kg |
| Overall Dimensions (L×W×H) | 3600 × 1100 × 1250mm |
| Net Weight | Approx. 2800kg |
| Voltage | 380V/50Hz 3-Phase (Customizable for export) |
