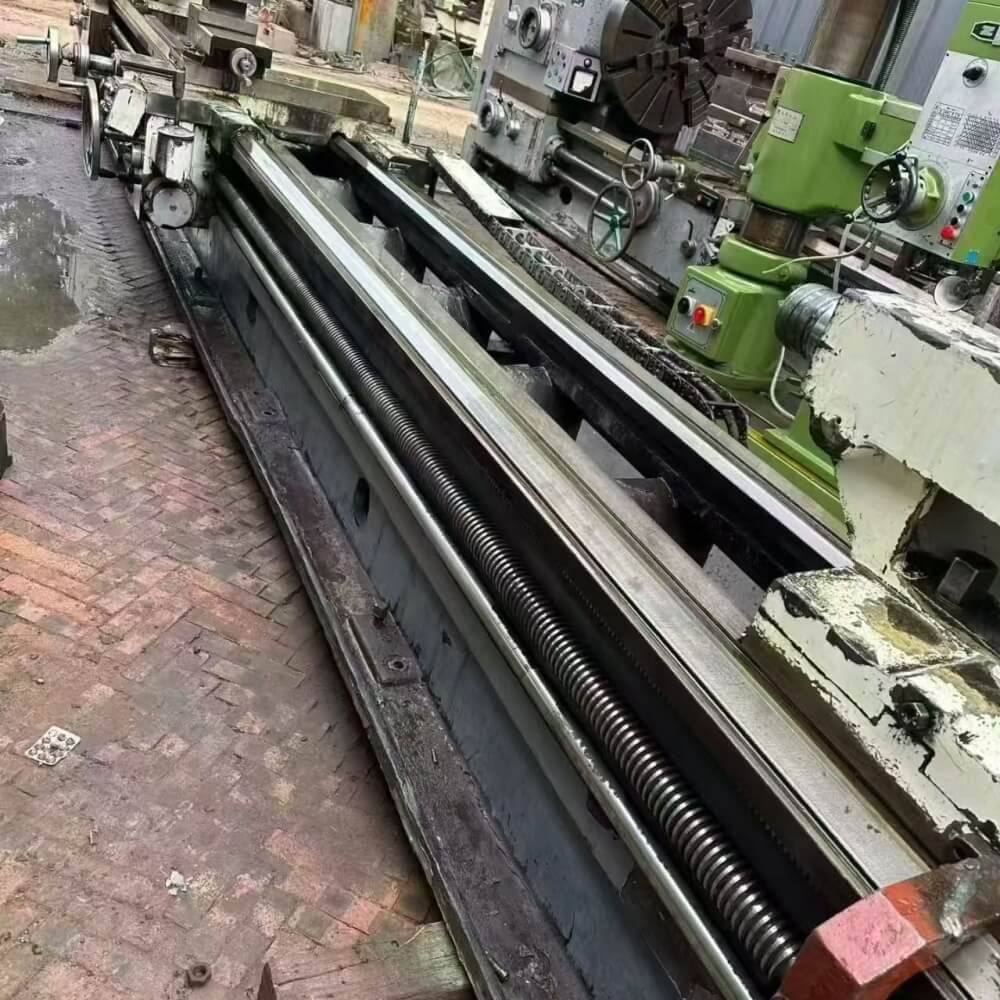

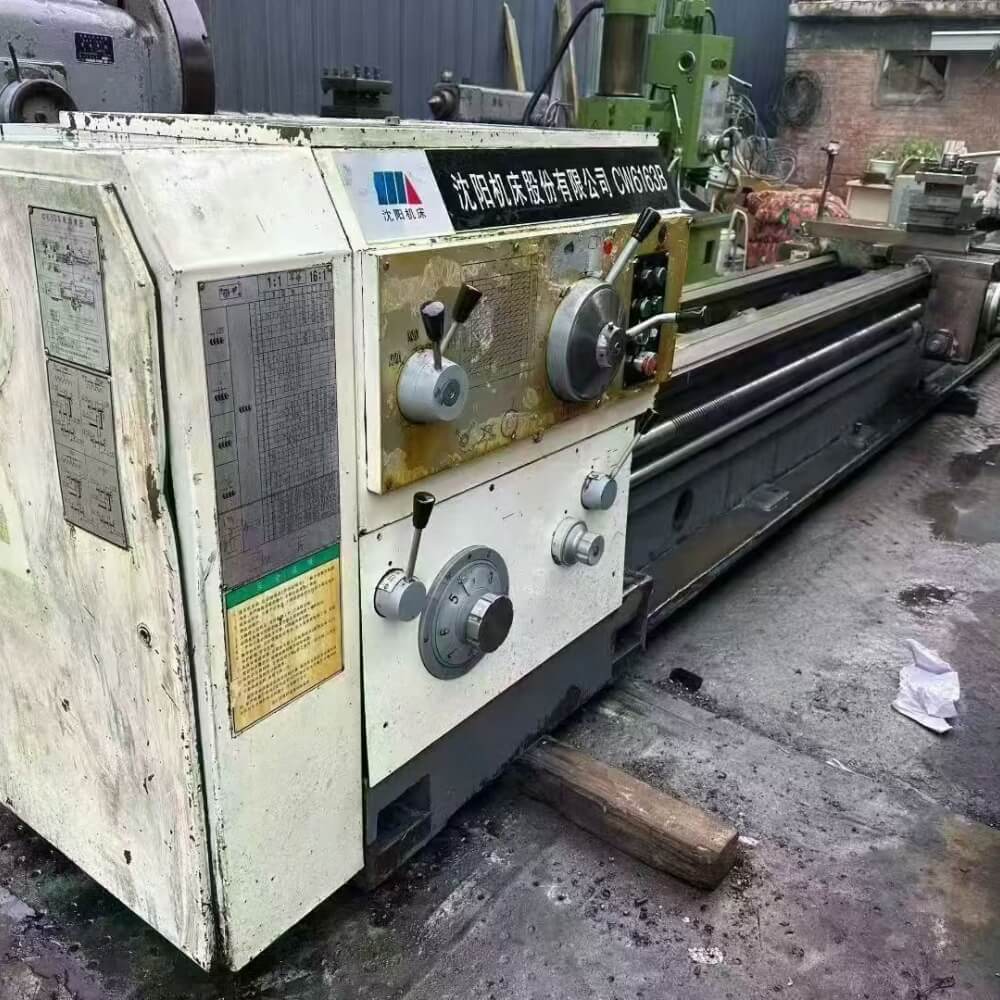

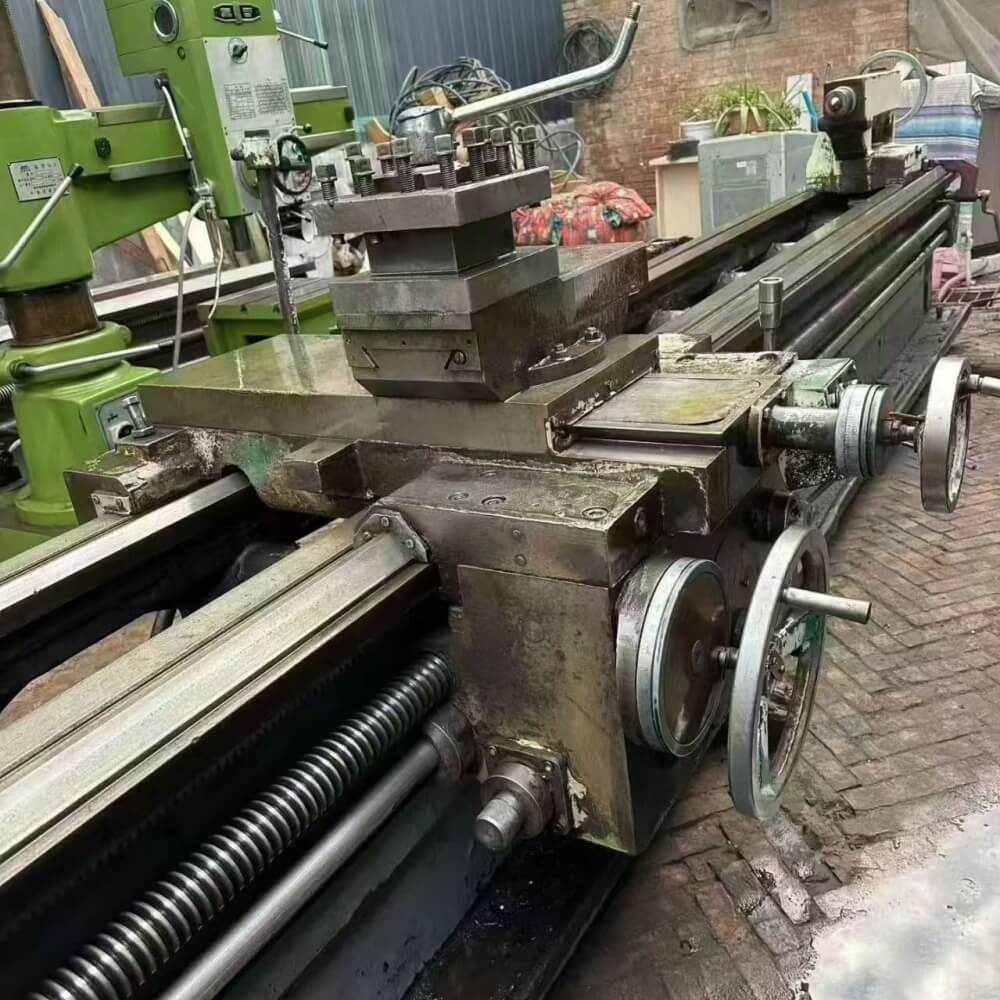

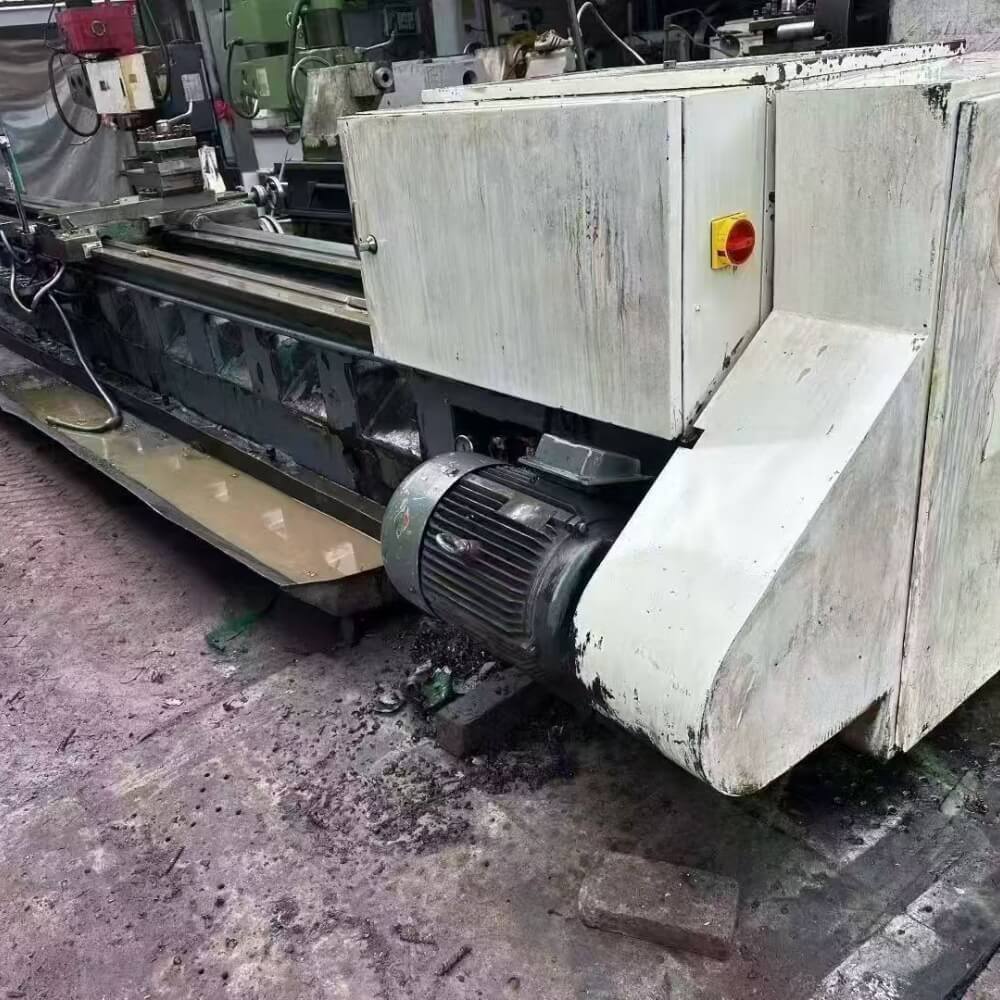

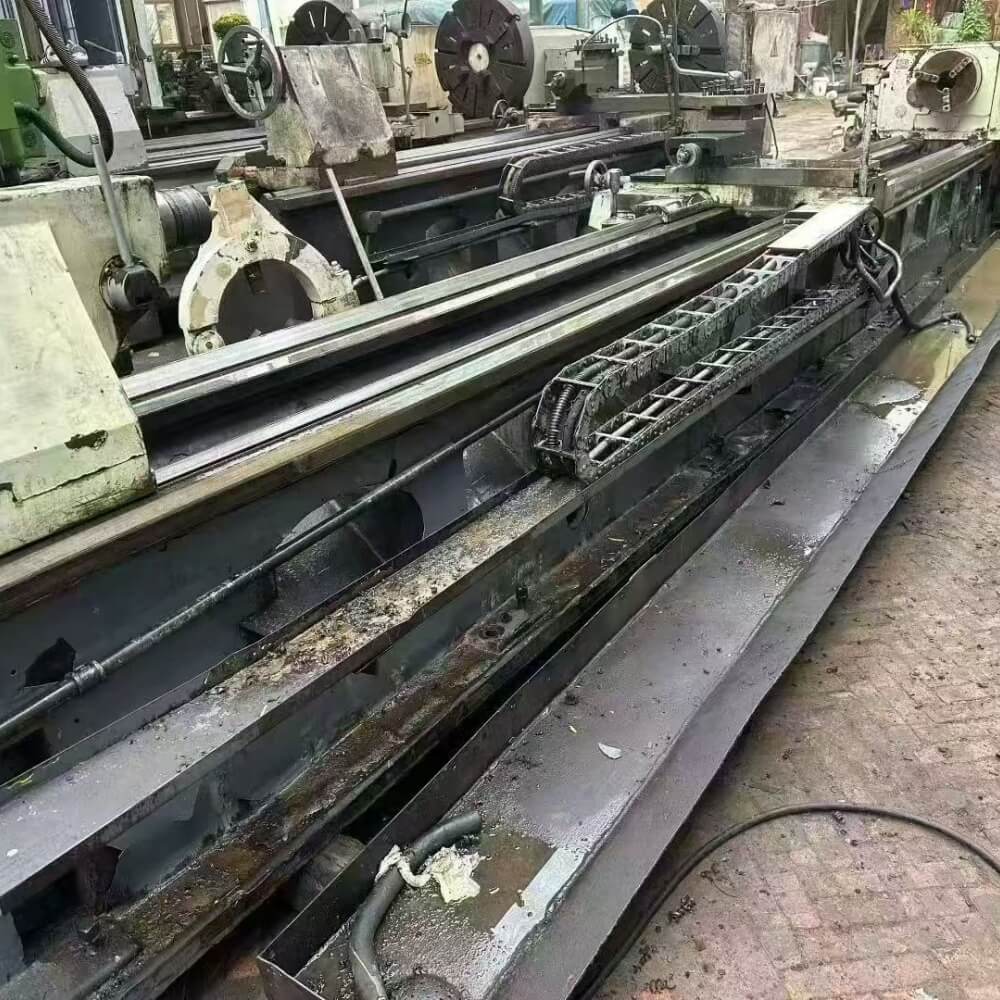

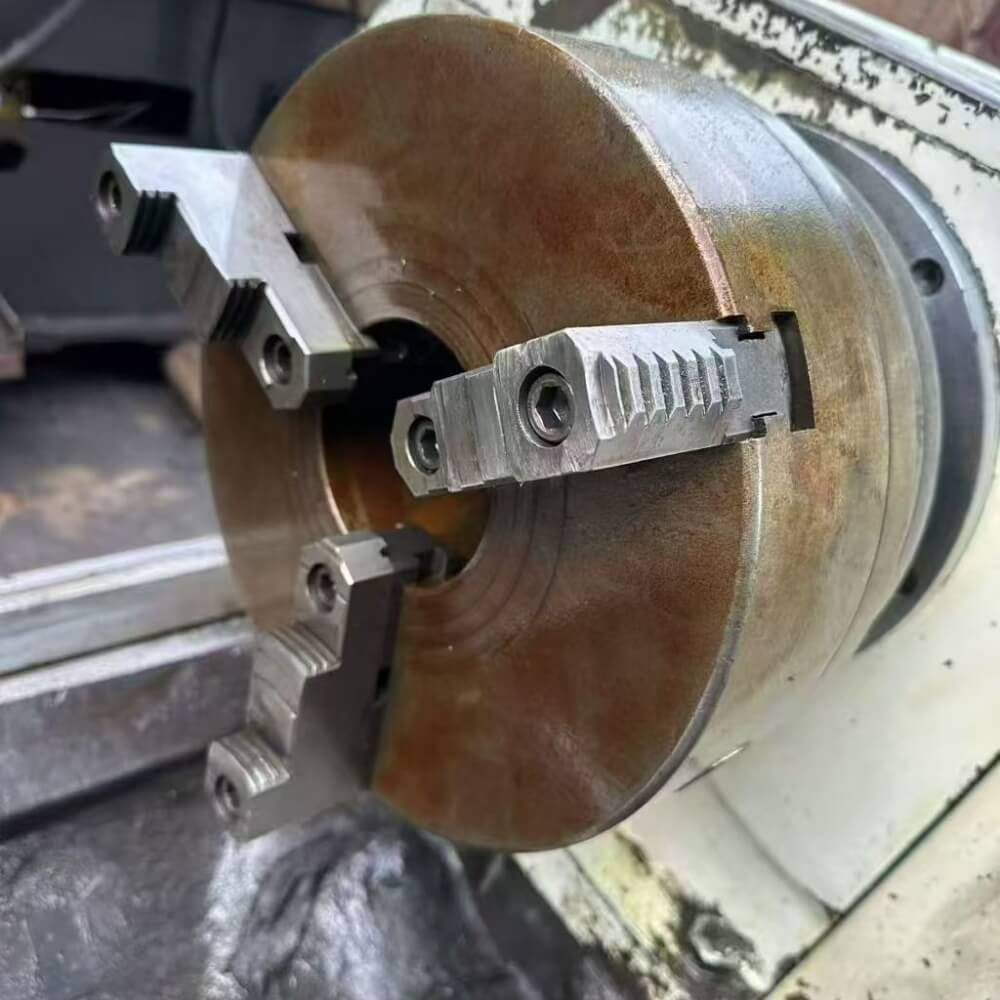

Shenyang CW6163B Lathe
Shenyang CW6163B Lathe - Image 2
Shenyang CW6163B Lathe - Image 3
Shenyang CW6163B Lathe - Image 4
Shenyang CW6163B Lathe - Image 5
Shenyang CW6163B Lathe - Image 6

Shenyang CW6163B Lathe

  • Equipment Features: Integral cast iron bed with high rigidity, suitable for heavy-duty cutting and continuous operation; stable spindle performance ensures consistent machining precision; easy operation and maintenance for long-term industrial use.
  • Applicable Materials: Carbon steel, alloy steel, stainless steel, cast iron, and non-ferrous metals (aluminum, copper) within the machining capacity.
  • Industries Served: Heavy industry, energy, mining, metallurgy, shipbuilding, and general machinery manufacturing.

3,300.00$

Whatstaap
Send Email
  • Bed Length Options: 1500mm / 2000mm / 3000mm (1.5m / 2m / 3m)
  • Maximum Workpiece Diameter: 630mm (over bed)
  • Maximum Workpiece Length: 1300mm / 1800mm / 2800mm (effective machining length, matching bed length)
  • Spindle Speed Range: 10-1250rpm (18 gears, stepless adjustment optional)
  • Spindle Through Hole Diameter: 105mm
  • Spindle Taper: Morse No.6 (MT6)
  • Carriage Feed Rate Range: 0.025-6.3mm/r (longitudinal/transverse)
  • Tool Post Quantity: 4-station (manual, optional hydraulic)
  • Main Motor Power: 11kW (AC variable frequency)
