Shenyang CW6180B × 3000mm Used Horizontal Lathe
Shenyang CW6180B × 3000mm Used Horizontal Lathe - Image 2
Shenyang CW6180B × 3000mm Used Horizontal Lathe - Image 3
Shenyang CW6180B × 3000mm Used Horizontal Lathe - Image 4
Shenyang CW6180B × 3000mm Used Horizontal Lathe - Image 5
Shenyang CW6180B × 3000mm Used Horizontal Lathe - Image 6

Shenyang CW6180B × 3000mm Used Horizontal Lathe

  • Large and long shaft machining (motor shaft, drive shaft, roller)
  • Large flange, disc, sleeve parts turning
  • Heavy machinery, mining, metallurgical equipment parts
  • Shipbuilding and large engineering machinery accessories
  • Equipment maintenance and heavy workpiece repair

6,200.00$

Whatstaap
Send Email

  • Model: CW6180B × 3000mm
  • Type: Heavy duty horizontal engine lathe
  • Swing over bed: 800mm
  • Swing over carriage: 520mm
  • Distance between centers: 3000mm
  • Max. turning length: 2900mm

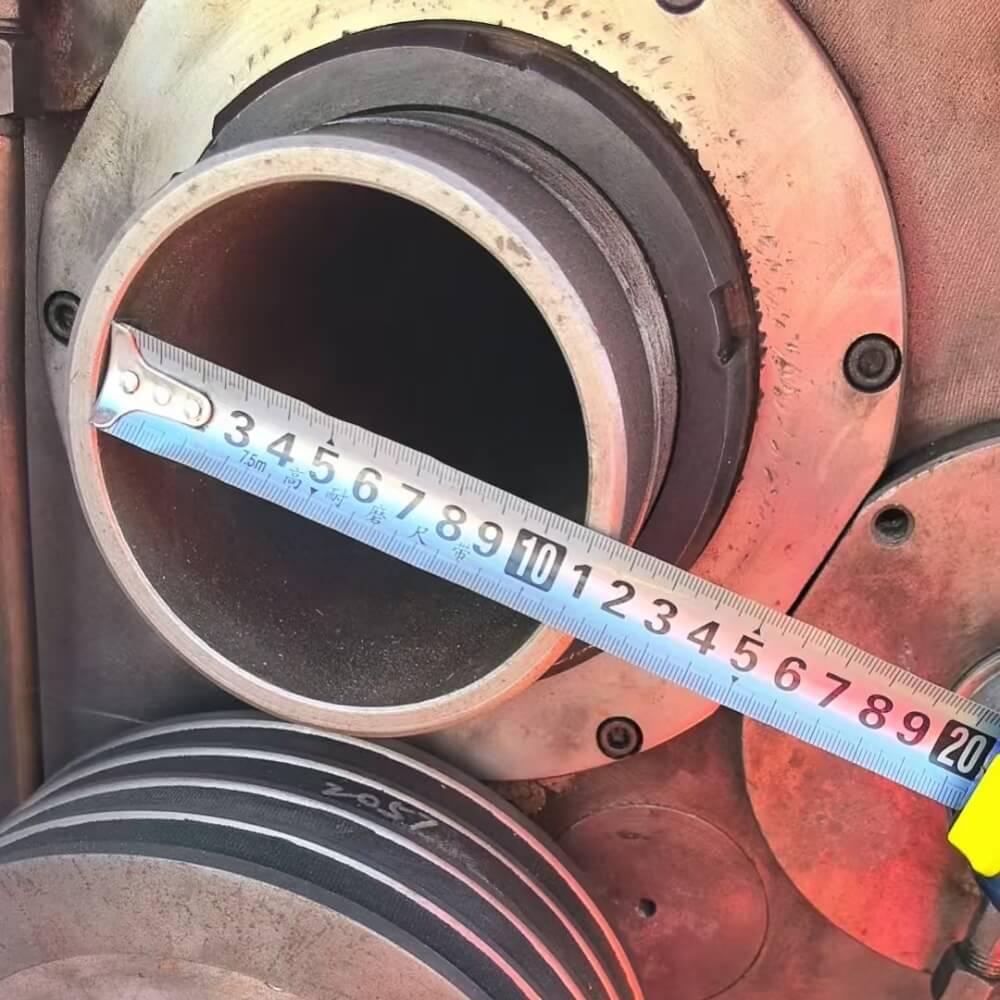

  • Spindle bore: 105mm
  • Spindle speed: 16–800 r/min (18 speeds)
  • Main motor power: 15kW

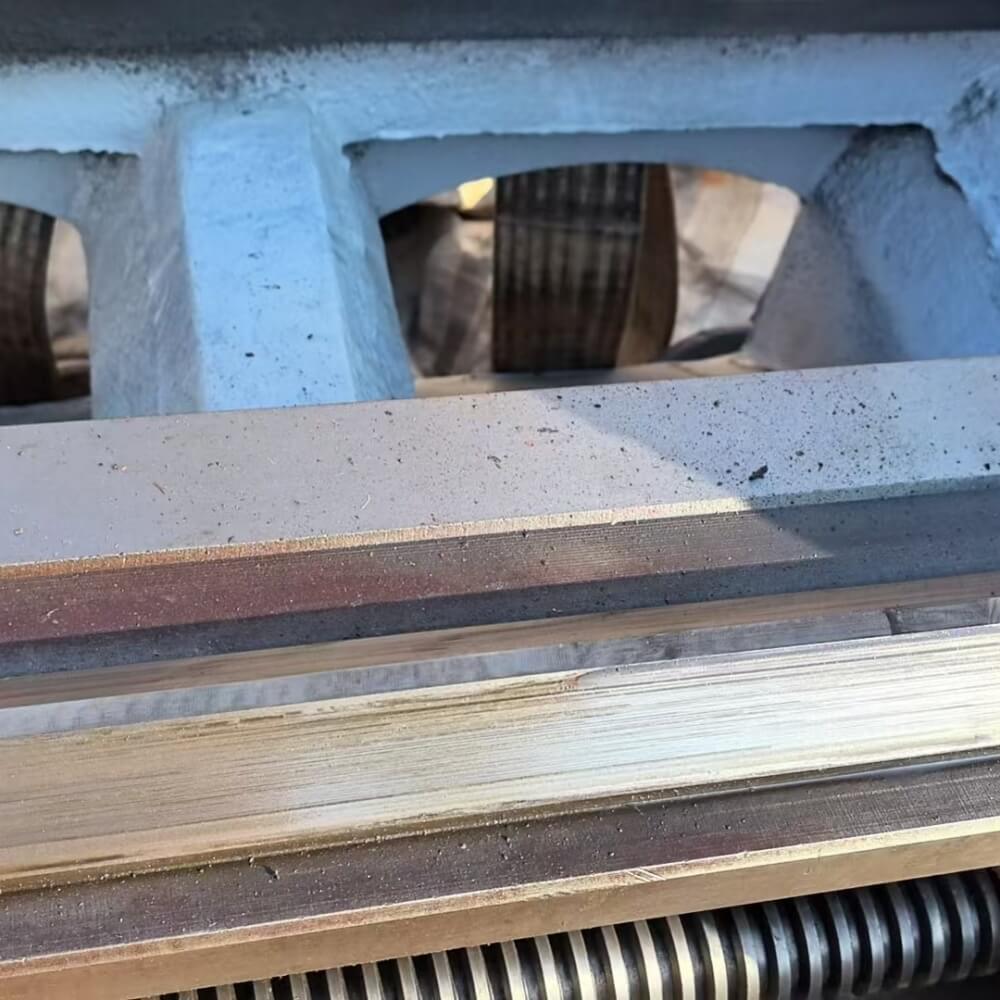

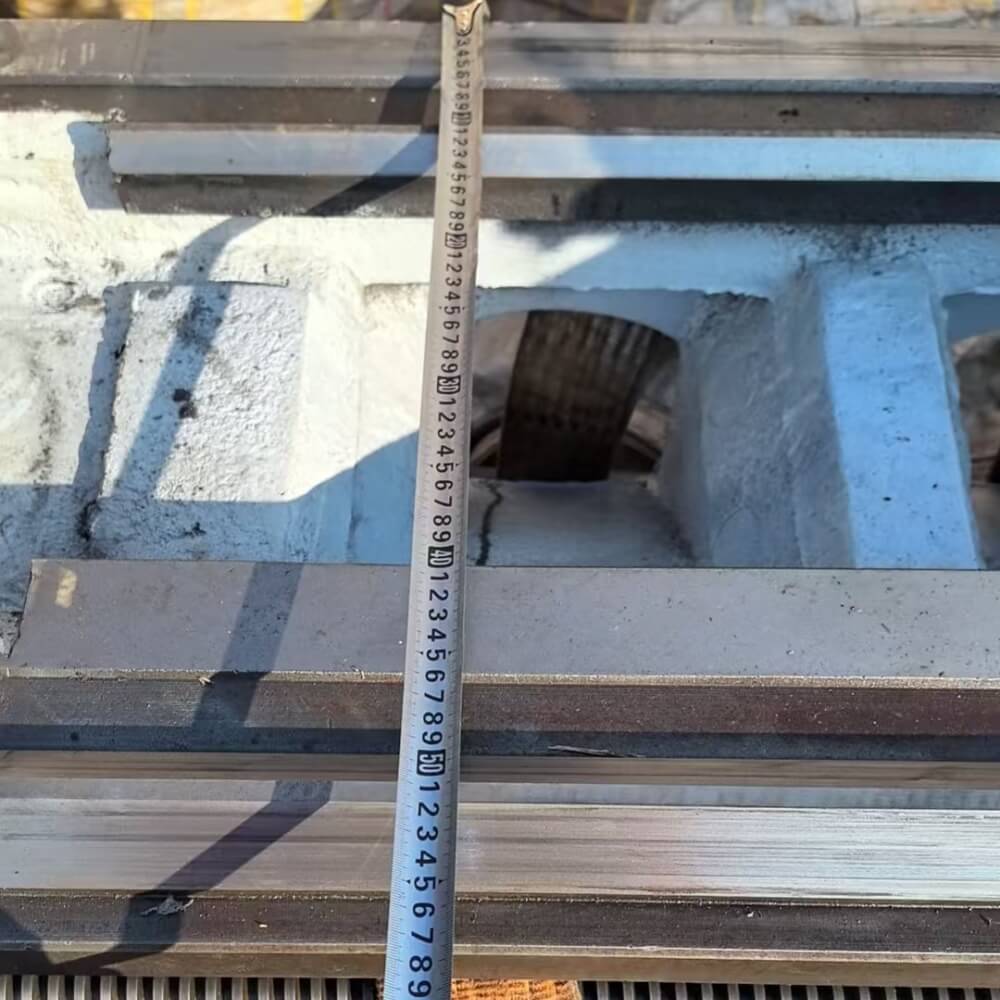

  • Bed guide width: 600mm
  • Max. load capacity between centers: 3000kg
  • Thread types: Metric, Inch, Module, DP
  • Net weight: Approx. 12000kg
  • Voltage: 380V/50Hz 3-phase (export customizable)
