Shenyang lathe 1.5m CA6261B/A
Core Application Scenarios

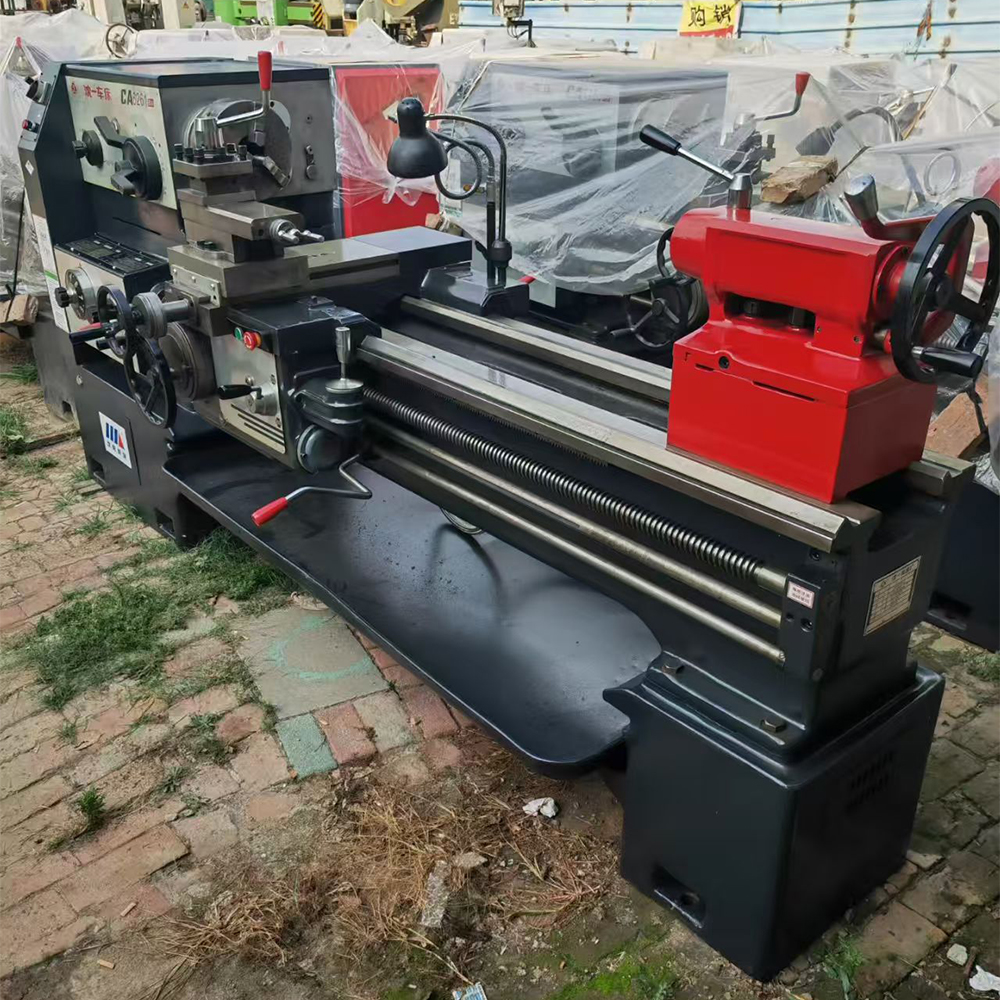

The Shenyang 1.5m CA6261B/A is a heavy-duty horizontal lathe, produced by Shenyang Machine Tool. With 1500mm turning length, it’s suitable for medium and large workpieces, widely used in machinery manufacturing, auto parts and shaft processing industries.
- Suitable for turning inner/outer cylindrical surfaces, end faces, threads and grooves of carbon steel, alloy steel and cast iron.
- 1.5m turning length meets the needs of medium-length workpieces such as shafts and sleeves.
- Stepless speed regulation and stable spindle operation ensure high processing accuracy and smooth surfaces.
- Sturdy structure, easy to operate, suitable for single-piece and small-batch workshop production.
Batch Advantages of Equipment
- 1.5m turning length, suitable for most medium-length workpiece processing needs.
- High precision and stability, with Shenyang brand quality assurance and low failure rate.
- Heavy-duty design, strong rigidity, able to bear medium and heavy cutting tasks.
- Cost-effective: Used equipment with good condition, only 30%-50% of new models’ cost, suitable for small and medium enterprises.
Original price was: 4,500.00$.4,000.00$Current price is: 4,000.00$.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | CA6261B/A | Place of Origin (产地) | China (Shenyang) |
| Machine Type (机床类型) | Heavy-Duty Horizontal Lathe (重型卧式车床) | Brand Name (品牌) | Shenyang (沈阳机床) |
| Max. Turning Diameter (最大加工直径) | 610mm (床身上) / 320mm (刀架上) | Max. Turning Length (最大加工长度) | 1500mm (1.5m) |
| Spindle Speed (主轴转速) | 10-1250rpm (无级调速) | Spindle Bore (主轴通孔直径) | 105mm |
| Spindle Taper (主轴锥度) | MT8 | Feeding Speed (进给速度) | 0.03-1.8mm/r |
| Motor Power (电机功率) | 11kW | Working Table Size (工作台尺寸) | 630×180mm |
| Overall Dimensions (外形尺寸) | 3200×1400×1800mm | Net Weight (净重) | Approx. 3800kg |
| Condition (状态) | Used, Good Working Condition | Warranty (质保) | 3 Months (Parts Only) |
