Shenyang lathe 3m CW6180B
Shenyang lathe 3m CW6180B
Core Application Scenarios

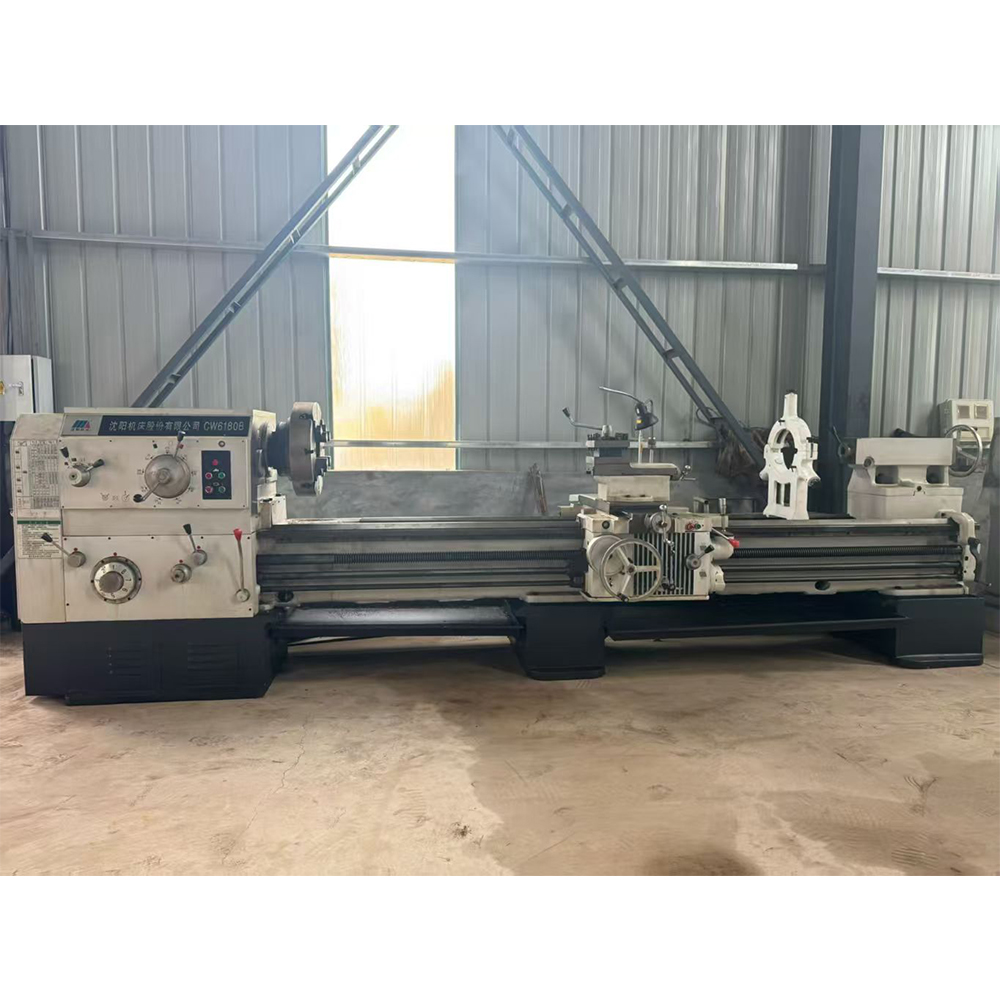

The Shenyang 3m CW6180B is a heavy-duty horizontal lathe, produced by Shenyang Machine Tool. With 3000mm turning length, it’s suitable for large and medium-long workpieces, widely used in machinery manufacturing, auto parts and large shaft processing industries.
- Suitable for turning inner/outer cylindrical surfaces, end faces, threads and steps of carbon steel, alloy steel and cast iron.
- 3m turning length meets the needs of medium-long workpieces such as shafts, sleeves and flanges.
- Stepless speed regulation and stable spindle operation ensure high processing accuracy and smooth surfaces.
- Sturdy structure, easy to operate, suitable for single-piece and batch production in workshops.
Batch Advantages of Equipment
- 3m turning length, suitable for most medium-long workpiece processing needs.
- High precision and stability, with Shenyang brand quality assurance and low failure rate.
- Heavy-duty design, strong rigidity, able to bear medium-heavy cutting tasks.
- Cost-effective: Used equipment with good condition, only 30%-50% of new models’ cost, suitable for small and medium enterprises.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | CW6180B | Place of Origin (产地) | China (Shenyang) |
| Machine Type (机床类型) | Heavy-Duty Horizontal Lathe (重型卧式车床) | Brand Name (品牌) | Shenyang (沈阳机床) |
| Max. Turning Diameter (最大加工直径) | 800mm (床身上) / 400mm (刀架上) | Max. Turning Length (最大加工长度) | 3000mm (3m) |
| Spindle Speed (主轴转速) | 10-1250rpm (无级调速) | Spindle Bore (主轴通孔直径) | 80mm |
| Spindle Taper (主轴锥度) | MT6 | Feeding Speed (进给速度) | 0.02-1.5mm/r |
| Motor Power (电机功率) | 11kW | Working Table Size (工作台尺寸) | 820×150mm |
| Overall Dimensions (外形尺寸) | 4800×1400×1800mm | Net Weight (净重) | Approx. 5200kg |
| Condition (状态) | Used, Good Working Condition | Warranty (质保) | 3 Months (Parts Only) |
