Shenyang lathe 5-meter CW62125B
Shenyang lathe 5-meter CW62125B
Core Application Scenarios

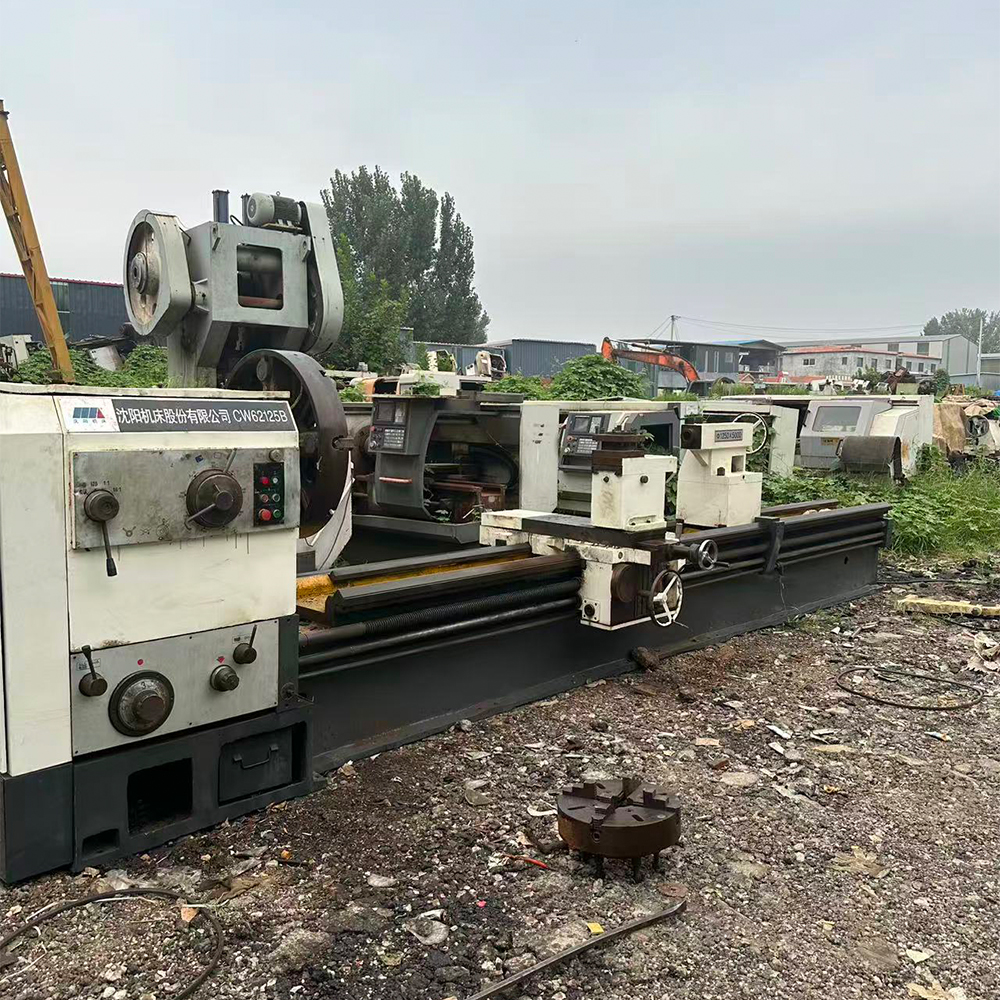

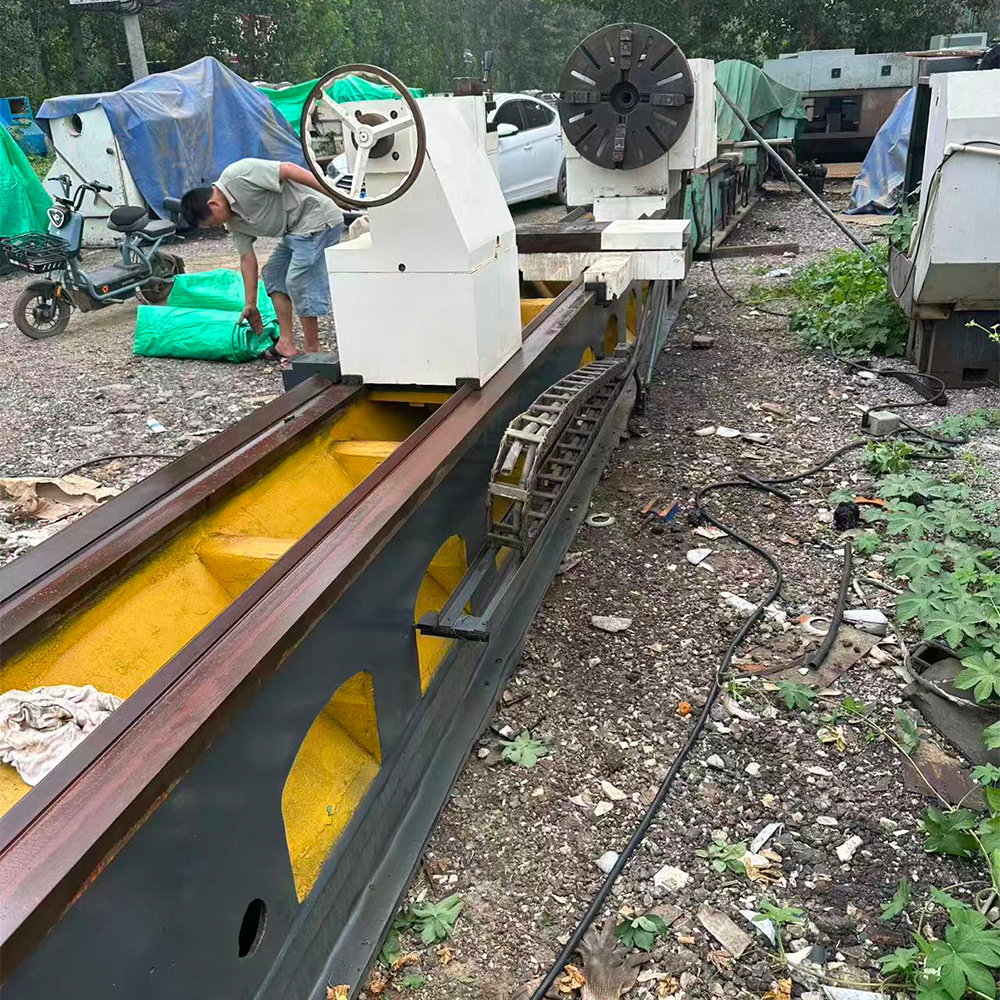

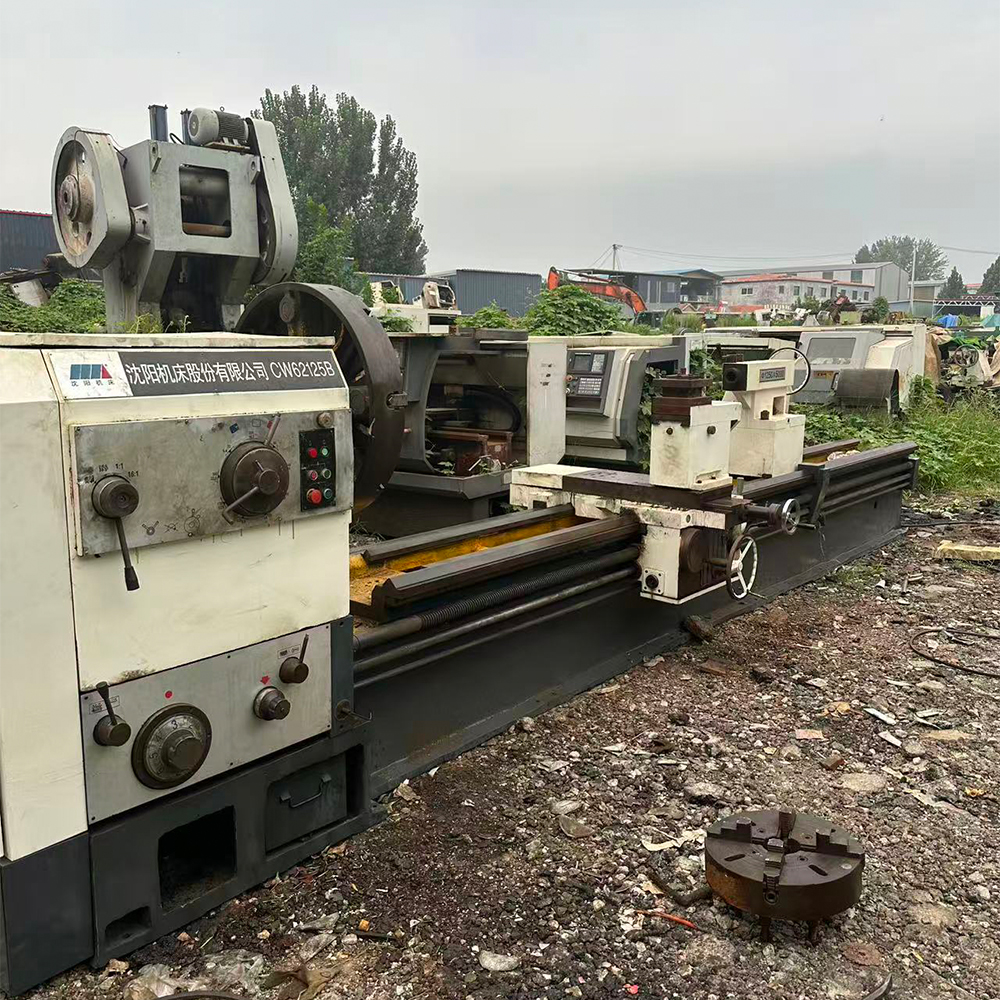

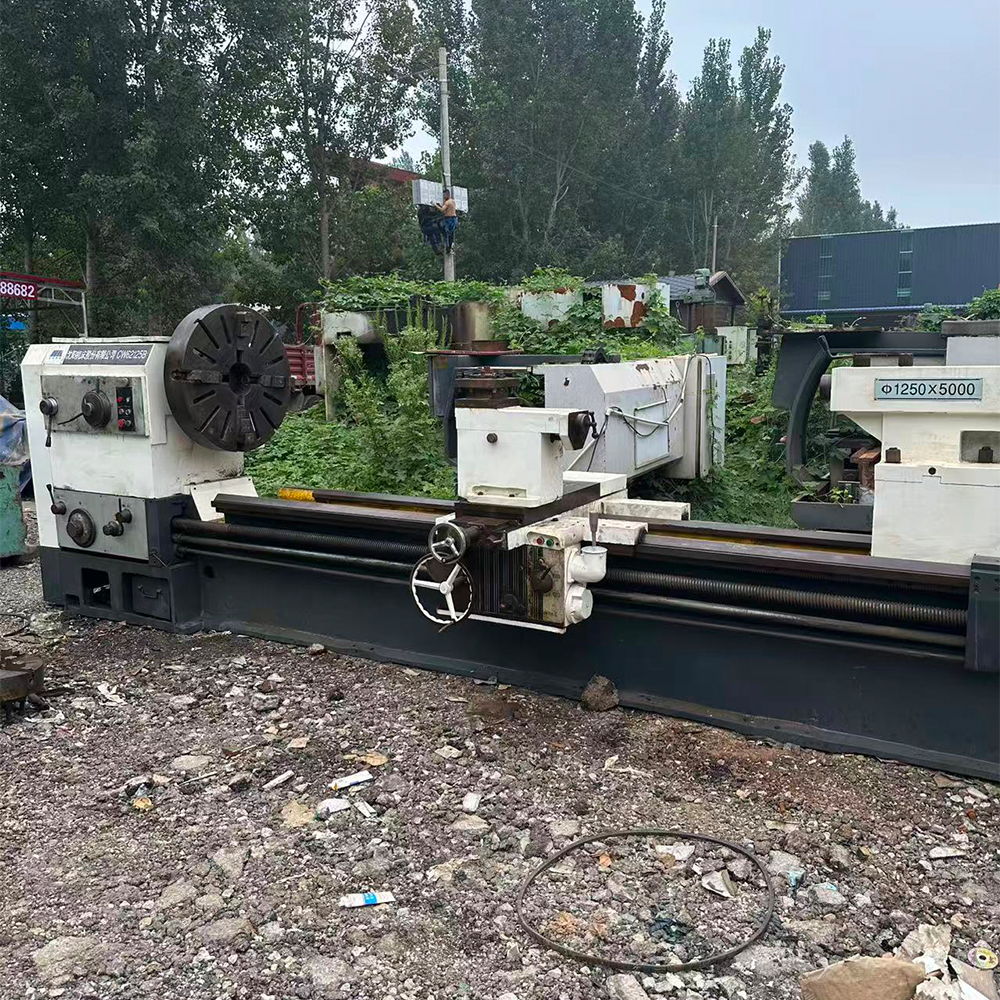

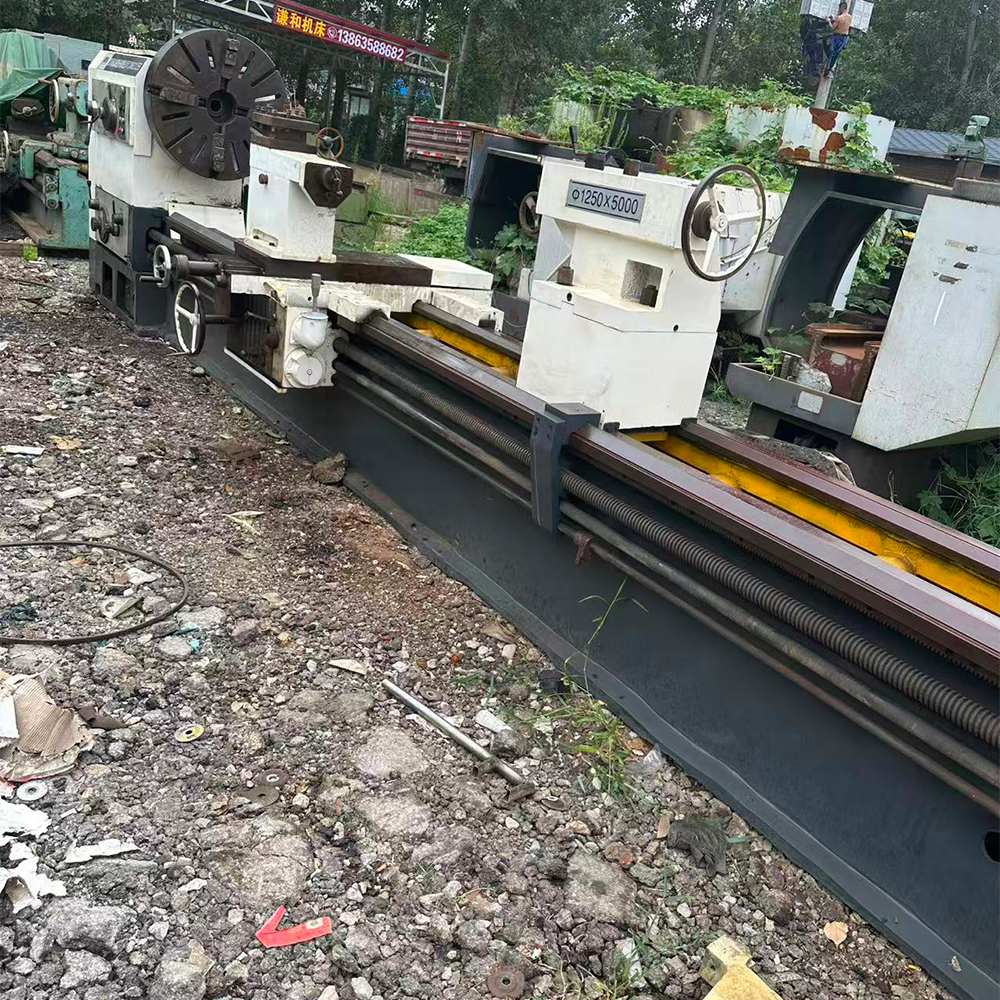

The Shenyang 5-meter CW62125B is a heavy-duty horizontal lathe, produced by Shenyang Machine Tool. With 5000mm turning length, it’s suitable for large and long workpieces, widely used in heavy machinery, shipbuilding and large shaft processing industries.
- Suitable for turning inner/outer cylindrical surfaces, end faces, threads and grooves of carbon steel, alloy steel and cast iron.
- 5-meter turning length meets the needs of long workpieces such as large shafts and sleeves.
- Stepless speed regulation and stable spindle operation ensure high processing accuracy and smooth surfaces.
- Sturdy heavy-duty structure, easy to operate, suitable for batch production and heavy-duty cutting.
Batch Advantages of Equipment
- 5-meter extra-long turning length, suitable for large and long workpiece processing needs.
- High precision and stability, with Shenyang brand quality assurance and low failure rate.
- Heavy-duty design, strong rigidity, able to bear heavy cutting tasks and long-time operation.
- Cost-effective: Used equipment with good condition, only 30%-50% of new models’ cost, suitable for enterprises needing long lathe processing.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | CW62125B | Place of Origin (产地) | China (Shenyang) |
| Machine Type (机床类型) | Heavy-Duty Horizontal Lathe (重型卧式车床) | Brand Name (品牌) | Shenyang (沈阳机床) |
| Max. Turning Diameter (最大加工直径) | 1250mm (床身上) / 630mm (刀架上) | Max. Turning Length (最大加工长度) | 5000mm (5-meter) |
| Spindle Speed (主轴转速) | 8-1000rpm (无级调速) | Spindle Bore (主轴通孔直径) | 125mm |
| Spindle Taper (主轴锥度) | MT8 | Feeding Speed (进给速度) | 0.03-2.0mm/r |
| Motor Power (电机功率) | 18.5kW | Working Table Size (工作台尺寸) | 1280×200mm |
| Overall Dimensions (外形尺寸) | 7200×1800×2200mm | Net Weight (净重) | Approx. 9500kg |
| Condition (状态) | Used, Good Working Condition | Warranty (质保) | 3 Months (Parts Only) |
