Used Milling Machines
Basic Attributes and Positioning

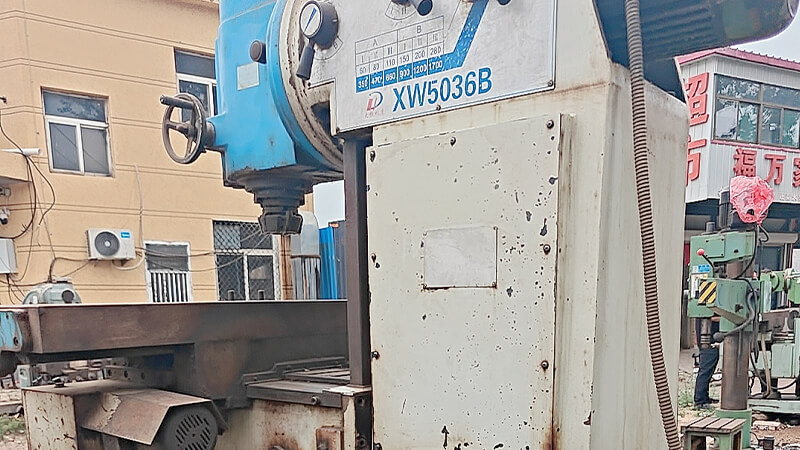

XW5036B is a vertical knee-type milling machine with stable performance and strong versatility. It is widely used in industries such as mechanical processing, mold manufacturing, and instrumentation. It is particularly suitable for processing small and medium-sized parts, including operations like planar milling, bevel milling, groove machining, step processing, and hole system machining. It can meet the needs of single-piece production, small-batch production, and maintenance processing.
Its structural design balances rigidity and operational flexibility, making it suitable for milling various metal materials such as steel, cast iron, and non-ferrous metals.
2,500.00$
Core Parameters and Performance Indicators
1 Basic Parameters
◦ Equipment weight: 2200kg or 2300kg (slightly different due to configuration)
◦ Main motor power: 4kW, with stable power output, capable of driving various milling cutters for efficient operation
◦ Spindle speed: 60-1700rpm, supporting 12-speed transmission, suitable for different tools and processing material requirements
◦ Worktable specification: 700×320mm, with moderate load-bearing capacity, meeting the placement needs of small and medium-sized parts
◦ Spindle taper hole: adopting M4 taper, compatible with standard milling cutter arbors, featuring convenient assembly/disassembly and accurate positioning
◦ T-slots: 3 in total, used for fixing workpieces or fixtures, with slot width and spacing conforming to general standards
2. Feed and Movement Parameters
◦ X and Y axes (worktable transverse and longitudinal directions): adopting gear-driven automatic feed with 8-speed transmission; feed speed is adjustable to adapt to different processing rhythms
◦ Z axis (vertical direction of the knee): electric lifting, enabling labor-saving operation and high positioning accuracy
◦ Guideway performance: X, Y, and Z axis guideway pairs undergo ultra-audio frequency quenching and precision grinding, featuring high hardness and strong wear resistance, ensuring precision stability after long-term useDon’t miss your opportunity-our best machines go fast.
