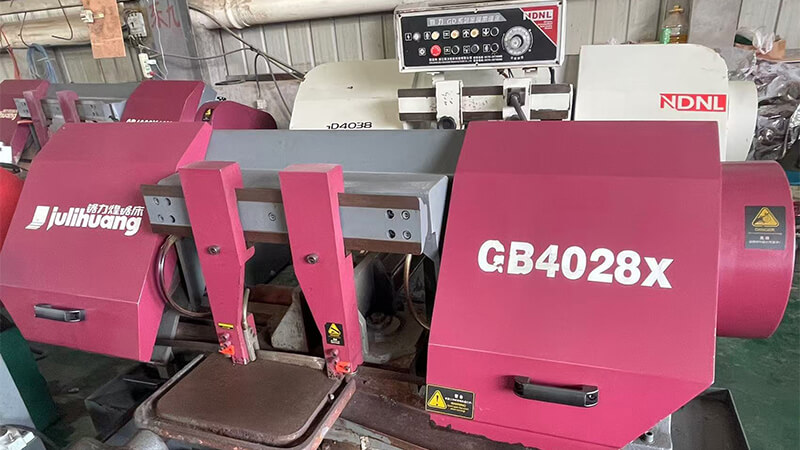

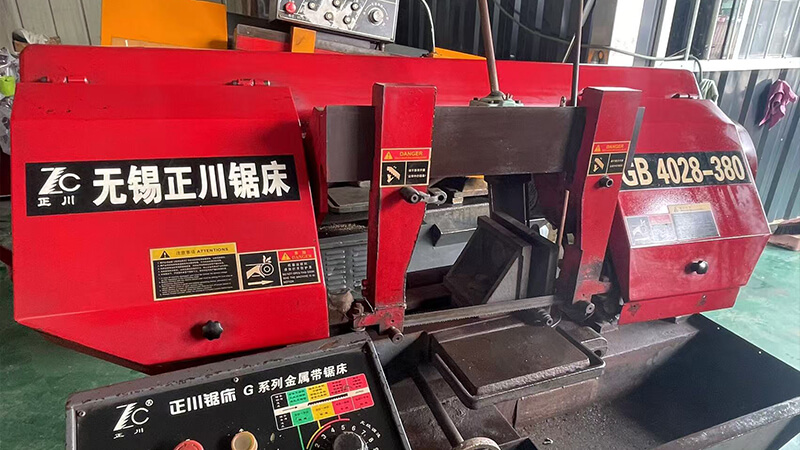

Used sawing machine GB4028
GB4028 Scissor type band saw machine, cutting circular 280mm. Cut a square with a width of 380mm. Height 220mm，Chinese and English panel design, easy to operate, hydraulic infinite speed regulation,Using branded electrical appliances. Label the line number for easy maintenance and repair，Composed of 1 hydraulic motor, 1 oil pump, 1 speed control valve, multiple solenoid valves, etc.GB4028 sawing machine adopts horizontal structure, which is in line with the conventional operation mode of metal band sawing machine. It mainly uses the high-speed movement of the band saw blade to cut metal materials. It can not only saw various metal materials such as carbon steel, alloy steel and non-ferrous metals, but also saw some non-metal materials with higher hardness. The overall structure of the machine is made of cast iron, which has good rigidity and can reduce the vibration during sawing, thus ensuring the sawing accuracy.
Structural features
- Bed and Column: The bed is the basic component of the sawing machine, which is made of high-quality cast iron and has been aged to eliminate internal stress, ensuring that it is not easy to deform during long-term use. The double-column structure is adopted, which has good stability and can provide strong support for the sawing process.
- Saw Frame and Band Saw Blade Guide Device: The saw frame is used to install the band saw blade, and its lifting and feeding are controlled by the hydraulic system. The band saw blade guide device is composed of guide blocks or guide wheels, which can ensure that the band saw blade runs stably during sawing, reduce the swing of the saw blade and improve the sawing accuracy and the service life of the saw blade.
- Hydraulic System: It is an important part to realize the clamping of workpieces, the lifting of saw frame and the feeding of sawing. The hydraulic clamping can firmly fix the workpiece to prevent the workpiece from moving during sawing and ensure the safety of sawing. The hydraulic feeding is stable, which can adjust the feeding speed according to the material and size of the workpiece.
1,800.00$
The metal band sawing machine is mainly used for sawing carbon structural steels, low alloy steels, high alloy steels, special alloy steels, and stainless steels, acid-resistant steels, and other metal materials. It is suitable for the cutting of square,round, and various shapes of ferrous metals. Can also be used to cut non-ferrous metals and non-metallic materials.
Besides vertical sawing functions, the working tabel of the machine can rotate at an angle of 0-45,to achieve material angle cutting.Hydraulic control saw feeding.Band saw blades and carbide rolling bearing guide.
| Specifications | GB4028 |
| Max.cutting（mm） | ●280 ■220×380 |
| Saw blade size（mm） | 3505x27x0.9 |
| Saw blade speed（m/min） | 27/45/69 |
| Main motor（kw） | 2.2 |
| Hydraulic motor（kw） | 0.55 |
| Dimensions(mm) | 1840x1200x1360mm |
| weight | 750KG |
| Feed Speed | Hydraulic stepless speed regulation, general range: 2-60mm/min |
| Overall Dimensions | Approximately 1800mm×800mm×1500mm (length × width × height, may vary slightly by manufacturer) |
