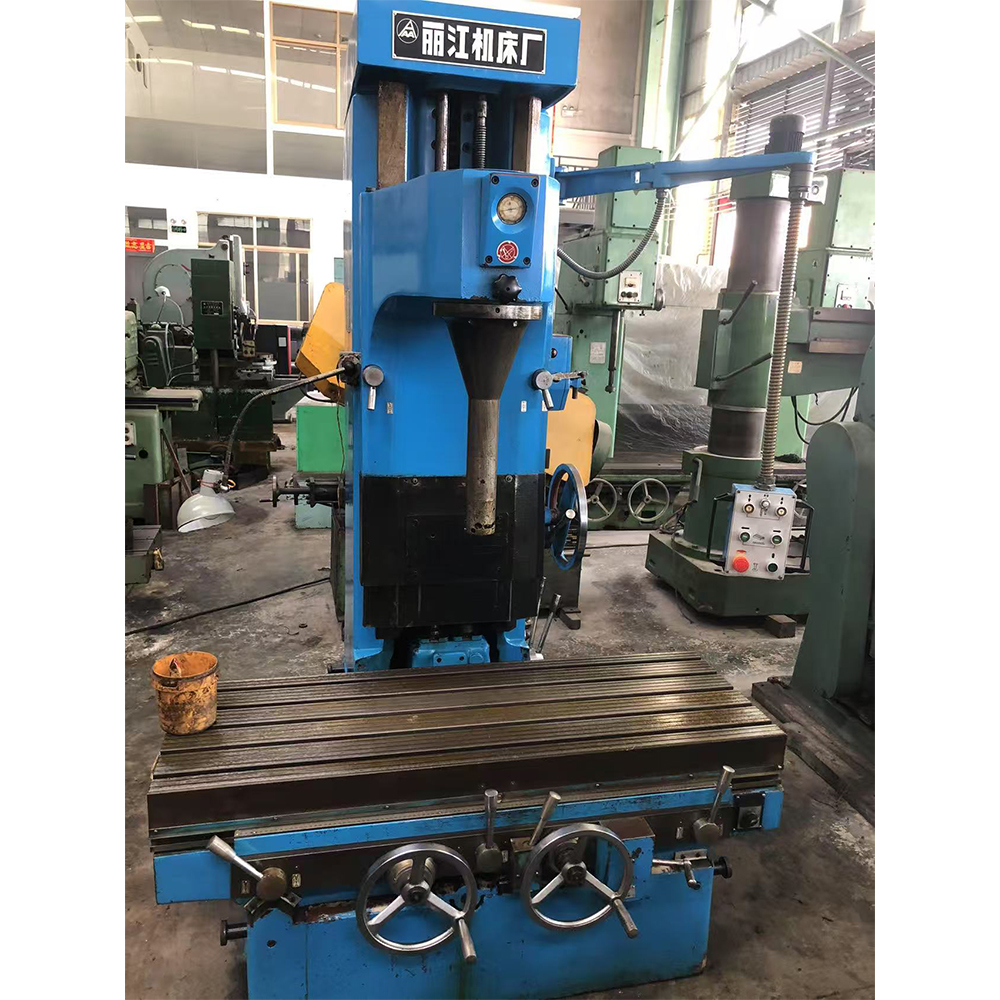

Vertical precision boring and milling machine T7220C
Vertical precision boring and milling machine T7220C
Core Application Scenarios
The T7220C is a high-precision vertical boring and milling machine, suitable for precision processing of medium-sized metal workpieces. It integrates boring, milling, drilling and tapping functions, widely used in machinery manufacturing, mold processing, precision component and auto parts industries.
- Specializes in precision boring, milling and drilling of carbon steel, alloy steel, cast iron and non-ferrous metals, with max boring diameter 200mm.
- High processing accuracy, stable spindle operation, ensuring neat and precise workpiece surfaces and hole sizes.
- Compact structure, flexible operation, adapting to both single-piece precision processing and small-batch production.
- Humanized operation interface, easy to master, suitable for precision processing workshops.
Batch Advantages of Equipment
- High precision: Processing accuracy ≤±0.005mm, meeting the requirements of precision components.
- Multifunctional: Integrates multiple processing functions, reducing the need for multiple machines and saving costs.
- Stable and durable: High-quality cast iron bed, strong rigidity, reducing vibration during precision processing.
- Cost-effective: As used equipment, it costs only 30%-50% of new models, with good working condition, suitable for enterprises pursuing precision processing.
Original price was: 5,000.00$.4,600.00$Current price is: 4,600.00$.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | T7220C | Place of Origin (产地) | China |
| Machine Type (机床类型) | Vertical Precision Boring and Milling Machine (立式精密镗铣床) | Brand Name (品牌) | Chinese Famous Brand |
| Max. Boring Diameter (最大镗孔直径) | 200mm | Spindle Speed (主轴转速) | 50-2500rpm (无级调速) |
| Spindle Taper (主轴锥度) | MT5 | Spindle Stroke (主轴行程) | 300mm |
| Working Table Size (工作台尺寸) | 500×500mm | Table Feeding Speed (工作台进给速度) | 0.05-5mm/r |
| Motor Power (电机功率) | 5.5kW (主轴) + 2.2kW (进给) | Overall Dimensions (外形尺寸) | 1800×1600×2200mm |
| Net Weight (净重) | Approx. 2800kg | Condition (状态) | Used, Good Working Condition |
| Warranty (质保) | 3 Months (Parts Only) | Processing Accuracy (加工精度) | ≤±0.005mm |
