Core Application Scenarios

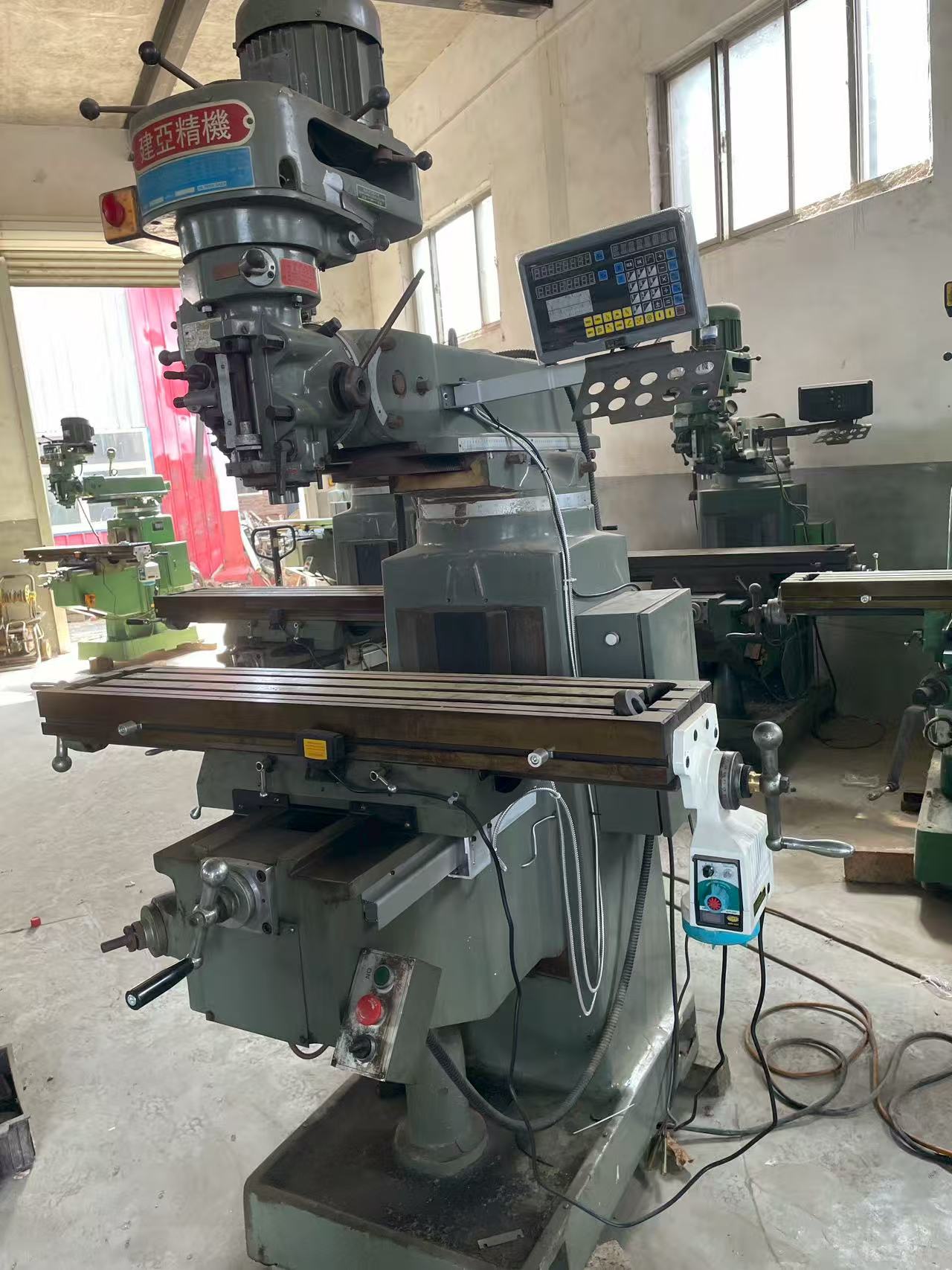

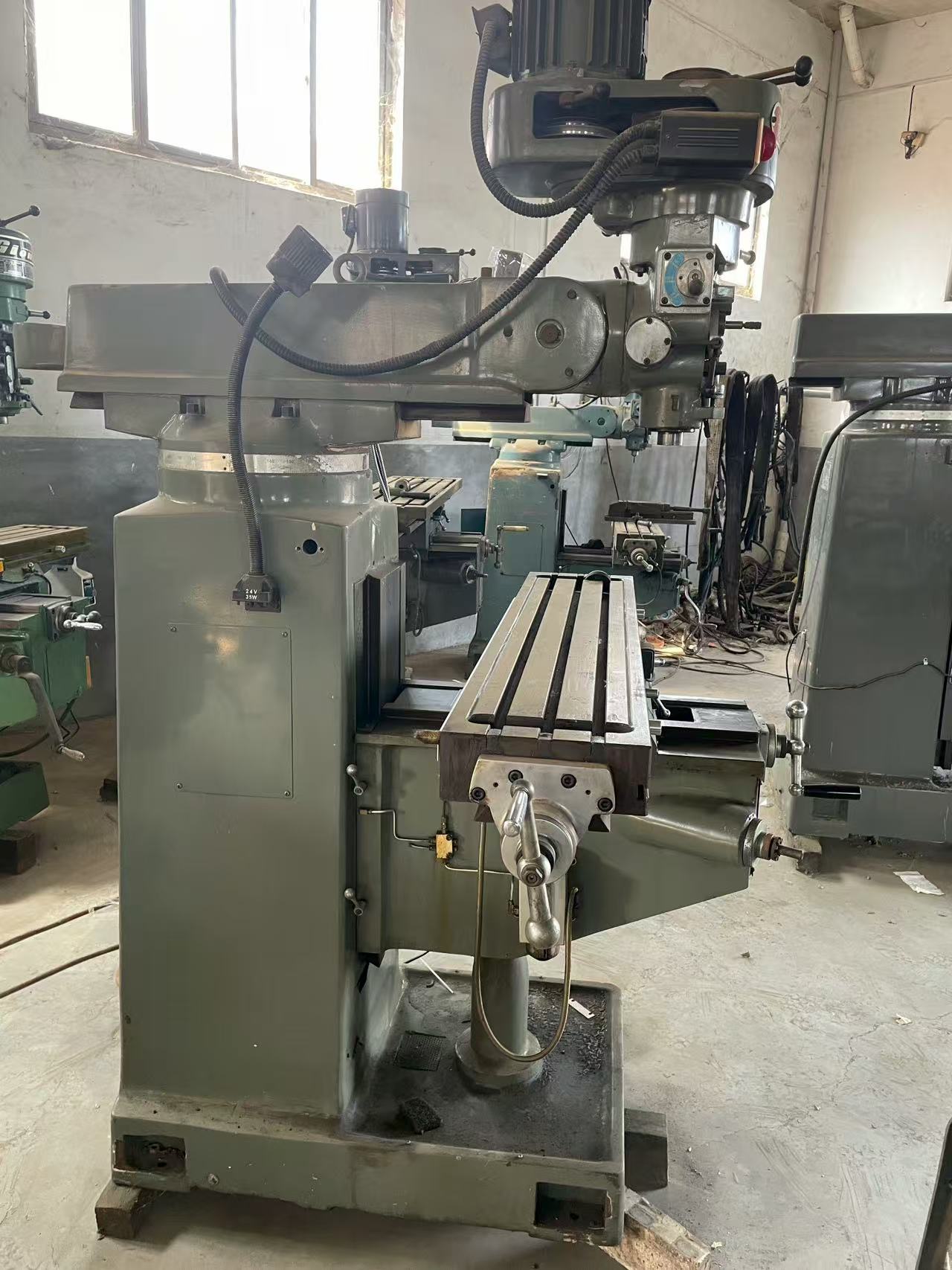

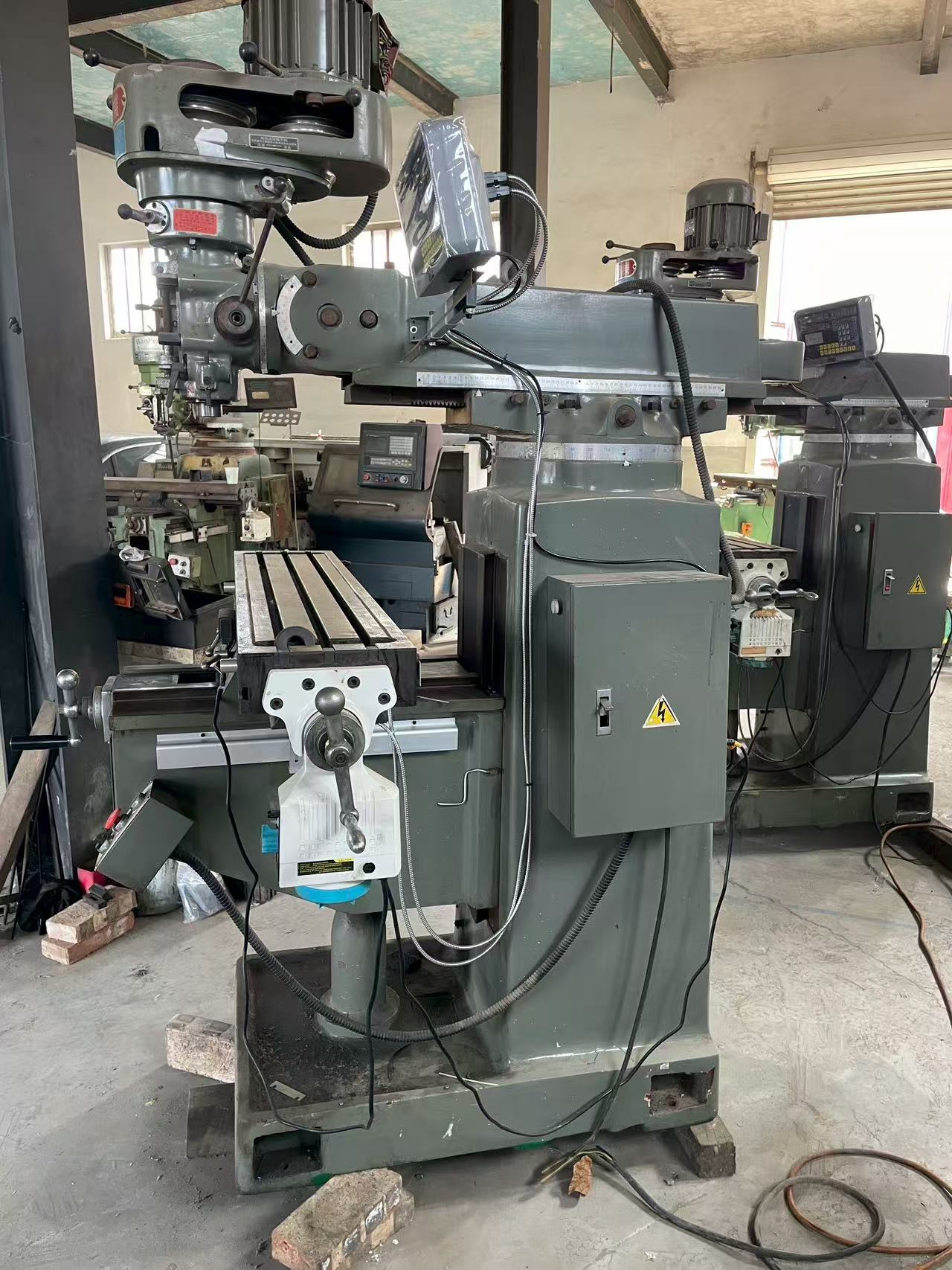

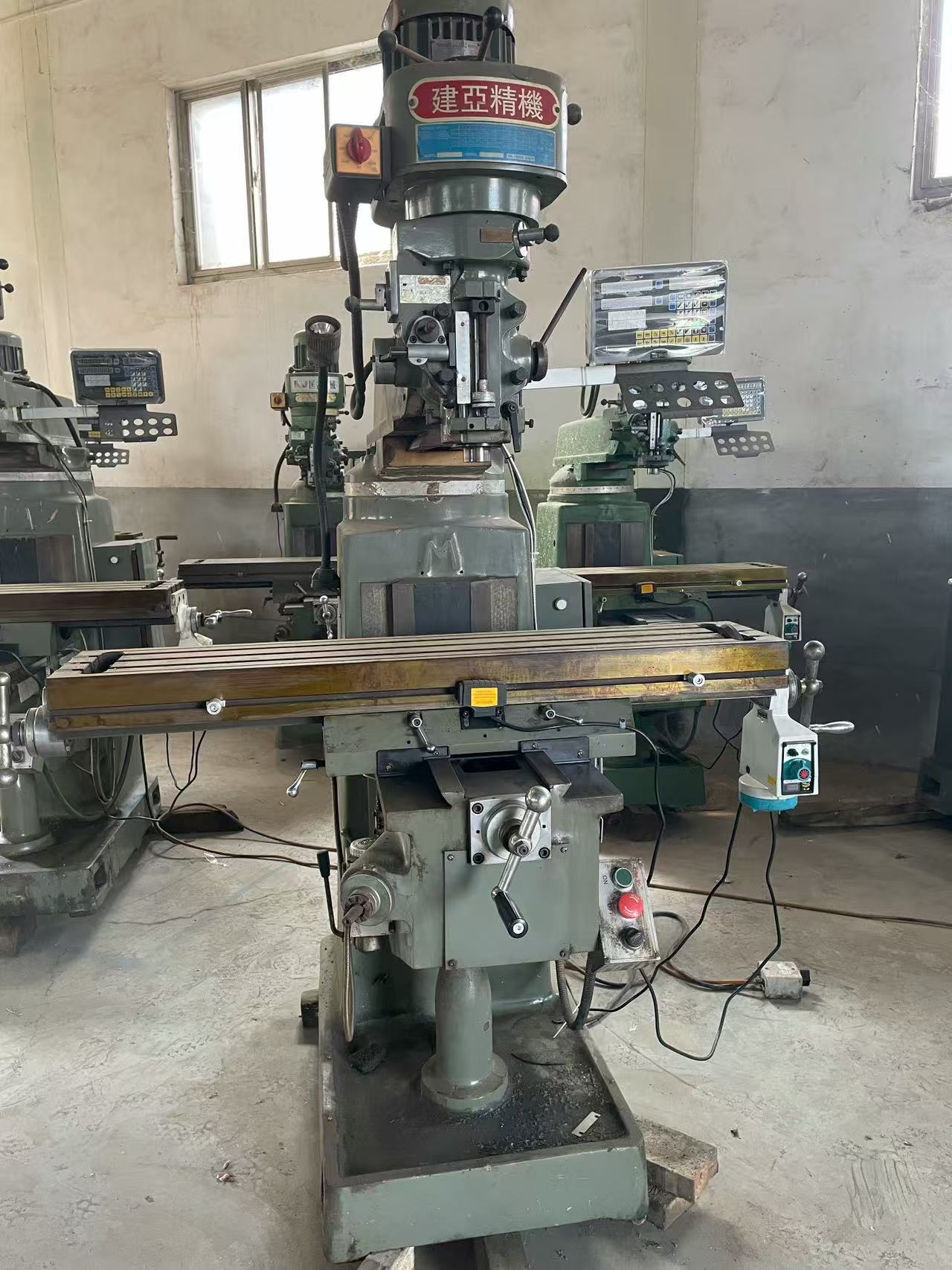

Vertical turret milling machine No.4 is a compact, high-precision, and multi-functional machining equipment, designed for a wide range of metal processing tasks. Its vertical spindle structure and rotatable turret head enable flexible operation, making it an essential tool in small and medium-sized workshops, machinery factories, electronic component manufacturers, and maintenance sites.
Precision Part Machining: The machine excels at milling flat surfaces, slots, grooves, gears, and complex contours on small to medium-sized workpieces. It is widely used for processing precision components such as electronic device housings, mechanical connectors, auto parts (e.g., sensor brackets, small gears), and instrument parts, ensuring tight dimensional tolerances (±0.01mm) and excellent surface finish.
Mold and Die Making: Suitable for machining small mold bases, cavities, cores, and mold inserts. Its flexible turret head and precise feed control allow for accurate processing of complex mold structures, meeting the precision requirements of plastic molds, stamping dies, and die-casting molds.
Hardware and Fastener Production: Ideal for batch processing of hardware parts such as bolts, nuts, shafts, and spacers. It can complete milling, drilling, reaming, and tapping operations in one setup, improving production efficiency and reducing processing costs.
Prototype Development and Small-Batch Production: With its easy setup, quick tool change, and versatile processing capabilities, it is perfect for prototype development of new products and small-batch production. It can adapt to frequent changes in workpiece specifications, shortening the product development cycle.
Maintenance and Repair Work: A valuable tool in maintenance workshops for repairing and fabricating small mechanical parts, such as replacing worn shafts, gears, and brackets. Its compact size and flexible operation make it suitable for on-site maintenance tasks in limited spaces.
Batch Advantages of Equipment
Compact and Space-Saving Design: The machine features a compact structure with a small footprint, making it suitable for workshops with limited space. It can be easily placed and moved, improving the utilization rate of workshop space.
High Precision and Stability: Adopting a high-quality cast iron bed and column, the machine has strong rigidity and good vibration damping performance. The precision-ground guideways and high-precision spindle bearings ensure stable operation during high-speed cutting, resulting in consistent machining accuracy and long-term reliability.
Flexible and Multi-Functional Operation: The turret head can rotate ±45°, enabling the processing of inclined surfaces and complex angles without repositioning the workpiece. Equipped with a multi-station turret, it can hold multiple tools simultaneously, reducing tool change time and improving processing efficiency. It can also perform drilling, reaming, tapping, and boring operations with appropriate attachments, realizing multi-functional integrated processing.
User-Friendly and Safe Operation: The machine is equipped with an intuitive control panel, clear operation marks, and smooth handwheels for precise adjustment of table movements and spindle speed. Safety features include a spindle guard, emergency stop button, and overload protection, ensuring operator safety. The low noise level (≤70 dB) provides a comfortable working environment.
Cost-Effective Solution for SMEs: As a used vertical turret milling machine, No.4 offers excellent cost performance. It provides the precision and functionality of a new machine at a more economical price, requiring low maintenance costs and easy access to spare parts. It is an ideal investment for small and medium-sized enterprises, individual workshops, and start-ups looking to expand their machining capabilities without large capital expenditure.
