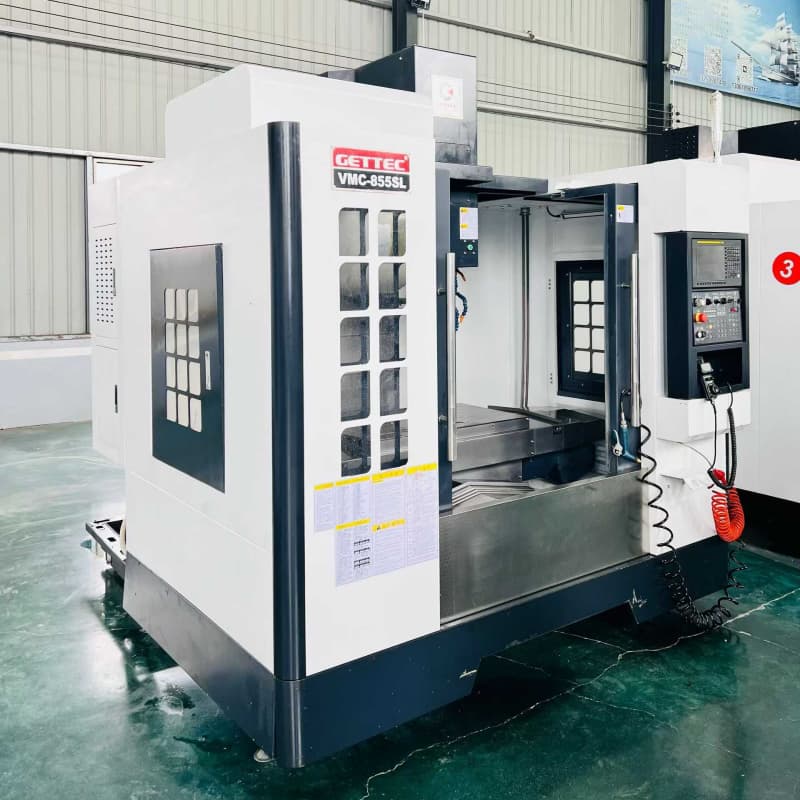

VMC-855SL CNC Vertical Machining Center
- General Machinery Manufacturing: Completes milling, drilling, tapping and boring of medium-sized mechanical parts (e.g., equipment brackets, gearbox housings, connecting plates), realizing integrated processing of complex contours and reducing clamping times.
- Auto & Motorcycle Parts Production: Processes precision components such as engine mounting brackets, chassis structural parts and motorcycle frame accessories, suitable for small-to-medium batch production with strict dimensional consistency requirements.
- Mold & Die Industry: Carries out rough and finish machining of mold bases, injection mold cores and stamping die inserts, with high positioning accuracy ensuring the surface finish and dimensional precision of mold parts.
- Hardware & Instrumentation: Produces precision hardware fittings, instrument casings and electronic component brackets, adapting to flexible production needs of multi-variety, small-batch customized parts.
8,799.00$
| Parameter | Specification |
|---|---|
| Table Size | 800mm × 500mm |
| Maximum Workpiece Weight | 500kg |
| X/Y/Z-axis Travel | 850mm × 550mm × 550mm |
| Spindle Taper | BT40 |
| Spindle Speed Range | 100-12000rpm (stepless variable frequency) |
| Spindle Motor Power | 7.5kW (constant torque) / 11kW (constant power) |
| Tool Magazine Capacity | 24 stations (arm-type automatic tool changer) |
| Tool Change Time (Tool-to-Tool) | ≤2.5s |
| Rapid Traverse Speed (X/Y/Z) | 48m/min / 48m/min / 40m/min |
| Cutting Feed Speed | 1-10000mm/min |
| Positioning Accuracy | ±0.008mm |
| Repeatability Accuracy | ±0.005mm |

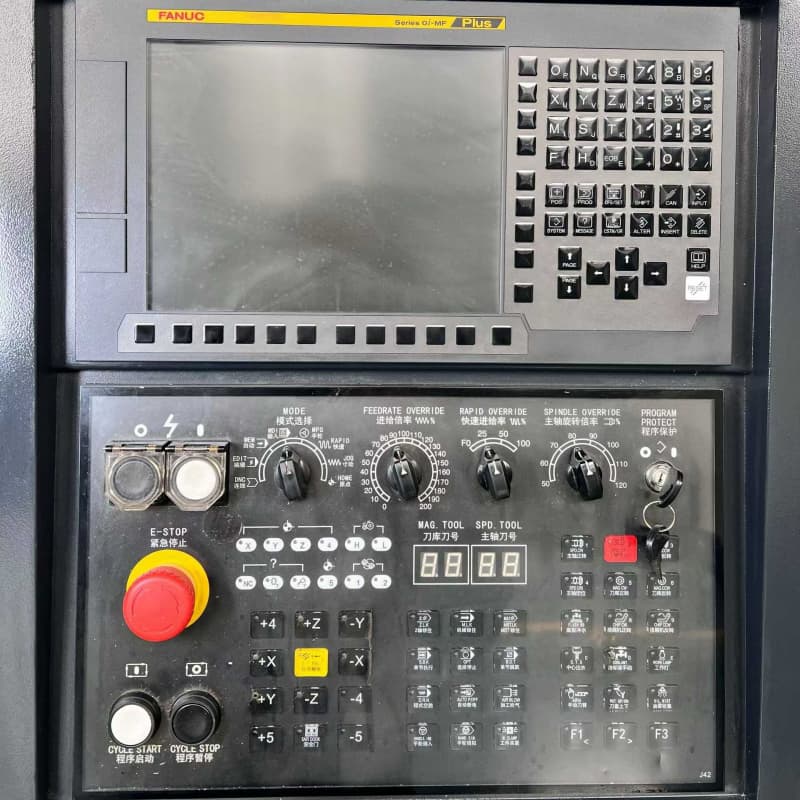

| CNC System | FANUC 0i-MF / SIEMENS 828D / GSK 25i (optional) |
