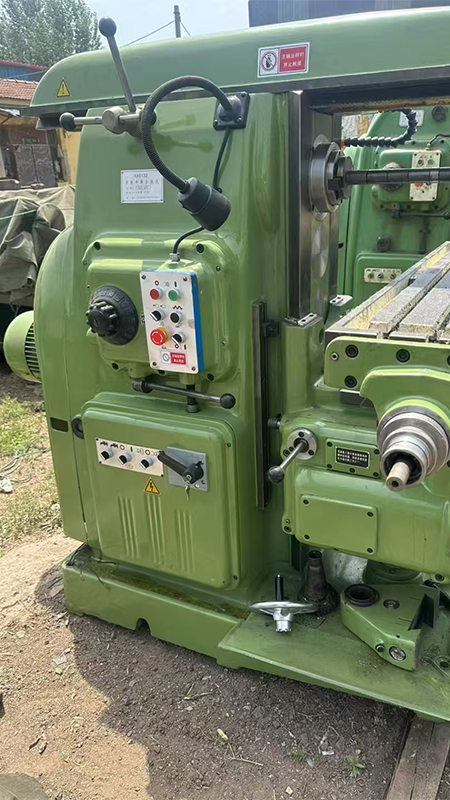

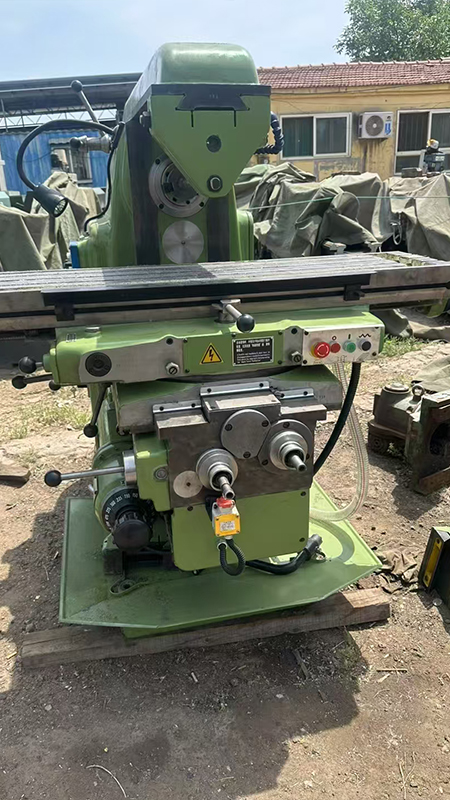

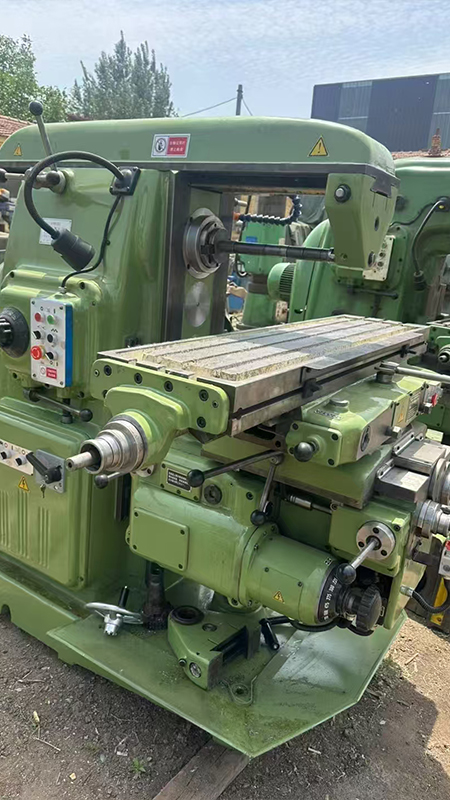

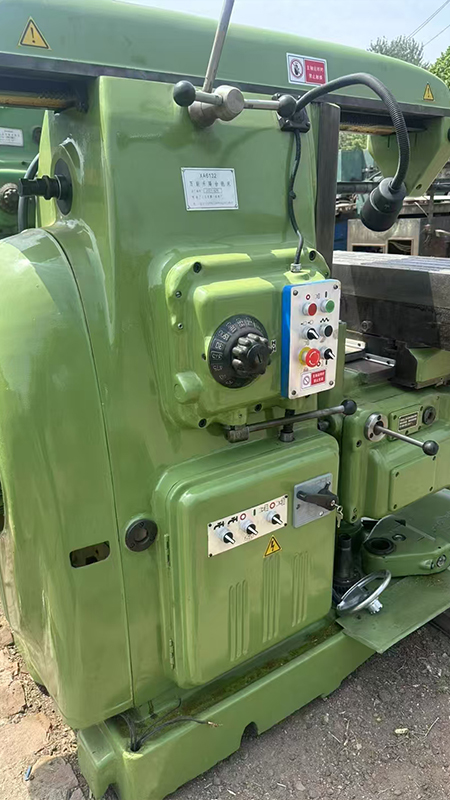

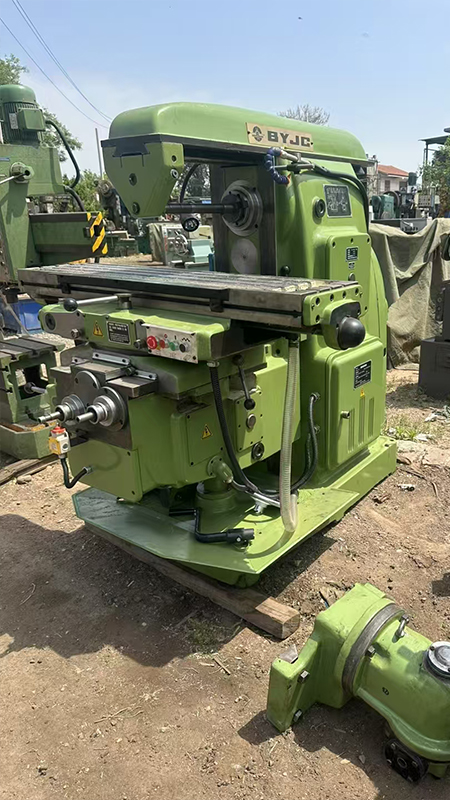

XA6132 universal lifting table milling machine
Core Application Scenarios
The XA6132 is a high-performance universal lifting table milling machine, with flexible adjustment and stable performance. It is widely used in machinery manufacturing, mold processing, auto parts and precision component industries.
- Specializes in milling planes, grooves, gears and steps of carbon steel, cast iron, alloy steel and non-ferrous metals, with max milling width 125mm.
- Universal lifting table design, adjustable angle, suitable for various complex milling tasks and multi-angle processing.
- Manual and auto dual feeding mode, adapting to both single-piece precision processing and small-batch production.
- Smooth spindle operation, high positioning accuracy, ensuring neat and consistent processing surfaces.
Batch Advantages of Equipment
- Flexible and versatile: Universal table adjustment meets different processing angles and complex workpiece requirements.
- High efficiency: Stepless speed regulation adapts to different materials, improving milling efficiency and quality.
- Durable and reliable: High-quality cast iron bed, strong rigidity, not easy to deform, long service life.
- Cost-effective: As used equipment, it costs only 30%-50% of new models, with good working condition, suitable for small and medium enterprises.
Original price was: 4,500.00$.3,500.00$Current price is: 3,500.00$.
| Item (项目) | Specification (规格) | Item (项目) | Specification (规格) |
|---|---|---|---|
| Model Number (型号) | XA6132 | Place of Origin (产地) | China |
| Machine Type (机床类型) | Universal Lifting Table Milling Machine (万能升降台铣床) | Brand Name (品牌) | Chinese Famous Brand |
| Max. Milling Width (最大铣削宽度) | 125mm | Max. Milling Height (最大铣削高度) | 320mm |
| Spindle Speed (主轴转速) | 30-1500rpm (无级调速) | Spindle Taper (主轴锥度) | MT4 |
| Spindle Stroke (主轴行程) | 120mm | Table Feeding Speed (工作台进给速度) | 0.05-3mm/r |
| Working Table Size (工作台尺寸) | 1250×320mm | Lifting Table Stroke (升降台行程) | 320mm |
| Motor Power (电机功率) | 7.5kW | Overall Dimensions (外形尺寸) | 2200×1800×2000mm |
| Net Weight (净重) | Approx. 2800kg | Condition (状态) | Used, Good Working Condition |
| Warranty (质保) | 3 Months (Parts Only) | Feeding Mode (进给方式) | Manual/Auto Dual Mode |
