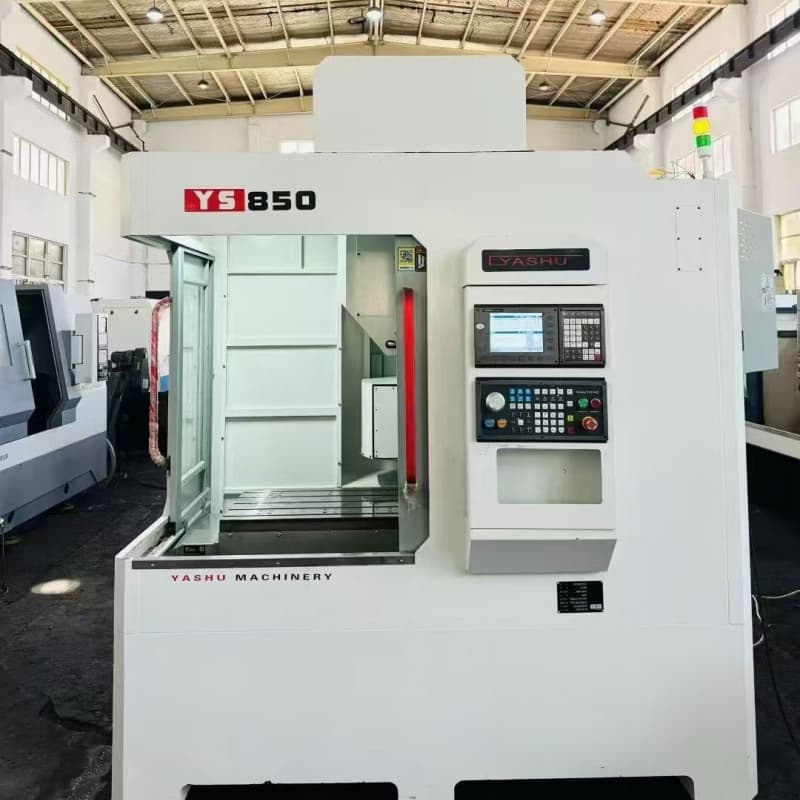

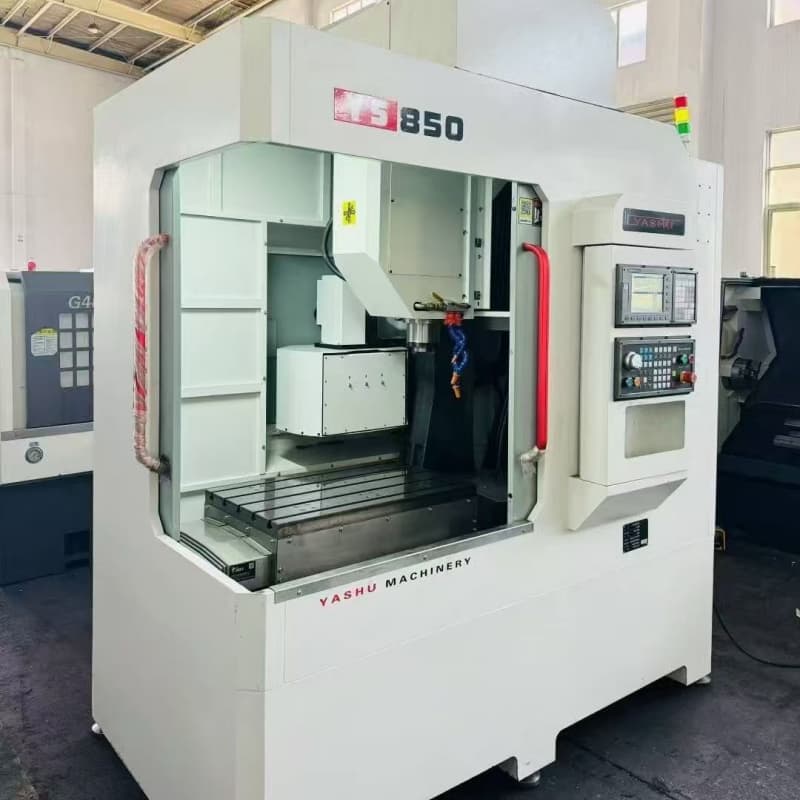

YS850 CNC Machining Center
- General Machinery Manufacturing: Milling, drilling, tapping, and boring of medium-sized mechanical parts (brackets, housings, connecting plates) for industrial equipment, achieving integrated processing of complex shapes.
- Auto/Motorcycle Parts Production: Precision processing of engine brackets, gearbox housings, chassis components, and motorcycle frame parts, suitable for small-to-medium batch production with high consistency requirements.
- Mold & Die Industry: Rough and finish machining of mold bases, injection mold cores, and stamping die inserts, leveraging high positioning accuracy to ensure mold dimensional precision and surface quality.
- Hardware & Instrumentation: Processing of precision hardware fittings, instrument casings, and electronic component brackets, adapting to multi-variety, small-batch flexible production needs.
7,999.00$
| Parameter | Specification |
|---|---|
| Table Size | 800mm × 500mm |
| Maximum Workpiece Weight | 500kg |
| X/Y/Z-axis Travel | 800mm × 500mm × 550mm |
| Spindle Taper | BT40 |
| Spindle Speed Range | 8000-12000rpm (optional 15000rpm) |
| Spindle Motor Power | 7.5kW/11kW (constant torque/constant power) |
| Tool Magazine Capacity | 24/16 stations (arm type tool changer) |
| Tool Change Time | ≤2.5s (tool-to-tool) |
| Rapid Traverse Speed (X/Y/Z) | 48m/min / 48m/min / 40m/min |
| Positioning Accuracy | ±0.008mm |
| Repeatability Accuracy | ±0.005mm |
| CNC System | FANUC 0i-MF / SIEMENS 828D / GSK 25i |
