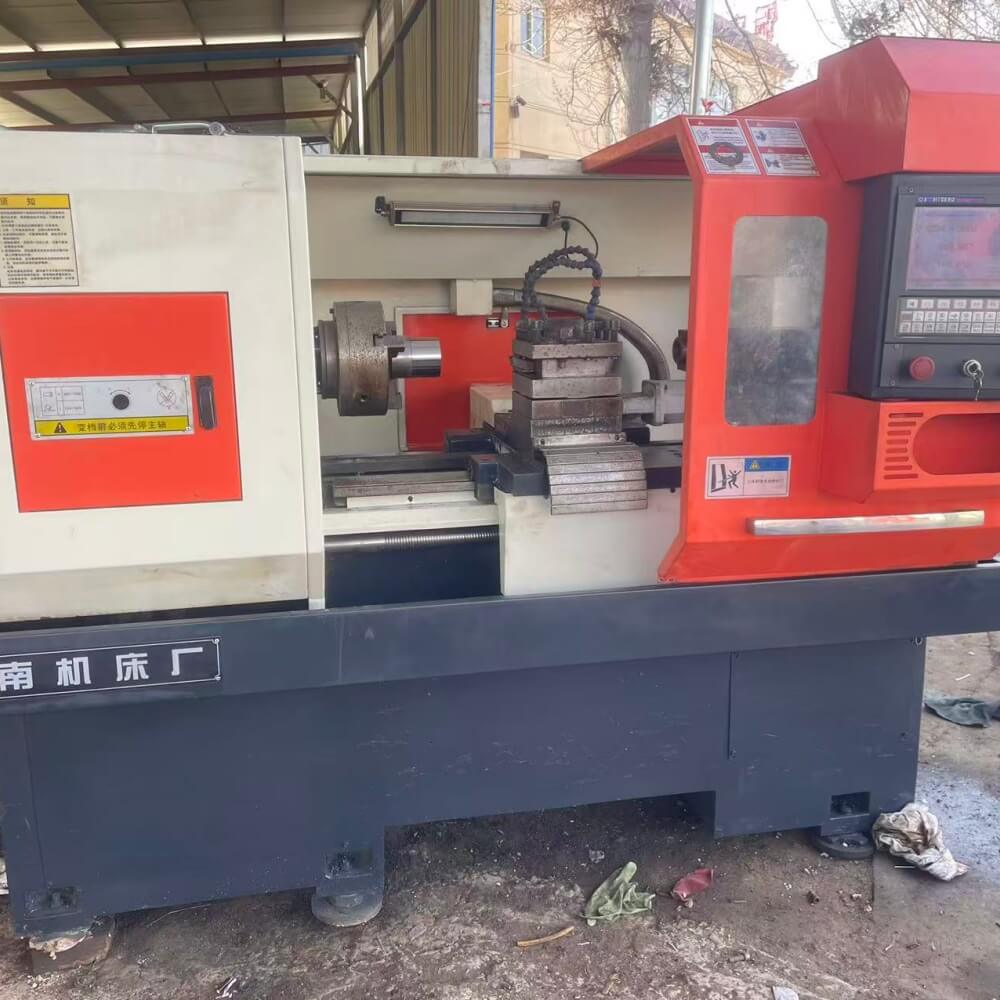

Yunnan CK6150 × 850mm CNC Lathe
Yunnan CK6150 × 850mm CNC Lathe - Image 2
Yunnan CK6150 × 850mm CNC Lathe - Image 3
Yunnan CK6150 × 850mm CNC Lathe - Image 4
Yunnan CK6150 × 850mm CNC Lathe - Image 5
Yunnan CK6150 × 850mm CNC Lathe - Image 6
Yunnan CK6150 × 850mm CNC Lathe - Image 7

Yunnan CK6150 × 850mm CNC Lathe

  • Rigid cast iron bed with hardened & ground guideways, excellent stability
  • High-precision gearbox transmission, strong cutting capability
  • Large 82mm spindle bore for efficient bar feeding
  • Servo motor drive with precision ball screws, high positioning accuracy (≤0.01mm)
  • Full closed protection, safe and clean operation
  • Easy programming and operation, ideal for batch & precision turning

4,400.00$

Whatstaap
Send Email

Main Specifications

  • Max. swing over bed: 500 mm
  • Max. swing over carriage: 290 mm
  • Distance between centers: 850 mm
  • Max. turning length: 850 mm
  • Spindle bore diameter: 82 mm
  • Spindle nose: A2-8 / C6
  • Spindle speed range: 21–1600 r/min (2-speed gear + inverter)
  • Main motor power: 7.5 kW
  • X-axis travel: 280 mm
  • Z-axis travel: 850 mm
  • Rapid traverse (X/Z): 5/8 m/min

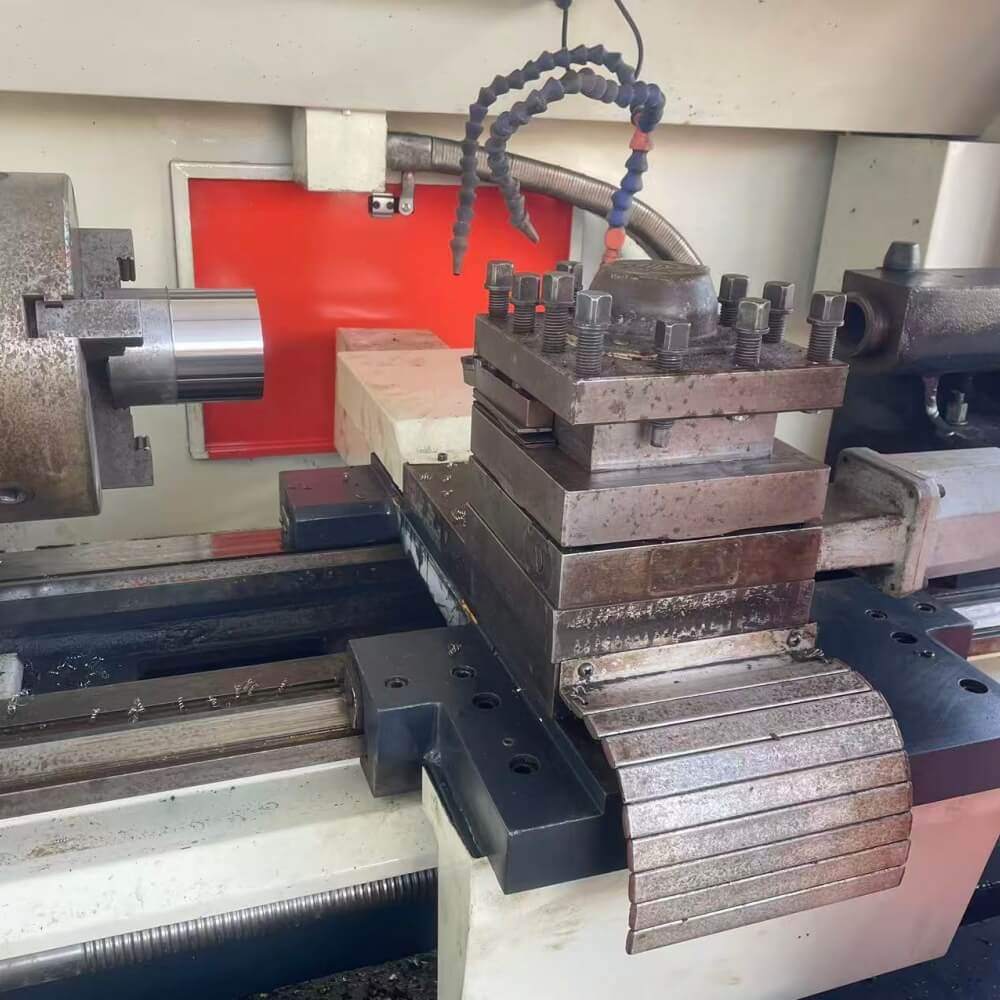

  • Tool post: 4-station electric turret (25×25mm tool shank)

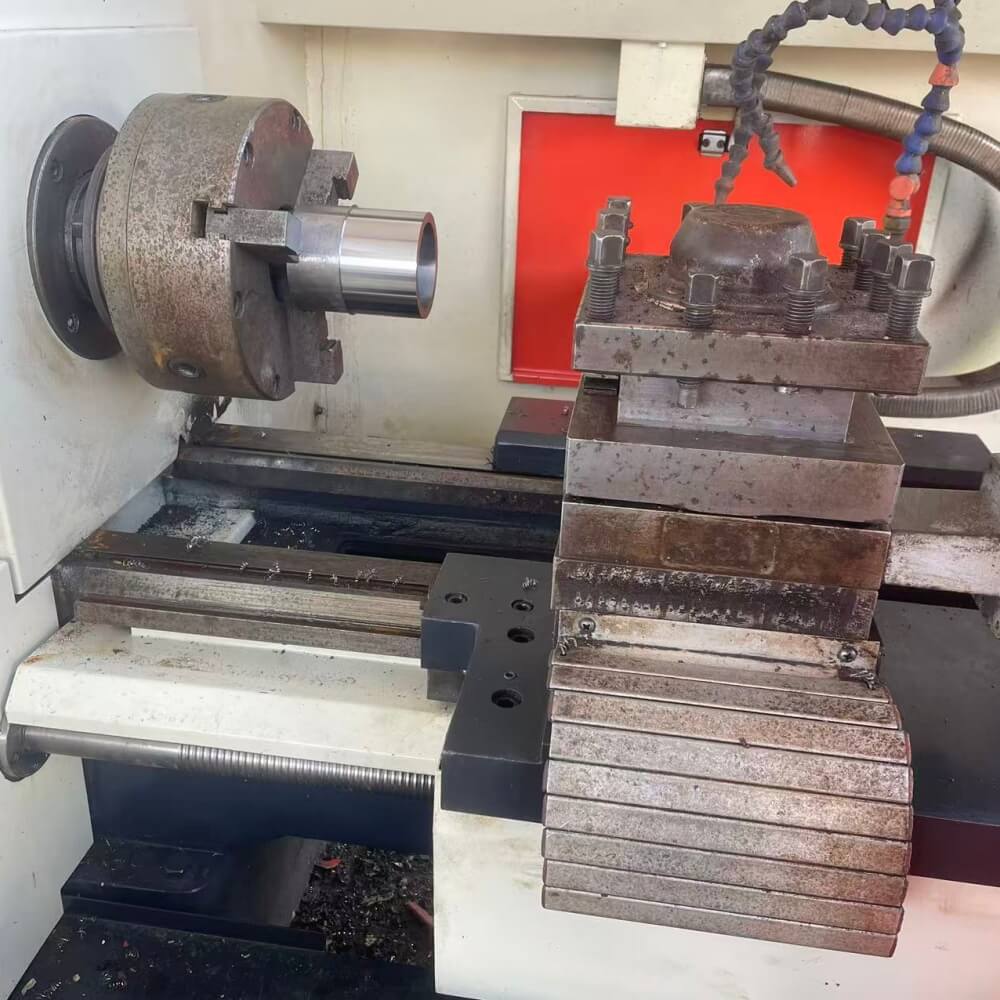

  • Chuck: φ250 mm 3-jaw manual chuck
  • Tailstock: Manual, sleeve taper MT5
  • Bed guide width: 400 mm

Don’t miss your opportunity-our best machines go fast.

🎥 Request a real-time inspection video
📩 Send us your requirement list for matching machines
🧾 Need a quote with shipping cost? Contact us now!
